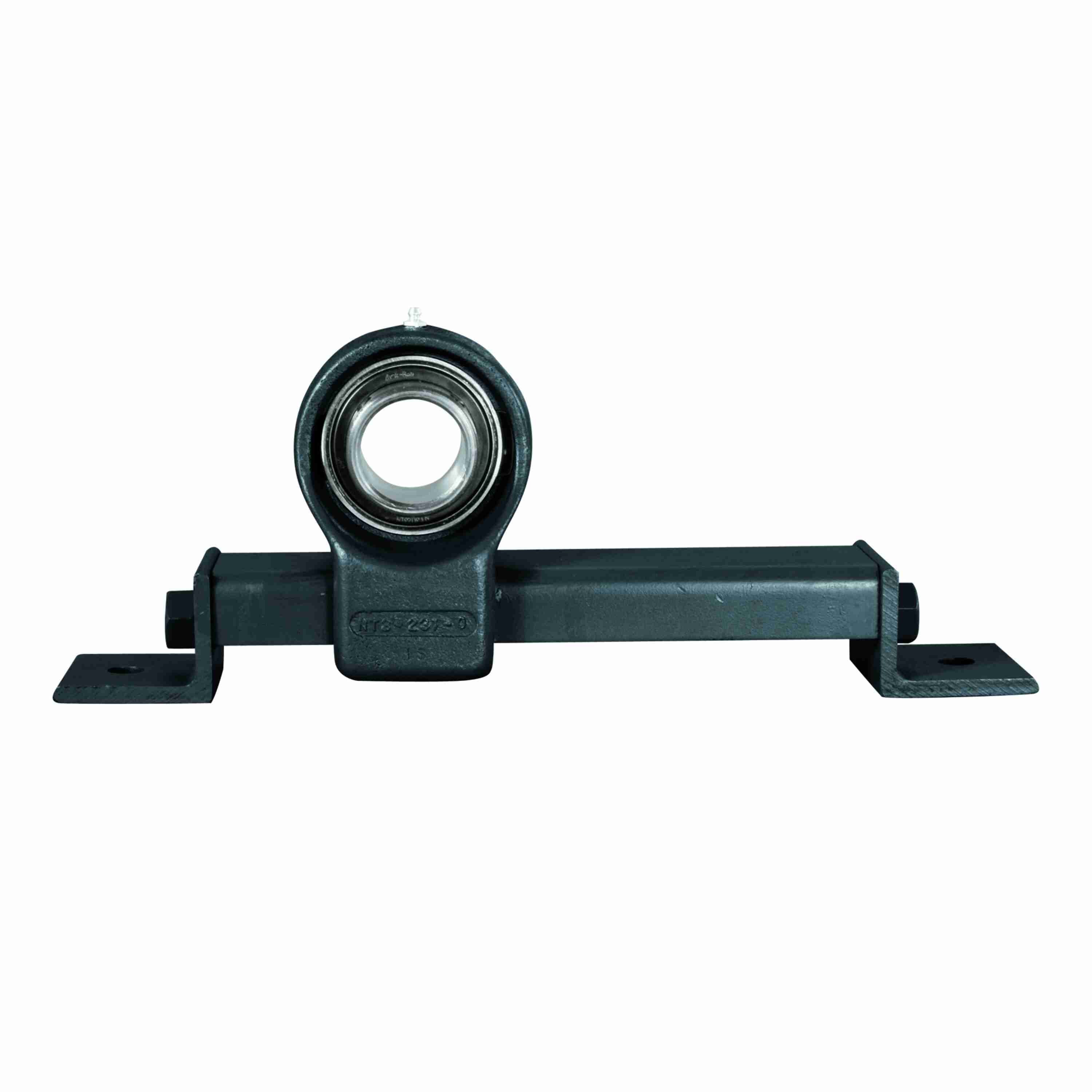

Link-Belt NT3U223N Take-up Blocks Ball Bearings - NT3U223N
Part #:10416967
Catalog #:NT3U223N
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bore Diameter (in): | 1.4375 in |
Technical Specifications
| Housing Type: | Take-Up Block | Cage Material: | Molded fiber glass reinforced nylon |
| Misalignment Type: | Static Only | Rolling Element: | Ball Bearing |
| Housing Construction: | One Piece | Housing Color: | Black |
| Bore Shape: | Straight | Outer Ring Land Profile: | Standard |
| Seal Type: | Single Lip Contact Seal | Housing Style: | Take-Up Block |
| Setscrew Torque (in-lbs): | 165 in/lbs | Ability to Relubricate: | Yes |
| Inner Ring Outside Diameter (in): | 1.847 in | Cage Type: | Ball Riding Retainer |
| Bearing Brand: | LINK-BELT 200 SERIES BALL | Size Code: | 207 |
| Bearing Insert Material: | 52100 Bearing Steel | Lubricant: | Lithium Complex NLGI 2 Grease |
| Vibration Frequency Inner Ring Defect: | 0.0905 cps | Bearing Type: | Standard Duty |
| Misalignment Capability: | ±2.0° Misalignment - Static Only | Vibration Frequency Outer Ring Defect: | 0.0595 cps |
| Fixed vs. Expansion: | Fixed | Maximum Speed (RPM): | 6850 rpm |
| Insert: | UG223NL | Vibration Frequency Fundamental Train: | 0.0067 cps |
| Vibration Frequency Roller Spin: | 0.0383 cps | Grease Fitting Thread Size: | 1/8 NPT |
| Shaft Locking Type: | Set Screw | Radial Clearance: | C3 STANDARD |
| Housing Material: | Cast Iron | Dynamic Load Rating (lb): | 5,810 lb |
| Max Operating Temperature (C): | 107 °C | Max Operating Temperature (F): | 225 °F |
| Housing Coating: | Powder Coated | Static Load Rating (lb): | 3,440 lb |
General Specifications
| UPC: | 662327109042 | Weight: | 4.25 LB |
| Packaged Length: | 5.00 IN | Packaged Width: | 5.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483204040 |
| Country of Origin: | Mexico |
