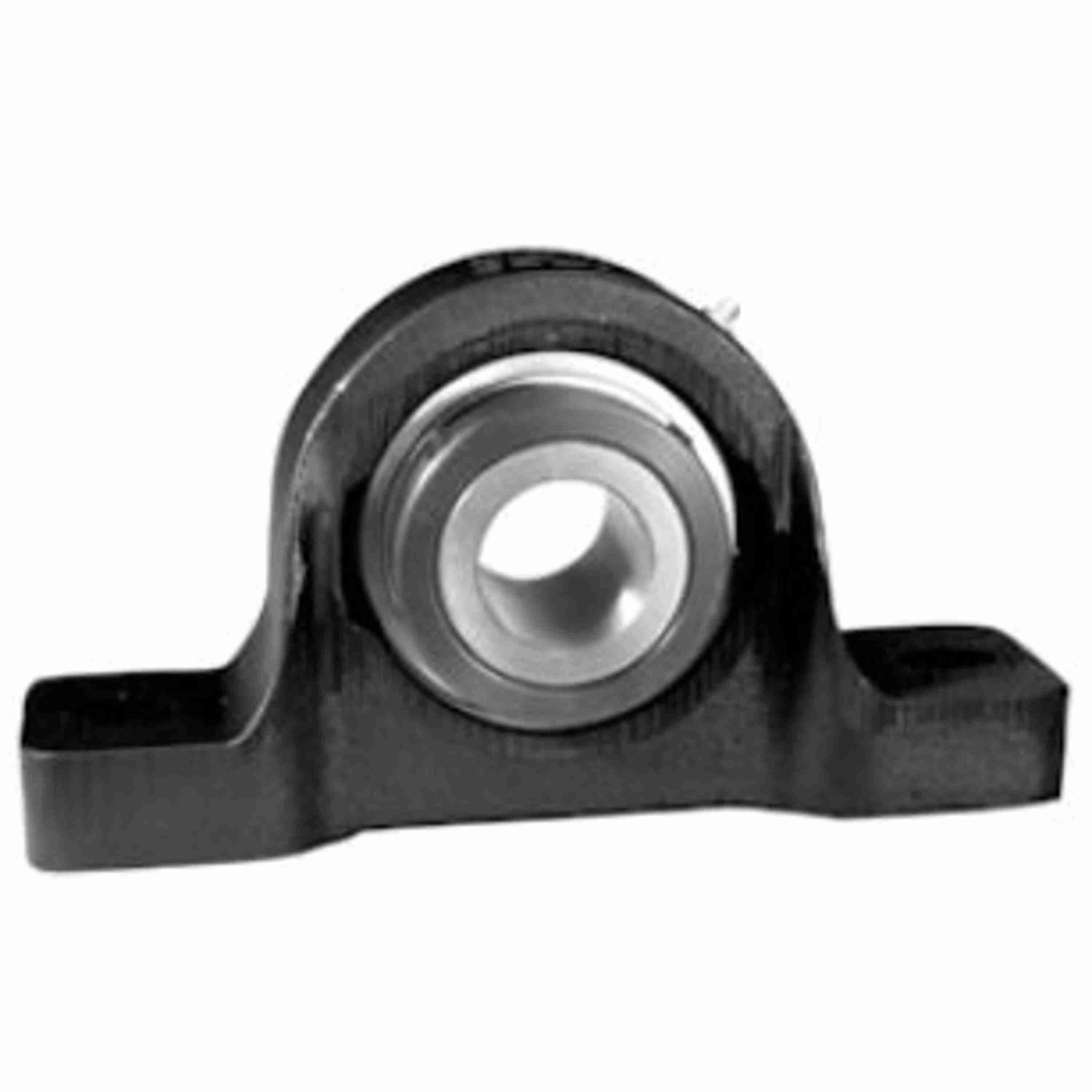

Link-Belt P2U319K4 Pillow Blocks Ball Bearings - P2U319K4
Part #:10430345
Catalog #:P2U319K4
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Width (in): | 2.38 in | Overall Height (in): | 4.31 in |
| Base to Center Height (in): | 2.375 in | Bore Diameter (in): | 1.1875 in |
| Base Width (in): | 2.38 in | Foot Height (in): | 0.88 in |
| Length Through Bore (in): | 1.92 in | Bolt Size (in): | 1/2 in |
| Overall Length (in): | 8.25 in | Bolt Spacing (in): | 6.63 in |
| Centerline to Outermost Bearing Face (in): | 1.14 in |
Technical Specifications
| Bore Shape: | Straight | Slot Length (in): | 1 in |
| Misalignment Type: | Static Only | Housing Construction: | One Piece |
| Rolling Element: | Ball Bearing | Housing Style: | Pillow Block |
| Outer Ring Land Profile: | Standard | Seal Type: | Clearance Seal with Flinger |
| Cage Material: | Molded fiber glass reinforced nylon | Housing Type: | Pillow Block, Two Bolt, High Base |
| Housing Color: | Black | Housing Base: | Semi-Solid |
| Ability to Relubricate: | Yes | Locking Collar Outside Diameter (in): | 2.29 in |
| Setscrew Torque (in-lbs): | 165-185 in/lbs | Insert: | UG319LK4 |
| Grease Fitting Thread Size: | 1/8 NPT | End Cap: | U3196C |
| Cage Type: | Ball Riding Retainer | Misalignment Capability: | ±2.0° Misalignment - Static Only |
| Maximum Speed (RPM): | 8300 rpm | Locking Device Kit: | U3195S |
| Bearing Type: | Heavy Duty | Size Code: | 319 |
| Housing Coating: | Powder Coated | Vibration Frequency Roller Spin: | 0.0325 cps |
| Base Length (in): | 8.25 in | Static Load Rating (lb): | 3,530 lb |
| Bearing Insert Material: | 52100 Bearing Steel | Housing Material: | Cast Iron |
| Shaft Locking Type: | Set Screw | Vibration Frequency Fundamental Train: | 0.0063 cps |
| Radial Clearance: | C3 STANDARD | End Cap Available: | Yes |
| Bearing Brand: | LINK-BELT 300 SERIES HD BALL | Lube Fill Percent: | 100% GREASE FILL |
| Lubricant: | Lithium Complex NLGI 2 Grease | Vibration Frequency Outer Ring Defect: | 0.0507 cps |
| Fixed vs. Expansion: | Fixed | Inner Ring Outside Diameter (in): | 1.708 in |
| Max Operating Temperature (C): | 107 °C | Dynamic Load Rating (lb): | 6,320 lb |
| Vibration Frequency Inner Ring Defect: | 0.0827 cps | Max Operating Temperature (F): | 225 °F |
General Specifications
| UPC: | 698210138967 | Weight: | 7.00 LB |
| Packaged Length: | 9.50 IN | Packaged Width: | 3.13 IN |
| Packaged Height: | 5.50 IN | HTC: | 84833080 |
