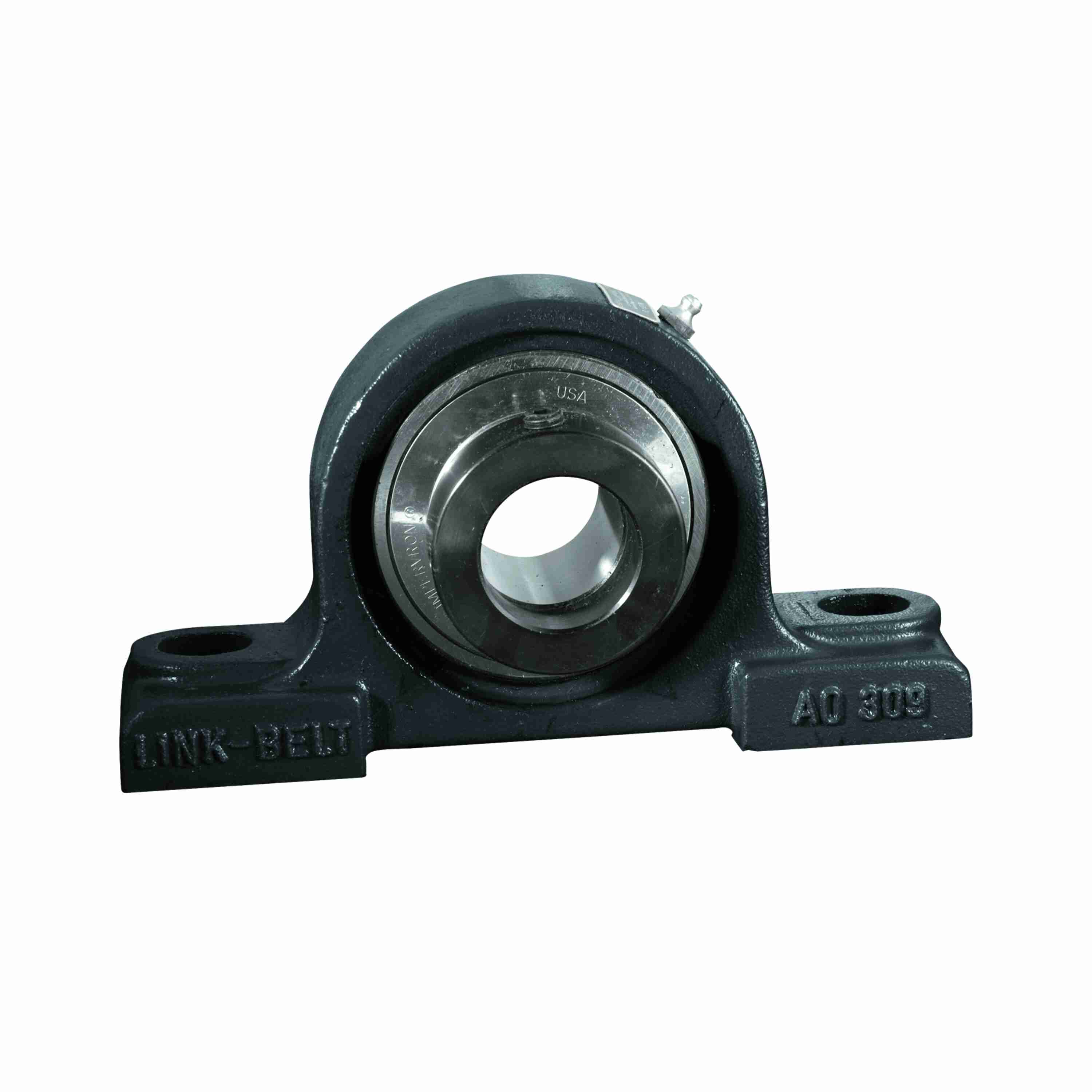

Link-Belt P2Y319N Pillow Blocks Ball Bearings - P2Y319N
Part #:10426016
Catalog #:P2Y319N
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Base to Center Height (in): | 2.375 in | Base Width (in): | 2.38 in |
| Foot Height (in): | 0.88 in | Bolt Size (in): | 1/2 in |
| Overall Length (in): | 8.25 in | Overall Width (in): | 2.38 in |
| Bore Diameter (in): | 1.1875 in | Length Through Bore (in): | 2.03 in |
| Overall Height (in): | 4.31 in | Centerline to Outermost Bearing Face (in): | 1.25 in |
| Bolt Spacing (in): | 6.63 in |
Technical Specifications
| Seal Type: | Double Lip Contact Seal with Flinger | Housing Base: | Semi-Solid |
| Cage Material: | Molded fiber glass reinforced nylon | Housing Type: | Pillow Block, Two Bolt, High Base |
| Misalignment Type: | Static Only | Housing Construction: | One Piece |
| Outer Ring Land Profile: | Standard | Rolling Element: | Ball Bearing |
| Housing Style: | Pillow Block | Bore Shape: | Straight |
| Housing Color: | Black | Slot Length (in): | 1 in |
| Ability to Relubricate: | Yes | Locking Collar Outside Diameter (in): | 1.94 in |
| Bearing Insert Material: | 52100 Bearing Steel | Bearing Brand: | LINK-BELT 300 SERIES HD BALL |
| Vibration Frequency Outer Ring Defect: | 0.0507 cps | Inner Ring Outside Diameter (in): | 1.708 in |
| Static Load Rating (lb): | 3,530 lb | Radial Clearance: | C3 STANDARD |
| Base Length (in): | 8.25 in | Housing Material: | Cast Iron |
| Max Operating Temperature (C): | 107 °C | Vibration Frequency Fundamental Train: | 0.0063 cps |
| Grease Fitting Thread Size: | 1/8 NPT | Vibration Frequency Roller Spin: | 0.0325 cps |
| Max Operating Temperature (F): | 225 °F | Shaft Locking Type: | Eccentric |
| Maximum Speed (RPM): | 6100 rpm | Size Code: | 319 |
| Misalignment Capability: | ±2.0° Misalignment - Static Only | Cage Type: | Ball Riding Retainer |
| Vibration Frequency Inner Ring Defect: | 0.0827 cps | Fixed vs. Expansion: | Fixed |
| Locking Device Kit: | Y3195SP | Bearing Type: | Heavy Duty |
| Housing Coating: | Powder Coated | Insert: | YG319NL |
| Dynamic Load Rating (lb): | 6,320 lb | End Cap Available: | No |
| Lubricant: | Lithium Complex NLGI 2 Grease |
General Specifications
| UPC: | 793699679335 | Weight: | 6.80 LB |
| Packaged Length: | 9.50 IN | Packaged Width: | 3.13 IN |
| Packaged Height: | 5.50 IN | HTC: | 8483208040 |
| Country of Origin: | Mexico |
