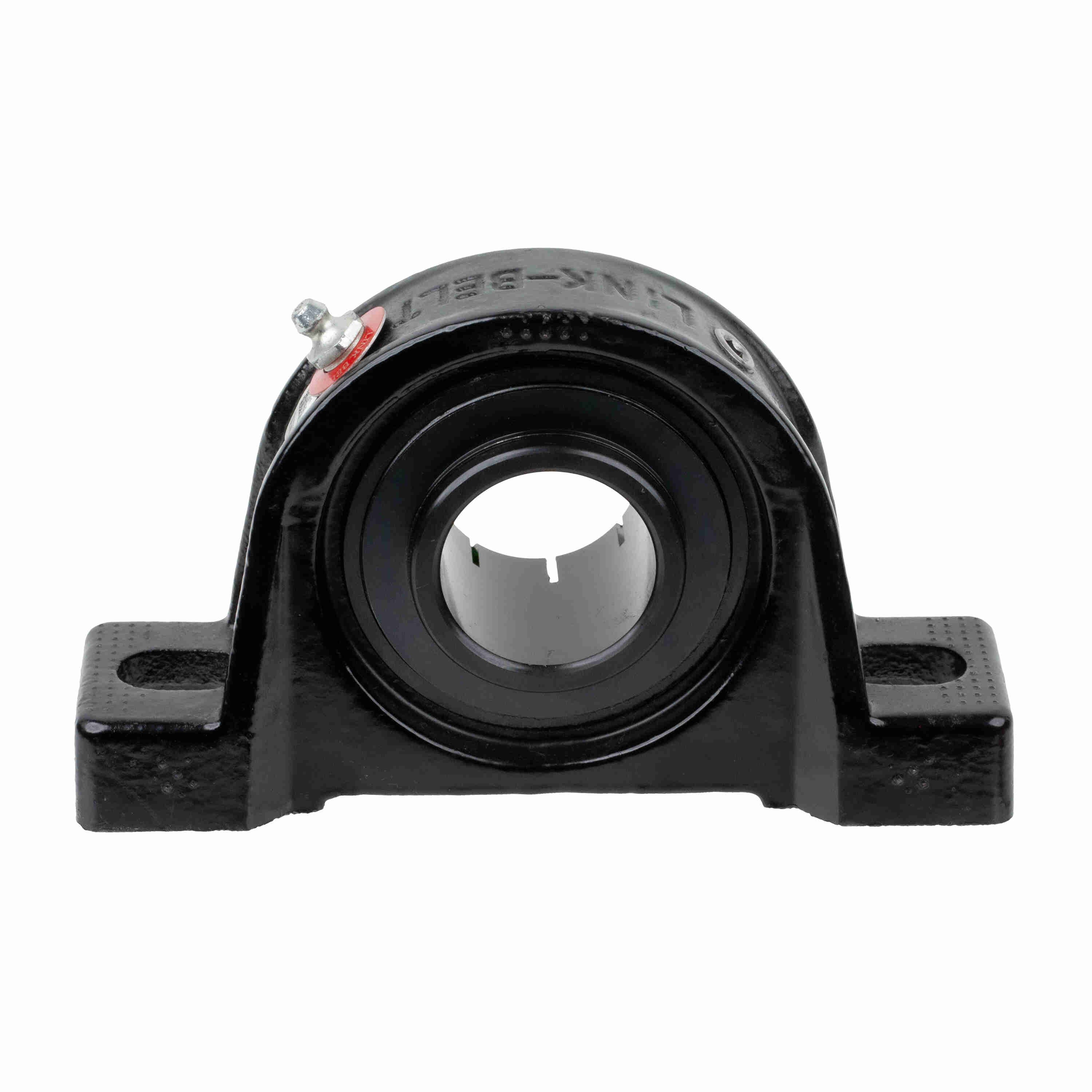

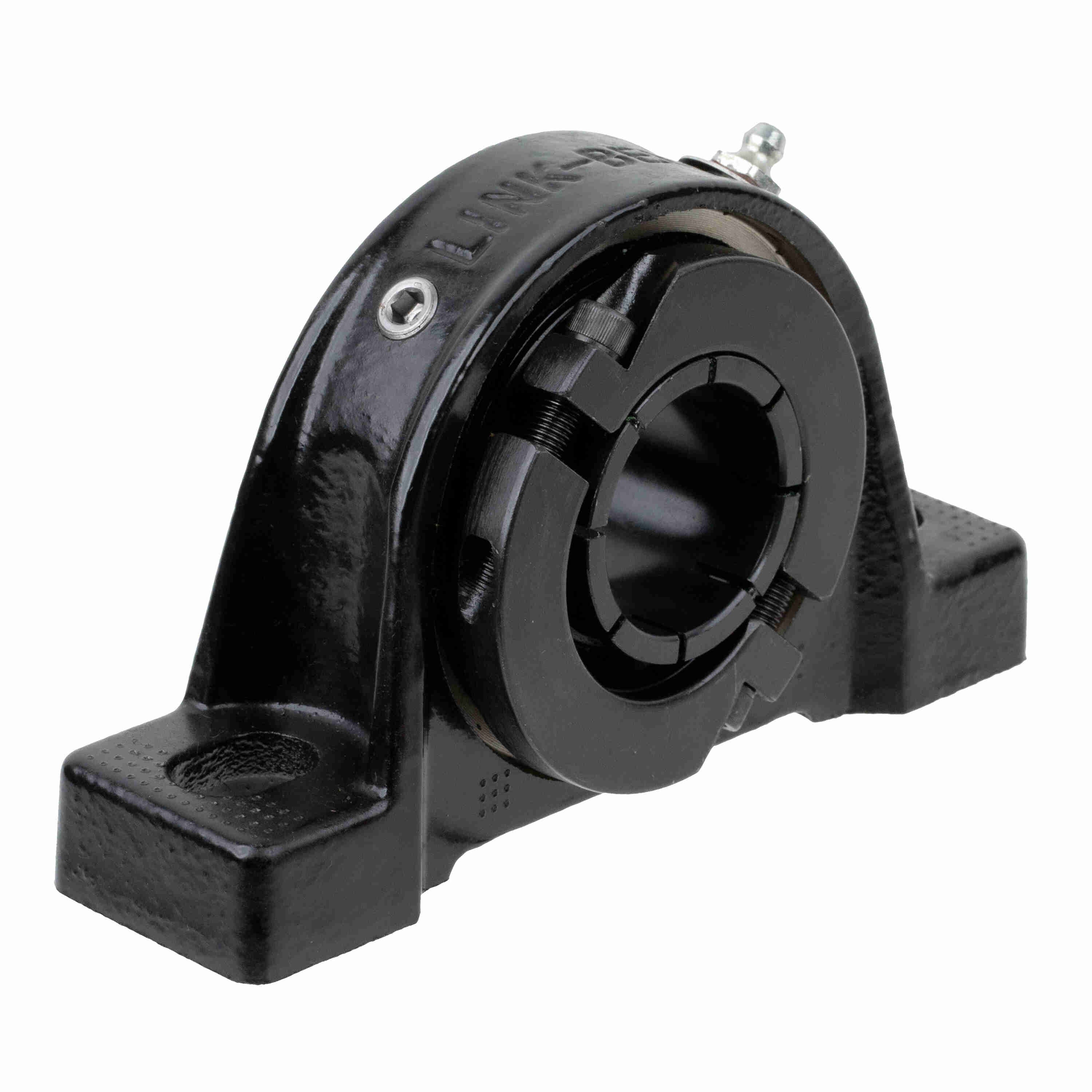

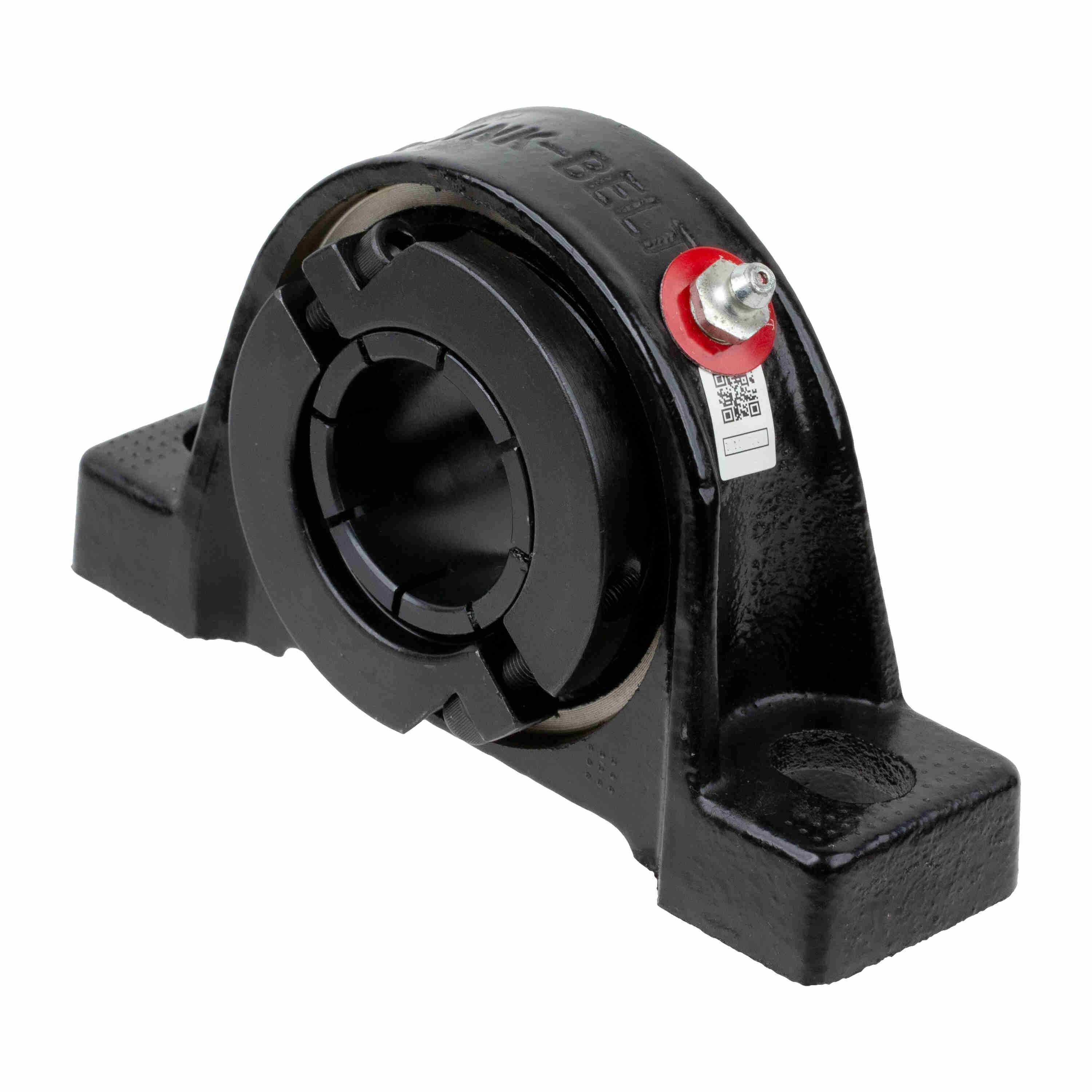

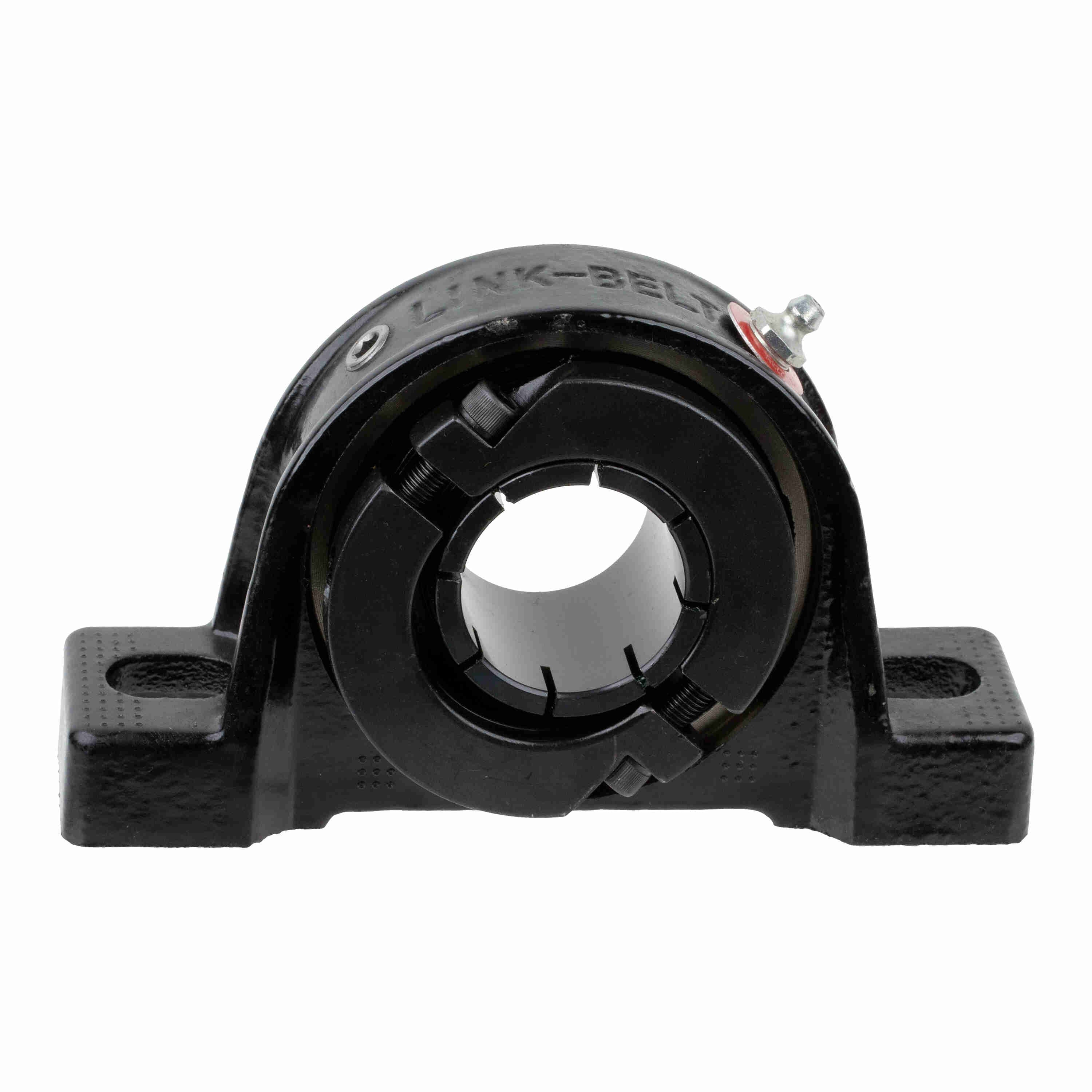

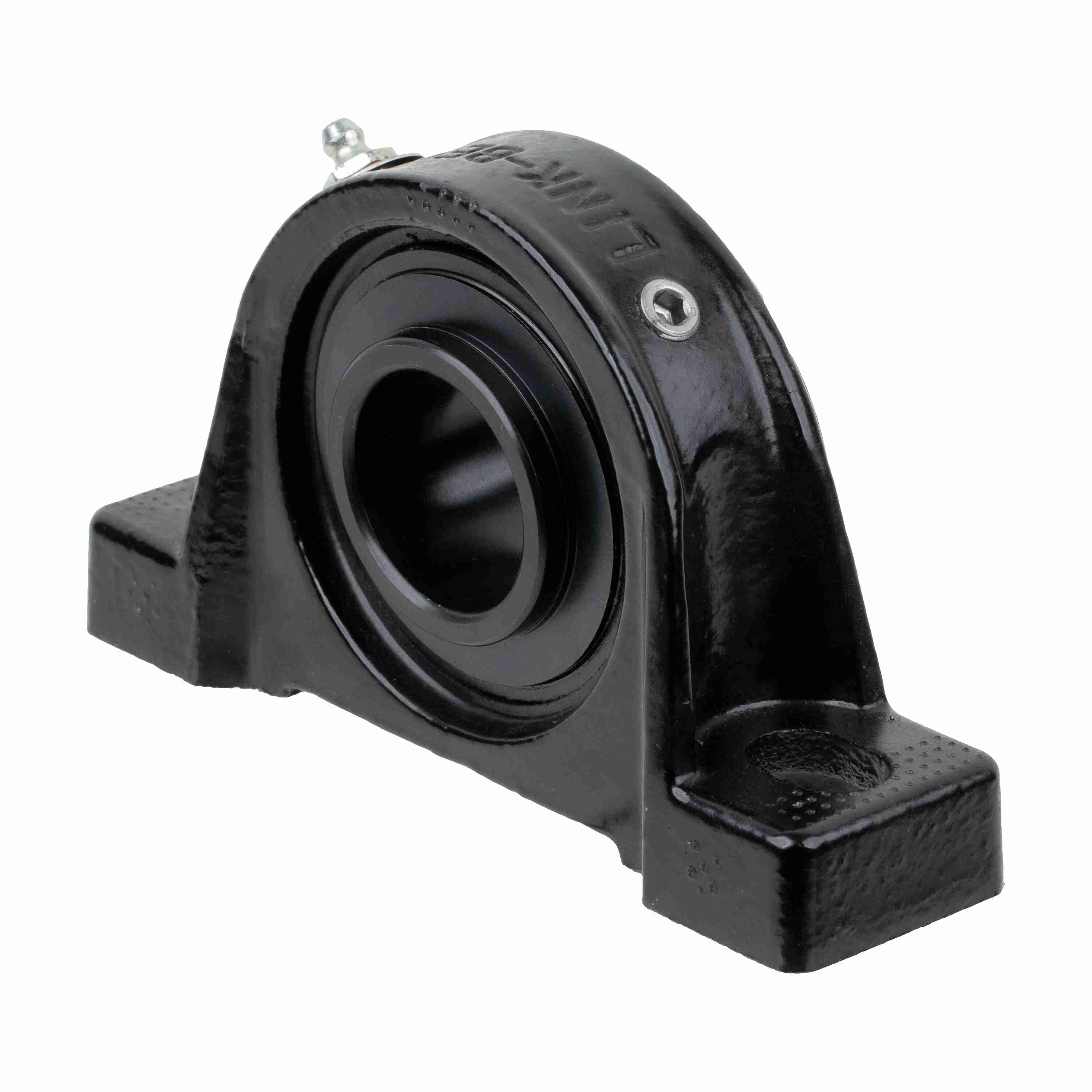

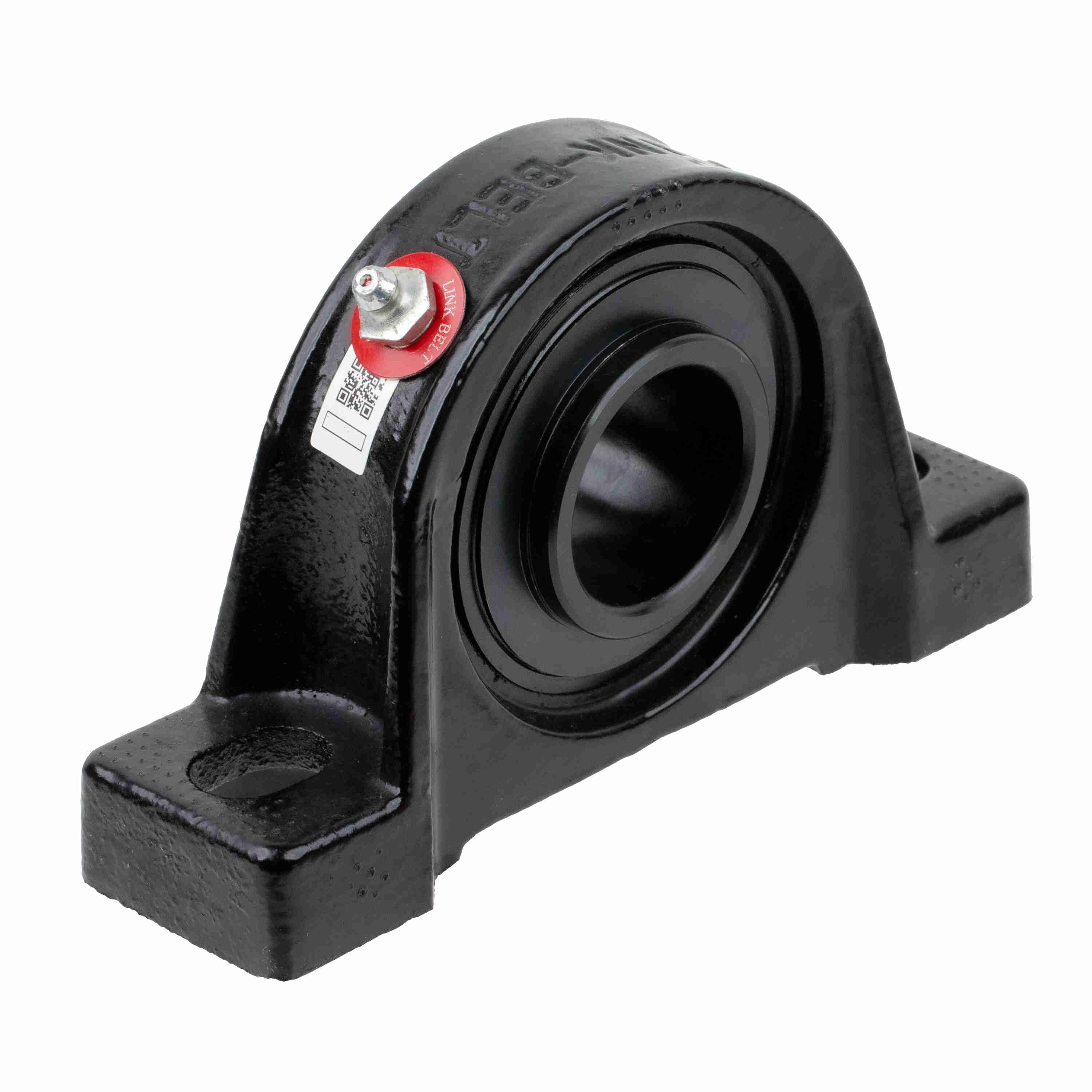

Link-Belt P3CL2M50N Pillow Blocks Ball Bearings - P3CL2M50N
Part #:10417000
Catalog #:P3CL2M50N
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bore Diameter (mm): | 50 mm | Base to Center Height (in): | 2.2500 in |
| Bolt Size (in): | 5/8 in | Overall Length (in): | 8.13 in |
| Overall Height (in): | 4.56 in | Foot Height (in): | 0.75 in |
| Base Width (in): | 2.38 in | Length Through Bore (in): | 2.031 in |
| Overall Width (in): | 2.38 in | Bolt Spacing (in): | 6.25 in |
| Centerline to Outermost Bearing Face (in): | 1.34 in |
Technical Specifications
| Housing Type: | Pillow Block, Two Bolt | Housing Style: | Pillow Block |
| Rolling Element: | Ball Bearing | Outer Ring Land Profile: | Standard |
| Housing Base: | Semi-Solid | Housing Color: | Black |
| Housing Construction: | One Piece | Misalignment Type: | Static Only |
| Slot Length (in): | 0.94 in | Seal Type: | Single Lip Contact Seal with Flinger |
| Bore Shape: | Straight | Cage Material: | Molded fiber glass reinforced nylon |
| Ability to Relubricate: | Yes | Locking Collar Outside Diameter (in): | 3.38 in |
| Max Operating Temperature (F): | 225 °F | Size Code: | 210 |
| Base Length (in): | 8.13 in | Vibration Frequency Roller Spin: | 0.0445 cps |
| Radial Clearance: | C3 STANDARD | Housing Coating: | Powder Coated |
| Insert: | CLG2M50NL | Bearing Insert Finish: | Black Oxide |
| Fixed vs. Expansion: | Fixed | Grease Fitting Thread Size: | 1/8 NPT |
| Lubricant: | Lithium Complex NLGI 2 Grease | Shaft Locking Type: | Concentric |
| Max Operating Temperature (C): | 107 °C | Dynamic Load Rating (lb): | 7,920 lb |
| Vibration Frequency Inner Ring Defect: | 0.0985 cps | Inner Ring Outside Diameter (in): | 2.469 in |
| Vibration Frequency Outer Ring Defect: | 0.0682 cps | Bearing Insert Material: | 52100 Bearing Steel |
| Housing Material: | Cast Iron | Vibration Frequency Fundamental Train: | 0.0068 cps |
| Maximum Speed (RPM): | 4800 rpm | End Cap Available: | Yes |
| End Cap: | CL2316 | Locking Device Kit: | CL2315S |
| Misalignment Capability: | ±2.0° Misalignment - Static Only | Bearing Type: | Standard Duty |
| Bearing Brand: | LINK-BELT 200 SERIES BALL | Static Load Rating (lb): | 5,220 lb |
| Cage Type: | Ball Riding Retainer |
General Specifications
| UPC: | 662864294492 | Weight: | 8.20 LB |
| HTC: | 8483208040 | Country of Origin: | Mexico |
