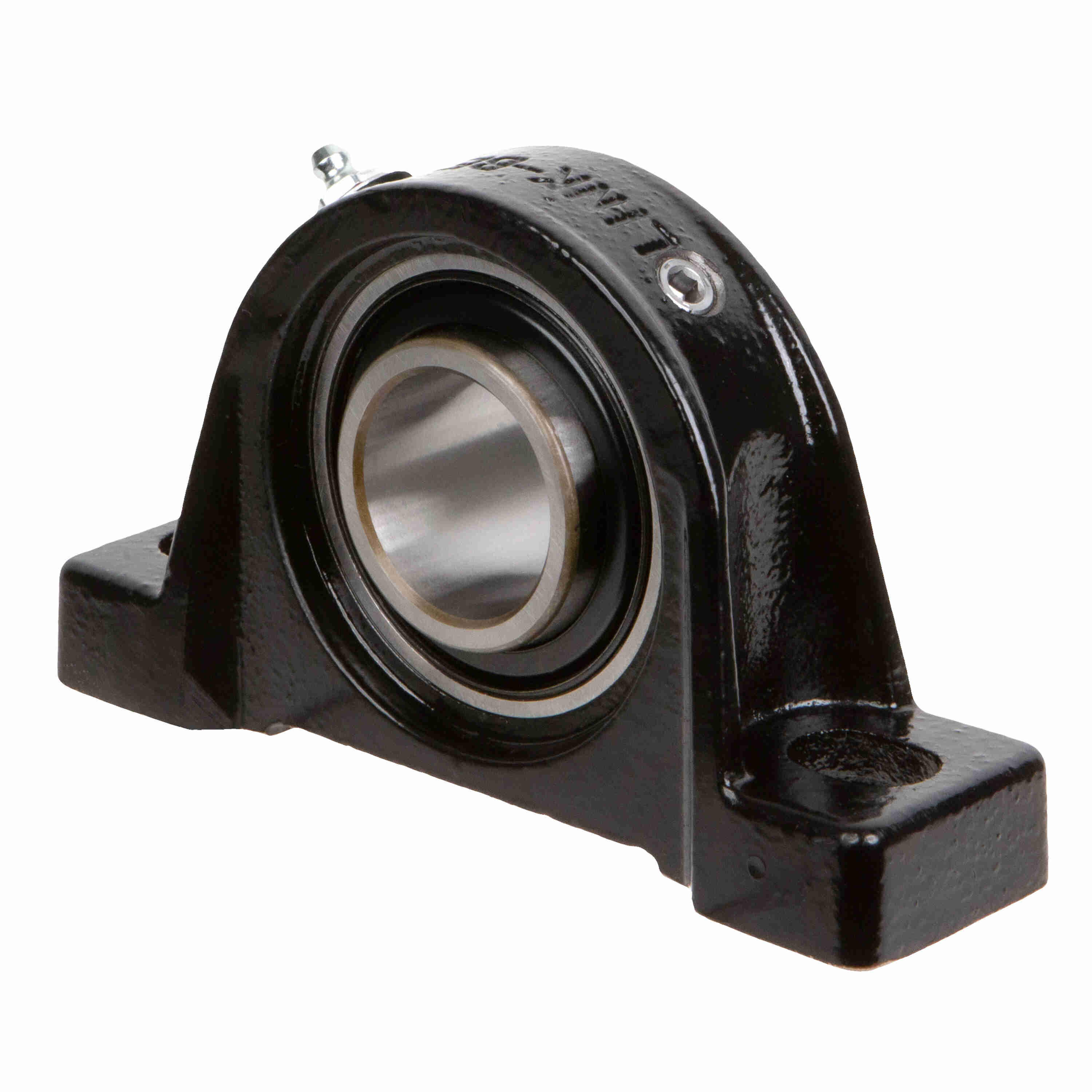

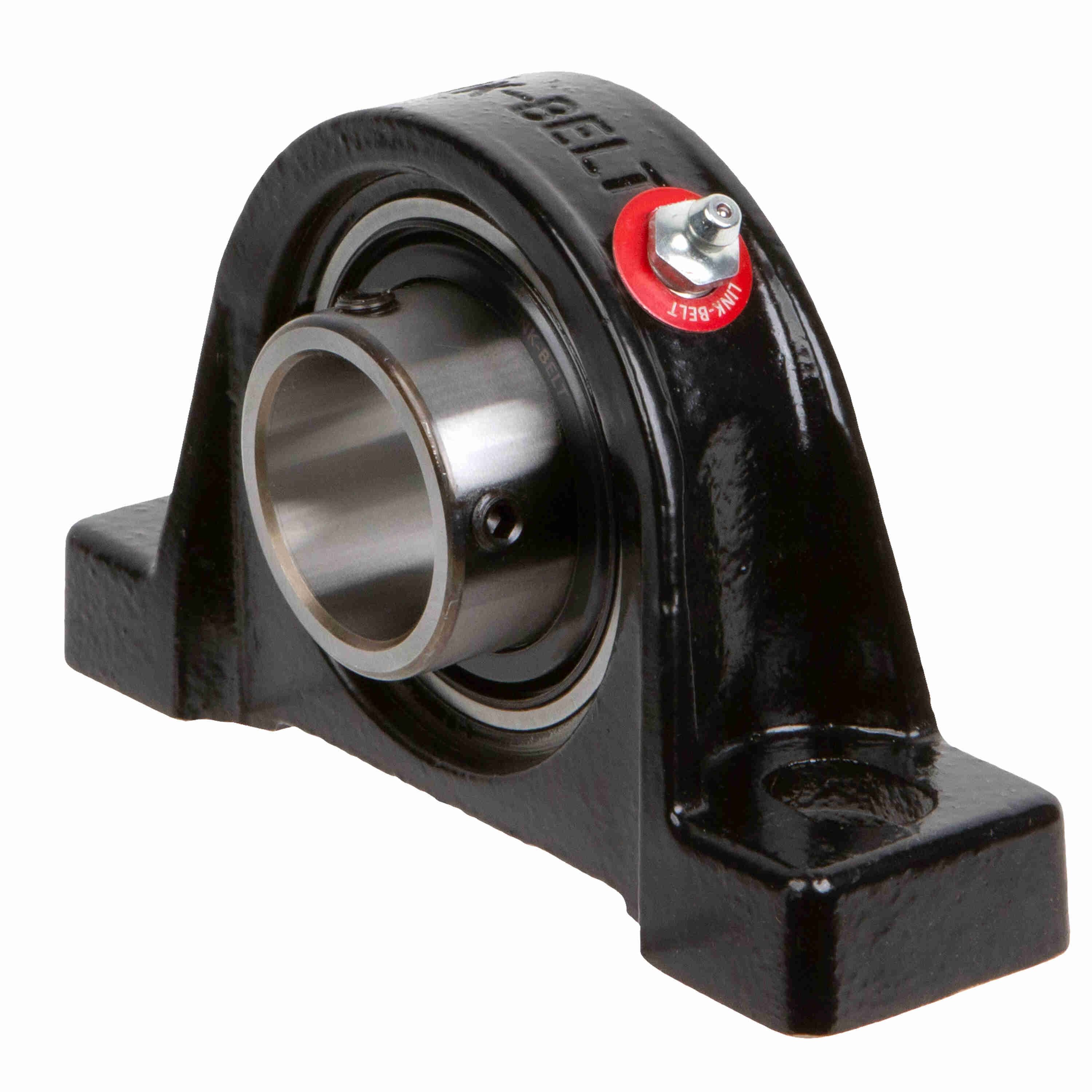

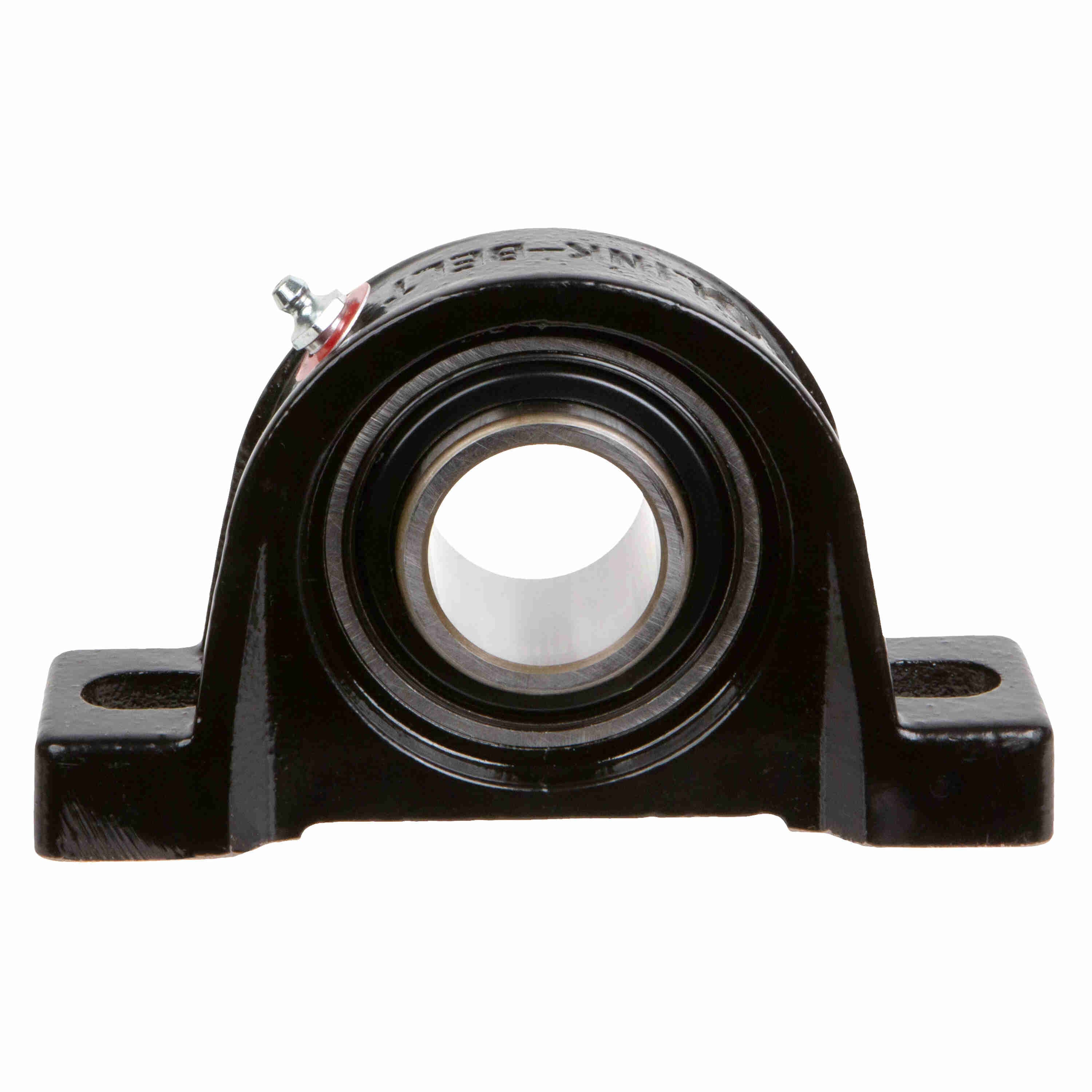

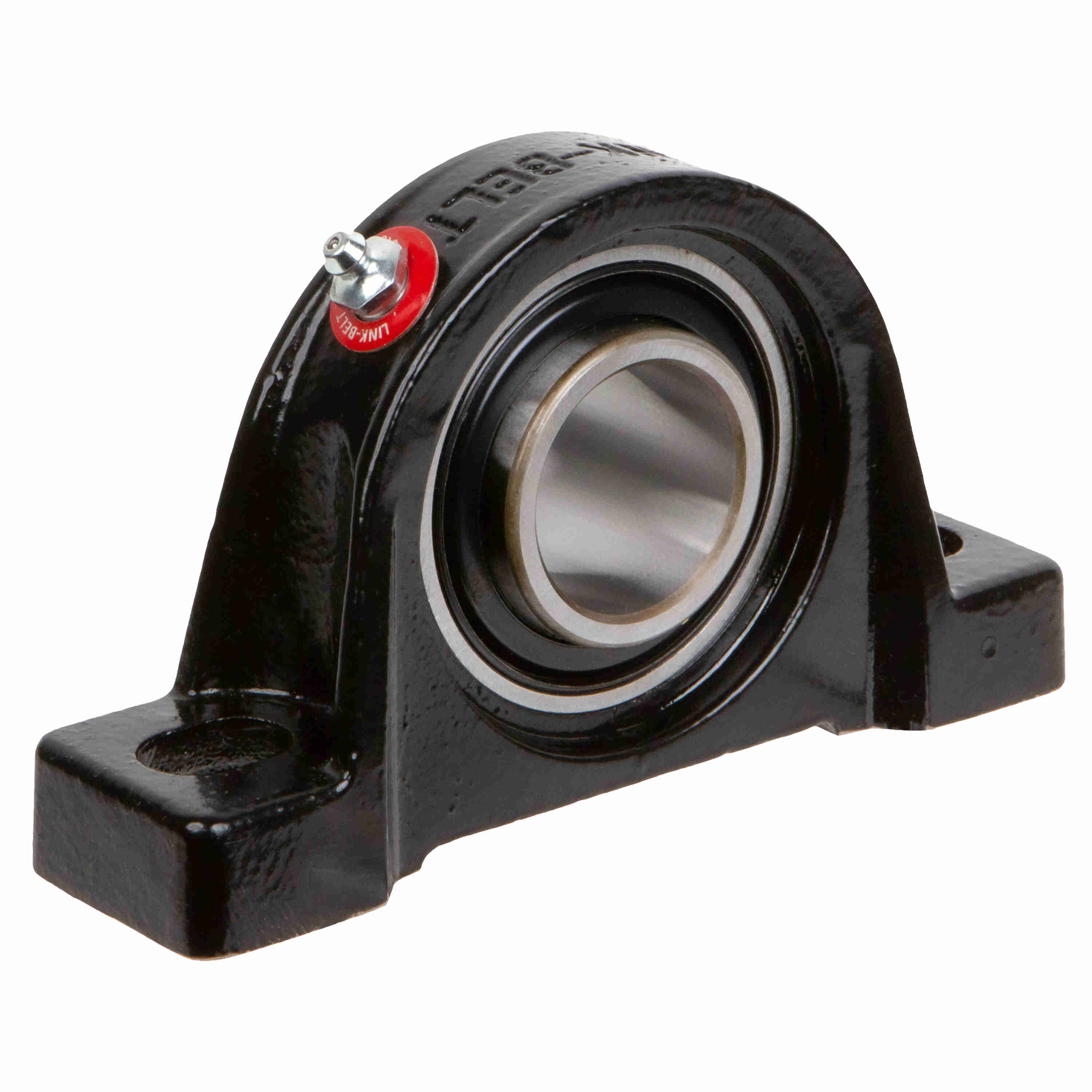

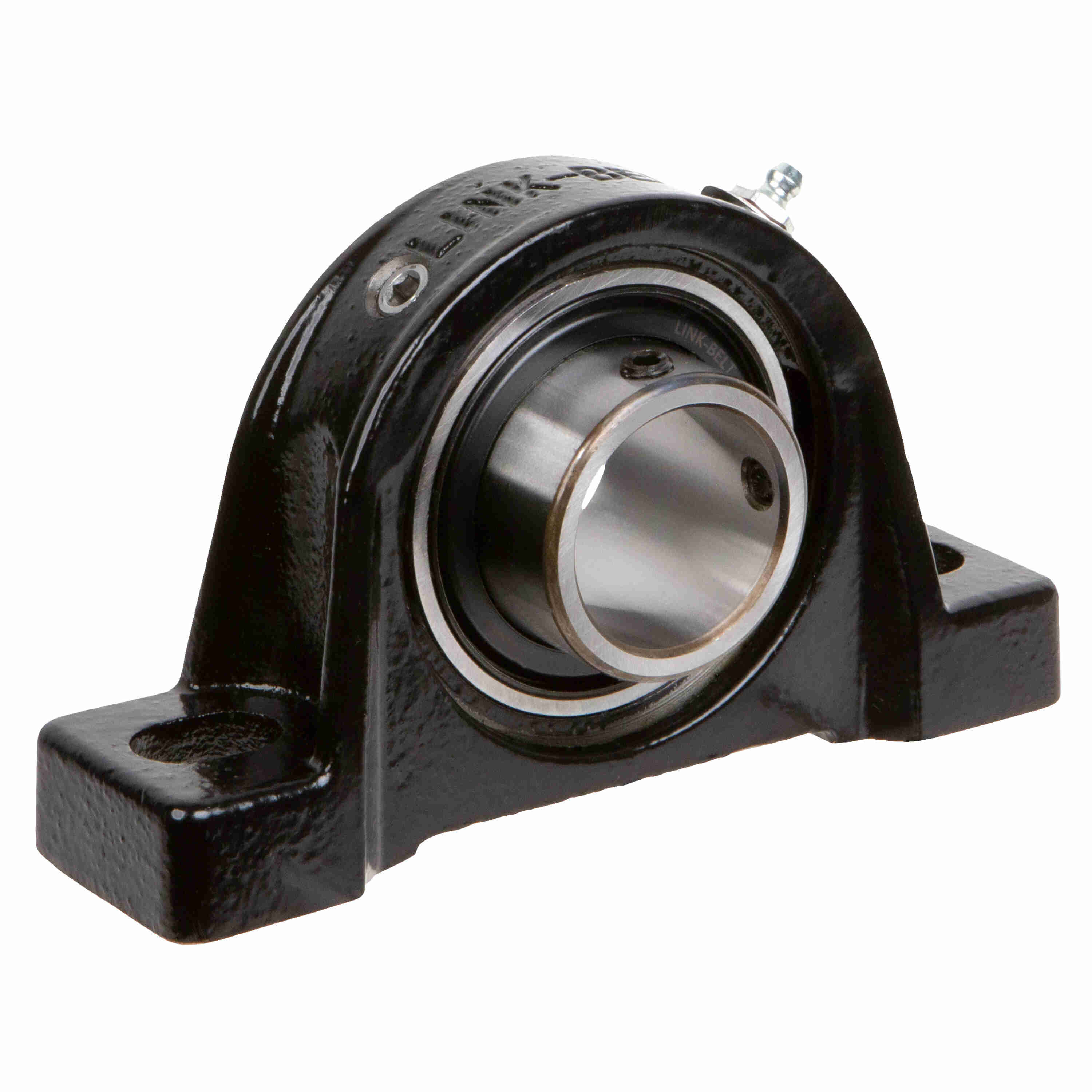

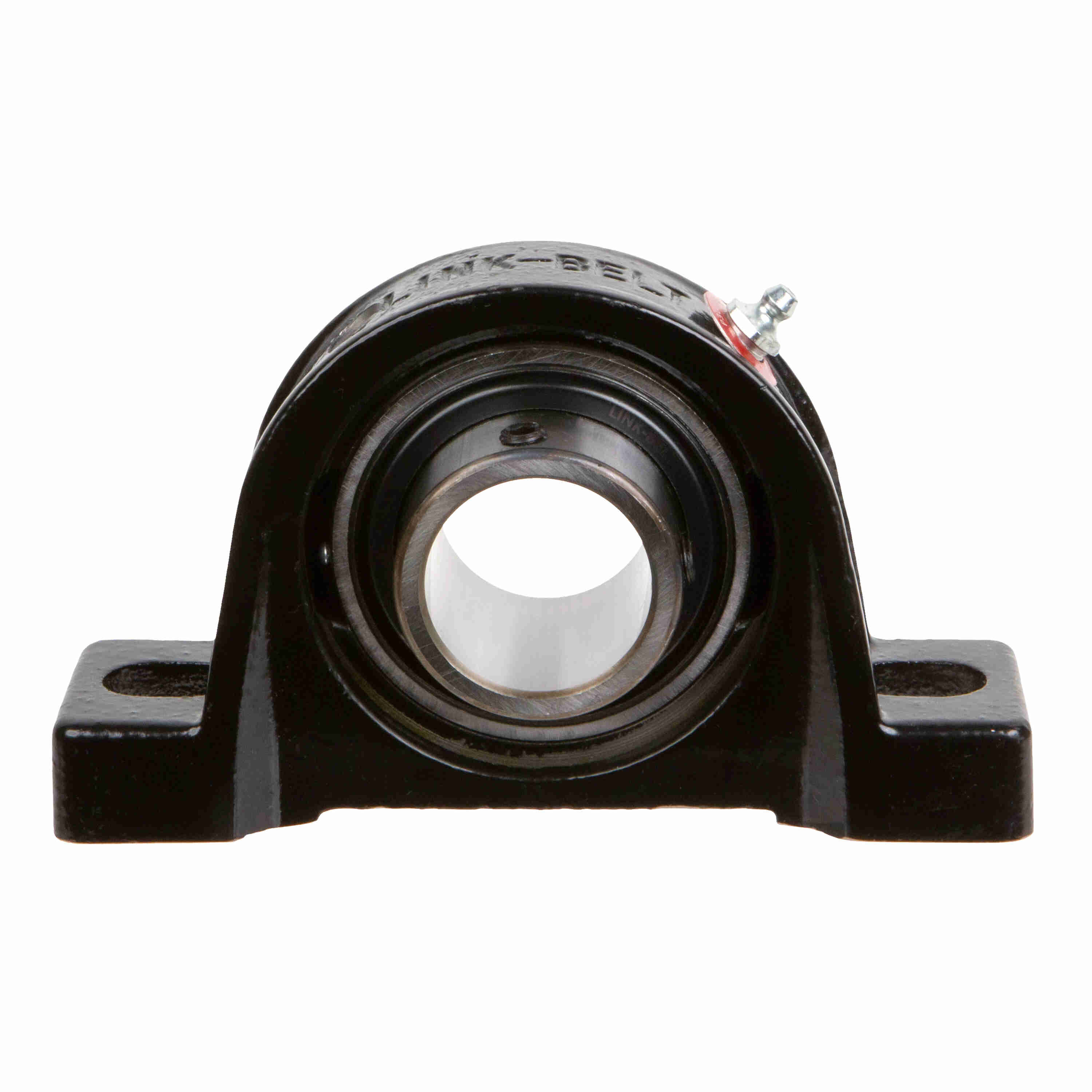

Link-Belt P3U223NC Pillow Blocks Ball Bearings - P3U223NC
Part #:10418614
Catalog #:P3U223NC
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Base to Center Height (in): | 1.875 in | Length Through Bore (in): | 1.764 in |
| Base Width (in): | 1.75 in | Overall Width (in): | 1.76 in |
| Foot Height (in): | 0.81 in | Overall Height (in): | 3.69 in |
| Overall Length (in): | 6.38 in | Bore Diameter (in): | 1.4375 in |
| Bolt Size (in): | 1/2 in | Bolt Spacing (in): | 4.94 in |
| Centerline to Outermost Bearing Face (in): | 1.109 in |
Technical Specifications
| Misalignment Type: | Static Only | Housing Color: | Black |
| Cage Material: | Molded fiber glass reinforced nylon | Outer Ring Land Profile: | Standard |
| Rolling Element: | Ball Bearing | Housing Construction: | One Piece |
| Slot Length (in): | 0.88 in | Seal Type: | Single Lip Contact Seal |
| Housing Type: | Pillow Block, Two Bolt | Bore Shape: | Straight |
| Housing Base: | Semi-Solid | Housing Style: | Pillow Block |
| Ability to Relubricate: | Yes | Setscrew Torque (in-lbs): | 165 in/lbs |
| Vibration Frequency Roller Spin: | 0.0383 cps | Dynamic Load Rating (lb): | 5,810 lb |
| Fixed vs. Expansion: | Fixed | Vibration Frequency Fundamental Train: | 0.0067 cps |
| Radial Clearance: | C3 STANDARD | End Cap: | Y2236N |
| Lubricant: | Lithium Complex NLGI 2 Grease | Base Length (in): | 6.38 in |
| Max Operating Temperature (F): | 225 °F | Size Code: | 207 |
| Bearing Insert Material: | 52100 Bearing Steel | Misalignment Capability: | ±2.0° Misalignment - Static Only |
| Maximum Speed (RPM): | 6850 rpm | End Cap Available: | Yes |
| Housing Coating: | Powder Coated | Vibration Frequency Inner Ring Defect: | 0.0905 cps |
| Inner Ring Outside Diameter (in): | 1.847 in | Bearing Brand: | LINK-BELT 200 SERIES BALL |
| Shaft Locking Type: | Set Screw | Max Operating Temperature (C): | 107 °C |
| Static Load Rating (lb): | 3,440 lb | Centerline to Cap Face (in): | 1.55 |
| Vibration Frequency Outer Ring Defect: | 0.0595 cps | Cage Type: | Ball Riding Retainer |
| Housing Material: | Cast Iron | Bearing Type: | Standard Duty |
| Insert: | UG223NL | Grease Fitting Thread Size: | 1/8 NPT |
General Specifications
| UPC: | 662327121013 | Weight: | 3.67 LB |
| Packaged Length: | 7.94 IN | Packaged Width: | 4.69 IN |
| Packaged Height: | 2.44 IN | HTC: | 8483208040 |
| Country of Origin: | Mexico |
