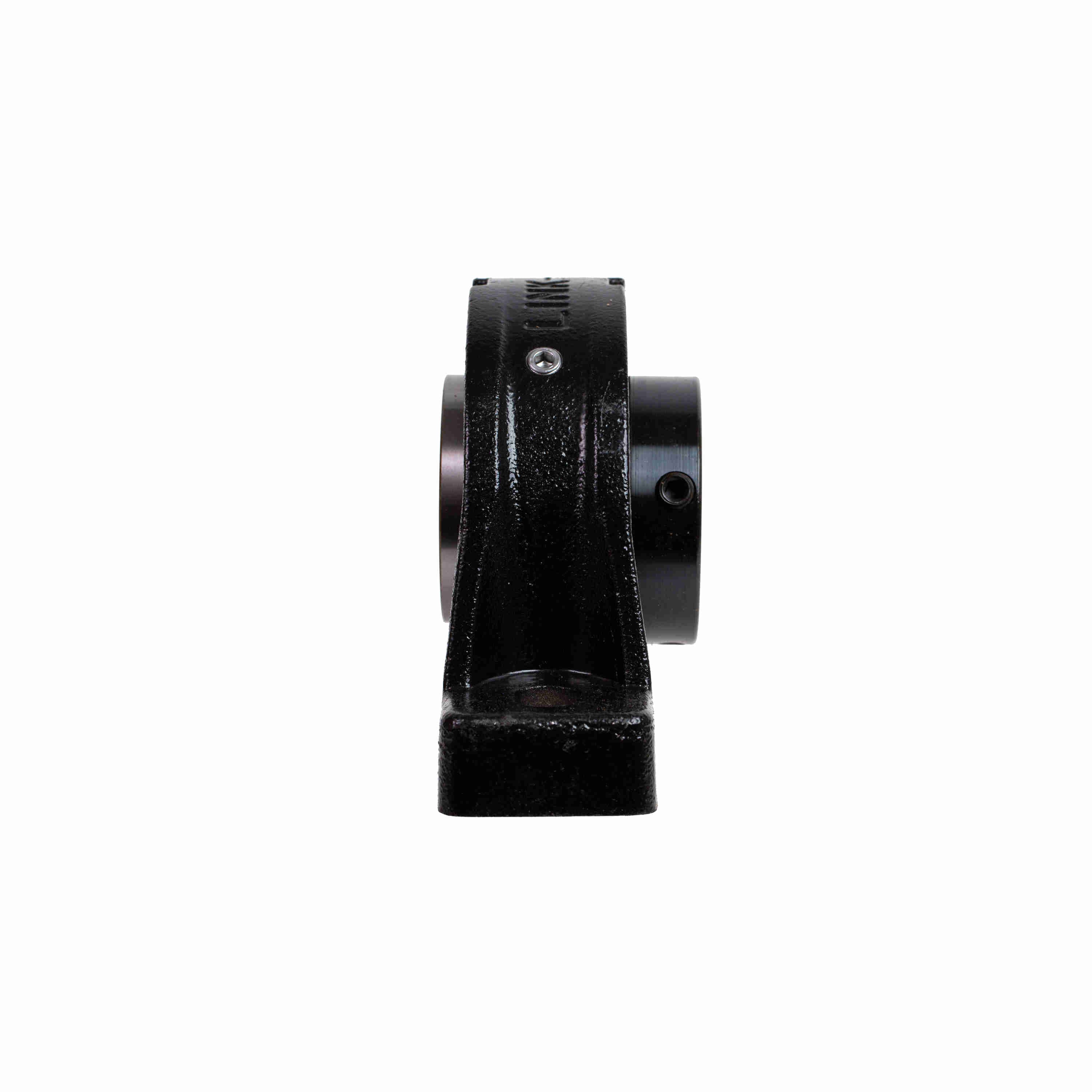

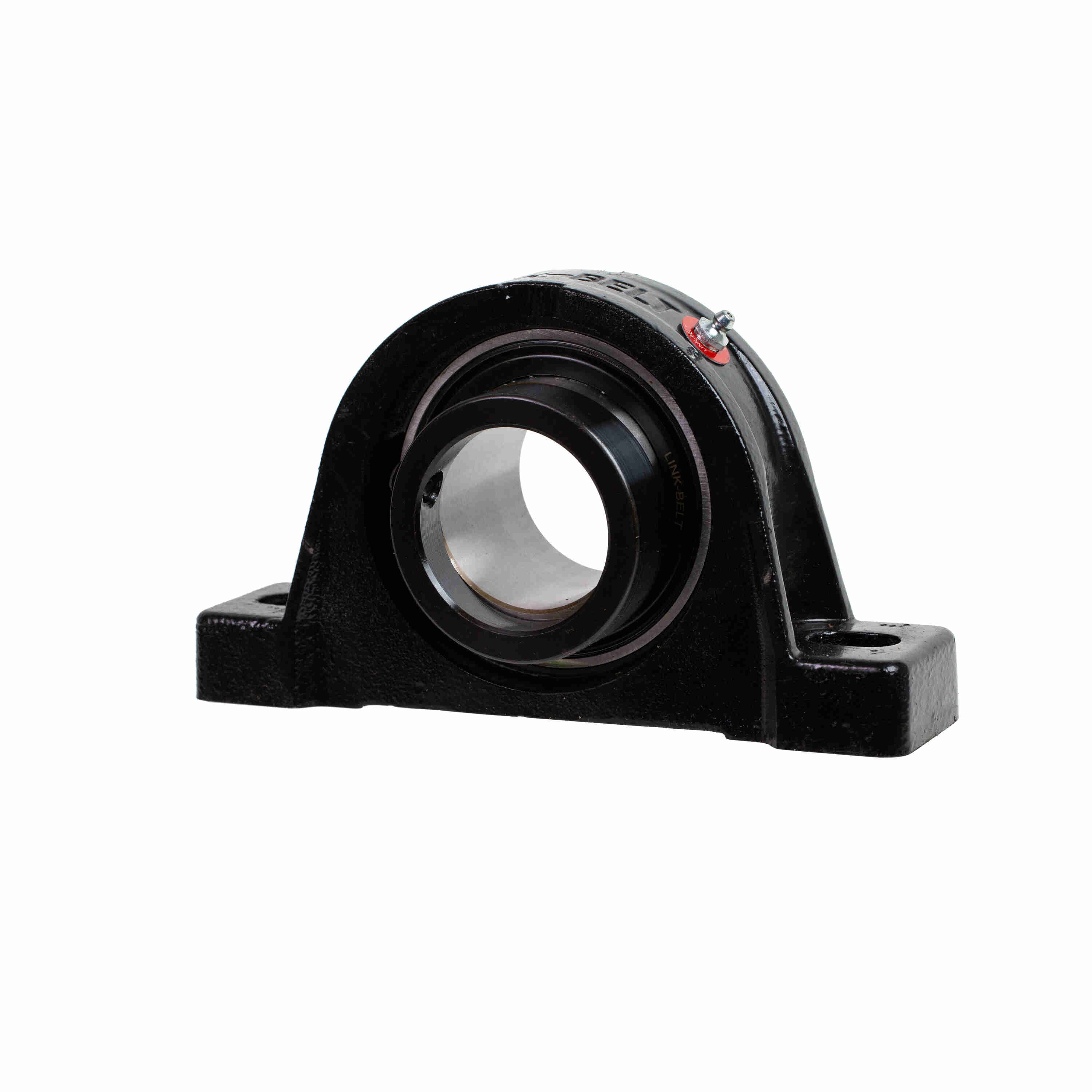

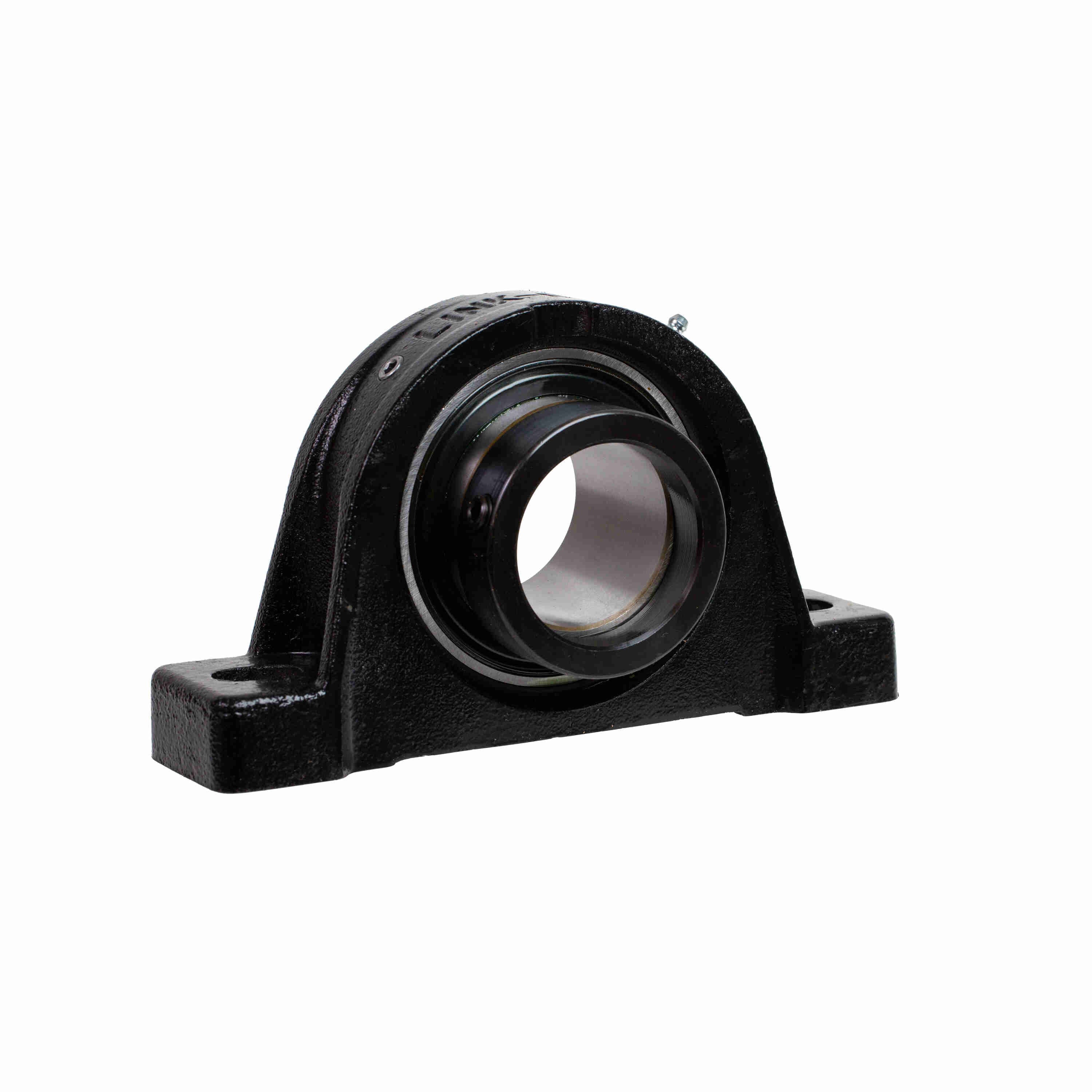

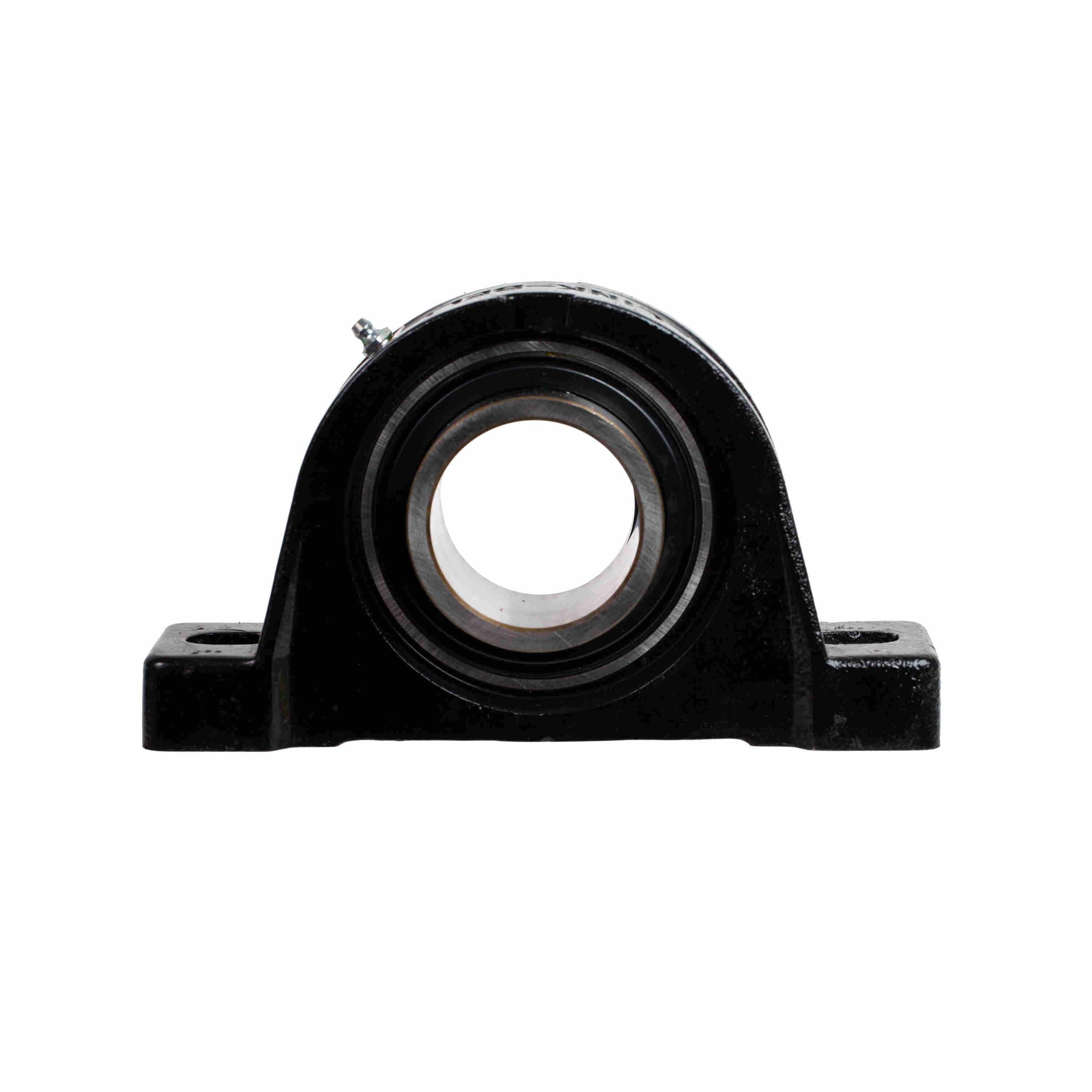

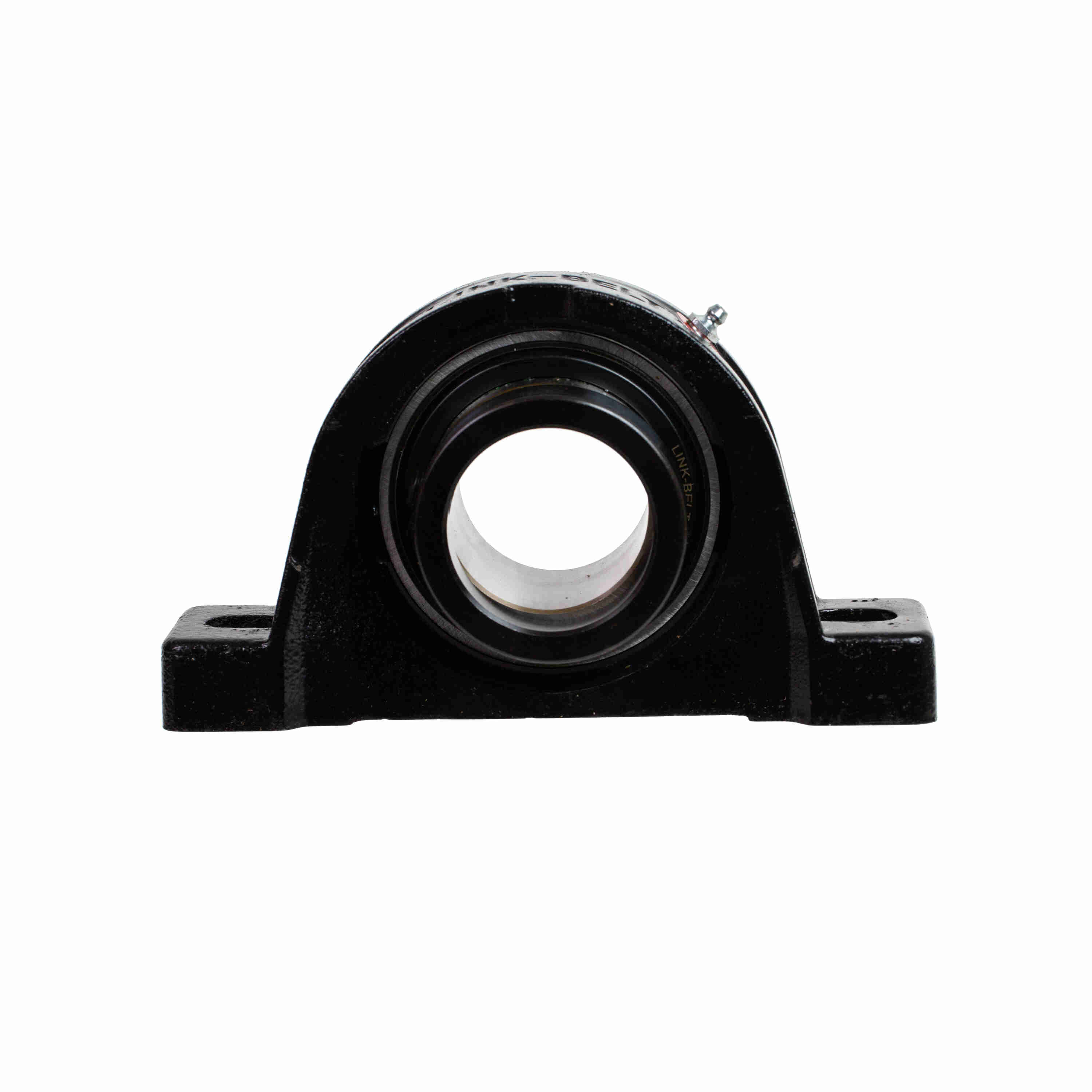

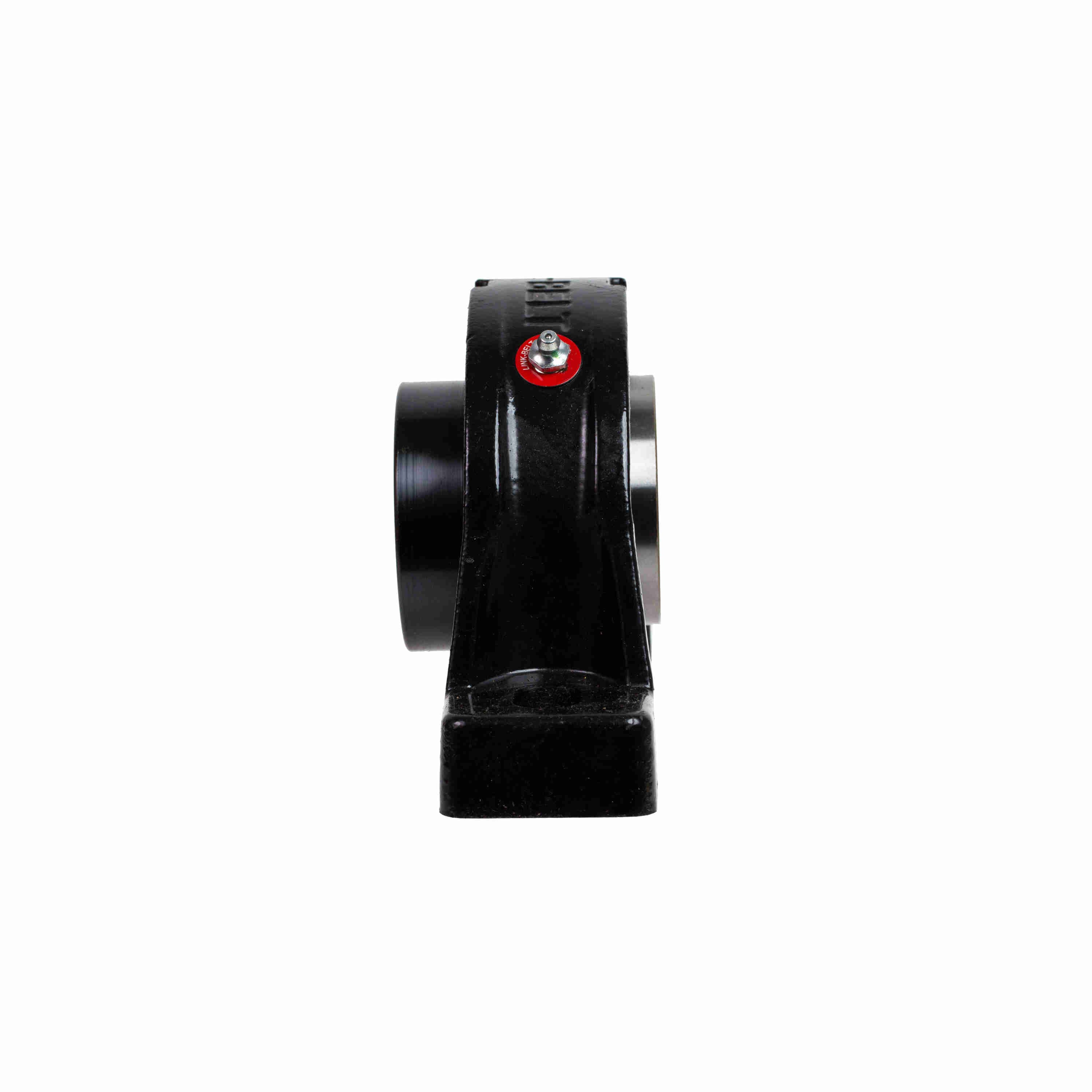

Link-Belt P3Y223N Pillow Blocks Ball Bearings - P3Y223N
Part #:10412001
Catalog #:P3Y223N
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Base Width (in): | 1.75 in | Foot Height (in): | 0.81 in |
| Overall Length (in): | 6.38 in | Bolt Size (in): | 1/2 in |
| Length Through Bore (in): | 2.02 in | Base to Center Height (in): | 1.875 in |
| Overall Height (in): | 3.69 in | Bore Diameter (in): | 1.4375 in |
| Overall Width (in): | 2.02 in | Bolt Spacing (in): | 4.94 in |
| Centerline to Outermost Bearing Face (in): | 1.28 in |
Technical Specifications
| Slot Length (in): | 0.88 in | Misalignment Type: | Static Only |
| Housing Base: | Semi-Solid | Outer Ring Land Profile: | Standard |
| Seal Type: | Single Lip Contact Seal | Housing Construction: | One Piece |
| Housing Type: | Pillow Block, Two Bolt | Rolling Element: | Ball Bearing |
| Cage Material: | Molded fiber glass reinforced nylon | Housing Color: | Black |
| Bore Shape: | Straight | Housing Style: | Pillow Block |
| Ability to Relubricate: | Yes | Setscrew Torque (in-lbs): | 290-325 in/lbs |
| Locking Collar Outside Diameter (in): | 2.14 in | Bearing Insert Material: | 52100 Bearing Steel |
| Misalignment Capability: | ±2.0° Misalignment - Static Only | Vibration Frequency Roller Spin: | 0.0383 cps |
| Vibration Frequency Inner Ring Defect: | 0.0905 cps | Vibration Frequency Outer Ring Defect: | 0.0595 cps |
| Base Length (in): | 6.38 in | Max Operating Temperature (C): | 107 °C |
| Housing Coating: | Powder Coated | Inner Ring Outside Diameter (in): | 1.847 in |
| Shaft Locking Type: | Eccentric | Radial Clearance: | C3 STANDARD |
| Housing Material: | Cast Iron | Dynamic Load Rating (lb): | 5,810 lb |
| Locking Device Kit: | W2235S | Fixed vs. Expansion: | Fixed |
| Static Load Rating (lb): | 3,440 lb | Insert: | YG223NL |
| Maximum Speed (RPM): | 6850 rpm | Cage Type: | Ball Riding Retainer |
| End Cap: | Y2236N | Bearing Brand: | LINK-BELT 200 SERIES BALL |
| Vibration Frequency Fundamental Train: | 0.0067 cps | Bearing Type: | Standard Duty |
| Grease Fitting Thread Size: | 1/8 NPT | Max Operating Temperature (F): | 225 °F |
| End Cap Available: | Yes | Lubricant: | Lithium Complex NLGI 2 Grease |
| Size Code: | 207 |
General Specifications
| UPC: | 662327121808 | Weight: | 3.88 LB |
| Packaged Length: | 6.88 IN | Packaged Width: | 4.06 IN |
| Packaged Height: | 2.13 IN | HTC: | 8483208040 |
| Country of Origin: | Mexico |
