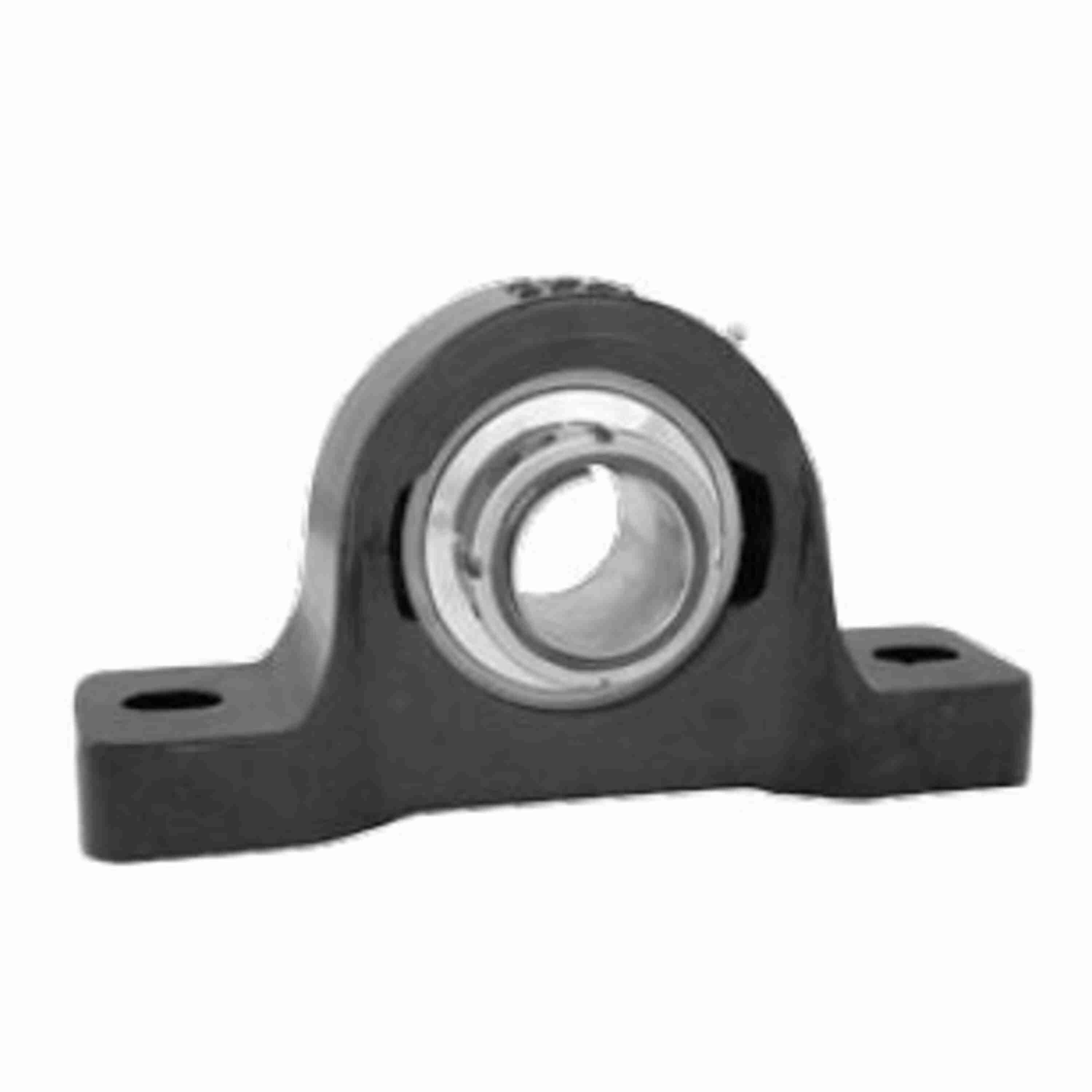

Link-Belt PA323K5 Pillow Blocks Ball Bearings - PA323K5
Part #:10467864
Catalog #:PA323K5
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Length (in): | 9.25 in | Overall Width (in): | 2.73 in |
| Bolt Size (in): | 5/8 in | Foot Height (in): | 1 in |
| Length Through Bore (in): | 2.73 in | Base Width (in): | 2.38 in |
| Overall Height (in): | 4.5 in | Base to Center Height (in): | 2.375 in |
| Bore Diameter (in): | 1.4375 in | Centerline to Outermost Bearing Face (in): | 1.91 in |
| Bolt Spacing (in): | 7.38 in |
Technical Specifications
| Housing Base: | Semi-Solid | Shaft Locking Collar Kit/Adapter Assembly: | AK46107 |
| Seal Type: | Clearance Seal with Flinger | Bore Shape: | Straight |
| Rolling Element: | Ball Bearing | Outer Ring Land Profile: | Standard |
| Slot Length (in): | 1.13 in | Housing Color: | Black |
| Cage Material: | Molded fiber glass reinforced nylon | Housing Construction: | One Piece |
| Housing Style: | Pillow Block | Misalignment Type: | Static Only |
| Housing Type: | Pillow Block, Two Bolt | Wrench Style Shurlok Install Tool: | N6107-SPN |
| Ability to Relubricate: | Yes | Locking Collar Outside Diameter (in): | 2.38 in |
| Lubricant: | PRESERVATIVE ONLY - NO GREASE | Lube Fill Percent: | 0% FILL |
| Vibration Frequency Outer Ring Defect: | 0.0510 cps | Insert: | AG323LK5 |
| Vibration Frequency Fundamental Train: | 0.0063 cps | Impact Style Shurlok Install Tool: | N6107-IMP |
| Vibration Frequency Roller Spin: | 0.0335 cps | Cage Type: | Ball Riding Retainer |
| Size Code: | 323 | Maximum Speed (RPM): | 7550 rpm |
| Grease Fitting Thread Size: | 1/8 NPT | End Cap Available: | No |
| Housing Material: | Cast Iron | Static Load Rating (lb): | 4,290 lb |
| Base Length (in): | 9.25 in | Bearing Insert Material: | 52100 Bearing Steel |
| Radial Clearance: | C3 STANDARD | Fixed vs. Expansion: | Fixed |
| Vibration Frequency Inner Ring Defect: | 0.0823 cps | Bearing Type: | Heavy Duty |
| Misalignment Capability: | ±2.0° Misalignment - Static Only | Max Operating Temperature (C): | 107 °C |
| Housing Coating: | Powder Coated | Shaft Locking Type: | Tapered Adapter |
| Bearing Brand: | LINK-BELT 300 SERIES HD BALL | Max Operating Temperature (F): | 225 °F |
| Dynamic Load Rating (lb): | 7,490 lb | Inner Ring Outside Diameter (in): | 1.946 in |
| Locking Device Kit: | AK46107 |
General Specifications
| UPC: | 782934893254 | Weight: | 7.77 LB |
| HTC: | 84833080 |
