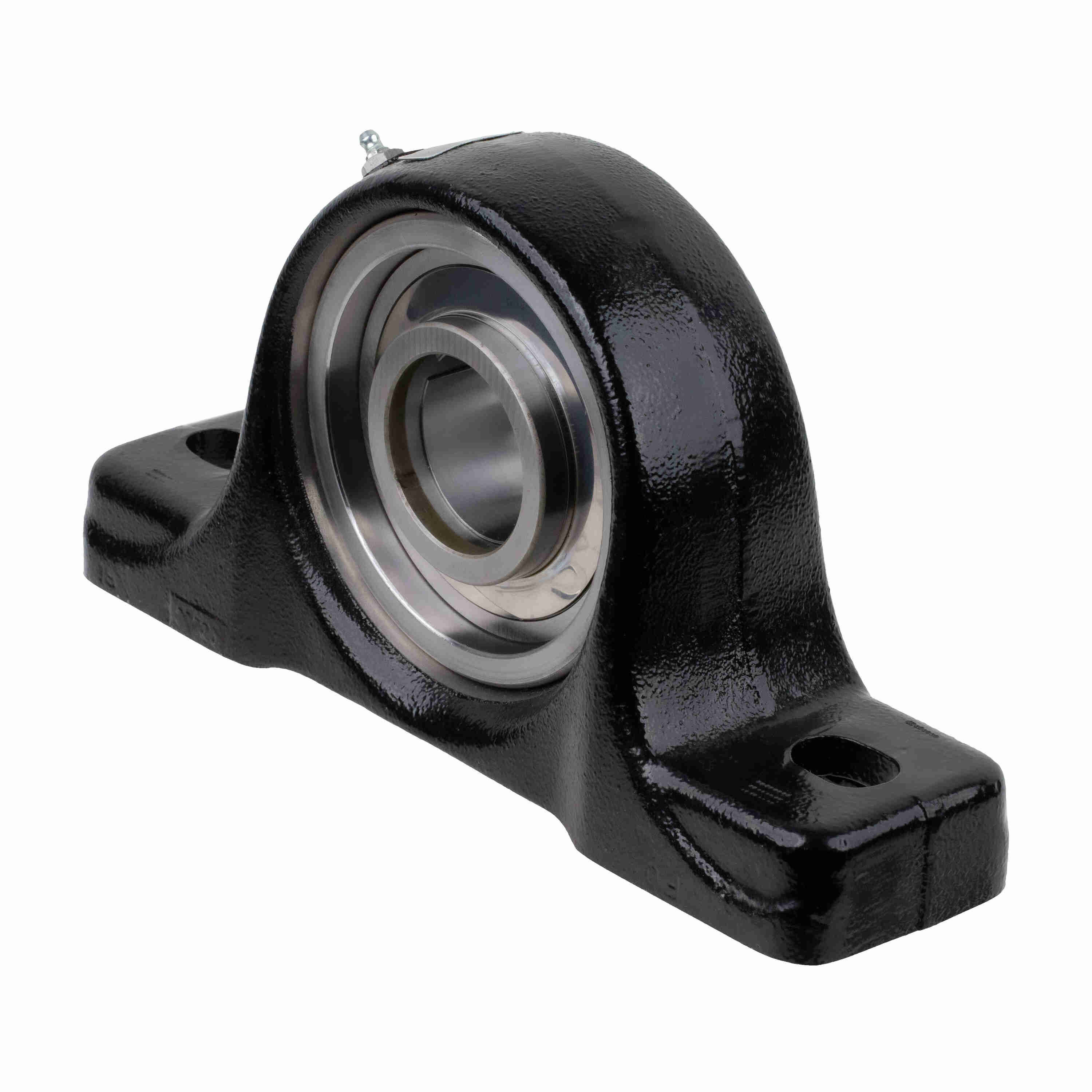

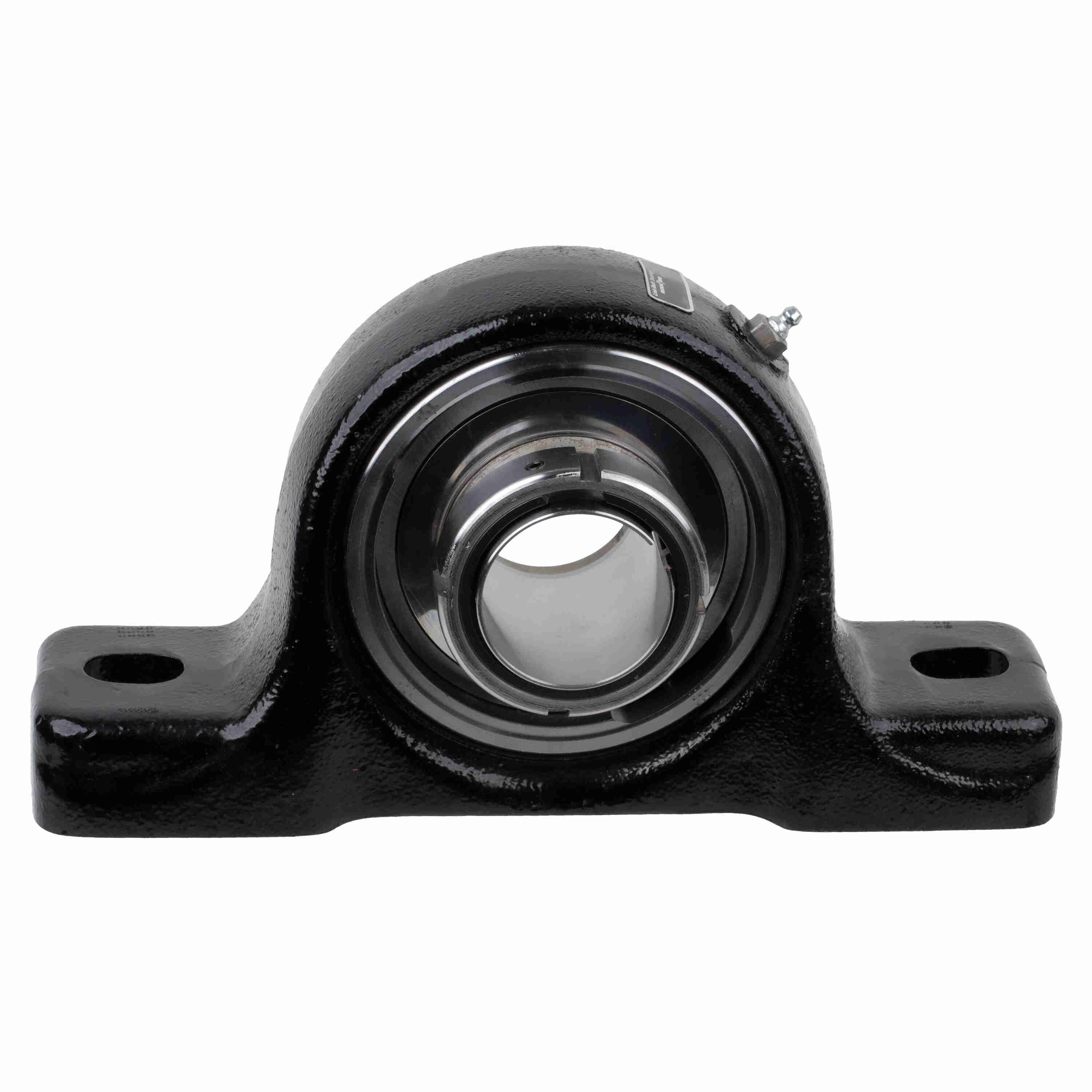

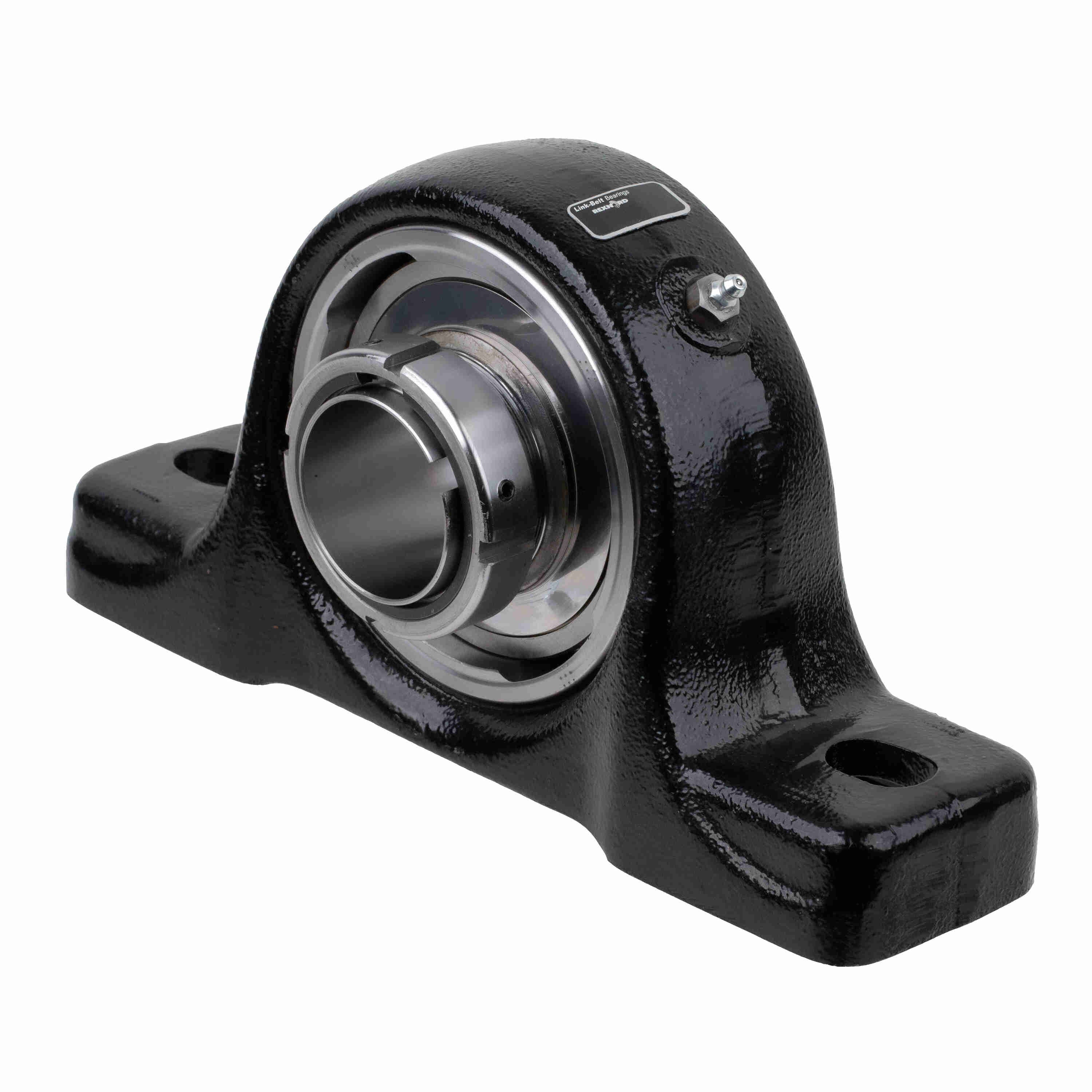

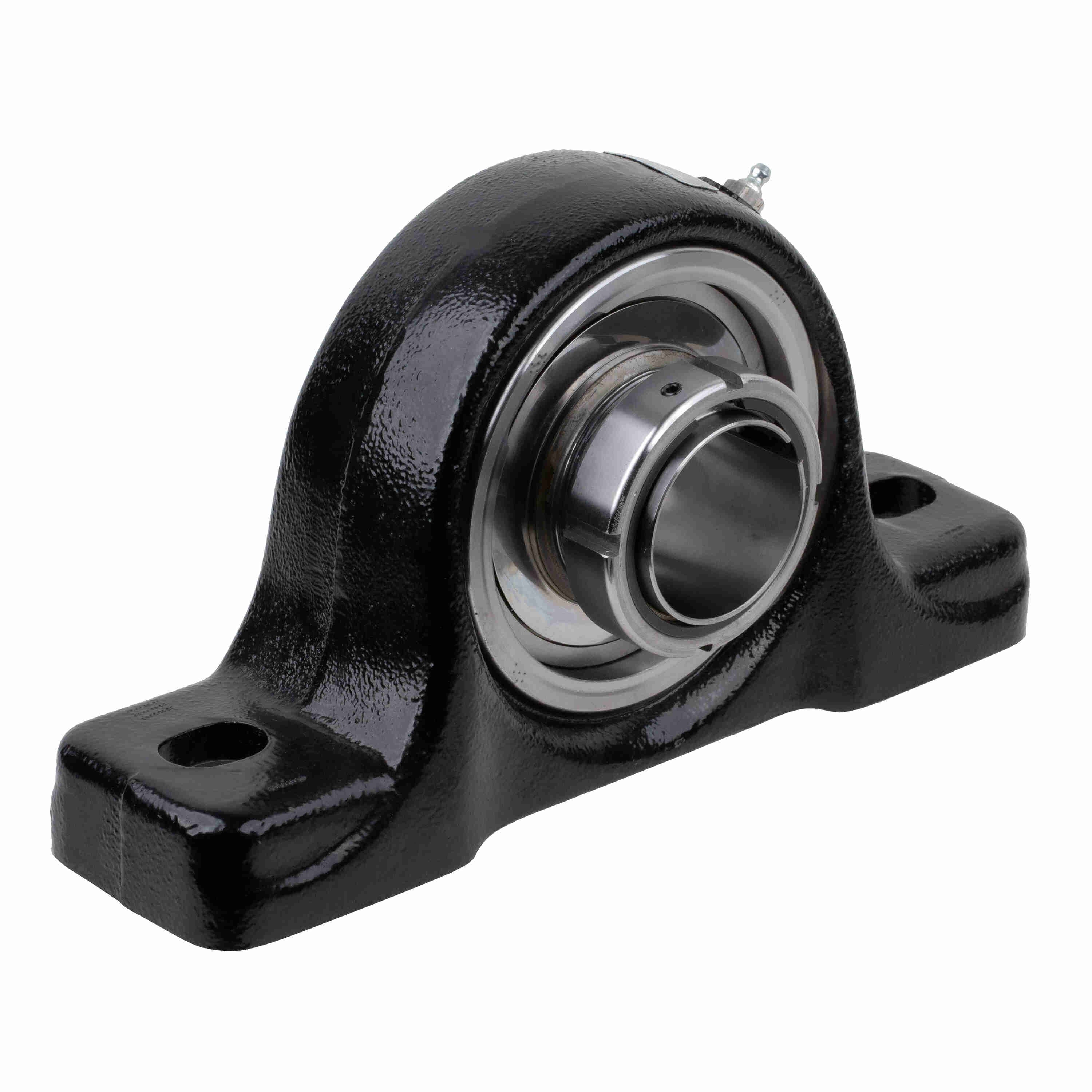

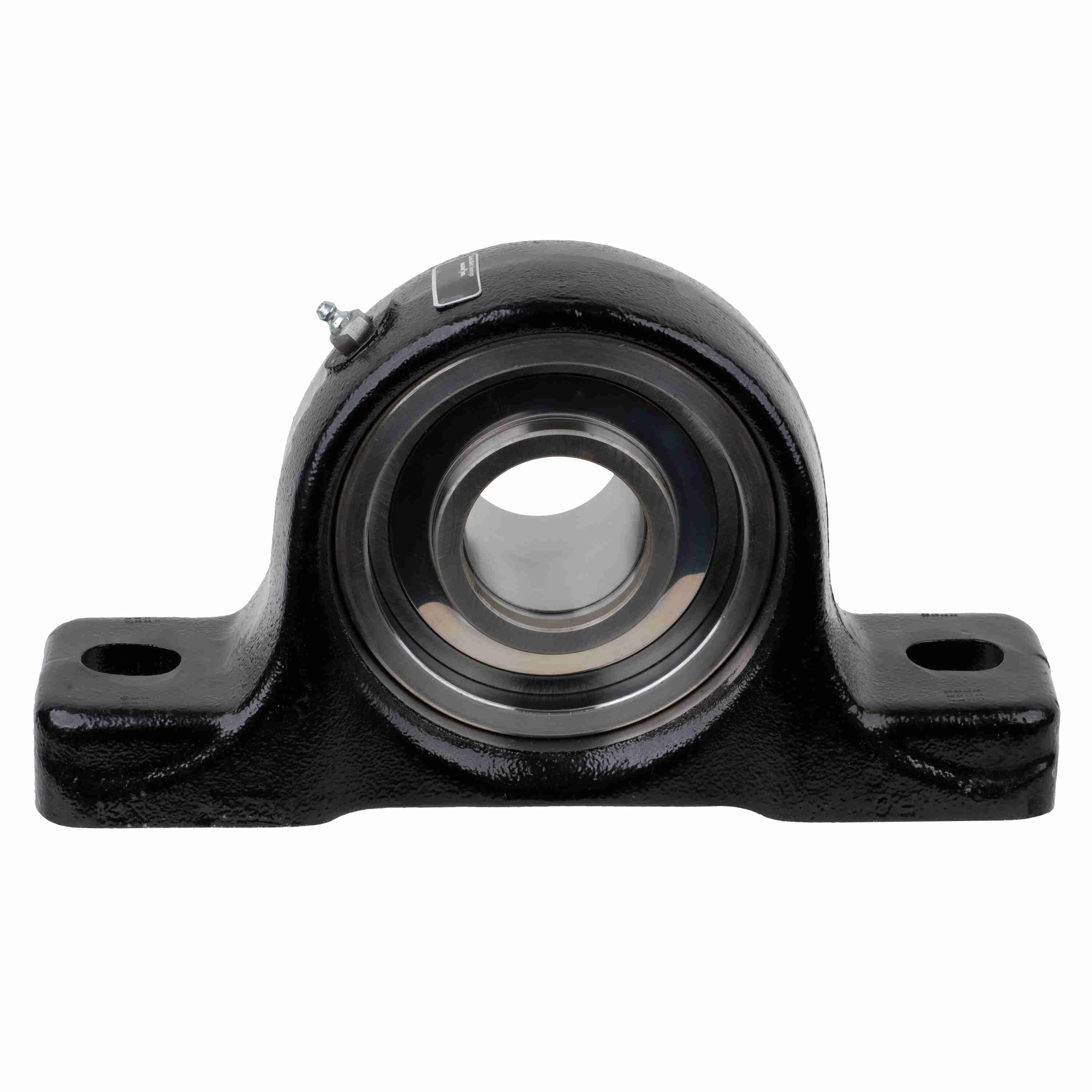

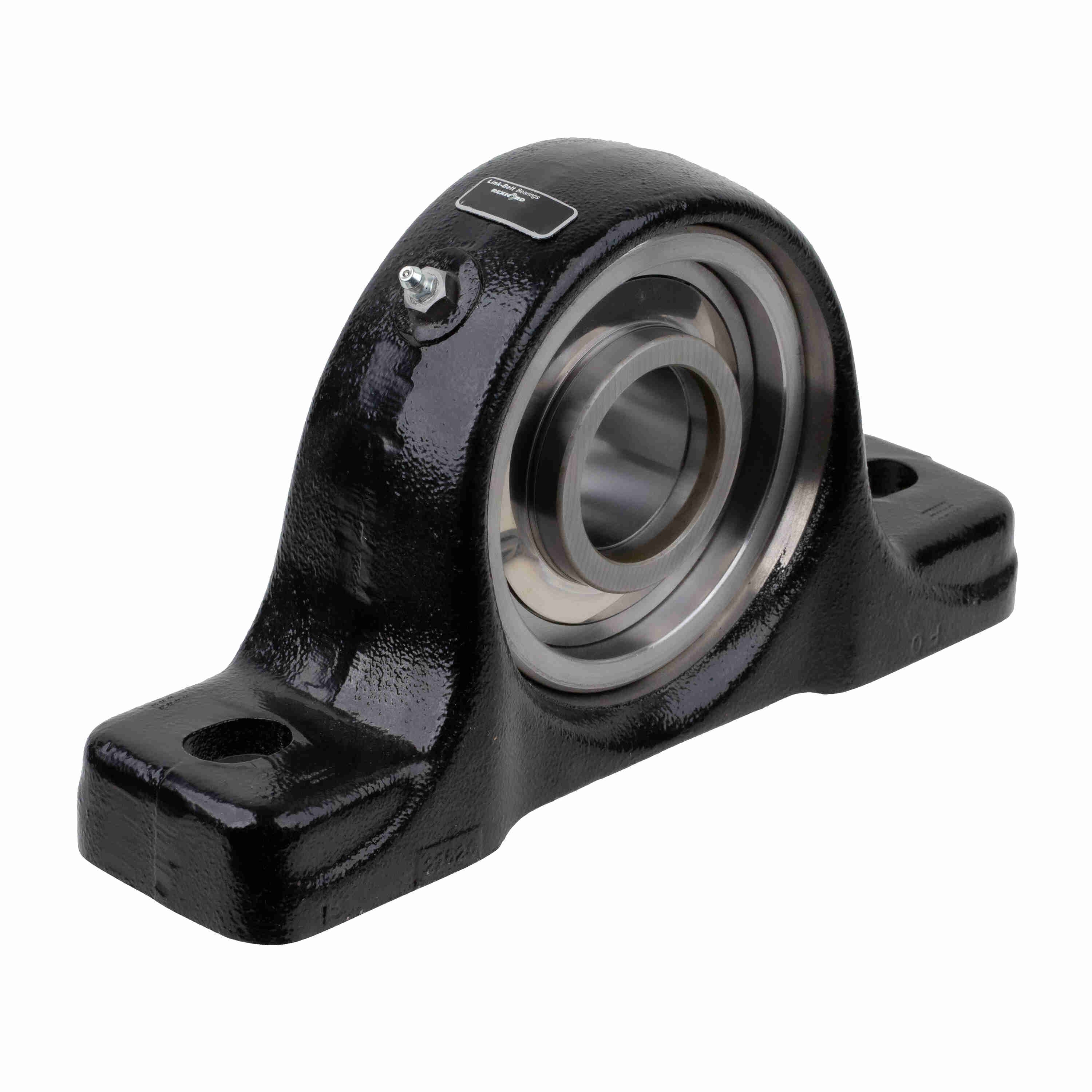

Link-Belt PEA331 Pillow Blocks Ball Bearings - PEA331
Part #:10415563
Catalog #:PEA331
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Foot Height (in): | 1.38 in | Base to Center Height (in): | 3.125 in |
| Base Width (in): | 3.13 in | Overall Width (in): | 3.22 in |
| Length Through Bore (in): | 3.22 in | Overall Height (in): | 6.22 in |
| Bore Diameter (in): | 1.9375 in | Overall Length (in): | 11.13 in |
| Bolt Size (in): | 5/8 in | Bolt Spacing (in): | 8.88 in |
| Centerline to Outermost Bearing Face (in): | 2.13 in |
Technical Specifications
| Housing Color: | Black | Outer Ring Land Profile: | Standard |
| Misalignment Type: | Static Only | Rolling Element: | Ball Bearing |
| Bore Shape: | Straight | Housing Type: | Pillow Block, Two Bolt |
| Slot Length (in): | 1.13 in | Housing Construction: | One Piece |
| Housing Base: | Semi-Solid | Shaft Locking Collar Kit/Adapter Assembly: | AK66115 |
| Cage Material: | Molded fiber glass reinforced nylon | Seal Type: | Clearance Seal with Flinger |
| Housing Style: | Pillow Block | Ability to Relubricate: | Yes |
| Setscrew Torque (in-lbs): | 87-92 in/lbs | Wrench Style Shurlok Install Tool: | 105-90420-11 |
| Locking Collar Outside Diameter (in): | 2.86 in | Expansion Capability (in): | 0.25 in |
| Max Operating Temperature (C): | 107 °C | Shaft Locking Type: | Tapered Adapter |
| Vibration Frequency Outer Ring Defect: | 0.0508 cps | Expansion Lock Plug: | 3398B |
| Size Code: | 331 | Impact Style Shurlok Install Tool: | 105-90425-11 |
| Locking Device Kit: | AK66115 | Cage Type: | Ball Riding Retainer |
| Insert: | AG331L | Misalignment Capability: | ±2.0° Misalignment - Static Only |
| Bearing Insert Material: | 52100 Bearing Steel | Vibration Frequency Inner Ring Defect: | 0.0825 cps |
| Vibration Frequency Fundamental Train: | 0.0063 cps | Grease Fitting Thread Size: | 1/4-28 |
| Radial Clearance: | C3 STANDARD | Bearing Brand: | LINK-BELT 300 SERIES HD BALL |
| Fixed vs. Expansion: | Expansion | Vibration Frequency Roller Spin: | 0.0330 cps |
| End Cap Available: | No | Bearing Type: | Heavy Duty |
| Inner Ring Outside Diameter (in): | 2.701 in | Static Load Rating (lb): | 8,500 lb |
| Base Length (in): | 11.13 in | Dynamic Load Rating (lb): | 13,900 lb |
| Max Operating Temperature (F): | 225 °F | Lubricant: | Lithium Complex NLGI 2 Grease |
| Housing Material: | Cast Iron | Housing Coating: | Powder Coated |
| Maximum Speed (RPM): | 5600 rpm |
General Specifications
| UPC: | 662864296953 | Weight: | 19.62 LB |
| Packaged Length: | 12.00 IN | Packaged Width: | 3.56 IN |
| Packaged Height: | 6.75 IN | HTC: | 8483208040 |
| Country of Origin: | Mexico |
