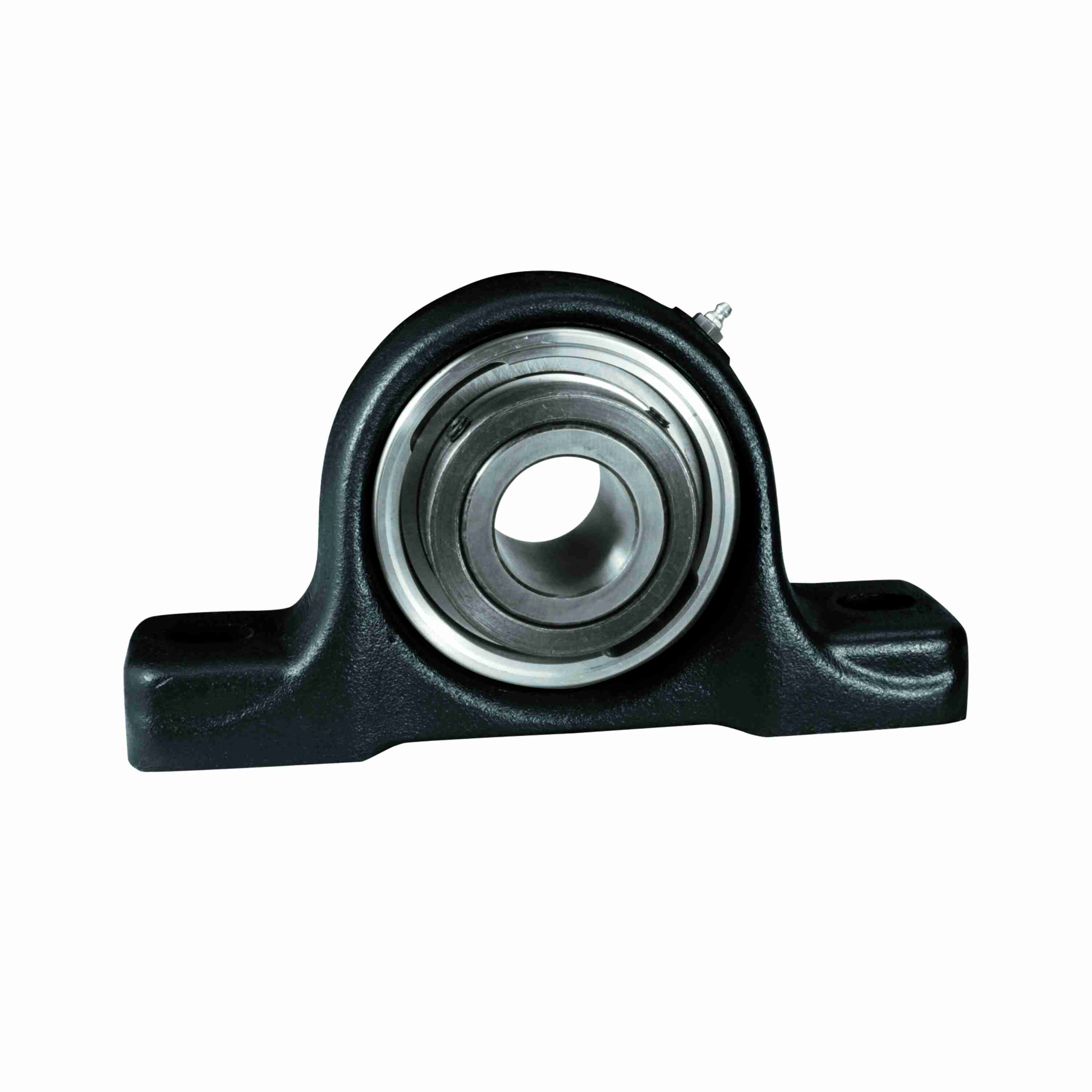

Link-Belt PEU343J4C4 Pillow Blocks Ball Bearings - PEU343J4C4
Part #:10420059
Catalog #:PEU343J4C4
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Base Width (in): | 3.75 in | Foot Height (in): | 1.63 in |
| Bore Diameter (in): | 2.6875 in | Base to Center Height (in): | 4 in |
| Overall Length (in): | 14.63 in | Overall Height (in): | 7.94 in |
| Bolt Size (in): | 7/8 in | Overall Width (in): | 3.81 in |
| Length Through Bore (in): | 3.81 in | Bolt Spacing (in): | 11.81 in |
| Centerline to Outermost Bearing Face (in): | 2.25 in |
Technical Specifications
| Housing Style: | Pillow Block | Housing Construction: | One Piece |
| Misalignment Type: | Static Only | Housing Base: | Semi-Solid |
| Slot Length (in): | 1.63 in | Housing Color: | Black |
| Housing Type: | Pillow Block, Two Bolt | Bore Shape: | Straight |
| Rolling Element: | Ball Bearing | Cage Material: | Steel |
| Seal Type: | Flingers only | Outer Ring Land Profile: | Standard |
| Ability to Relubricate: | Yes | Setscrew Torque (in-lbs): | 620-680 in/lbs |
| Locking Collar Outside Diameter (in): | 4.74 in | Insert: | UG343JL4CC4 |
| Static Load Rating (lb): | 15,300 lb | Grease Fitting Thread Size: | 1/8 NPT |
| Vibration Frequency Fundamental Train: | 0.0063 cps | End Cap Available: | Yes |
| Radial Clearance: | C4 INCREASED | Max Operating Temperature (C): | 204 °C |
| Housing Material: | Cast Iron | Max Operating Temperature (F): | 400 °F |
| Lubricant: | DOW CORNING DC44 HT | Cage Type: | Ball Riding Retainer |
| Fixed vs. Expansion: | Expansion | Expansion Capability (in): | 0.22 in |
| Expansion Lock Plug: | B225728A | Vibration Frequency Inner Ring Defect: | 0.0820 cps |
| Maximum Speed (RPM): | 3950 rpm | Vibration Frequency Outer Ring Defect: | 0.0513 cps |
| Inner Ring Outside Diameter (in): | 3.732 in | Base Length (in): | 14.63 in |
| Bearing Brand: | LINK-BELT 300 SERIES HD BALL | Size Code: | 344 |
| Vibration Frequency Roller Spin: | 0.0342 cps | Misalignment Capability: | ±2.0° Misalignment - Static Only |
| Locking Device Kit: | U3445S | End Cap: | U3446C |
| Bearing Type: | Heavy Duty | Bearing Insert Material: | 52100 Bearing Steel |
| Shaft Locking Type: | Set Screw | Housing Coating: | Powder Coated |
| Dynamic Load Rating (lb): | 23,420 lb |
General Specifications
| UPC: | 793699503302 | Weight: | 41.20 LB |
| Packaged Length: | 8.38 IN | Packaged Width: | 5.25 IN |
| Packaged Height: | 14.63 IN | HTC: | 8483208040 |
| Country of Origin: | Mexico |
