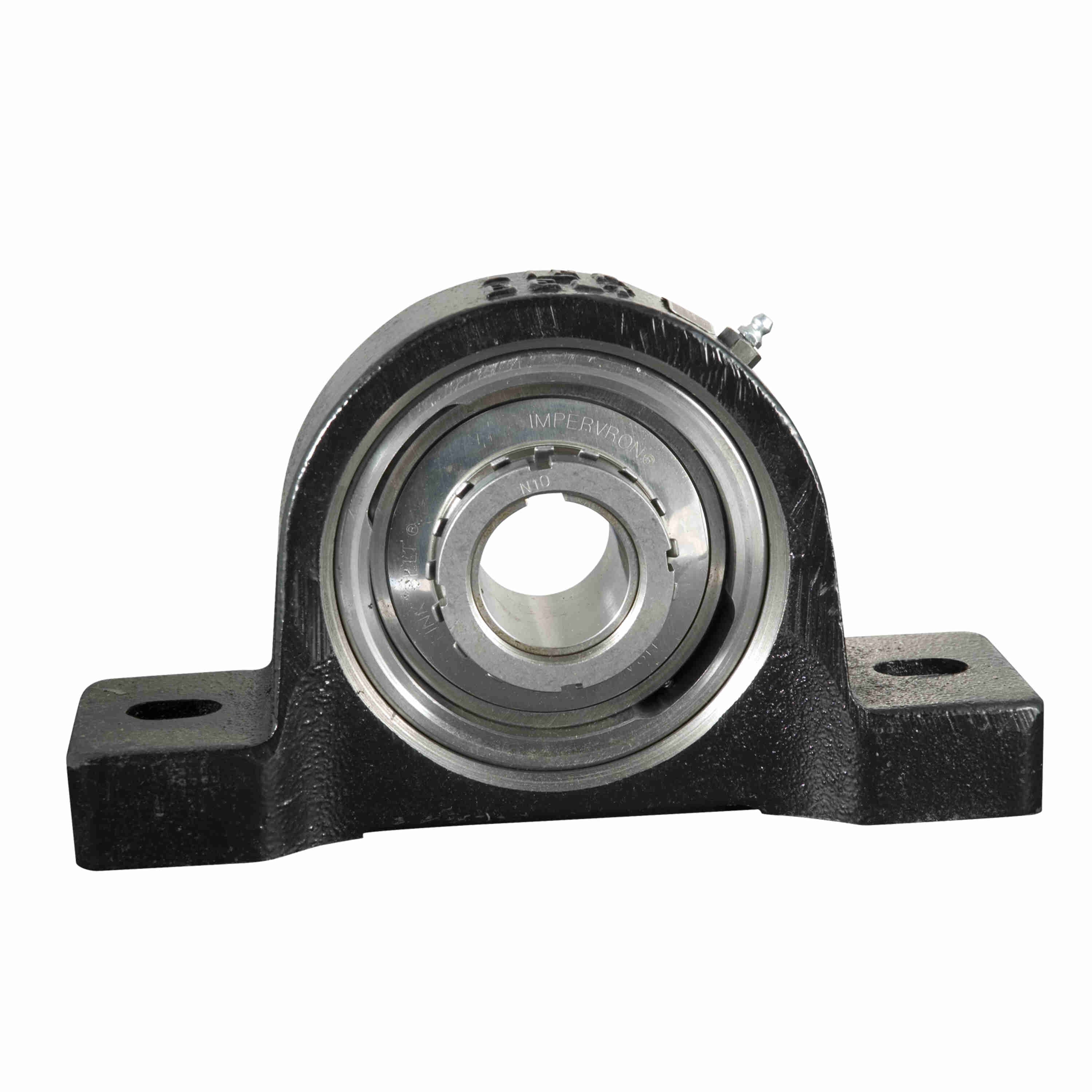

Link-Belt PEU3K55K5 Pillow Blocks Ball Bearings - PEU3K55K5
Part #:10433887
Catalog #:PEU3K55K5
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Height (in): | 11.06 in | Base to Center Height (in): | 5.6875 in |
| Length Through Bore (in): | 3.97 in | Foot Height (in): | 2.56 in |
| Bolt Size (in): | 1 in | Overall Length (in): | 17.31 in |
| Overall Width (in): | 5 in | Bore Diameter (in): | 3.4375 in |
| Base Width (in): | 5 in | Bolt Spacing (in): | 14.5 in |
| Centerline to Outermost Bearing Face (in): | 2.42 in |
Technical Specifications
| Shaft Locking Collar Kit/Adapter Assembly: | H2320055 | Housing Base: | Semi-Solid |
| Bore Shape: | Straight | Housing Construction: | One Piece |
| Seal Type: | Clearance Seal with Flinger | Misalignment Type: | Static Only |
| Cage Material: | Molded fiber glass reinforced nylon | Housing Type: | Pillow Block, Two Bolt |
| Rolling Element: | Ball Bearing | Housing Color: | Black |
| Outer Ring Land Profile: | Standard | Housing Style: | Pillow Block |
| Slot Length (in): | 1.5 in | Ability to Relubricate: | Yes |
| Locking Collar Outside Diameter (in): | 5.12 in | Grease Fitting Thread Size: | 1/8 NPT |
| Bearing Type: | Heavy Duty | Housing Material: | Cast Iron |
| Inner Ring Outside Diameter (in): | 5.339 in | Static Load Rating (lb): | 31,600 lb |
| Size Code: | 363 | Bearing Brand: | LINK-BELT 300 SERIES HD BALL |
| Locking Device Kit: | H2320055 | Vibration Frequency Outer Ring Defect: | 0.0516 cps |
| Insert: | UG3K55LK5 | Fixed vs. Expansion: | Expansion |
| Shaft Locking Type: | Tapered Adapter | Lube Fill Percent: | 0% FILL |
| Lubricant: | PRESERVATIVE ONLY - NO GREASE | Maximum Speed (RPM): | 2750 rpm |
| Vibration Frequency Fundamental Train: | 0.0065 cps | End Cap Available: | No |
| Base Length (in): | 17.31 in | Expansion Lock Plug: | B225808A |
| Misalignment Capability: | ±2.0° Misalignment - Static Only | Dynamic Load Rating (lb): | 45,000 lb |
| Cage Type: | Ball Riding Retainer | Housing Coating: | Powder Coated |
| Max Operating Temperature (F): | 225 °F | Max Operating Temperature (C): | 107 °C |
| Bearing Insert Material: | 52100 Bearing Steel | Vibration Frequency Inner Ring Defect: | 0.0817 cps |
| Expansion Capability (in): | 0.34 in | Vibration Frequency Roller Spin: | 0.0340 cps |
| Radial Clearance: | C3 STANDARD |
General Specifications
| UPC: | 793699902099 | Weight: | 90.00 LB |
| Packaged Length: | 11.88 IN | Packaged Width: | 7.25 IN |
| Packaged Height: | 18.50 IN | HTC: | 8483208040 |
| Country of Origin: | Mexico |
