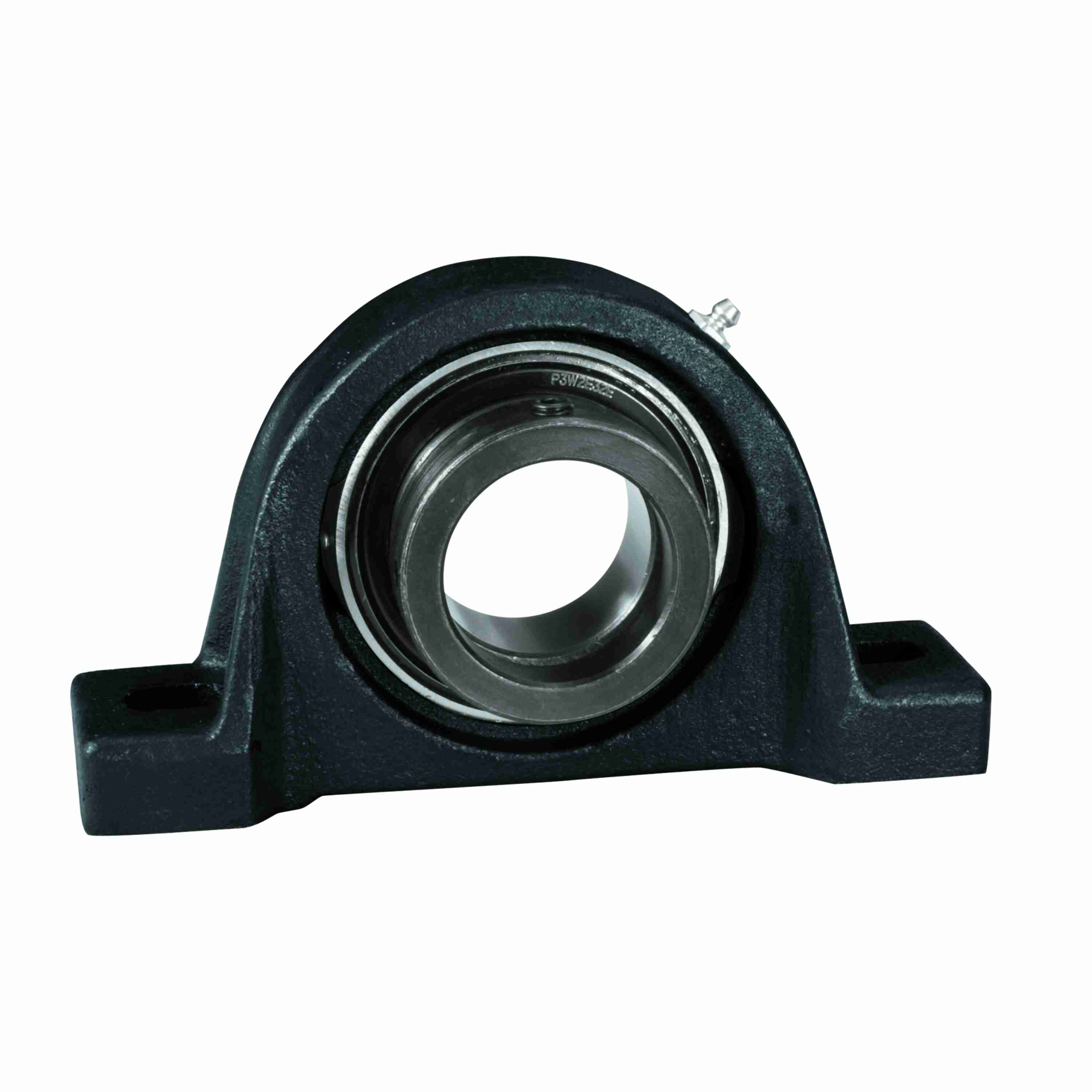

Link-Belt PL3W224E Pillow Blocks Ball Bearings - PL3W224E
Part #:10415655
Catalog #:PL3W224E
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bore Diameter (in): | 1.5 in | Bolt Size (in): | 1/2 in |
| Overall Width (in): | 1.88 in | Base Width (in): | 1.88 in |
| Overall Height (in): | 3.93 in | Base to Center Height (in): | 1.9375 in |
| Length Through Bore (in): | 1.72 in | Overall Length (in): | 7.06 in |
| Foot Height (in): | 0.74 in | Bolt Spacing (in): | 5.48 in |
| Centerline to Outermost Bearing Face (in): | 1.28 in |
Technical Specifications
| Housing Style: | Pillow Block | Rolling Element: | Ball Bearing |
| Misalignment Type: | Static Only | Housing Base: | Semi-Solid |
| Cage Material: | Molded fiber glass reinforced nylon | Seal Type: | Single Lip Contact Seal |
| Housing Type: | Pillow Block, Two Bolt, Low Base | Slot Length (in): | 1.05 in |
| Housing Construction: | One Piece | Housing Color: | Black |
| Bore Shape: | Straight | Outer Ring Land Profile: | Standard |
| Setscrew Torque (in-lbs): | 290-325 in/lbs | Locking Collar Outside Diameter (in): | 2.32 in |
| Ability to Relubricate: | Yes | End Cap Available: | Yes |
| Base Length (in): | 7.06 in | Size Code: | 208 |
| Radial Clearance: | C3 STANDARD | Vibration Frequency Outer Ring Defect: | 0.0588 cps |
| Grease Fitting Thread Size: | 1/8 NPT | Max Operating Temperature (C): | 107 °C |
| Cage Type: | Ball Riding Retainer | Lubricant: | Lithium Complex NLGI 2 Grease |
| Insert: | WG224EL | Bearing Type: | Intermediate Duty |
| Fixed vs. Expansion: | Fixed | Misalignment Capability: | ±2.0° Misalignment - Static Only |
| Max Operating Temperature (F): | 225 °F | Vibration Frequency Inner Ring Defect: | 0.0912 cps |
| Maximum Speed (RPM): | 4500 rpm | Inner Ring Outside Diameter (in): | 2.084 in |
| Housing Material: | Cast Iron | Dynamic Load Rating (lb): | 7,330 lb |
| Housing Coating: | Powder Coated | Static Load Rating (lb): | 4,460 lb |
| Bearing Brand: | LINK-BELT 200 SERIES BALL | Bearing Insert Material: | 52100 Bearing Steel |
| Vibration Frequency Roller Spin: | 0.0367 cps | Vibration Frequency Fundamental Train: | 0.0065 cps |
| End Cap: | Y2256N | Shaft Locking Type: | Eccentric |
| Locking Device Kit: | W2245S |
General Specifications
| UPC: | 662327118877 | Weight: | 4.50 LB |
| Packaged Length: | 7.94 IN | Packaged Width: | 4.69 IN |
| Packaged Height: | 2.44 IN | HTC: | 8483208040 |
| Country of Origin: | Mexico |
