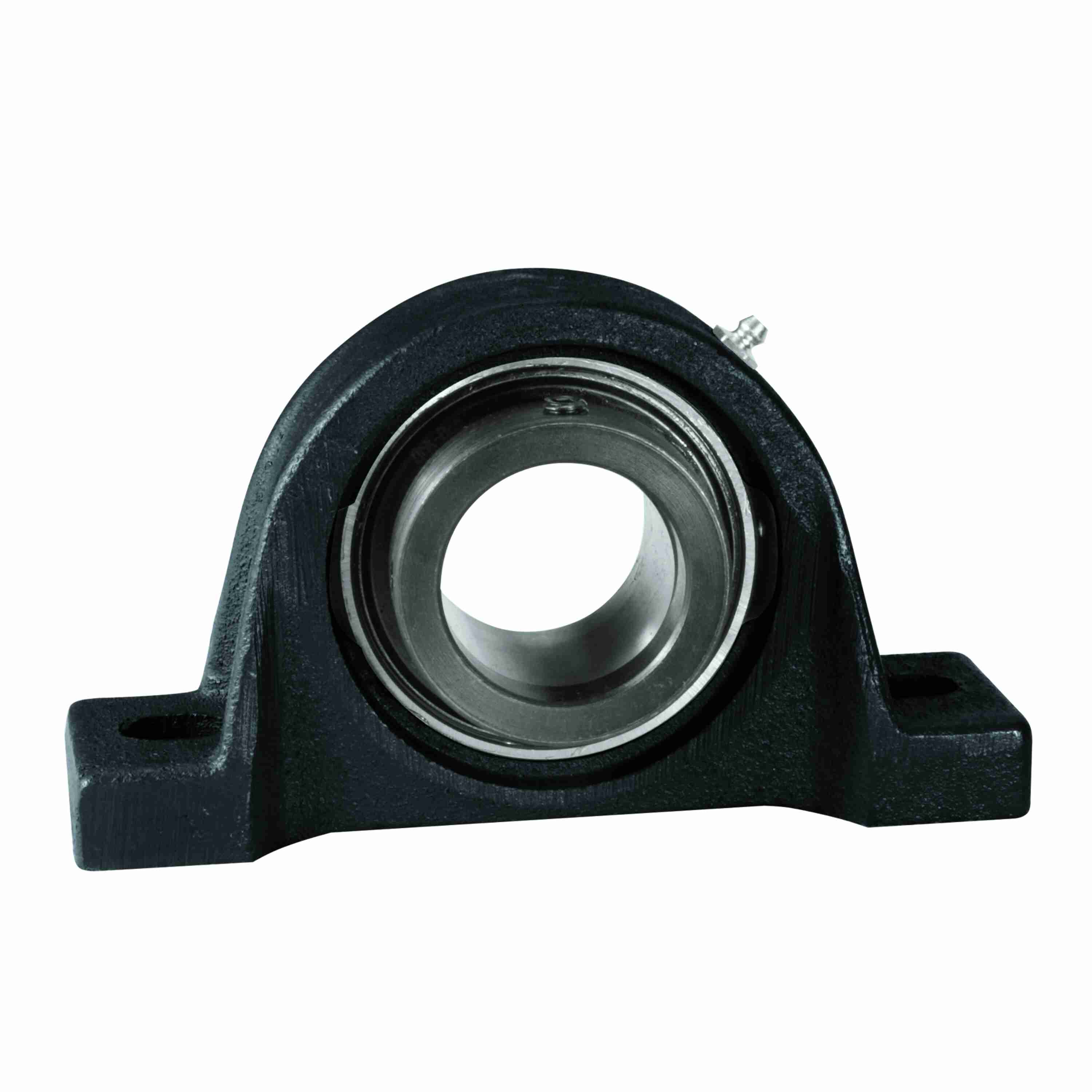

Link-Belt PL3Y223H Pillow Blocks Ball Bearings - PL3Y223H
Part #:10433952
Catalog #:PL3Y223H
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Height (in): | 3.62 in | Overall Length (in): | 6.38 in |
| Base to Center Height (in): | 1.8125 in | Length Through Bore (in): | 2.02 in |
| Overall Width (in): | 2.02 in | Base Width (in): | 1.75 in |
| Foot Height (in): | 0.75 in | Bore Diameter (in): | 1.4375 in |
| Bolt Size (in): | 1/2 in | Bolt Spacing (in): | 4.94 in |
| Centerline to Outermost Bearing Face (in): | 1.28 in |
Technical Specifications
| Outer Ring Land Profile: | Standard | Housing Color: | Black |
| Housing Base: | Semi-Solid | Cage Material: | Molded fiber glass reinforced nylon |
| Slot Length (in): | 0.88 in | Housing Type: | Pillow Block, Two Bolt, Low Base |
| Housing Style: | Pillow Block | Misalignment Type: | Static Only |
| Seal Type: | Labryinth Seal | Housing Construction: | One Piece |
| Rolling Element: | Ball Bearing | Bore Shape: | Straight |
| Setscrew Torque (in-lbs): | 290-325 in/lbs | Locking Collar Outside Diameter (in): | 2.14 in |
| Ability to Relubricate: | Yes | Lubricant: | Lithium Complex NLGI 2 Grease |
| Static Load Rating (lb): | 3,440 lb | Housing Coating: | Powder Coated |
| Dynamic Load Rating (lb): | 5,810 lb | Maximum Speed (RPM): | 6850 rpm |
| Bearing Type: | Standard Duty | Radial Clearance: | C3 STANDARD |
| Vibration Frequency Inner Ring Defect: | 0.0905 cps | Locking Device Kit: | W2235S |
| Max Operating Temperature (C): | 107 °C | Grease Fitting Thread Size: | 1/8 NPT |
| Vibration Frequency Roller Spin: | 0.0383 cps | Max Operating Temperature (F): | 225 °F |
| Insert: | YG223HL | Vibration Frequency Outer Ring Defect: | 0.0595 cps |
| Shaft Locking Type: | Eccentric | Bearing Brand: | LINK-BELT 200 SERIES BALL |
| End Cap: | Y2236N | Bearing Insert Material: | 52100 Bearing Steel |
| Inner Ring Outside Diameter (in): | 1.847 in | Housing Material: | Cast Iron |
| Size Code: | 207 | Fixed vs. Expansion: | Fixed |
| End Cap Available: | Yes | Misalignment Capability: | ±2.0° Misalignment - Static Only |
| Base Length (in): | 6.38 in | Vibration Frequency Fundamental Train: | 0.0067 cps |
| Cage Type: | Ball Riding Retainer |
General Specifications
| UPC: | 662327422240 | Weight: | 3.65 LB |
| Packaged Length: | 7.94 IN | Packaged Width: | 4.69 IN |
| Packaged Height: | 2.44 IN | HTC: | 8483208040 |
| Country of Origin: | Mexico |
