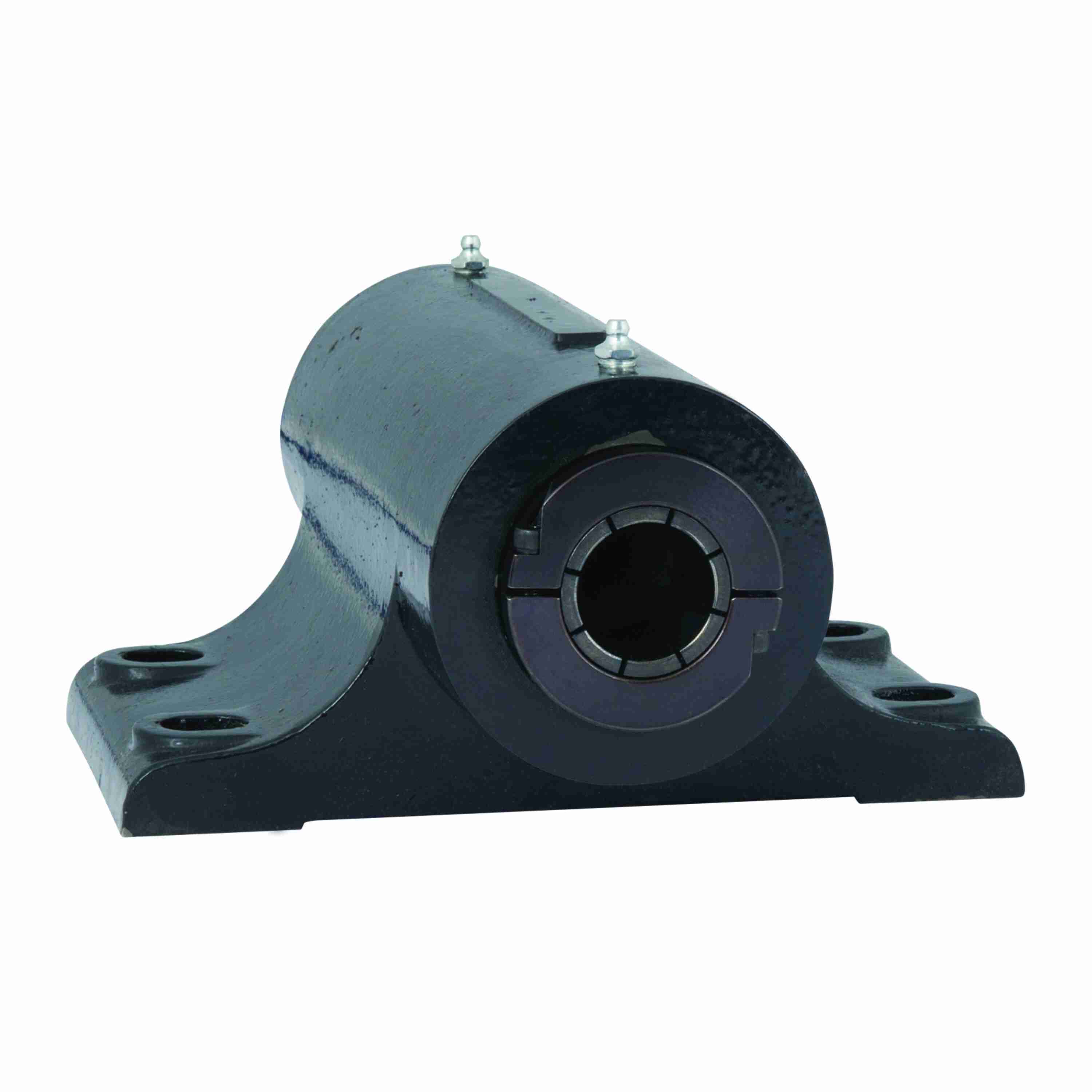

Link-Belt PPCL223N Pillow Blocks Ball Bearings - PPCL223N
Part #:10423224
Catalog #:PPCL223N
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bore Diameter (in): | 1.4375 in | Overall Length (in): | 10 in |
| Base Width (in): | 5.5 in | Foot Height (in): | 1 in |
| Bolt Size (in): | 1/2 in | Overall Height (in): | 5.69 in |
| Overall Width (in): | 10.69 in | Base to Center Height (in): | 3 in |
| Length Through Bore (in): | 10.69 in | Bolt Spacing Max (in): | 8.25 in |
| Bolt Spacing (in): | 8 in | Bolt Spacing Min (in): | 7.75 in |
Technical Specifications
| Outer Ring Land Profile: | Standard | Cage Material: | Molded fiber glass reinforced nylon |
| Misalignment Type: | Static Only | Housing Color: | Black |
| Housing Type: | Pillow Block, Four Bolt, Fan | Housing Style: | Pillow Block |
| Rolling Element: | Ball Bearing | Bore Shape: | Straight |
| Seal Type: | Single Lip Contact Seal | Housing Construction: | One Piece |
| Housing Base: | Semi-Solid | Setscrew Torque (in-lbs): | 151-168 in/lbs |
| Locking Collar Outside Diameter (in): | 2.62 in | Ability to Relubricate: | Yes |
| Vibration Frequency Outer Ring Defect: | 0.0595 cps | Vibration Frequency Roller Spin: | 0.0383 cps |
| Housing Coating: | Powder Coated | Dynamic Load Rating (lb): | 5,810 lb |
| Base Length (in): | 10 in | Bearing Brand: | LINK-BELT 200 SERIES BALL |
| Misalignment Capability: | ±2.0° Misalignment - Static Only | Shaft Locking Type: | Concentric |
| Grease Fitting Thread Size: | 1/8 NPT | Lubricant: | Lithium Complex NLGI 2 Grease |
| Radial Clearance: | C3 STANDARD | Locking Device Kit: | CL2235S |
| Bearing Insert Material: | 52100 Bearing Steel | Inner Ring Outside Diameter (in): | 1.847 in |
| Vibration Frequency Fundamental Train: | 0.0067 cps | Max Operating Temperature (F): | 225 °F |
| Vibration Frequency Inner Ring Defect: | 0.0905 cps | Fixed vs. Expansion: | Fixed |
| Insert: | CLB223XNL (QTY 2) | Maximum Speed (RPM): | 6850 rpm |
| Housing Material: | Cast Iron | Bearing Insert Finish: | Black Oxide |
| Size Code: | 207 | Static Load Rating (lb): | 3,440 lb |
| Bearing Type: | Standard Duty | Cage Type: | Ball Riding Retainer |
| Bolt Spacing Width Direction (in): | 3.5 in | Max Operating Temperature (C): | 107 °C |
| End Cap Available: | No |
General Specifications
| UPC: | 662864342025 | Weight: | 28.00 LB |
| Packaged Length: | 11.88 IN | Packaged Width: | 7.25 IN |
| Packaged Height: | 18.50 IN | HTC: | 8483208080 |
| Country of Origin: | Mexico |
