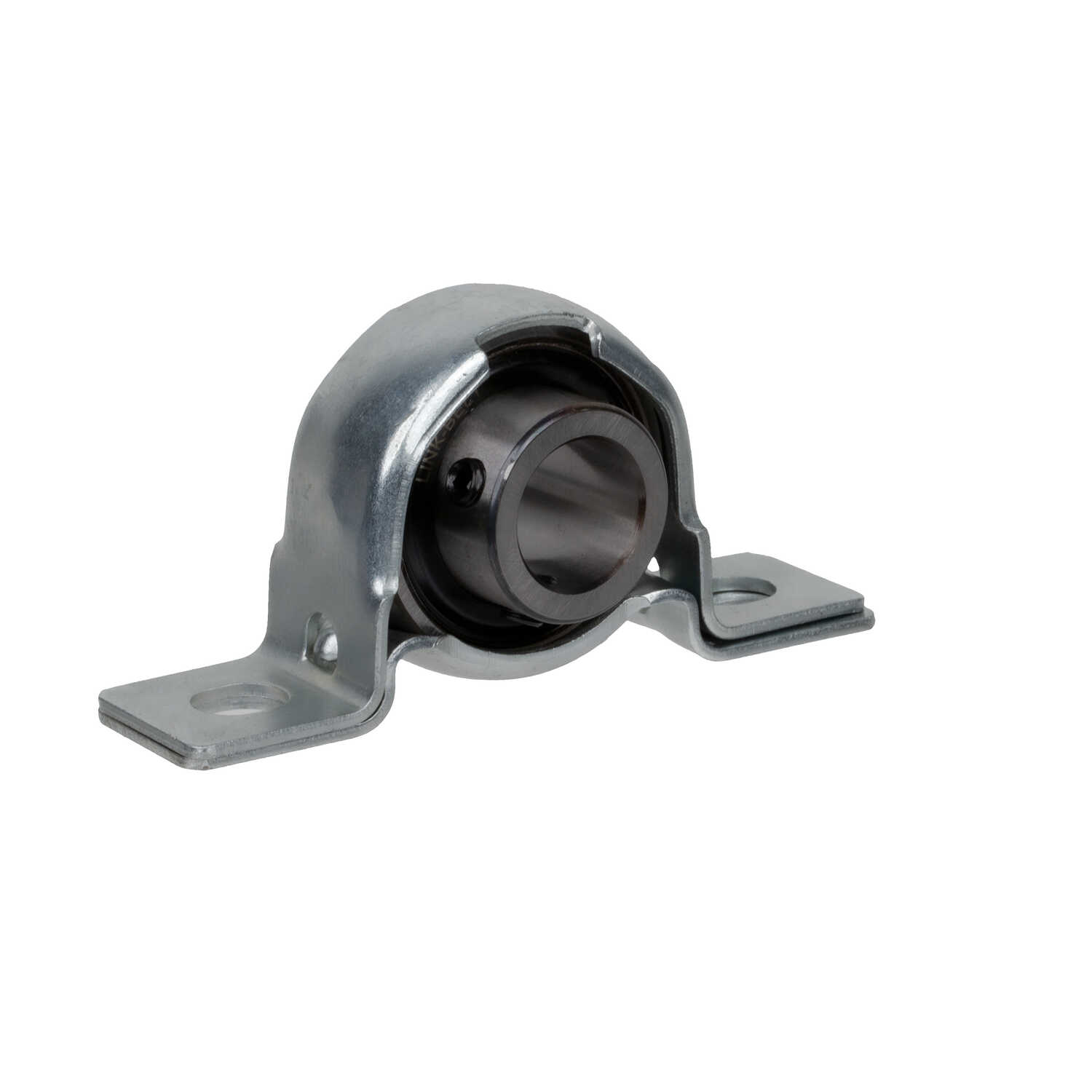

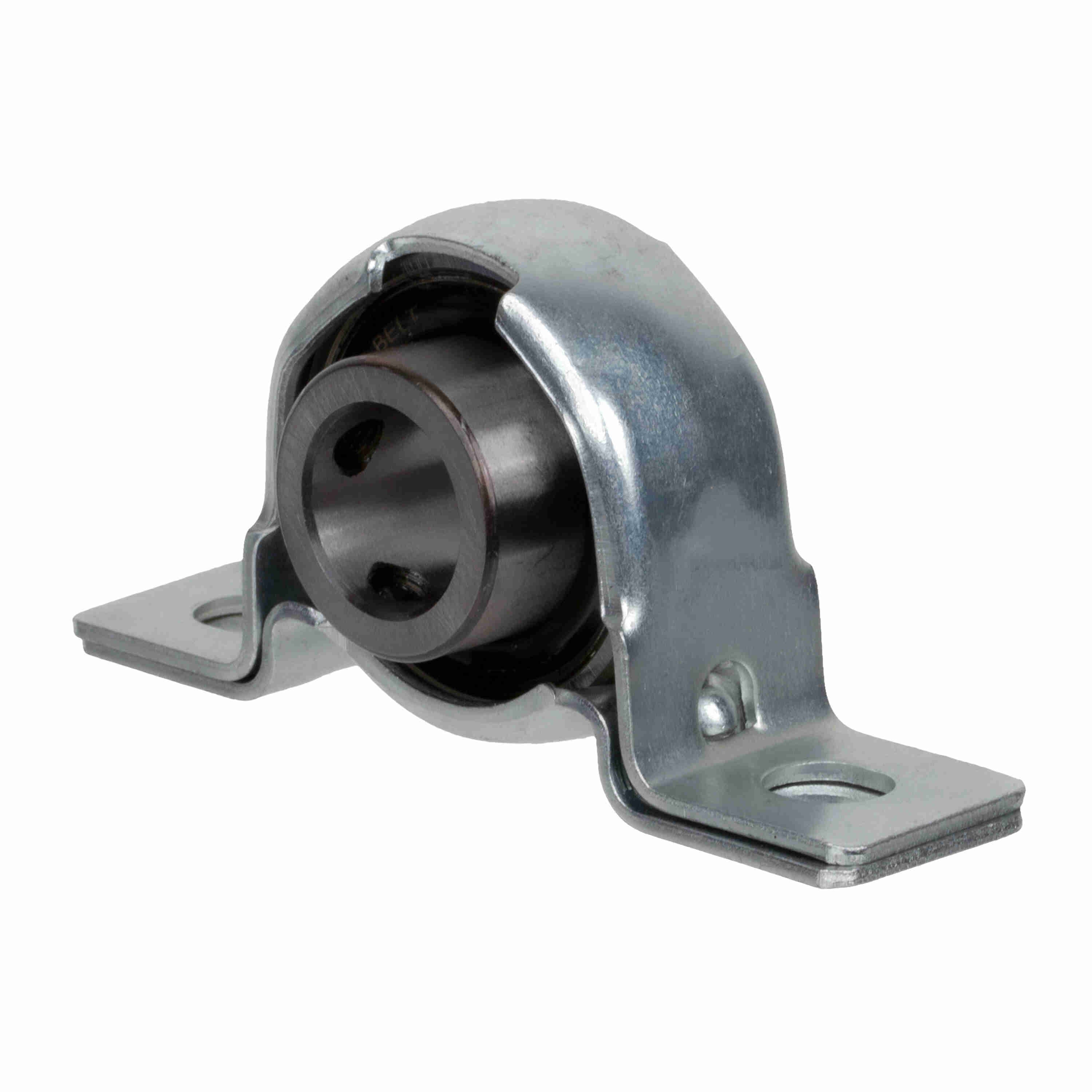

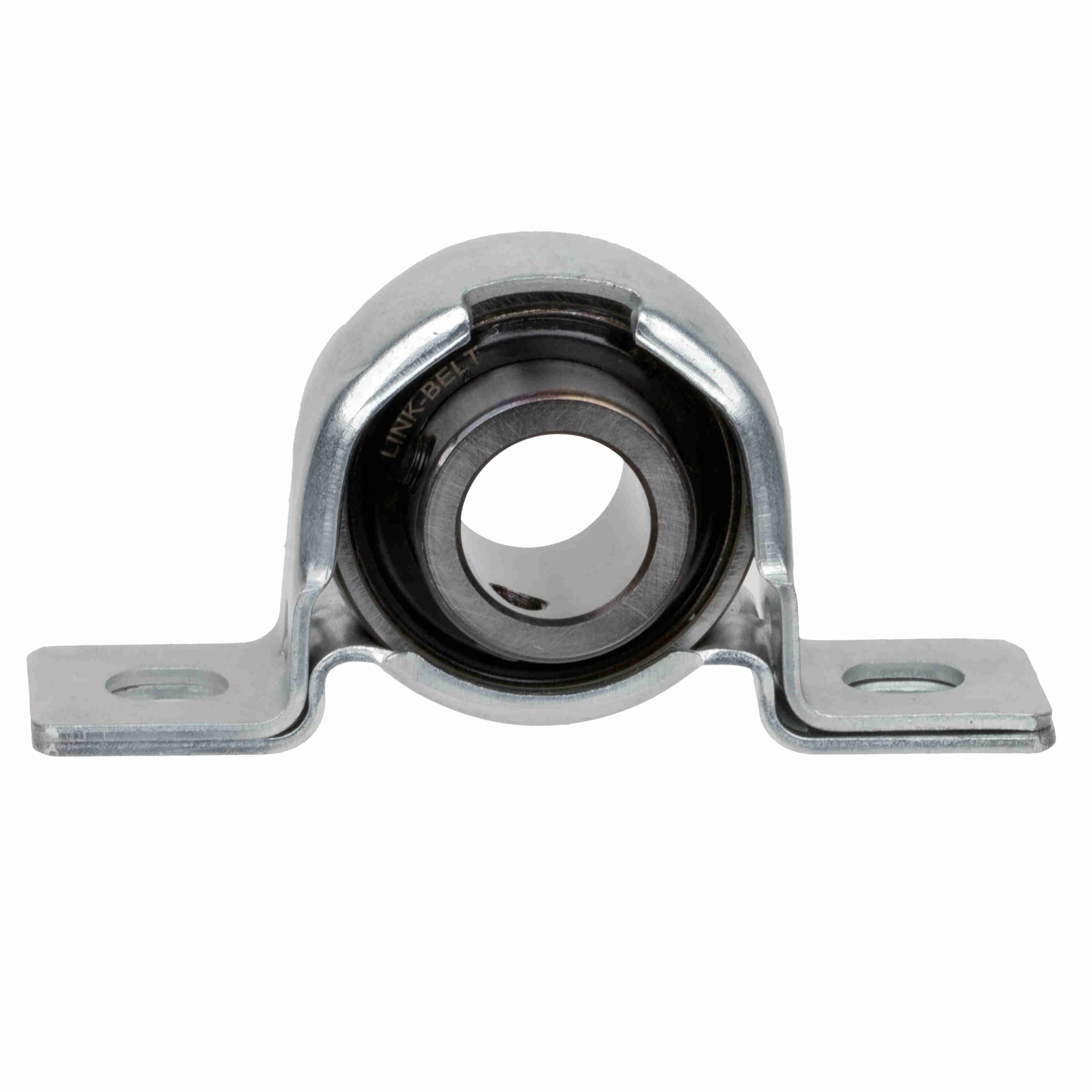

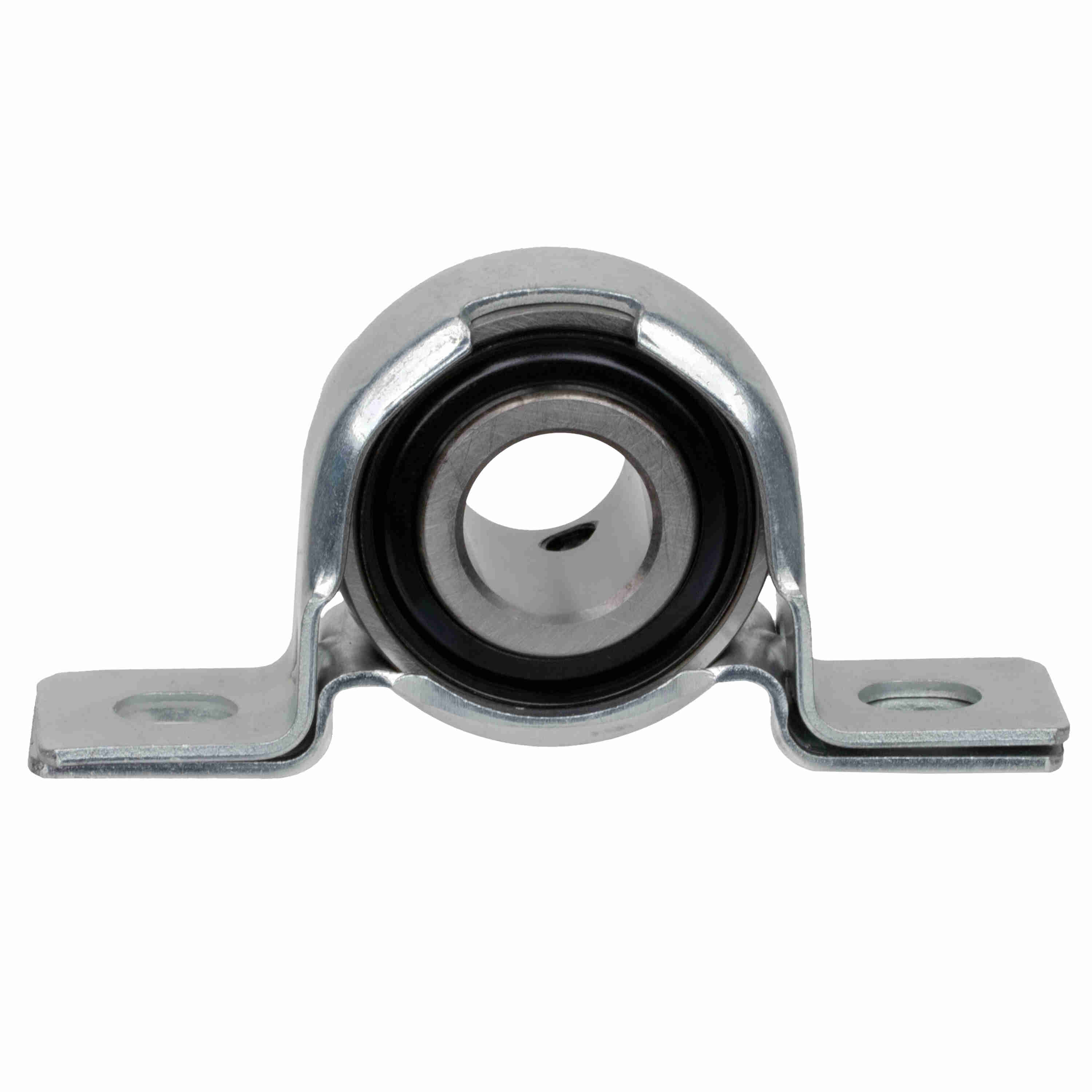

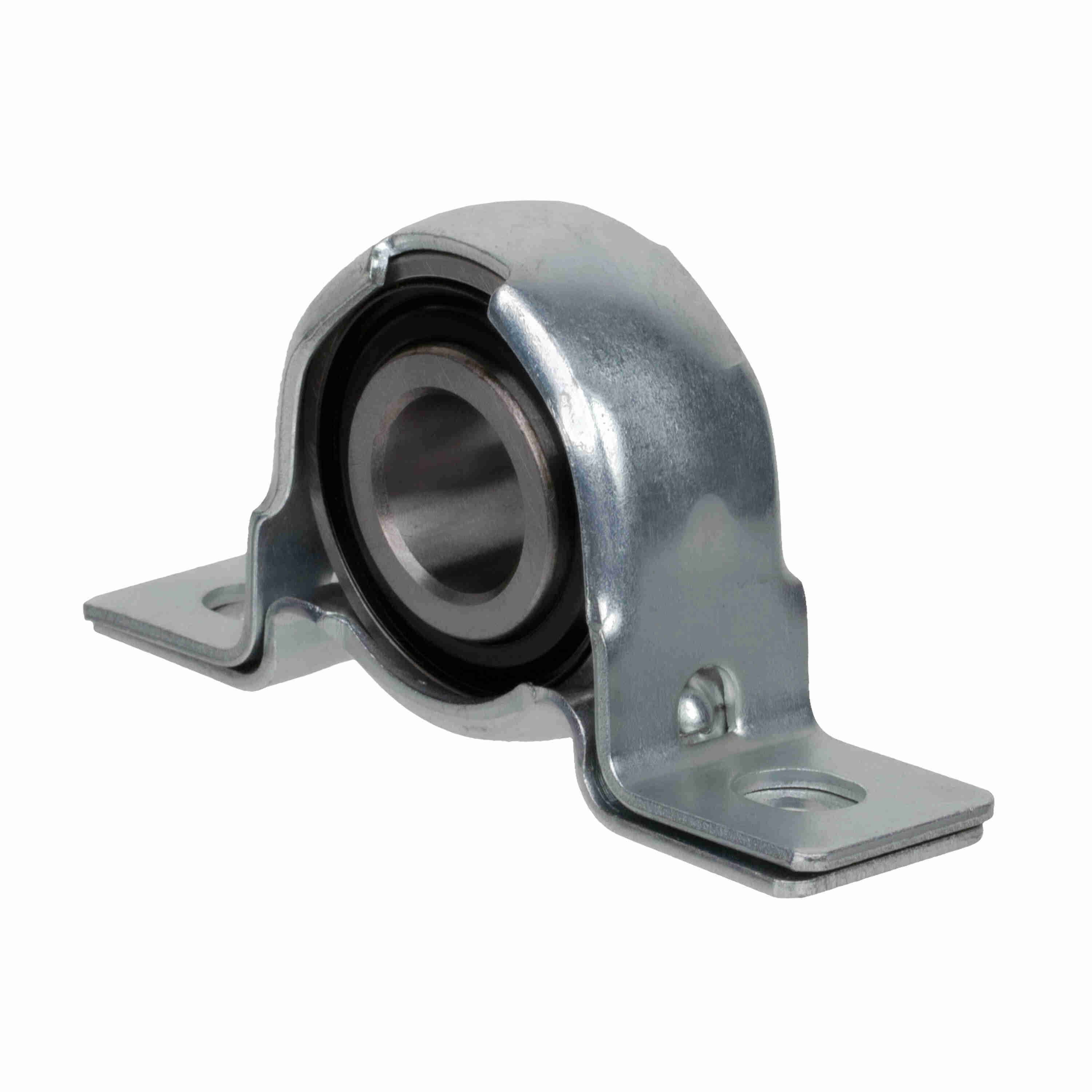

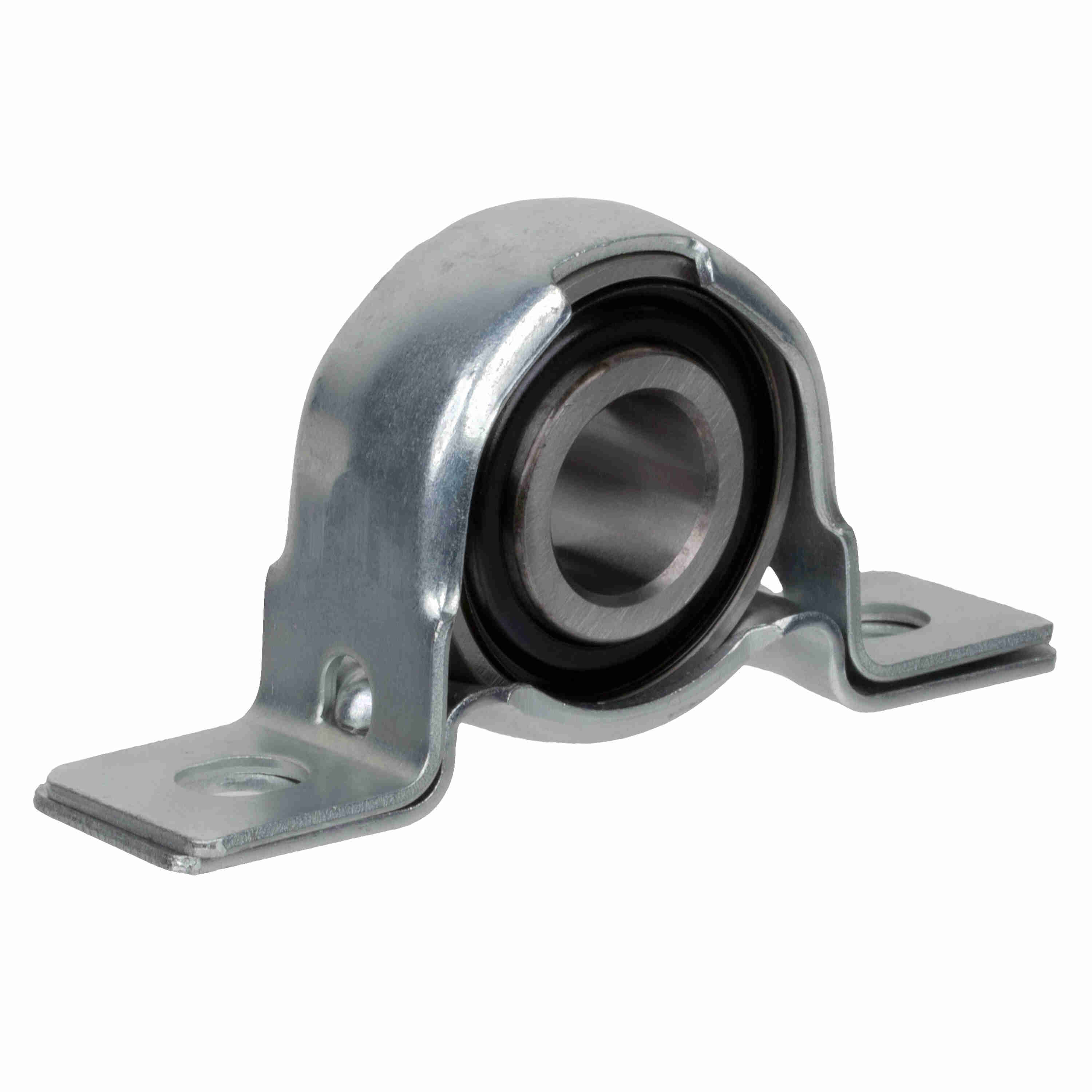

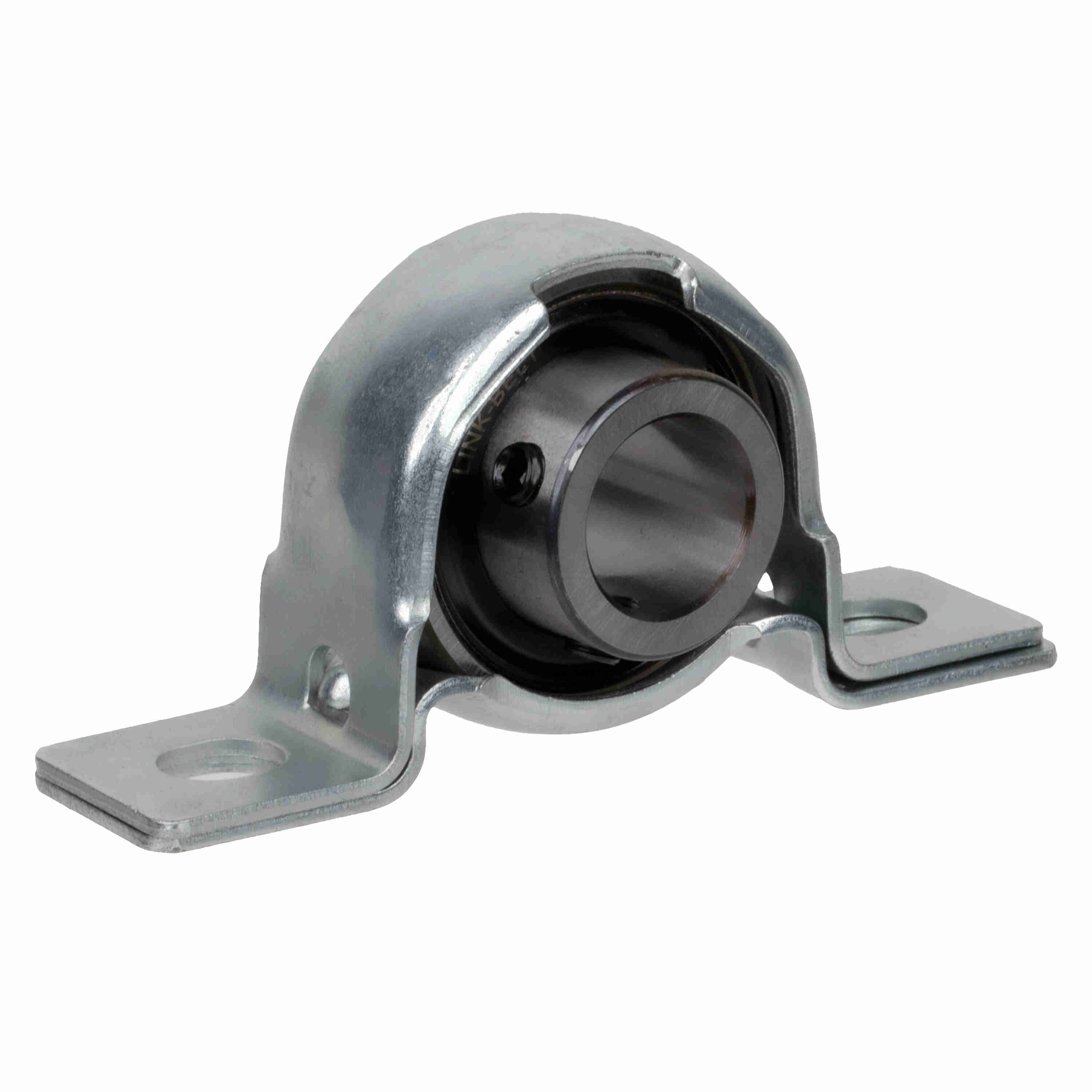

Link-Belt PSS212E Pillow Blocks Ball Bearings - PSS212E
Part #:10438410
Catalog #:PSS212E
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Foot Height (in): | 0.88 in | Base to Center Height (in): | 1.00 in |
| Overall Width (in): | 1.00 in | Bore Diameter (in): | 0.75 in |
| Bolt Size (in): | 3/8 in | Base Width (in): | 1.00 in |
| Overall Height (in): | 2.06 in | Length Through Bore (in): | 1.125 in |
| Overall Length (in): | 5.13 in | Centerline to Outermost Bearing Face (in): | 0.72 in |
| Bolt Spacing (in): | 3.00 in |
Technical Specifications
| Rolling Element: | Ball Bearing | Outer Ring Land Profile: | Standard |
| Housing Construction: | One Piece | Cage Material: | Molded fiber glass reinforced nylon |
| Housing Style: | Pillow Block | Misalignment Type: | Static Only |
| Housing Type: | Pillow Block, Two Bolt, Stamped | Housing Base: | Semi-Solid |
| Bore Shape: | Straight | Seal Type: | Single Lip Contact Seal |
| Housing Top Width (in): | 0.92 in | Radial Load Rating of Housing Assembly (lbf): | 350 lbs |
| Setscrew Torque (in-lbs): | 85 in/lbs | Ability to Relubricate: | Yes |
| Vibration Frequency Fundamental Train: | 0.0063 cps | Vibration Frequency Inner Ring Defect: | 0.0825 cps |
| Bearing Insert Material: | 52100 Bearing Steel | Dynamic Load Rating (lb): | 2,870 lb |
| Maximum Speed (RPM): | 7500 rpm | Grease Fitting Thread Size: | 1/4-28 |
| Inner Ring Outside Diameter (in): | 1.121 in | Misalignment Capability: | ±2.0° Misalignment - Static Only |
| Vibration Frequency Outer Ring Defect: | 0.0508 cps | Insert: | SG212ELPAK33 |
| Base Length (in): | 4.13 in | Bearing Type: | Intermediate Duty |
| Static Load Rating (lb): | 1,480 lb | Size Code: | 204 |
| Housing Coating: | Zinc Plated | Bearing Brand: | LINK-BELT 200 SERIES BALL |
| Radial Clearance: | C3 STANDARD | Max Operating Temperature (C): | 107 °C |
| Cage Type: | Ball Riding Retainer | Fixed vs. Expansion: | Fixed |
| Shaft Locking Type: | Set Screw | Max Operating Temperature (F): | 225 °F |
| End Cap Available: | No | Lubricant: | Lithium Complex NLGI 2 Grease |
| Vibration Frequency Roller Spin: | 0.0332 cps | Housing Material: | Stamped Steel |
General Specifications
| UPC: | 662864724593 | Weight: | 0.63 LB |
| HTC: | 8483208040 | Country of Origin: | Mexico |
