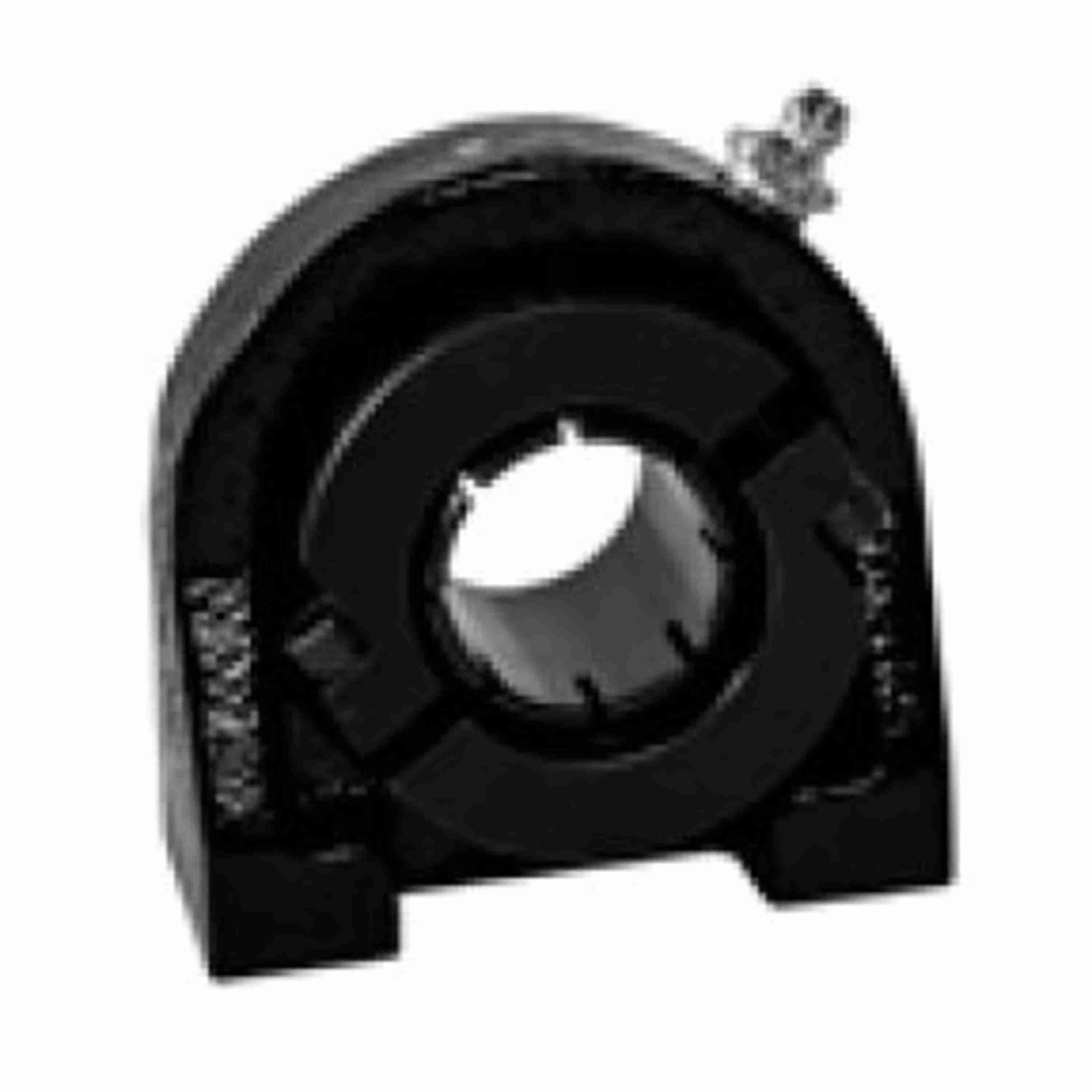

Link-Belt PT3CL2E20N Pillow Blocks Ball Bearings - PT3CL2E20N
Part #:10440106
Catalog #:PT3CL2E20N
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Length Through Bore (in): | 1.563 in | Base to Center Height (in): | 1.688 in |
| Base Width (in): | 1.50 in | Overall Width (in): | 1.56 in |
| Bore Diameter (in): | 1.25 in | Thread Depth (in): | 0.63 in |
| Thread Size: | 7/16-14 | Overall Height (in): | 3.31 in |
| Overall Length (in): | 4 in | Centerline to Outermost Bearing Face (in): | 0.91 in |
| Bolt Spacing (in): | 3.00 in |
Technical Specifications
| Outer Ring Land Profile: | Standard | Housing Type: | Pillow Block, Tapped Base |
| Cage Material: | Molded fiber glass reinforced nylon | Housing Construction: | One Piece |
| Housing Color: | Black | Misalignment Type: | Static Only |
| Housing Style: | Pillow Block | Bore Shape: | Straight |
| Seal Type: | Single Lip Contact Seal | Rolling Element: | Ball Bearing |
| Housing Base: | Solid | Locking Collar Outside Diameter (in): | 2.19 in |
| Setscrew Torque (in-lbs): | 65-72 in/lbs | Inner Race Heat Treat Method: | Zone-Hardened |
| Ability to Relubricate: | Yes | Bearing Brand: | LINK-BELT 200 SERIES BALL |
| Maximum Speed (RPM): | 8000 rpm | Cage Type: | Ball Riding Retainer |
| Misalignment Capability: | ±2.0° Misalignment - Static Only | Shaft Locking Type: | Concentric |
| End Cap Available: | Yes | Max Operating Temperature (C): | 107 °C |
| Vibration Frequency Inner Ring Defect: | 0.0905 cps | Bearing Type: | Standard Duty |
| Max Operating Temperature (F): | 225 °F | Grease Fitting Thread Size: | 1/8 NPT |
| Dynamic Load Rating (lb): | 4,390 lb | Vibration Frequency Fundamental Train: | 0.0067 cps |
| Lubricant: | Lithium Complex NLGI 2 Grease | Vibration Frequency Outer Ring Defect: | 0.0595 cps |
| Fixed vs. Expansion: | Fixed | Housing Coating: | Powder Coated |
| Housing Material: | Cast Iron | Bearing Insert Finish: | Black Oxide |
| Base Length (in): | 4.00 in | Locking Device Kit: | CL2195S |
| Static Load Rating (lb): | 2,530 lb | Insert: | CLG2E20NL |
| End Cap: | CL2196 | Radial Clearance: | C3 STANDARD |
| Bearing Insert Material: | 52100 Bearing Steel | Vibration Frequency Roller Spin: | 0.0385 cps |
| Inner Ring Outside Diameter (in): | 1.587 in | Size Code: | 206 |
| Housing Width (in): | 1.5 in |
General Specifications
| UPC: | 662864879927 | Weight: | 2.80 LB |
| Packaged Length: | 4.00 IN | Packaged Width: | 4.00 IN |
| Packaged Height: | 2.00 IN | HTC: | 8483208040 |
| Country of Origin: | Mexico |
