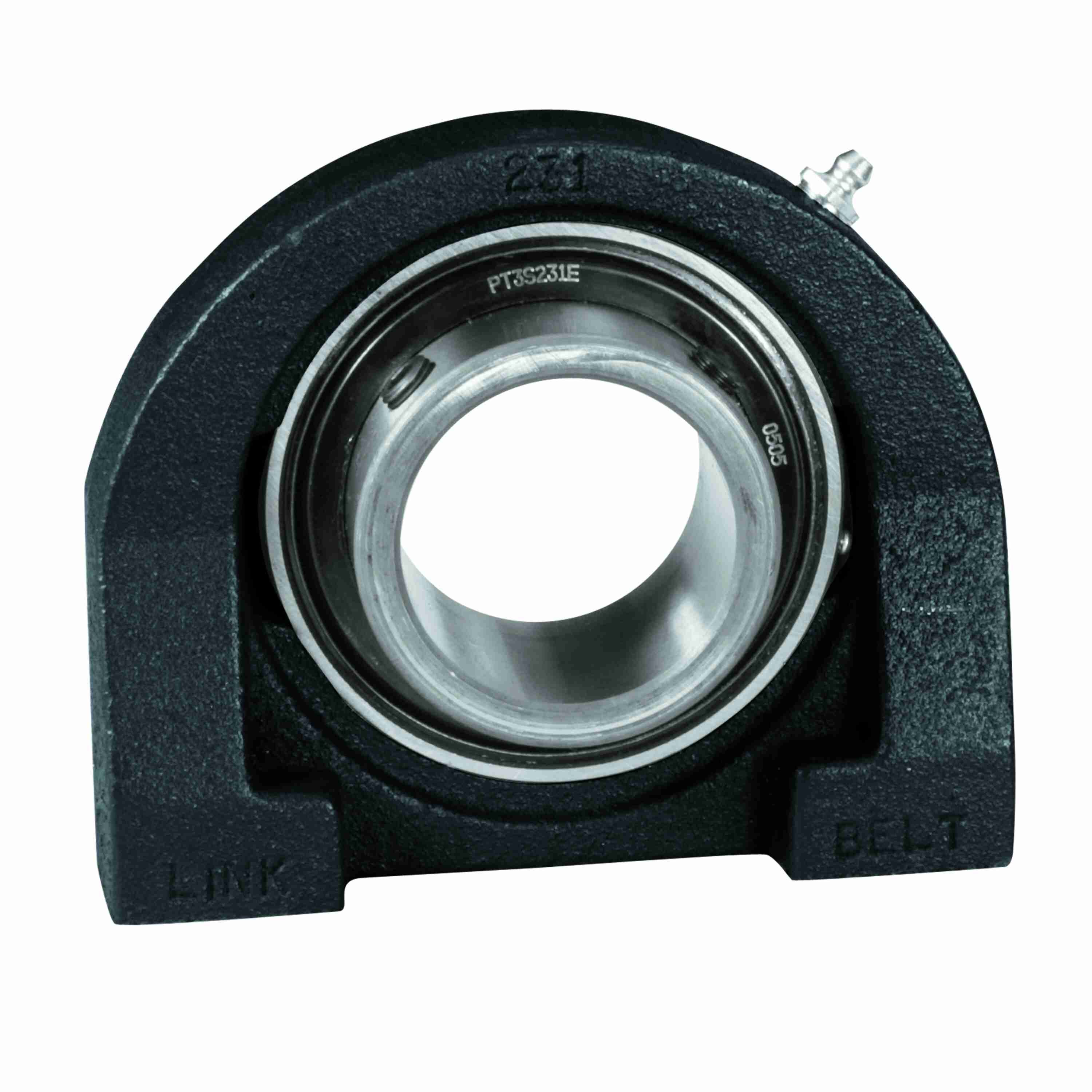

Link-Belt PT3S212EK6 Pillow Blocks Ball Bearings - PT3S212EK6
Part #:10443108
Catalog #:PT3S212EK6
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Height (in): | 2.60 in | Base to Center Height (in): | 1.312 in |
| Thread Depth (in): | 0.5 in | Length Through Bore (in): | 1.125 in |
| Thread Size: | 3/8-16 | Overall Length (in): | 2.88 in |
| Base Width (in): | 1.50 in | Overall Width (in): | 1.5 in |
| Bore Diameter (in): | 0.75 in | Centerline to Outermost Bearing Face (in): | 0.75 in |
| Bolt Spacing (in): | 2.00 in |
Technical Specifications
| Seal Type: | Single Lip Contact Seal | Bore Shape: | Straight |
| Housing Style: | Pillow Block | Misalignment Type: | Static Only |
| Cage Material: | Molded fiber glass reinforced nylon | Housing Base: | Solid |
| Outer Ring Land Profile: | Standard | Rolling Element: | Ball Bearing |
| Housing Construction: | One Piece | Housing Type: | Pillow Block, Tapped Base |
| Housing Color: | Black | Ability to Relubricate: | No |
| Setscrew Torque (in-lbs): | 87-92 in/lbs | Inner Race Heat Treat Method: | Zone-Hardened |
| Lube Fill Percent: | 100% GREASE FILL | Housing Coating: | Powder Coated |
| Maximum Speed (RPM): | 7500 rpm | Vibration Frequency Fundamental Train: | 0.0063 cps |
| Grease Fitting Thread Size: | 1/8 NPT | Base Length (in): | 2.88 in |
| Max Operating Temperature (F): | 225 °F | Bearing Insert Material: | 52100 Bearing Steel |
| Bearing Type: | Intermediate Duty | Inner Ring Outside Diameter (in): | 1.121 in |
| Size Code: | 204 | Fixed vs. Expansion: | Fixed |
| Max Operating Temperature (C): | 107 °C | Shaft Locking Type: | Set Screw |
| Vibration Frequency Inner Ring Defect: | 0.0825 cps | Static Load Rating (lb): | 1,480 lb |
| Bearing Brand: | LINK-BELT 200 SERIES BALL | Radial Clearance: | C3 STANDARD |
| Dynamic Load Rating (lb): | 2,870 lb | Lube Fitting Type: | HOUSING PLUGGED |
| Vibration Frequency Roller Spin: | 0.0332 cps | Misalignment Capability: | ±2.0° Misalignment - Static Only |
| End Cap Available: | No | Cage Type: | Ball Riding Retainer |
| Insert: | SG212ELPAK4 | Vibration Frequency Outer Ring Defect: | 0.0508 cps |
| Housing Material: | Cast Iron | Lubricant: | Lithium Complex NLGI 2 Grease |
| Housing Width (in): | 1.5 in |
General Specifications
| UPC: | 662864843928 | Weight: | 1.40 LB |
| Packaged Length: | 3.69 IN | Packaged Width: | 3.69 IN |
| Packaged Height: | 2.13 IN | HTC: | 8483208040 |
| Country of Origin: | Mexico |
