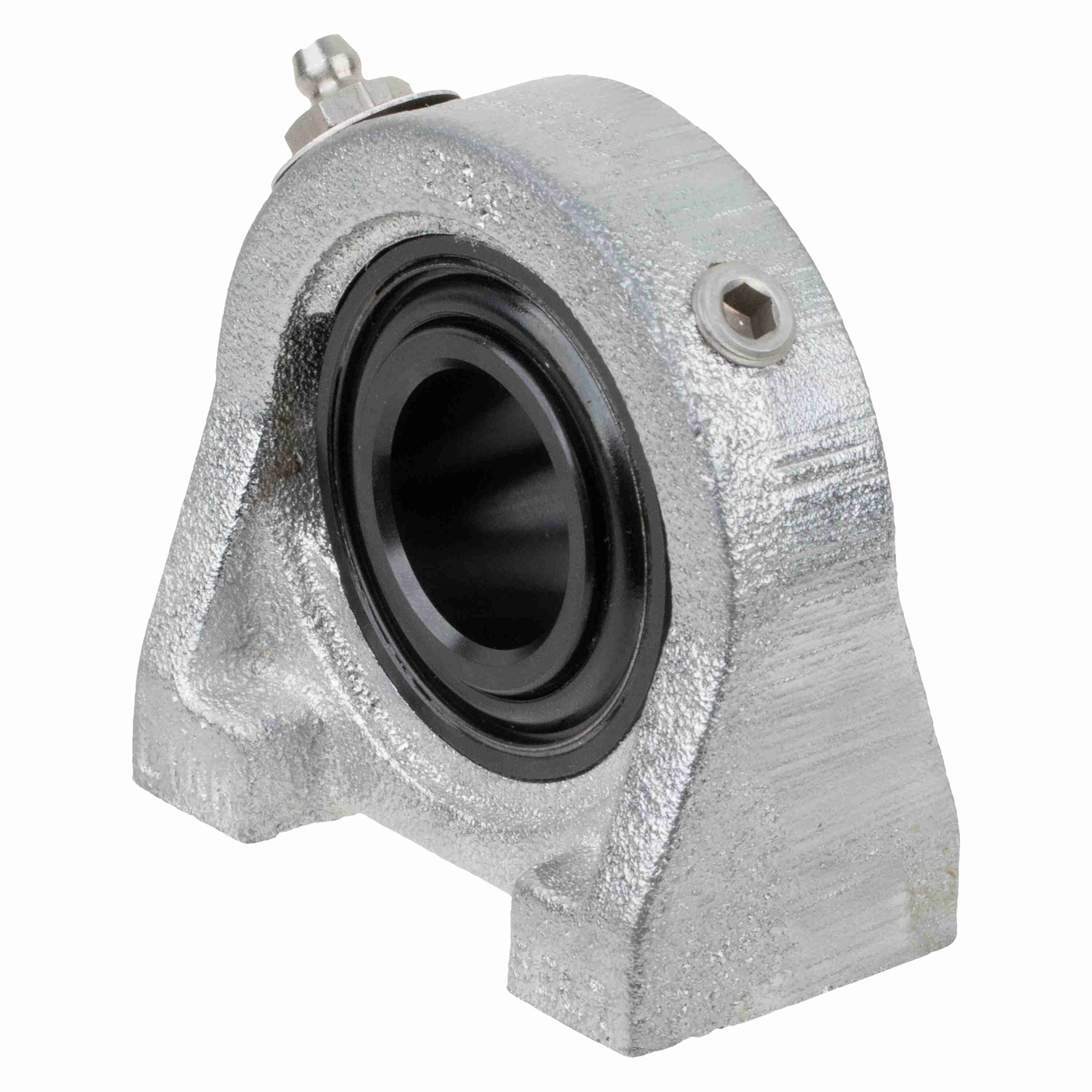

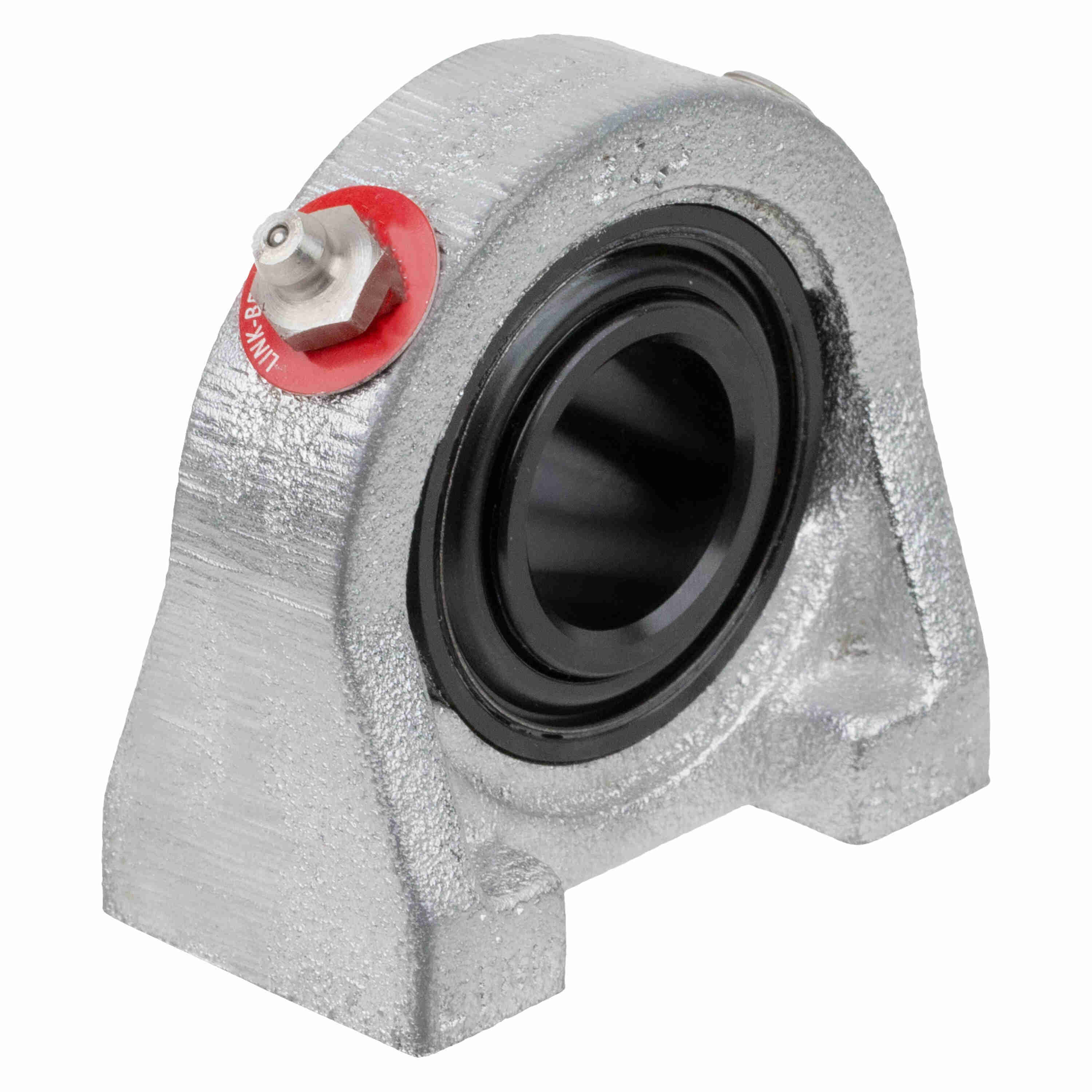

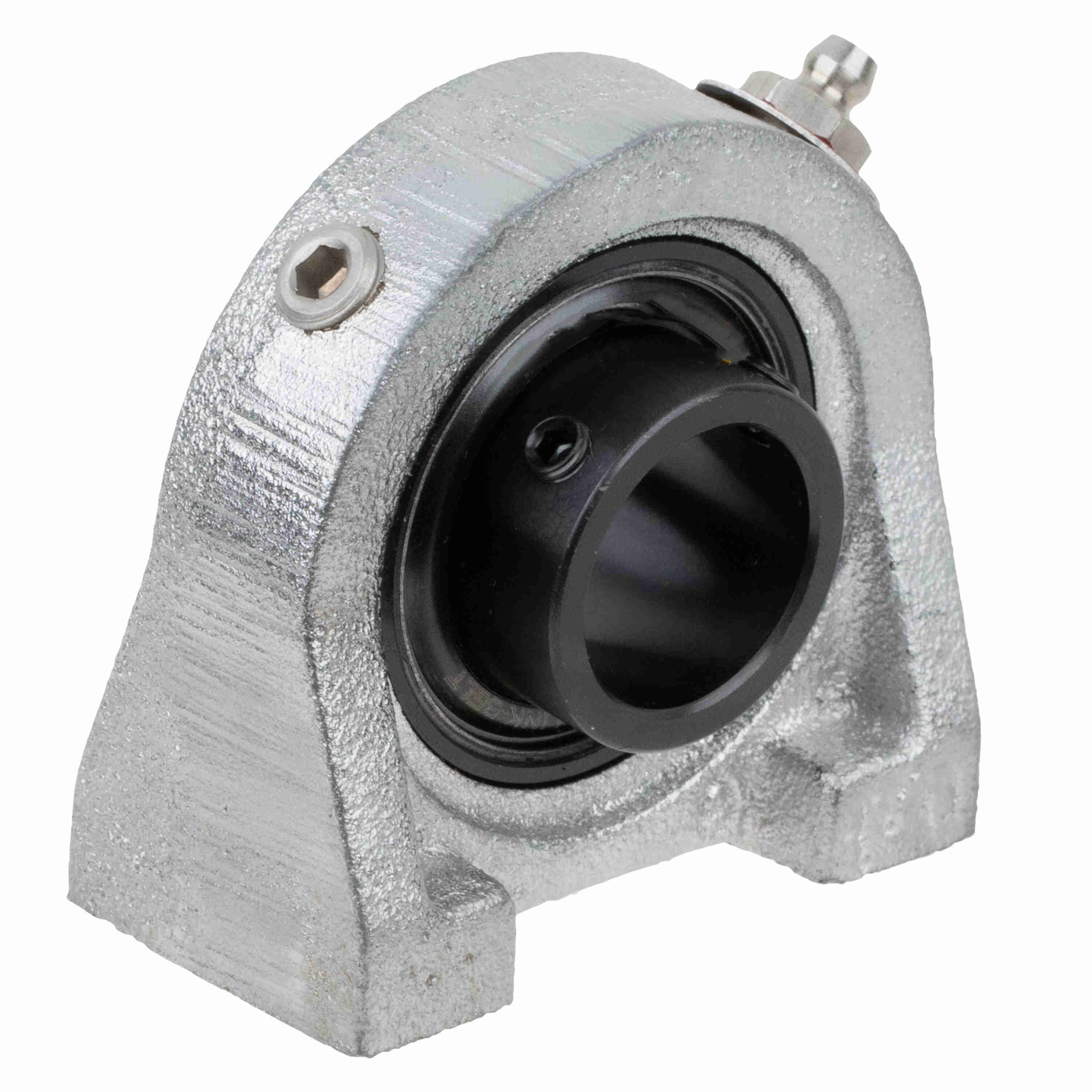

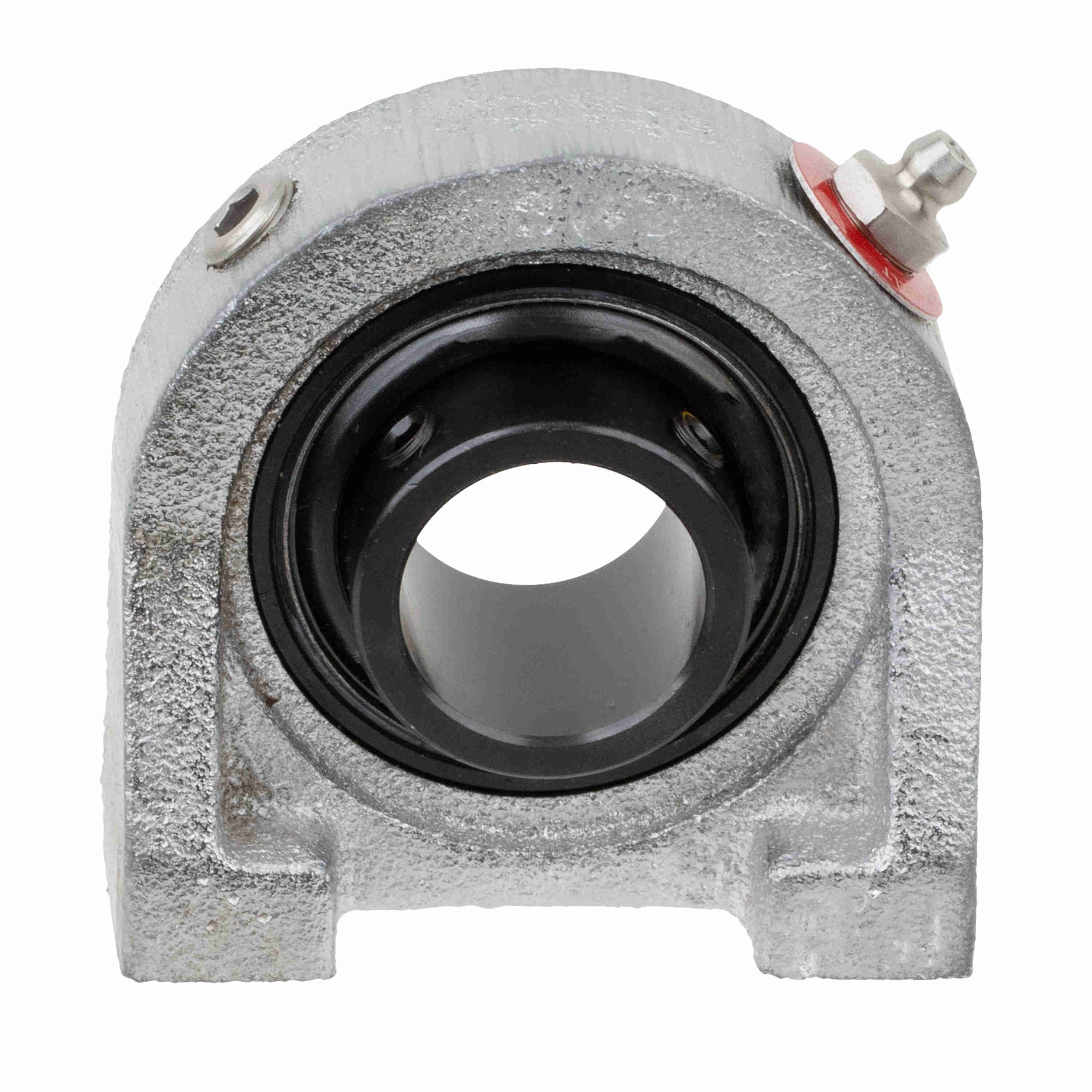

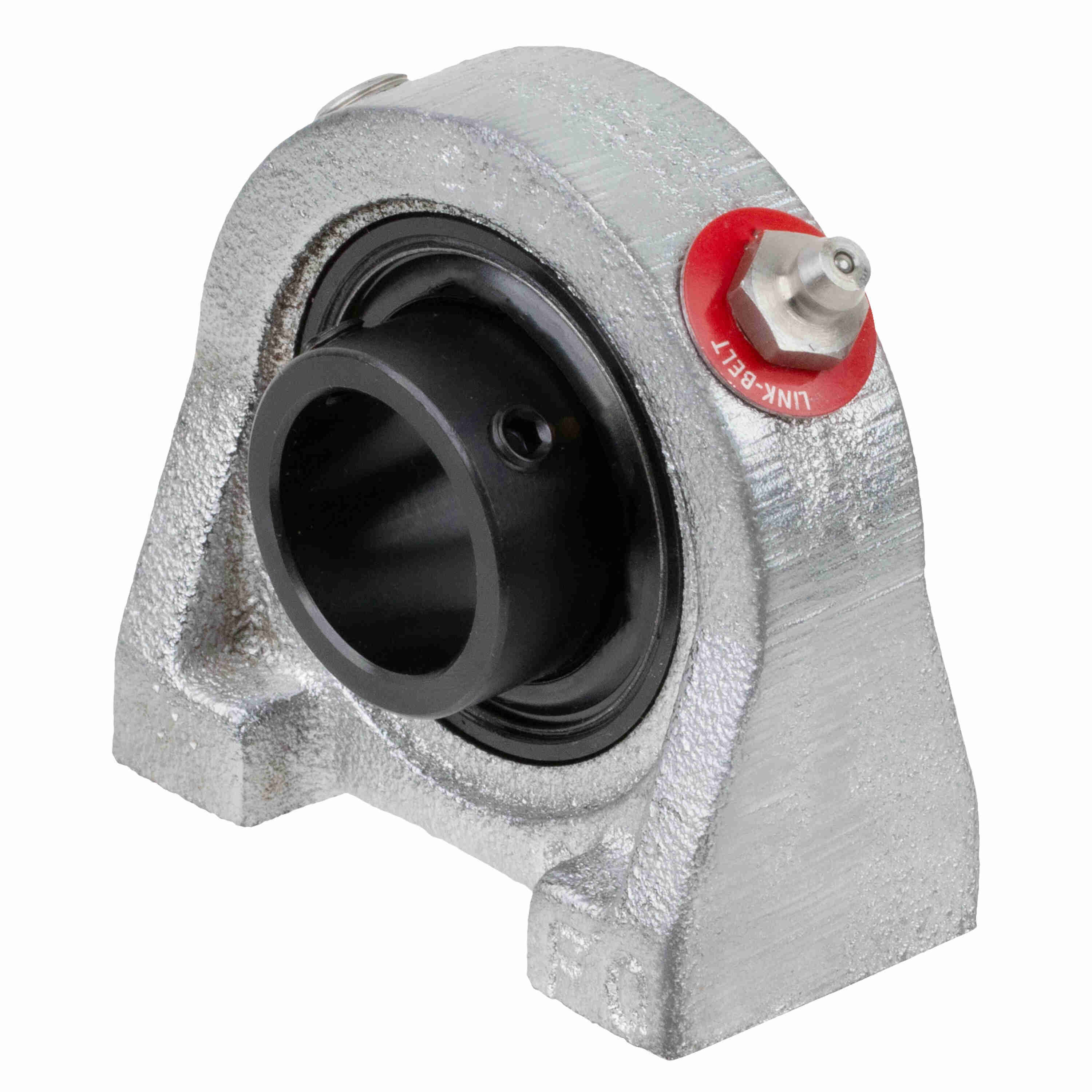

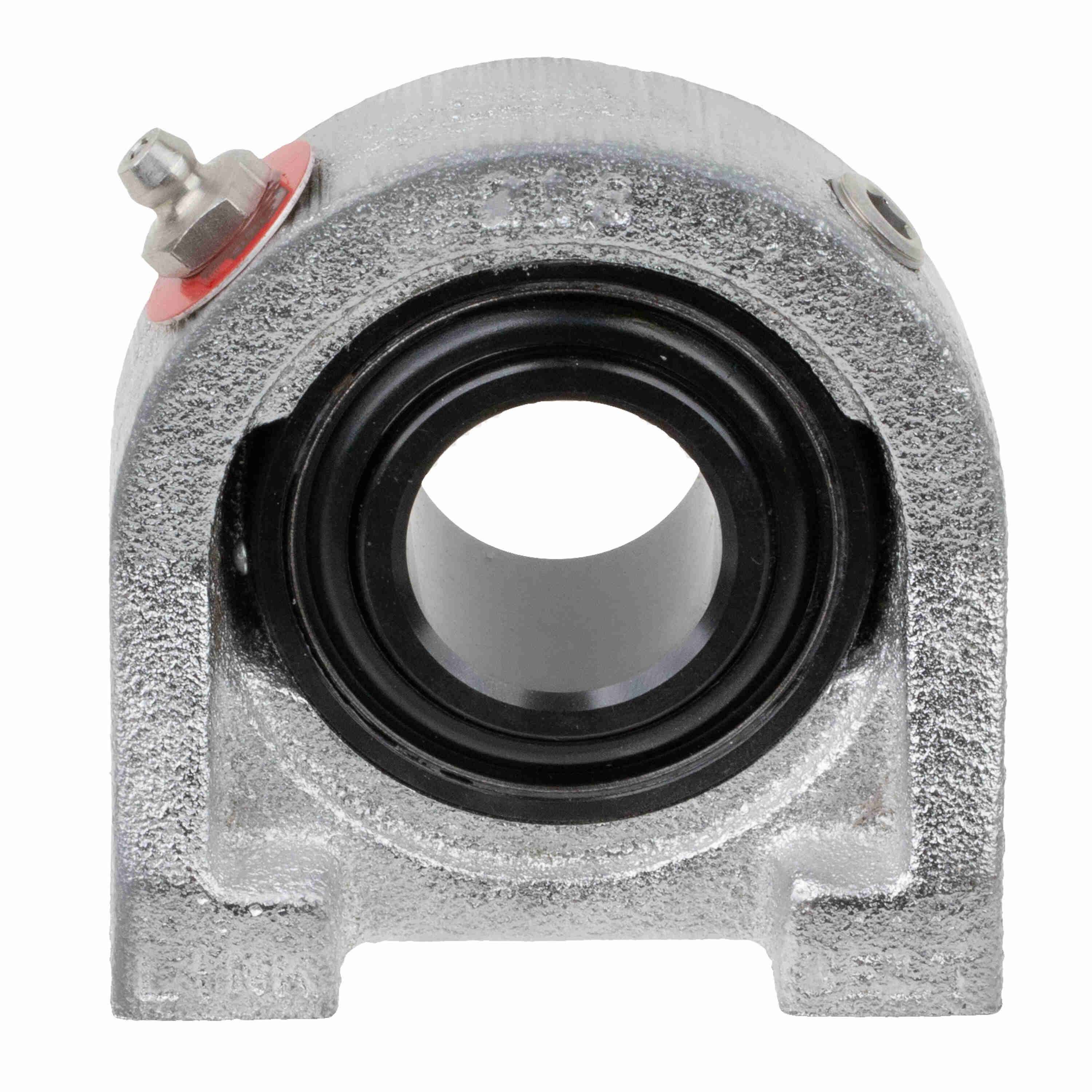

Link-Belt PT3S223EK75 Pillow Blocks Ball Bearings - PT3S223EK75
Part #:10409678
Catalog #:PT3S223EK75
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Thread Size: | 1/2-13 | Overall Width (in): | 2 in |
| Thread Depth (in): | 0.75 in | Length Through Bore (in): | 1.5625 in |
| Bore Diameter (in): | 1.4375 in | Base to Center Height (in): | 1.875 in |
| Overall Length (in): | 4.41 in | Overall Height (in): | 3.69 in |
| Base Width (in): | 2.00 in | Centerline to Outermost Bearing Face (in): | 1.109 in |
| Bolt Spacing (in): | 3.25 in |
Technical Specifications
| Misalignment Type: | Static Only | Bore Shape: | Straight |
| Outer Ring Land Profile: | Standard | Housing Color: | Silver |
| Housing Type: | Pillow Block, Tapped Base | Rolling Element: | Ball Bearing |
| Housing Style: | Pillow Block | Housing Base: | Solid |
| Cage Material: | Molded fiber glass reinforced nylon | Housing Construction: | One Piece |
| Seal Type: | Single Lip Contact Seal | Setscrew Torque (in-lbs): | 165 in/lbs |
| Ability to Relubricate: | Yes | Static Load Rating (lb): | 3,440 lb |
| Grease Fitting Thread Size: | 1/8 NPT | Vibration Frequency Outer Ring Defect: | 0.0595 cps |
| Vibration Frequency Fundamental Train: | 0.0067 cps | End Cap Available: | No |
| Base Length (in): | 4.41 in | Dynamic Load Rating (lb): | 5,810 lb |
| Bearing Insert Finish: | Black Oxide | Bearing Type: | Intermediate Duty |
| Cage Type: | Ball Riding Retainer | Max Operating Temperature (C): | 107 °C |
| Vibration Frequency Roller Spin: | 0.0383 cps | Radial Clearance: | C3 STANDARD |
| Insert: | SG223ELPAK8299A | Vibration Frequency Inner Ring Defect: | 0.0905 cps |
| Size Code: | 207 | Shaft Locking Type: | Set Screw |
| Misalignment Capability: | ±2.0° Misalignment - Static Only | Maximum Speed (RPM): | 4800 rpm |
| Max Operating Temperature (F): | 225 °F | Housing Coating: | Nickel Plated |
| Bearing Brand: | LINK-BELT 200 SERIES BALL | Housing Material: | Cast Iron |
| Inner Ring Outside Diameter (in): | 1.8438 in | Lubricant: | MOBIL FM222 FOOD GRADE H1 |
| Fixed vs. Expansion: | Fixed | Bearing Insert Material: | 52100 Bearing Steel |
| Housing Width (in): | 2 in |
General Specifications
| UPC: | 662327447304 | Weight: | 3.36 LB |
| Packaged Length: | 6.88 IN | Packaged Width: | 4.06 IN |
| Packaged Height: | 2.13 IN | HTC: | 8483208040 |
| Country of Origin: | Mexico |
