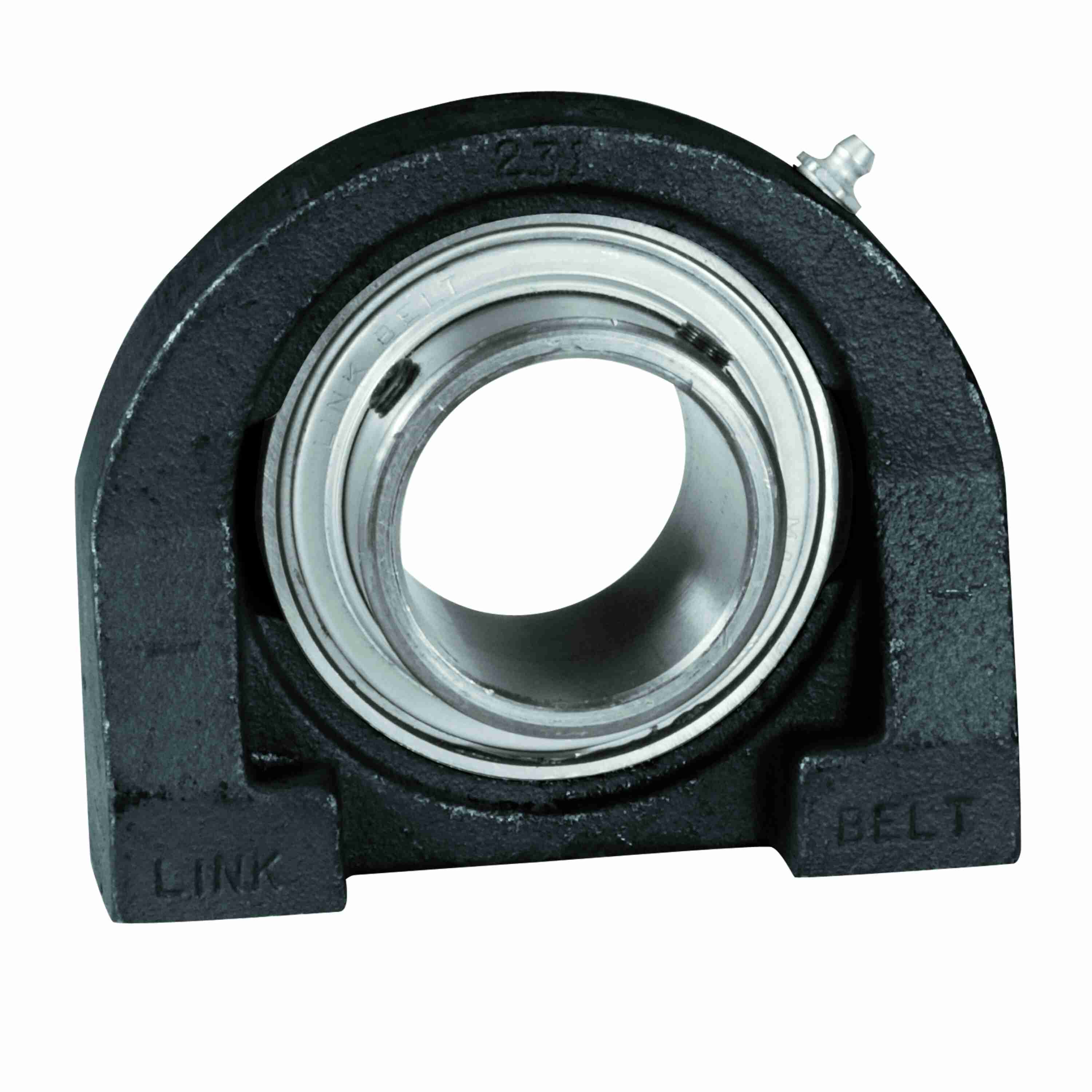

Link-Belt PT3U228N Pillow Blocks Ball Bearings - PT3U228N
Part #:10408216
Catalog #:PT3U228N
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Length (in): | 5 in | Thread Size: | 1/2-13 |
| Base to Center Height (in): | 2.125 in | Length Through Bore (in): | 2.031 in |
| Bore Diameter (in): | 1.75 in | Overall Height (in): | 4.25 in |
| Thread Depth (in): | 0.75 in | Base Width (in): | 2 in |
| Overall Width (in): | 2 in | Bolt Spacing (in): | 3.750 in |
| Centerline to Outermost Bearing Face (in): | 1.234 in |
Technical Specifications
| Housing Construction: | One Piece | Outer Ring Land Profile: | Standard |
| Bore Shape: | Straight | Housing Style: | Pillow Block |
| Rolling Element: | Ball Bearing | Seal Type: | Single Lip Contact Seal |
| Housing Base: | Solid | Misalignment Type: | Static Only |
| Housing Type: | Pillow Block, Tapped Base | Housing Color: | Black |
| Cage Material: | Molded fiber glass reinforced nylon | Ability to Relubricate: | Yes |
| Setscrew Torque (in-lbs): | 165 in/lbs | Static Load Rating (lb): | 4,590 lb |
| Cage Type: | Ball Riding Retainer | Bearing Insert Material: | 52100 Bearing Steel |
| Bearing Brand: | LINK-BELT 200 SERIES BALL | Housing Material: | Cast Iron |
| Housing Coating: | Powder Coated | End Cap Available: | No |
| Base Length (in): | 5.000 in | Maximum Speed (RPM): | 5330 rpm |
| Dynamic Load Rating (lb): | 7,370 lb | Misalignment Capability: | ±2.0° Misalignment - Static Only |
| Vibration Frequency Outer Ring Defect: | 0.0592 cps | Radial Clearance: | C3 STANDARD |
| Lubricant: | Lithium Complex NLGI 2 Grease | Inner Ring Outside Diameter (in): | 2.281 in |
| Fixed vs. Expansion: | Fixed | Size Code: | 209 |
| Bearing Type: | Standard Duty | Max Operating Temperature (C): | 107 °C |
| Shaft Locking Type: | Set Screw | Grease Fitting Thread Size: | 1/8 NPT |
| Vibration Frequency Roller Spin: | 0.0377 cps | Insert: | UG228NL |
| Vibration Frequency Inner Ring Defect: | 0.0908 cps | Max Operating Temperature (F): | 225 °F |
| Vibration Frequency Fundamental Train: | 0.0065 cps | Housing Width (in): | 2 in |
General Specifications
| UPC: | 793699088304 | Weight: | 4.90 LB |
| HTC: | 8483208040 | Country of Origin: | Mexico |
