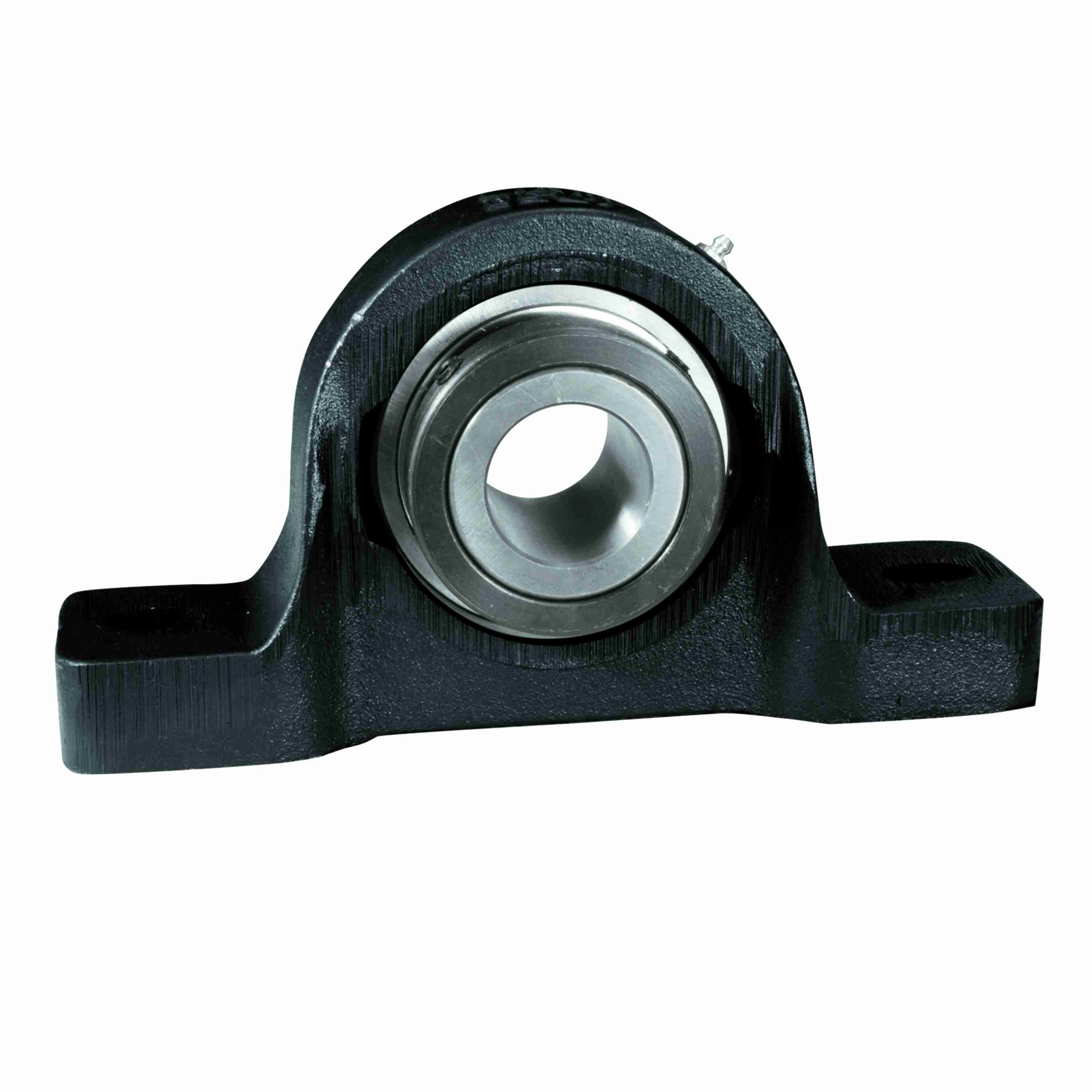

Link-Belt PU335JK55 Pillow Blocks Ball Bearings - PU335JK55
Part #:10437021
Catalog #:PU335JK55
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Height (in): | 6.63 in | Length Through Bore (in): | 3.06 in |
| Base to Center Height (in): | 3.5 in | Bolt Size (in): | 3/4 in |
| Overall Length (in): | 12.63 in | Overall Width (in): | 3.38 in |
| Base Width (in): | 3.38 in | Bore Diameter (in): | 2.1875 in |
| Foot Height (in): | 1.5 in | Centerline to Outermost Bearing Face (in): | 1.84 in |
| Bolt Spacing (in): | 10.25 in |
Technical Specifications
| Bore Shape: | Straight | Rolling Element: | Ball Bearing |
| Housing Base: | Semi-Solid | Housing Style: | Pillow Block |
| Outer Ring Land Profile: | Standard | Housing Construction: | One Piece |
| Slot Length (in): | 1.25 in | Housing Type: | Pillow Block, Two Bolt |
| Housing Color: | Black | Seal Type: | Flingers only |
| Misalignment Type: | Static Only | Cage Material: | Steel |
| Ability to Relubricate: | Yes | Locking Collar Outside Diameter (in): | 3.92 in |
| Setscrew Torque (in-lbs): | 430-460 in/lbs | Vibration Frequency Fundamental Train: | 0.0063 cps |
| End Cap Available: | Yes | Fixed vs. Expansion: | Fixed |
| Bearing Insert Material: | 52100 Bearing Steel | End Cap: | U3356C |
| Lubricant: | PRESERVATIVE ONLY - NO GREASE | Static Load Rating (lb): | 10,000 lb |
| Radial Clearance: | C5 INCREASED | Shaft Locking Type: | Set Screw |
| Bearing Type: | Heavy Duty | Vibration Frequency Inner Ring Defect: | 0.0823 cps |
| Base Length (in): | 12.63 in | Locking Device Kit: | U3355S |
| Misalignment Capability: | ±2.0° Misalignment - Static Only | Inner Ring Outside Diameter (in): | 2.959 in |
| Vibration Frequency Roller Spin: | 0.0333 cps | Max Operating Temperature (C): | 204 with suitable lubricant °C |
| Grease Fitting Thread Size: | 1/8 NPT | Size Code: | 335 |
| Insert: | UG335JLK5C5 | Lube Fill Percent: | 0% FILL |
| Cage Type: | Ball Riding Retainer | Bearing Brand: | LINK-BELT 300 SERIES HD BALL |
| Housing Material: | Cast Iron | Housing Coating: | Powder Coated |
| Vibration Frequency Outer Ring Defect: | 0.0510 cps | Dynamic Load Rating (lb): | 16,070 lb |
| Max Operating Temperature (F): | 400 with suitable lubricant °F | Maximum Speed (RPM): | 4950 rpm |
General Specifications
| UPC: | 793699063172 | Weight: | 24.00 LB |
| Packaged Length: | 8.00 IN | Packaged Width: | 4.38 IN |
| Packaged Height: | 13.00 IN | HTC: | 84833080 |
