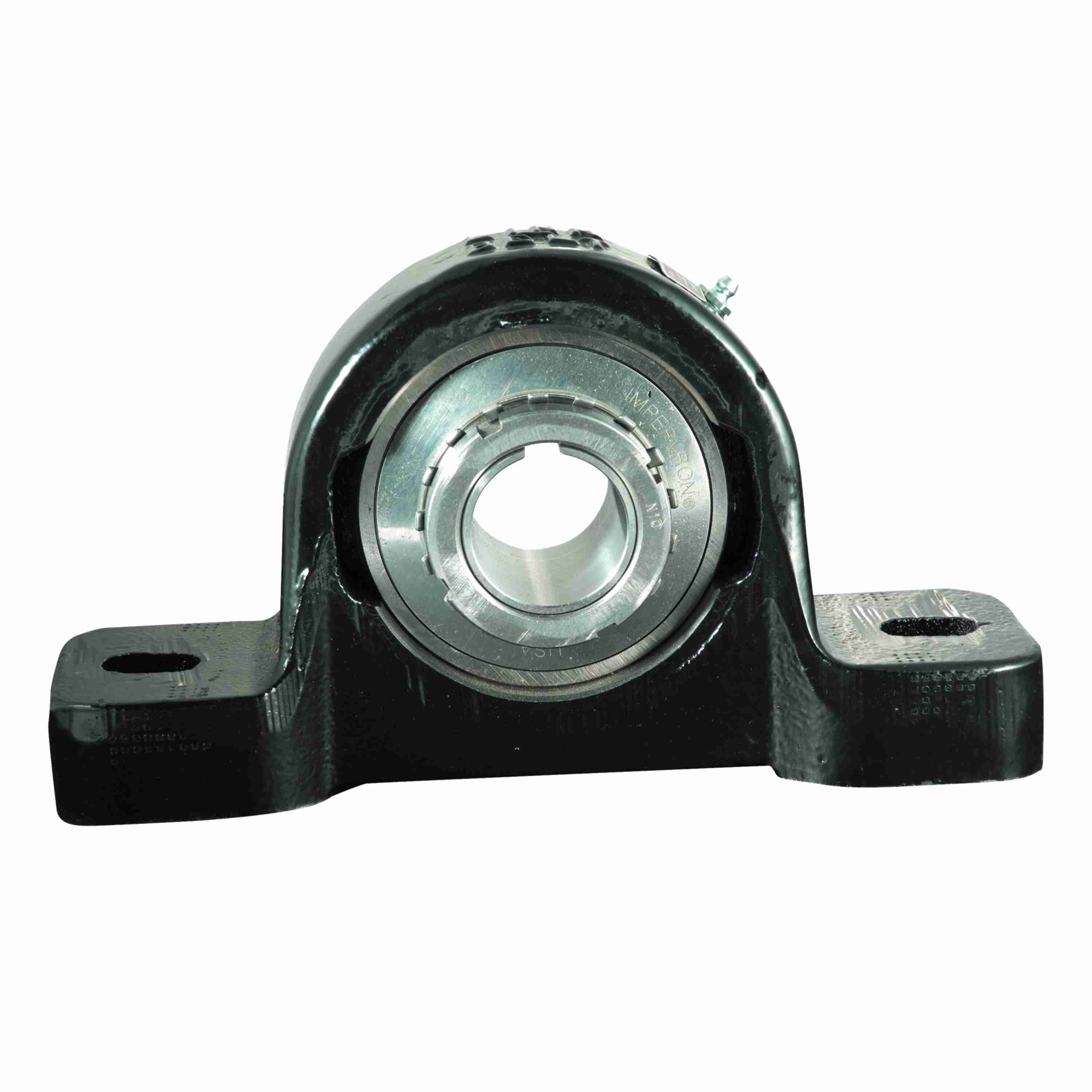

Link-Belt PU3K55K5 Pillow Blocks Ball Bearings - PU3K55K5
Part #:10440117
Catalog #:PU3K55K5
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Width (in): | 5 in | Base to Center Height (in): | 5.6875 in |
| Bore Diameter (in): | 3.4375 in | Overall Height (in): | 11.06 in |
| Bolt Size (in): | 1 in | Foot Height (in): | 2.56 in |
| Length Through Bore (in): | 3.97 in | Base Width (in): | 5 in |
| Overall Length (in): | 17.31 in | Bolt Spacing (in): | 14.5 in |
| Centerline to Outermost Bearing Face (in): | 2.42 in |
Technical Specifications
| Housing Type: | Pillow Block, Two Bolt | Housing Style: | Pillow Block |
| Cage Material: | Molded fiber glass reinforced nylon | Outer Ring Land Profile: | Standard |
| Misalignment Type: | Static Only | Bore Shape: | Straight |
| Shaft Locking Collar Kit/Adapter Assembly: | H2320055 | Housing Color: | Black |
| Housing Base: | Semi-Solid | Slot Length (in): | 1.5 in |
| Seal Type: | Clearance Seal with Flinger | Rolling Element: | Ball Bearing |
| Housing Construction: | One Piece | Locking Collar Outside Diameter (in): | 5.12 in |
| Ability to Relubricate: | Yes | Vibration Frequency Inner Ring Defect: | 0.0817 cps |
| Radial Clearance: | C3 STANDARD | Inner Ring Outside Diameter (in): | 5.339 in |
| Grease Fitting Thread Size: | 1/8 NPT | Shaft Locking Type: | Tapered Adapter |
| Dynamic Load Rating (lb): | 45,000 lb | Misalignment Capability: | ±2.0° Misalignment - Static Only |
| Size Code: | 363 | Housing Material: | Cast Iron |
| Cage Type: | Ball Riding Retainer | Locking Device Kit: | H2320055 |
| Bearing Insert Material: | 52100 Bearing Steel | Lubricant: | PRESERVATIVE ONLY - NO GREASE |
| End Cap Available: | No | Lube Fill Percent: | 0% FILL |
| Fixed vs. Expansion: | Fixed | Max Operating Temperature (F): | 225 °F |
| Static Load Rating (lb): | 31,600 lb | Insert: | UG3K55LK5 |
| Vibration Frequency Roller Spin: | 0.0340 cps | Housing Coating: | Powder Coated |
| Max Operating Temperature (C): | 107 °C | Maximum Speed (RPM): | 2750 rpm |
| Base Length (in): | 17.31 in | Vibration Frequency Outer Ring Defect: | 0.0516 cps |
| Vibration Frequency Fundamental Train: | 0.0065 cps | Bearing Brand: | LINK-BELT 300 SERIES HD BALL |
| Bearing Type: | Heavy Duty |
General Specifications
| UPC: | 793699902082 | Weight: | 82.00 LB |
| Packaged Length: | 11.88 IN | Packaged Width: | 7.25 IN |
| Packaged Height: | 18.50 IN | HTC: | 8483208040 |
| Country of Origin: | Mexico |
