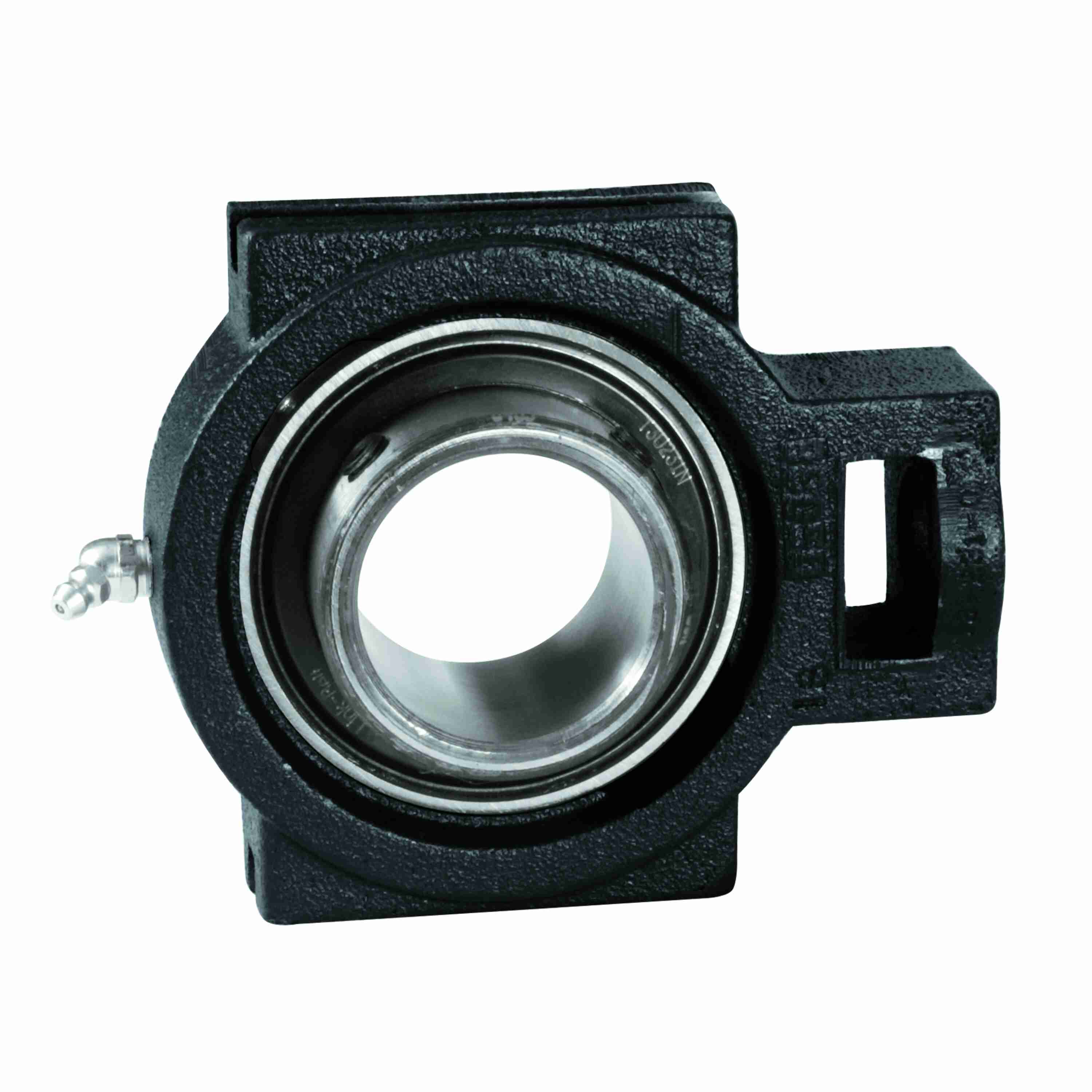

Link-Belt T3U212H Take-up Blocks Ball Bearings - T3U212H
Part #:10429236
Catalog #:T3U212H
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bore Diameter (in): | 0.75 in | Slot Width (in): | 0.281 in |
| Base to Center Height (in): | 2.09 in | Overall Width (in): | 1.28 in |
| Overall Height (in): | 2.63 in | Overall Length (in): | 3.31 in |
| Length Through Bore (in): | 1.281 in | Slot Spacing (in): | 2.125 in |
| Centerline to Outermost Bearing Face (in): | 0.75 in |
Technical Specifications
| Housing Color: | Black | Seal Type: | Labryinth Seal |
| Housing Construction: | One Piece | Housing Style: | Take-Up Block |
| Rolling Element: | Ball Bearing | Cage Material: | Molded fiber glass reinforced nylon |
| Slot Length (in): | 1.88 in | Misalignment Type: | Static Only |
| Bore Shape: | Straight | Housing Type: | Take-Up Block |
| Outer Ring Land Profile: | Standard | Carriage Bolt Size (in): | 1/2 in |
| Adjusting Screw Square Nut Seat Height (in): | 1.06 in | Adjusting Screw Clearance Hole Diameter (in): | 0.56 in |
| Setscrew Torque (in-lbs): | 87-92 in/lbs | Ability to Relubricate: | Yes |
| Vibration Frequency Roller Spin: | 0.0332 cps | Inner Ring Outside Diameter (in): | 1.121 in |
| Maximum Speed (RPM): | 10000 rpm | Housing Material: | Cast Iron |
| Grease Fitting Thread Size: | 1/8 NPT | Bearing Type: | Standard Duty |
| Max Operating Temperature (C): | 107 °C | Vibration Frequency Inner Ring Defect: | 0.0825 cps |
| Vibration Frequency Fundamental Train: | 0.0063 cps | Bearing Insert Material: | 52100 Bearing Steel |
| Shaft Locking Type: | Set Screw | Bearing Brand: | LINK-BELT 200 SERIES BALL |
| Misalignment Capability: | ±2.0° Misalignment - Static Only | Housing Coating: | Powder Coated |
| Vibration Frequency Outer Ring Defect: | 0.0508 cps | Dynamic Load Rating (lb): | 2,870 lb |
| Fixed vs. Expansion: | Fixed | Lubricant: | Lithium Complex NLGI 2 Grease |
| Insert: | UG212HL | Size Code: | 204 |
| Max Operating Temperature (F): | 225 °F | Cage Type: | Ball Riding Retainer |
| Static Load Rating (lb): | 1,480 lb | Radial Clearance: | C3 STANDARD |
General Specifications
| UPC: | 662327148119 | Weight: | 1.31 LB |
| Packaged Length: | 4.44 IN | Packaged Width: | 3.06 IN |
| Packaged Height: | 1.50 IN | HTC: | 84833080 |
