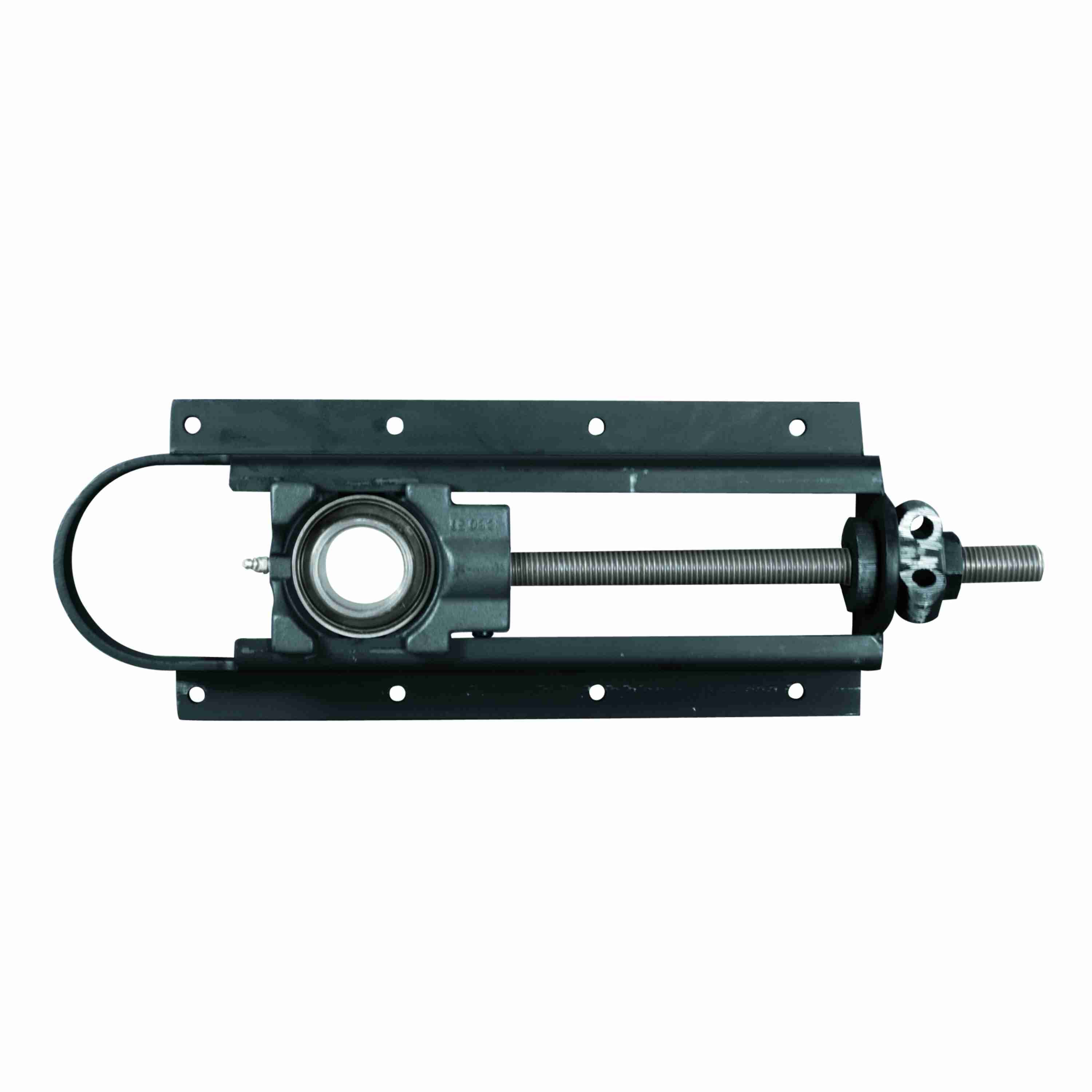

Link-Belt TAS3U219N6 Take-up Assemblies Ball Bearings - TAS3U219N6
Part #:10429246
Catalog #:TAS3U219N6
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Foot Height (in): | 0.19 in | Base Width (in): | 6.25 in |
| Base to Center Height (in): | 2.125 in | Overall Height (in): | 2.34 in |
| Bolt Size (in): | 3/8 in | Bore Diameter (in): | 1.1875 in |
Technical Specifications
| Misalignment Type: | Static Only | Housing Type: | Take-Up Assembly |
| Housing Style: | Take-Up Assembly | Rolling Element: | Ball Bearing |
| Housing Color: | Black | Bore Shape: | Straight |
| Seal Type: | Single Lip Contact Seal | Frame Material: | Formed Steel |
| Cage Material: | Molded fiber glass reinforced nylon | Housing Construction: | One Piece |
| Frame Height (in): | 2.875 in | Ability to Relubricate: | Yes |
| Take-up Frame Assembly Type: | Conveyor Take-Up Light Duty | Frame Length (in): | 15 in |
| Travel Length (in): | 6 in | Setscrew Torque (in-lbs): | 87-92 in/lbs |
| End of Frame to Bolt Center (in): | 1.625 in | Housing Material: | Cast Iron |
| Bolt Spacing Width Direction (in): | 5.25 in | Radial Clearance: | C3 STANDARD |
| Static Load Rating (lb): | 2,530 lb | Vibration Frequency Inner Ring Defect: | 0.0905 cps |
| Replacement Take-up Block: | TA3U219N | Lubricant: | Lithium Complex NLGI 2 Grease |
| Bolt Spacing Height Direction (in): | 4.88 in | Size Code: | 206 |
| Misalignment Capability: | ±2.0° Misalignment - Static Only | Bearing Insert Material: | 52100 Bearing Steel |
| Shaft Locking Type: | Set Screw | Fixed vs. Expansion: | Fixed |
| Grease Fitting Thread Size: | 1/8 NPT | Vibration Frequency Outer Ring Defect: | 0.0595 cps |
| Maximum Speed (RPM): | 8000 rpm | Vibration Frequency Roller Spin: | 0.0385 cps |
| Max Operating Temperature (C): | 107 °C | Housing Coating: | POWDER COATED |
| Insert: | UG219NL | Dynamic Load Rating (lb): | 4,390 lb |
| Replacement Frame: | TAS2230406 | Bearing Type: | Standard Duty |
| Bearing Brand: | LINK-BELT 200 SERIES BALL | Vibration Frequency Fundamental Train: | 0.0067 cps |
| Max Operating Temperature (F): | 225 °F | Cage Type: | Ball Riding Retainer |
| Housing Height (in): | 2.88 in |
General Specifications
| UPC: | 662327141301 | Weight: | 11.00 LB |
| HTC: | 8483204040 | Country of Origin: | Mexico |
