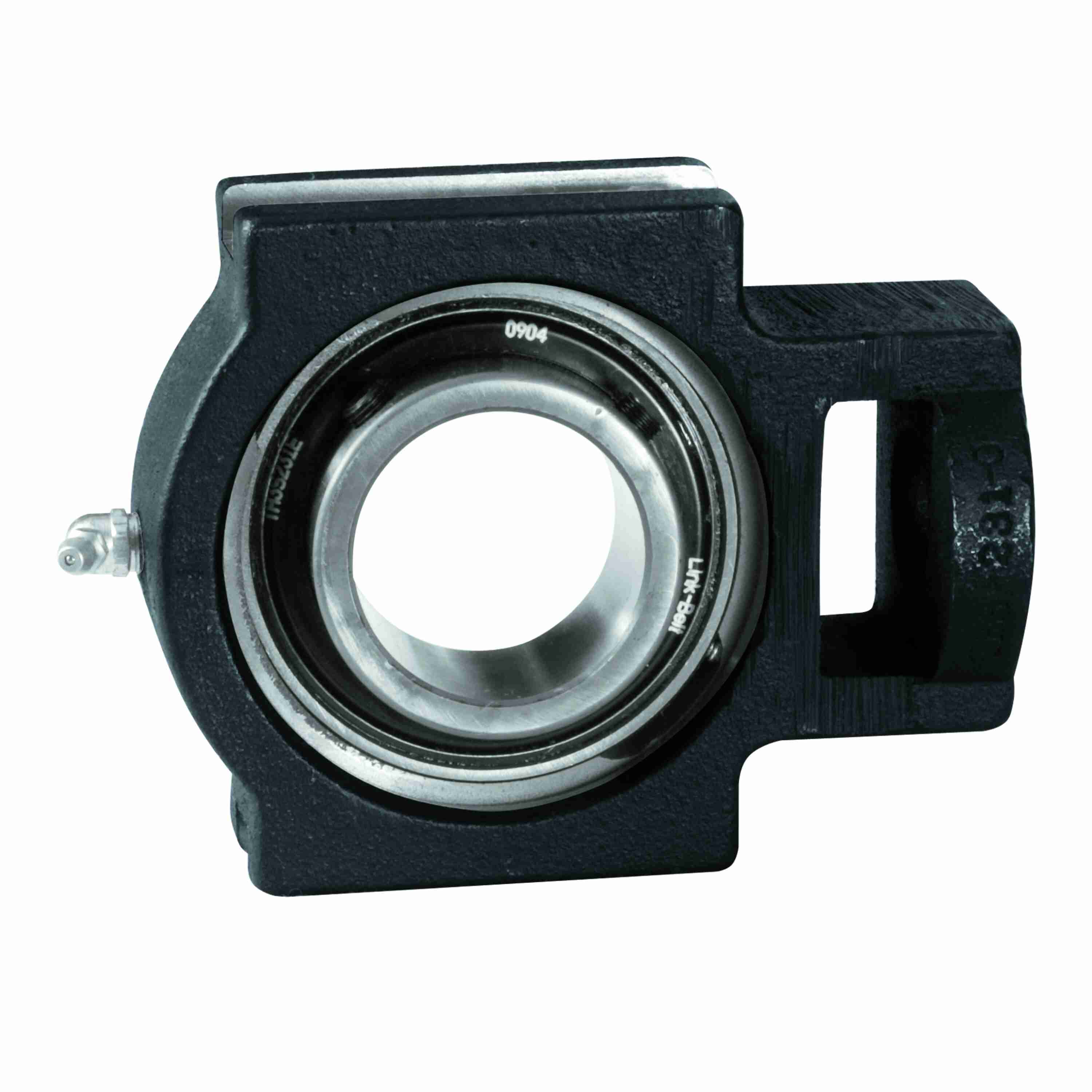

Link-Belt TH3S220EK75 Take-up Blocks Ball Bearings - TH3S220EK75
Part #:10434099
Catalog #:TH3S220EK75
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Slot Width (in): | 0.531 in | Base to Center Height (in): | 3.063 in |
| Bore Diameter (in): | 1.25 in | Overall Height (in): | 4.13 in |
| Length Through Bore (in): | 1.563 in | Overall Width (in): | 1.56 in |
| Overall Length (in): | 5 in | Slot Spacing (in): | 3.500 in |
| Centerline to Outermost Bearing Face (in): | 1.109 in |
Technical Specifications
| Housing Type: | Take-Up Block, Wide Slot | Rolling Element: | Ball Bearing |
| Slot Length (in): | 2.50 in | Cage Material: | Molded fiber glass reinforced nylon |
| Misalignment Type: | Static Only | Housing Construction: | One Piece |
| Outer Ring Land Profile: | Standard | Seal Type: | Single Lip Contact Seal |
| Housing Color: | Silver | Bore Shape: | Straight |
| Housing Style: | Take-Up Block | Carriage Bolt Size (in): | 11/16 in |
| Adjusting Screw Square Nut Seat Height (in): | 1.44 in | Adjusting Screw Clearance Hole Diameter (in): | 0.88 in |
| Ability to Relubricate: | Yes | Setscrew Torque (in-lbs): | 165 in/lbs |
| Shaft Locking Type: | Set Screw | Vibration Frequency Outer Ring Defect: | 0.0595 cps |
| Vibration Frequency Fundamental Train: | 0.0067 cps | Lubricant: | MOBIL FM222 FOOD GRADE H1 |
| Bearing Insert Material: | 52100 Bearing Steel | Bearing Brand: | LINK-BELT 200 SERIES BALL |
| Housing Coating: | Nickel Plated | Vibration Frequency Inner Ring Defect: | 0.0905 cps |
| Max Operating Temperature (F): | 225 °F | Dynamic Load Rating (lb): | 5,810 lb |
| Static Load Rating (lb): | 3,440 lb | Size Code: | 207 |
| Housing Material: | Cast Iron | Max Operating Temperature (C): | 107 °C |
| Grease Fitting Thread Size: | 1/8 NPT | Insert: | SG220ELPAK8299A |
| Bearing Insert Finish: | Black Oxide | Misalignment Capability: | ±2.0° Misalignment - Static Only |
| Centerline to Cap Face (in): | 1.63 | Vibration Frequency Roller Spin: | 0.0383 cps |
| Cage Type: | Ball Riding Retainer | Inner Ring Outside Diameter (in): | 1.847 in |
| Bearing Type: | Intermediate Duty | Radial Clearance: | C3 STANDARD |
| Maximum Speed (RPM): | 4800 rpm | Fixed vs. Expansion: | Fixed |
General Specifications
| UPC: | 662327408312 | Weight: | 4.00 LB |
| Packaged Length: | 5.63 IN | Packaged Width: | 4.25 IN |
| Packaged Height: | 1.88 IN | HTC: | 8483204040 |
| Country of Origin: | Mexico |
