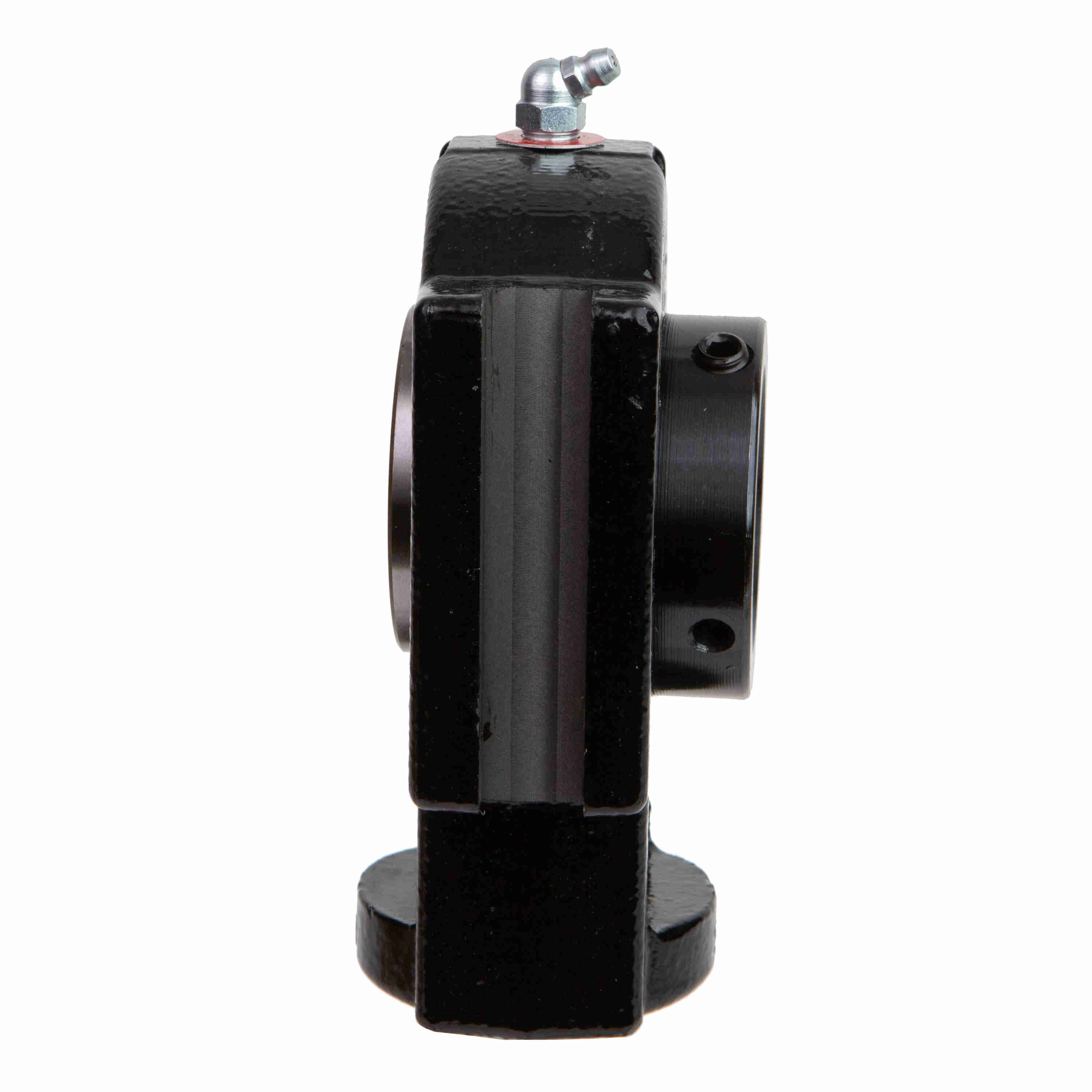

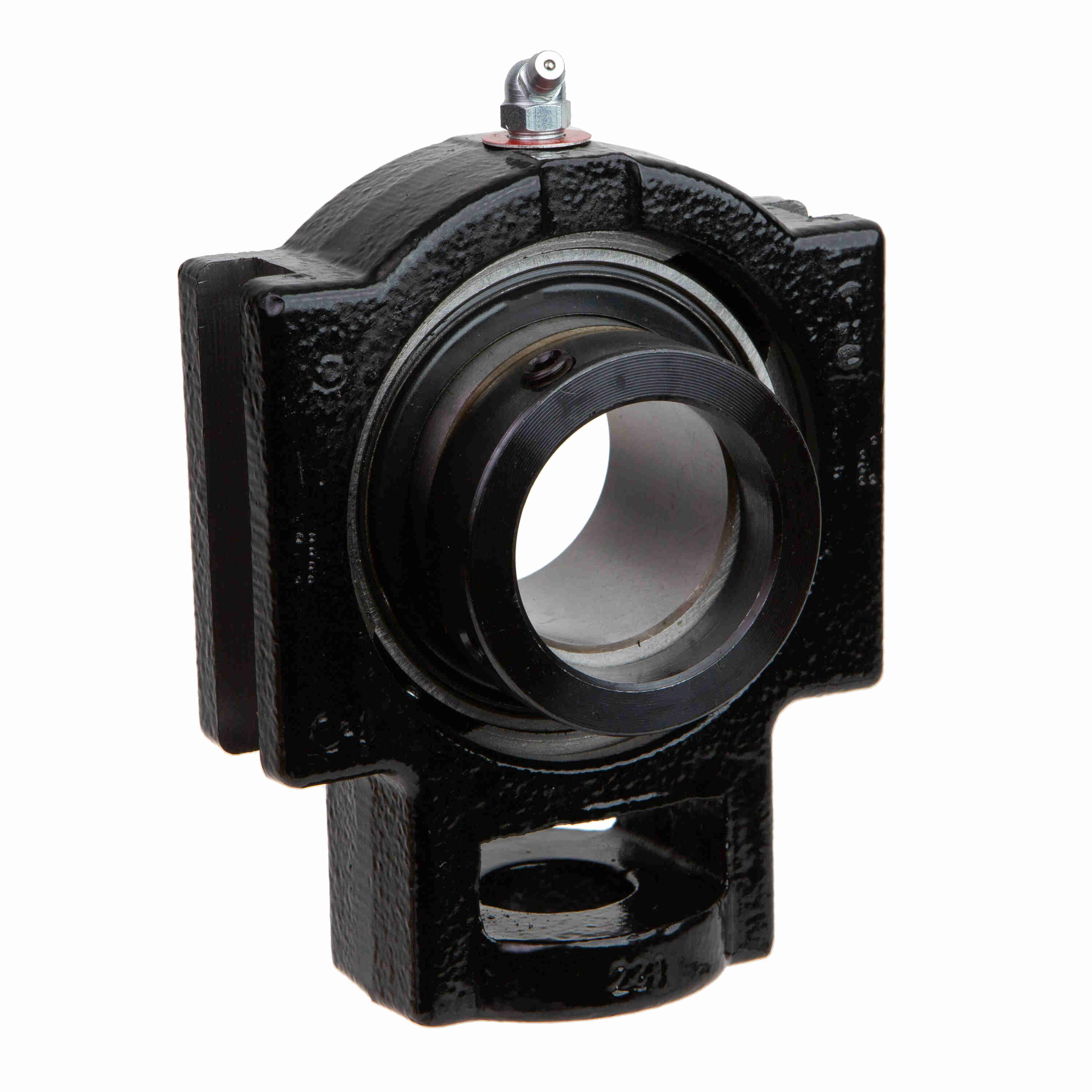

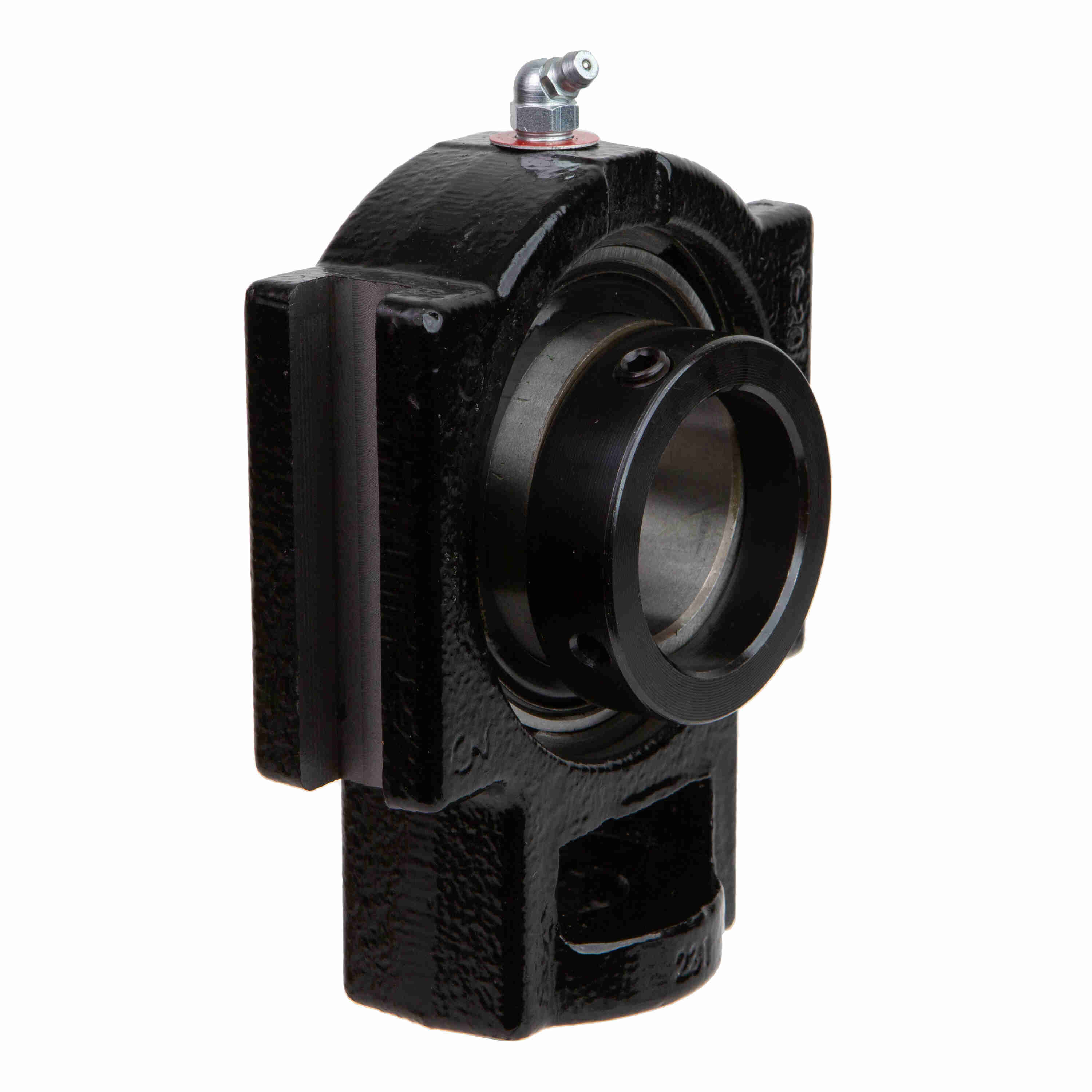

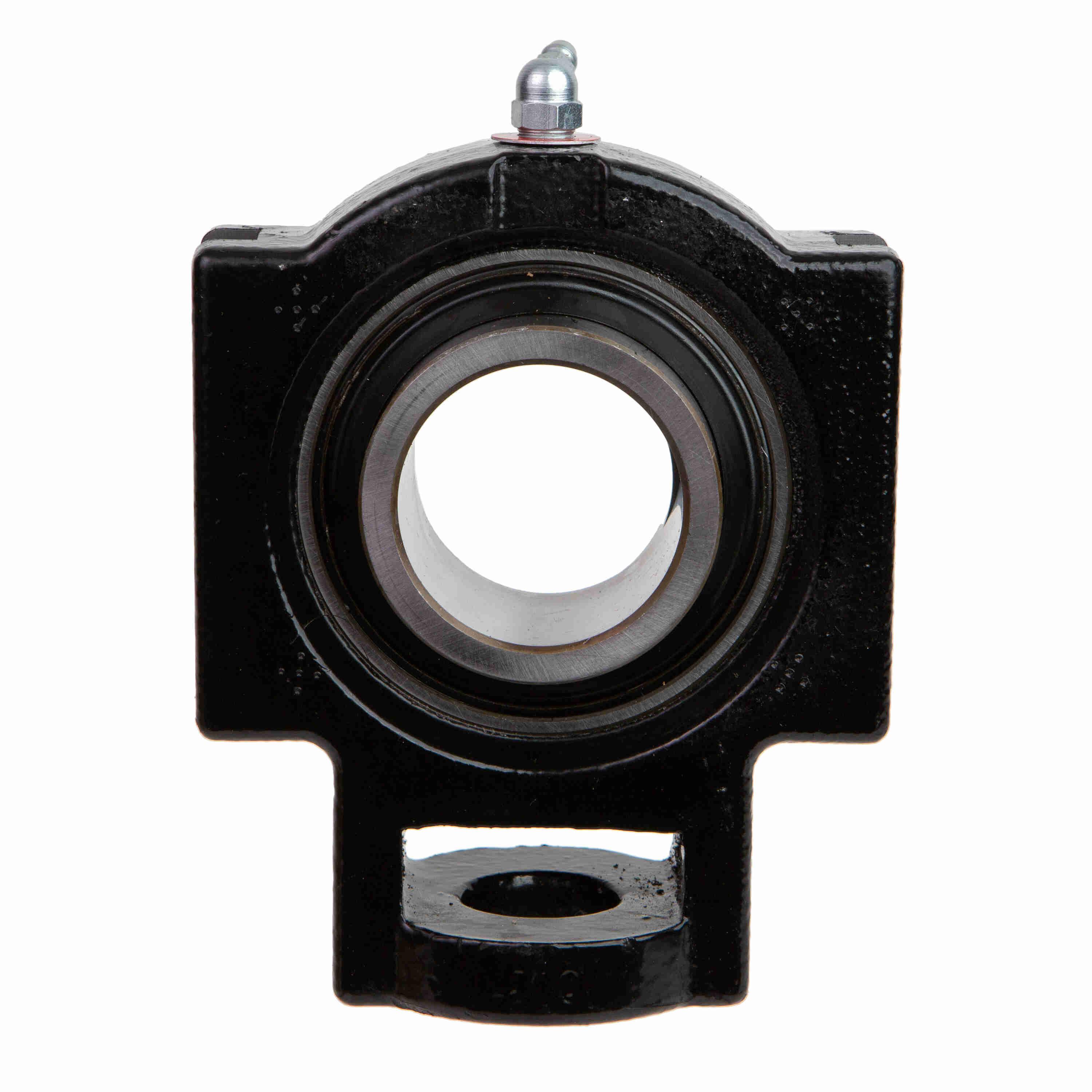

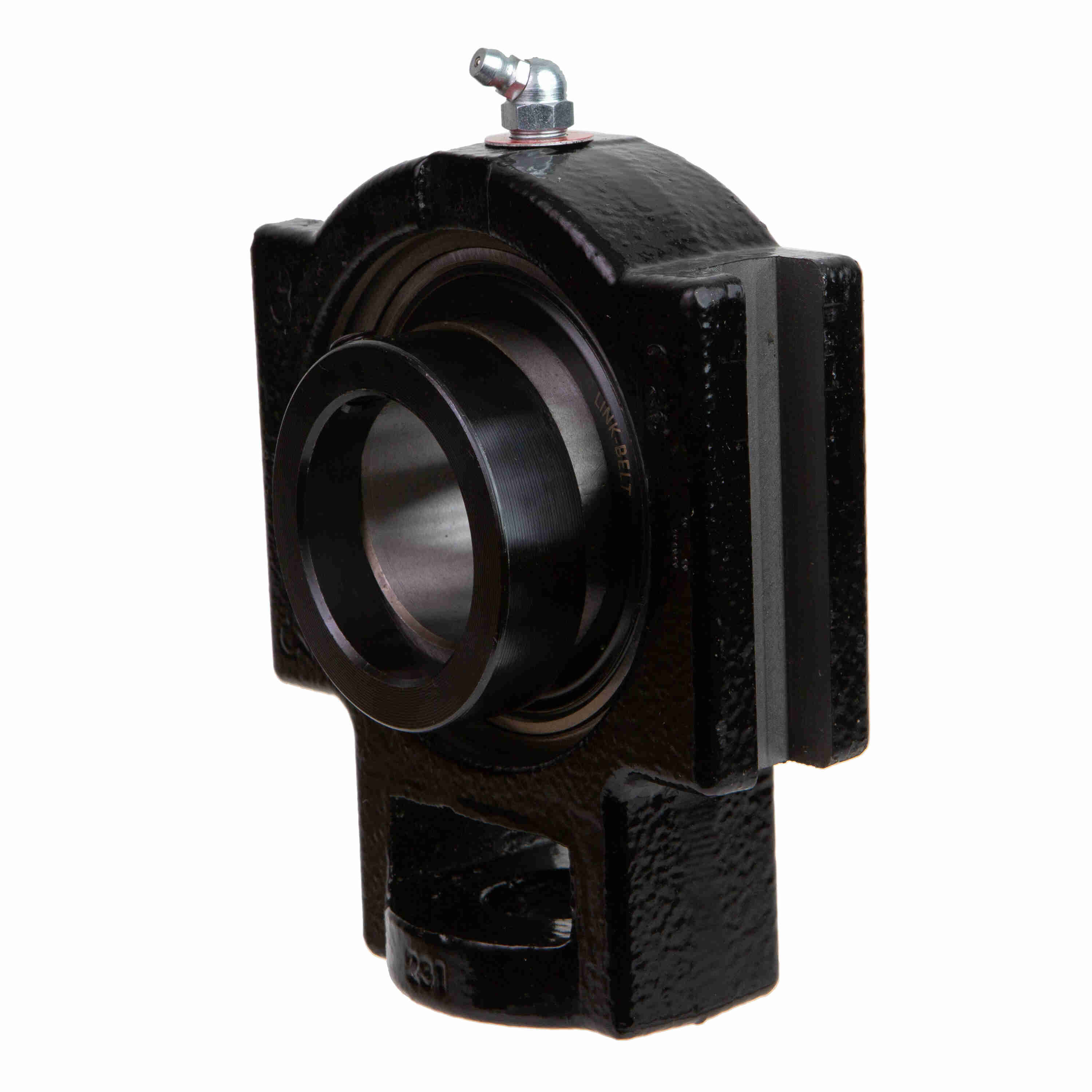

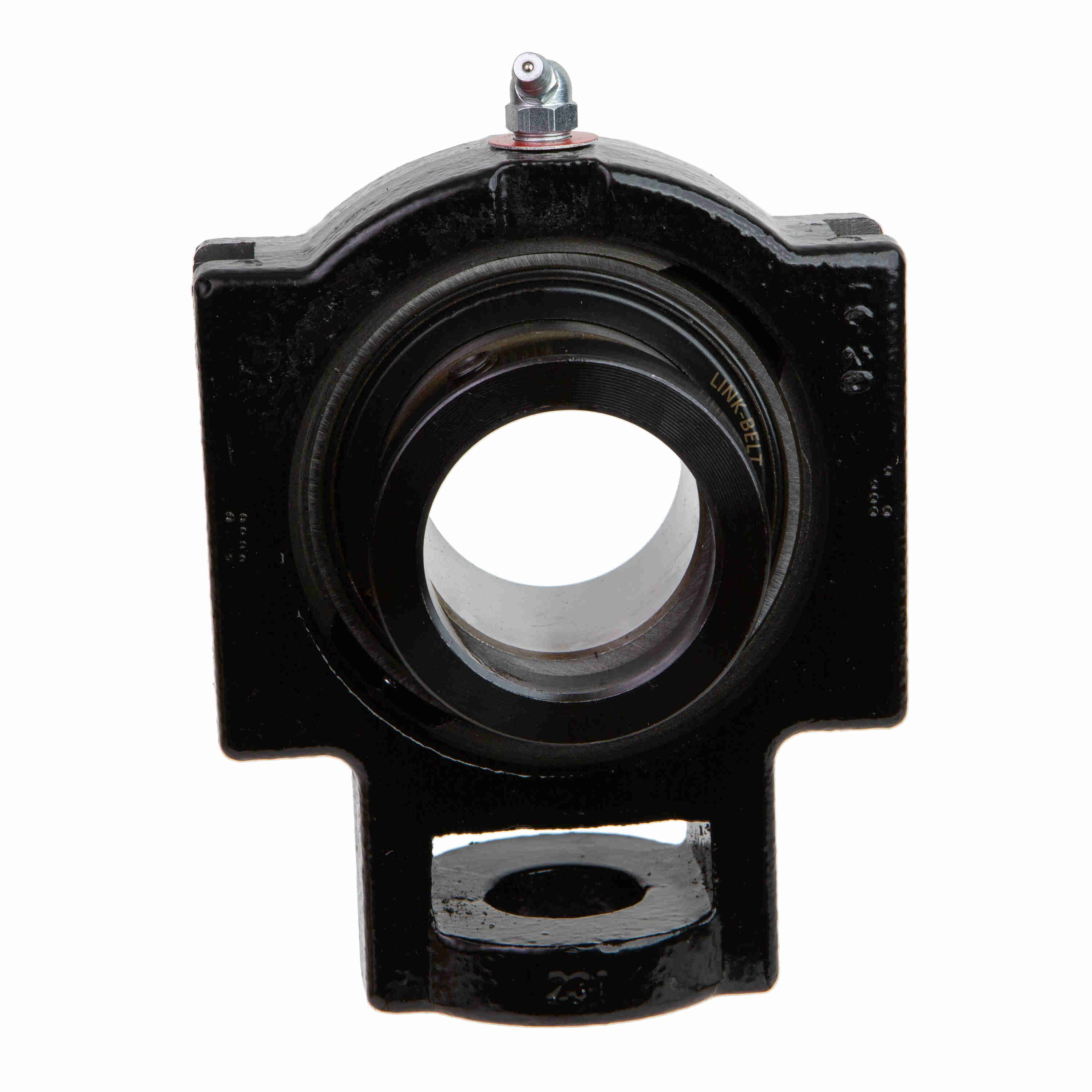

Link-Belt TH3Y231N Take-up Blocks Ball Bearings - TH3Y231N
Part #:10415831
Catalog #:TH3Y231N
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Slot Width (in): | 0.688 in | Bore Diameter (in): | 1.9375 in |
| Overall Length (in): | 5.93 in | Overall Width (in): | 2.56 in |
| Base to Center Height (in): | 3.59 in | Overall Height (in): | 4.75 in |
| Length Through Bore (in): | 2.47 in | Slot Spacing (in): | 3.968 in |
| Centerline to Outermost Bearing Face (in): | 1.5 in |
Technical Specifications
| Slot Length (in): | 3.38 in | Housing Style: | Take-Up Block |
| Bore Shape: | Straight | Rolling Element: | Ball Bearing |
| Housing Type: | Take-Up Block, Wide Slot | Housing Color: | Black |
| Seal Type: | Single Lip Contact Seal | Cage Material: | Molded fiber glass reinforced nylon |
| Outer Ring Land Profile: | Standard | Housing Construction: | One Piece |
| Misalignment Type: | Static Only | Ability to Relubricate: | Yes |
| Adjusting Screw Clearance Hole Diameter (in): | 1.13 in | Carriage Bolt Size (in): | 3/4 in |
| Setscrew Torque (in-lbs): | 290-325 in/lbs | Adjusting Screw Square Nut Seat Height (in): | 1.94 in |
| Locking Collar Outside Diameter (in): | 2.69 in | Inner Ring Outside Diameter (in): | 2.475 in |
| Max Operating Temperature (F): | 225 °F | Maximum Speed (RPM): | 4800 rpm |
| Bearing Type: | Standard Duty | Vibration Frequency Outer Ring Defect: | 0.0682 cps |
| Cage Type: | Ball Riding Retainer | Static Load Rating (lb): | 5,220 lb |
| Bearing Brand: | LINK-BELT 200 SERIES BALL | Max Operating Temperature (C): | 107 °C |
| Vibration Frequency Fundamental Train: | 0.0068 cps | Dynamic Load Rating (lb): | 7,920 lb |
| Lubricant: | Lithium Complex NLGI 2 Grease | Locking Device Kit: | W2315S |
| End Cap: | Y2316N | Housing Material: | Cast Iron |
| Shaft Locking Type: | Eccentric | Insert: | YG231NL |
| Housing Coating: | Powder Coated | Radial Clearance: | C3 STANDARD |
| Misalignment Capability: | ±2.0° Misalignment - Static Only | Fixed vs. Expansion: | Fixed |
| End Cap Available: | Yes | Vibration Frequency Roller Spin: | 0.0445 cps |
| Grease Fitting Thread Size: | 1/8 NPT | Vibration Frequency Inner Ring Defect: | 0.0985 cps |
| Size Code: | 210 | Bearing Insert Material: | 52100 Bearing Steel |
General Specifications
| UPC: | 662327147860 | Weight: | 7.00 LB |
| Packaged Length: | 7.25 IN | Packaged Width: | 2.25 IN |
| Packaged Height: | 7.25 IN | HTC: | 8483204040 |
| Country of Origin: | Mexico |
