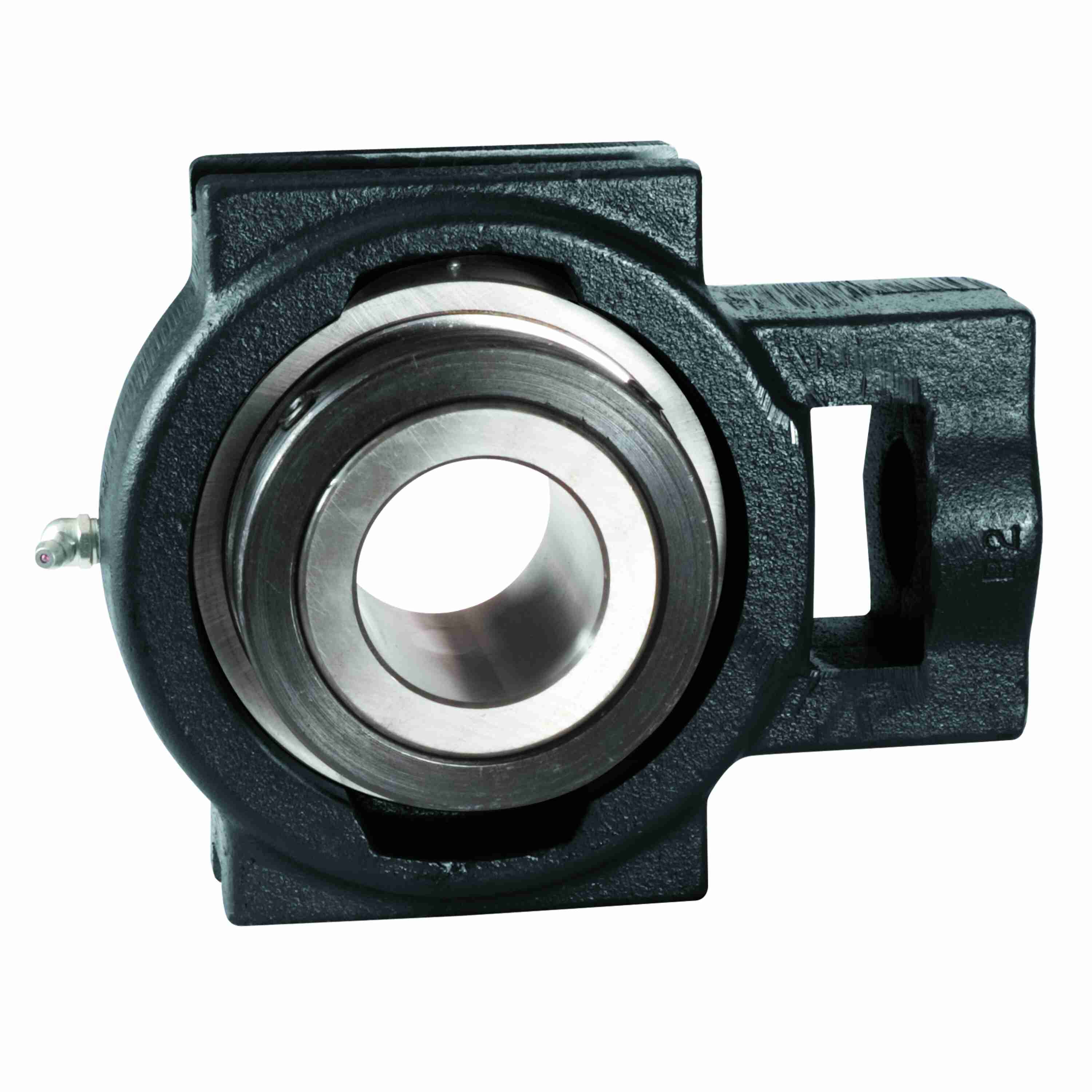

Link-Belt TU323 Take-up Blocks Ball Bearings - TU323
Part #:10427792
Catalog #:TU323
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Width (in): | 2.1 in | Length Through Bore (in): | 2.1 in |
| Overall Height (in): | 4.13 in | Overall Length (in): | 5.25 in |
| Base to Center Height (in): | 3.25 in | Slot Width (in): | 0.531 in |
| Bore Diameter (in): | 1.4375 in | Slot Spacing (in): | 3.5 in |
| Centerline to Outermost Bearing Face (in): | 1.25 in |
Technical Specifications
| Seal Type: | Clearance Seal with Flinger | Housing Color: | Black |
| Cage Material: | Molded fiber glass reinforced nylon | Housing Type: | Take-Up Block, Wide Slot |
| Housing Style: | Take-Up Block | Outer Ring Land Profile: | Standard |
| Housing Construction: | One Piece | Bore Shape: | Straight |
| Rolling Element: | Ball Bearing | Misalignment Type: | Static Only |
| Slot Length (in): | 2.75 in | Locking Collar Outside Diameter (in): | 2.54 in |
| Adjusting Screw Square Nut Seat Height (in): | 1.44 in | Ability to Relubricate: | Yes |
| Setscrew Torque (in-lbs): | 165-185 in/lbs | Adjusting Screw Clearance Hole Diameter (in): | 0.88 in |
| Carriage Bolt Size (in): | 5/8 in | Shaft Locking Type: | Set Screw |
| Locking Device Kit: | U3235S | Bearing Type: | Heavy Duty |
| Static Load Rating (lb): | 4,290 lb | Bearing Insert Material: | 52100 Bearing Steel |
| Vibration Frequency Outer Ring Defect: | 0.0510 cps | Insert: | UG323L |
| Maximum Speed (RPM): | 7550 rpm | Bearing Brand: | LINK-BELT 300 SERIES HD BALL |
| Centerline to Cap Face (in): | 1.5 | Misalignment Capability: | ±2.0° Misalignment - Static Only |
| Housing Material: | Cast Iron | Housing Coating: | Powder Coated |
| Max Operating Temperature (C): | 107 °C | Max Operating Temperature (F): | 225 °F |
| Cage Type: | Ball Riding Retainer | Inner Ring Outside Diameter (in): | 1.946 in |
| Vibration Frequency Fundamental Train: | 0.0063 cps | Grease Fitting Thread Size: | 1/8 NPT |
| Lubricant: | Lithium Complex NLGI 2 Grease | Vibration Frequency Inner Ring Defect: | 0.0823 cps |
| Fixed vs. Expansion: | Fixed | Dynamic Load Rating (lb): | 7,490 lb |
| End Cap: | U3236C | Vibration Frequency Roller Spin: | 0.0335 cps |
| Size Code: | 323 | End Cap Available: | Yes |
| Radial Clearance: | C3 STANDARD |
General Specifications
| UPC: | 662327734701 | Weight: | 5.00 LB |
| Packaged Length: | 7.94 IN | Packaged Width: | 4.69 IN |
| Packaged Height: | 2.44 IN | HTC: | 8483204040 |
| Country of Origin: | Mexico |
