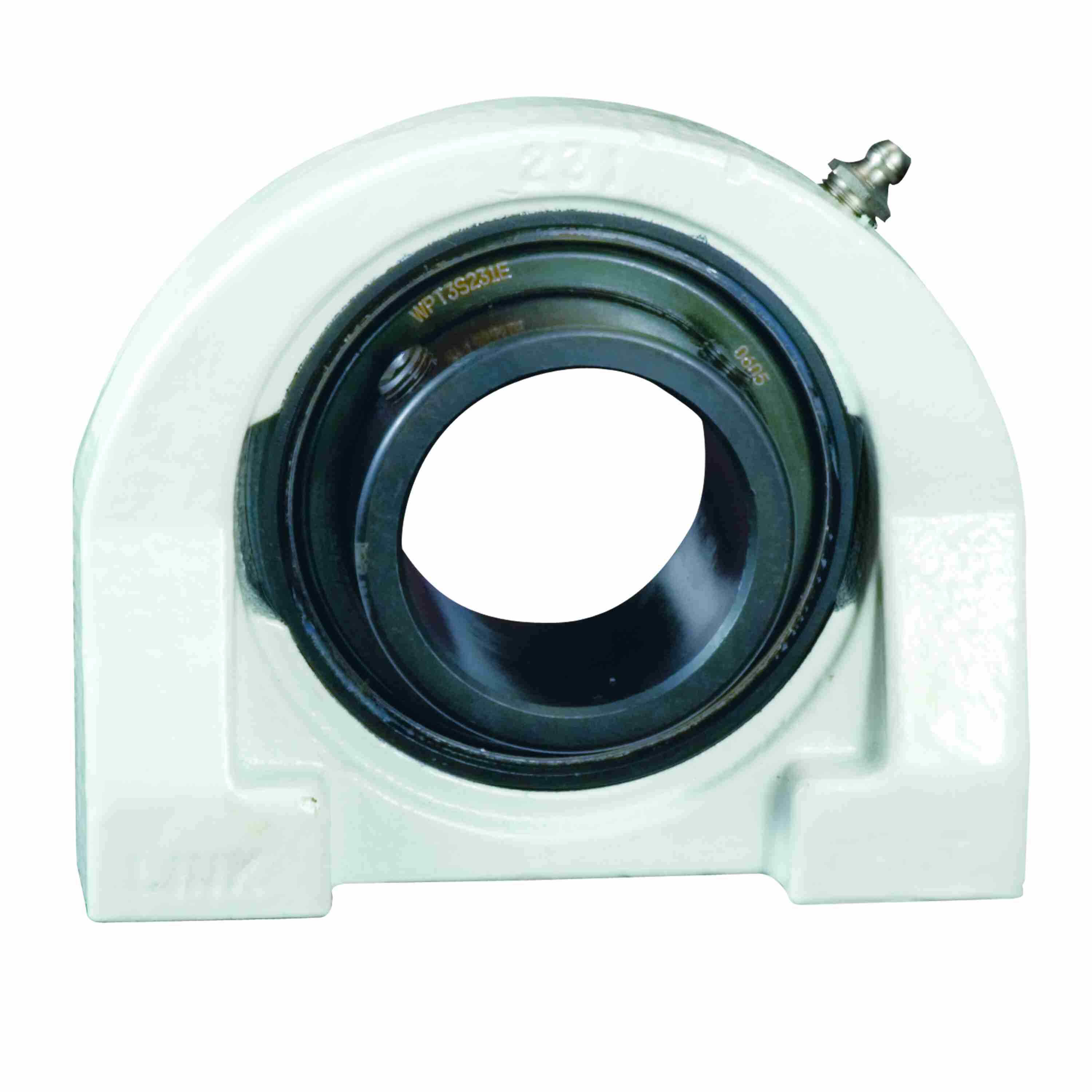

Link-Belt WPT3W223EK29 Pillow Blocks Ball Bearings - WPT3W223EK29
Part #:10427859
Catalog #:WPT3W223EK29
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Width (in): | 2 in | Bore Diameter (in): | 1.4375 in |
| Base Width (in): | 2.00 in | Thread Depth (in): | 0.75 in |
| Overall Length (in): | 4.41 in | Overall Height (in): | 3.69 in |
| Length Through Bore (in): | 1.531 in | Thread Size: | 1/2-13 |
| Base to Center Height (in): | 1.875 in | Centerline to Outermost Bearing Face (in): | 1.109 in |
| Bolt Spacing (in): | 3.25 in |
Technical Specifications
| Housing Style: | Pillow Block | Rolling Element: | Ball Bearing |
| Housing Type: | Pillow Block, Tapped Base | Misalignment Type: | Static Only |
| Outer Ring Land Profile: | Standard | Seal Type: | Single Lip Contact Seal |
| Housing Color: | White | Bore Shape: | Straight |
| Housing Base: | Solid | Cage Material: | Molded fiber glass reinforced nylon |
| Housing Construction: | One Piece | Ability to Relubricate: | Yes |
| Bearing Type: | Intermediate Duty | Vibration Frequency Inner Ring Defect: | 0.0905 cps |
| Size Code: | 207 | Maximum Speed (RPM): | 4800 rpm |
| End Cap Available: | No | Shaft Locking Type: | Set Screw |
| Locking Device Kit: | W2235S | Insert: | WG223EL |
| Bearing Brand: | LINK-BELT DURA-KLEAN | Inner Ring Outside Diameter (in): | 1.8438 in |
| Dynamic Load Rating (lb): | 5,810 lb | Radial Clearance: | C3 STANDARD |
| Max Operating Temperature (C): | 107 °C | Housing Coating: | Nylon Coated |
| Grease Fitting Thread Size: | 1/8 NPT | Max Operating Temperature (F): | 225 °F |
| Vibration Frequency Roller Spin: | 0.0383 cps | Vibration Frequency Fundamental Train: | 0.0067 cps |
| Housing Material: | Cast Iron | Vibration Frequency Outer Ring Defect: | 0.0595 cps |
| Misalignment Capability: | ±2.0° Misalignment - Static Only | Fixed vs. Expansion: | Fixed |
| Bearing Insert Material: | 52100 Bearing Steel | Static Load Rating (lb): | 3,440 lb |
| Base Length (in): | 4.41 in | Lubricant: | Lithium Complex NLGI 2 Grease |
| Cage Type: | Ball Riding Retainer | Housing Width (in): | 2 in |
General Specifications
| UPC: | 662327721732 | Weight: | 3.55 LB |
| HTC: | 8483208040 | Country of Origin: | Mexico |
