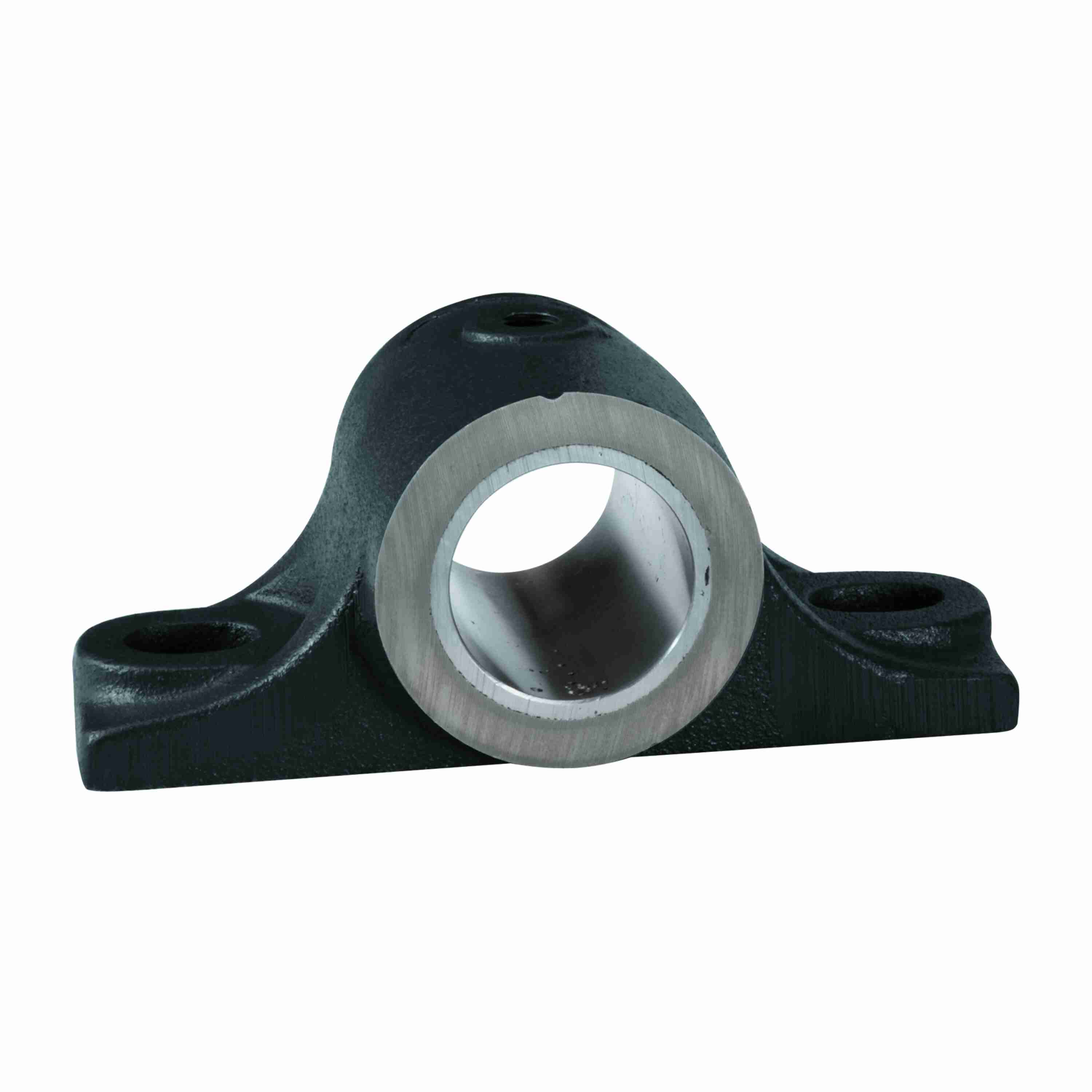

Link-Belt 1014 Pillow Blocks Sleeve Bearings - 1014
Part #:10407154
Catalog #:1014
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Mounting Pad Length (in): | 4 1/2 in | Housing Material: | Cast Iron |
| Pipe Tap Size (in): | 1/8 in | Bore Length (in): | 2 in |
| Sleeve Material: | Babbitt | Product: | 1000 |
| Lubrication Type: | NOT GREASED FROM FACTORY | Expansion Type: | Non-Expansion Bearing (Fixed) |
| Housing Style: | Pillow Block | Mounting Bolt Size (in): | 3/8 in |
| Maximum Temperature (C): | 54 °C | Bore Size (in): | 0.875 in |
| Mounting Bolt Hole Slot Length (in): | 5/8 in | Housing Coating: | POWDER COATED |
| Grease Fitting Size: | 1/8 NPT | Bearing Brand: | LINK-BELT RIGID SLEEVE |
| Housing Type: | Pillow Block, Two Bolt | Maximum Temperature (F): | 130 °F |
| Base to Centerline Height (in): | 1 in | Bearing Type: | BABBITT SLEEVE BRG |
| Mounting Pad Height (in): | 1/2 in | Mounting Pad Width (in): | 1 3/8 in |
| Distance Between Bolt Holes (in): | 3 1/4 in | Series: | Pillow Blocks |
General Specifications
| UPC: | 662327158811 | Weight: | 1.78 LB |
| Packaged Length: | 4.00 IN | Packaged Width: | 4.00 IN |
| Packaged Height: | 2.00 IN | HTC: | 84833080 |
