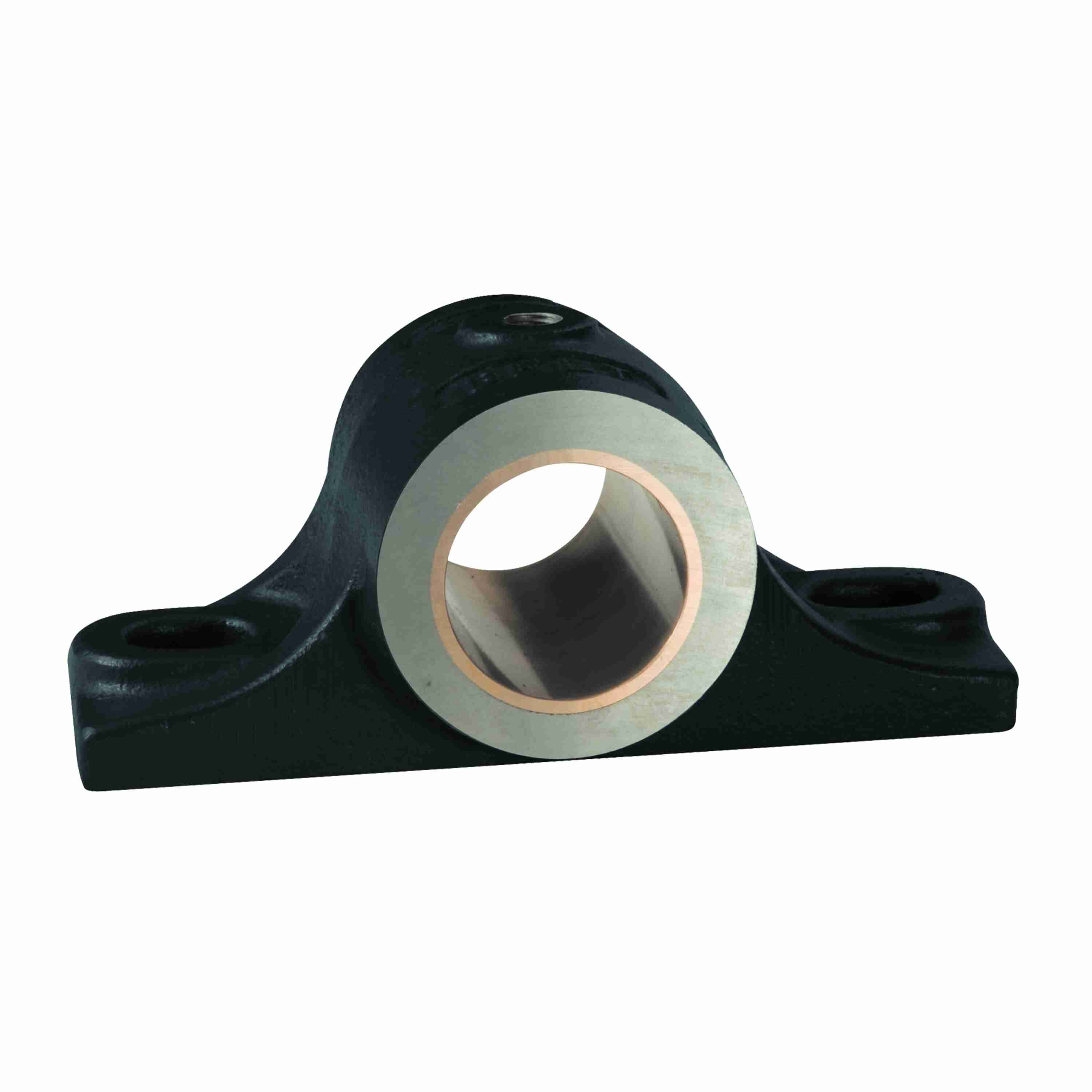

Link-Belt 1023Z Pillow Blocks Sleeve Bearings - 1023Z
Part #:10407155
Catalog #:1023Z
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Insert: | 285Y2229 | Mounting Pad Height (in): | 3/4 in |
| Bore Size (in): | 1.4375 in | Housing Type: | Pillow Block, Two Bolt |
| Grease Fitting Size: | 1/4 NPT | Bore Length (in): | 3 in |
| Maximum Temperature (C): | 150 °C | Bushing: | 285Y2229 |
| Housing Material: | Cast Iron | Housing Style: | Pillow Block |
| Maximum Temperature (F): | 300 °F | Mounting Bolt Size (in): | 1/2 in |
| Product: | 1000Z | Mounting Bolt Hole Slot Length (in): | 13/16 in |
| Housing Coating: | POWDER COATED | Bearing Brand: | LINK-BELT RIGID SLEEVE |
| Series: | Pillow Blocks | Bearing Type: | BRONZE SLEEVE BRG |
| Pipe Tap Size (in): | 1/4 in | Sleeve Material: | Bronze |
| Mounting Pad Width (in): | 2 in | Mounting Pad Length (in): | 6 3/4 in |
| Lubrication Type: | NOT GREASED FROM FACTORY | Base to Centerline Height (in): | 1 3/8 in |
| Distance Between Bolt Holes (in): | 5 in |
General Specifications
| UPC: | 662327159016 | Weight: | 4.12 LB |
| Packaged Length: | 5.75 IN | Packaged Width: | 5.75 IN |
| Packaged Height: | 2.25 IN | HTC: | 84833080 |
