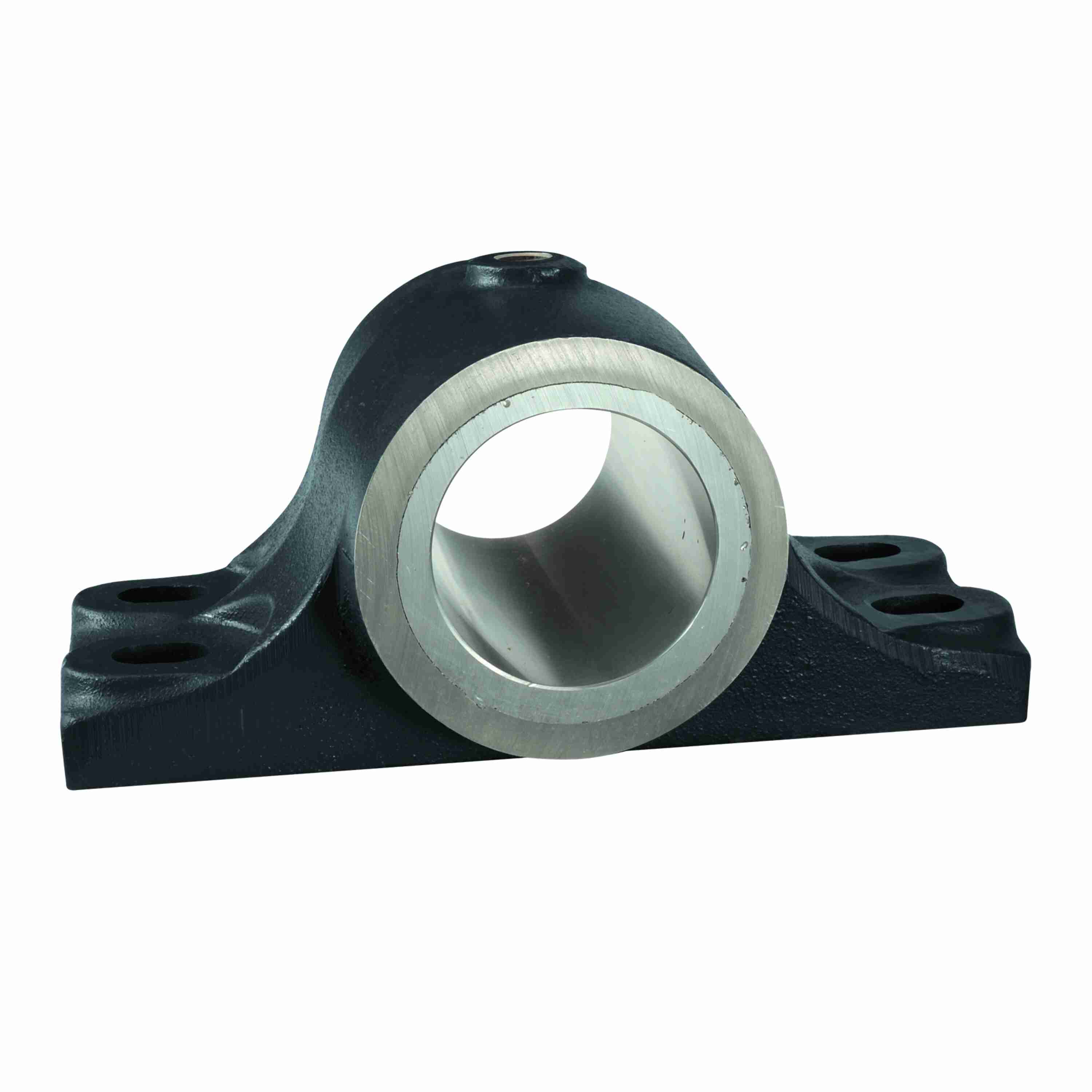

Link-Belt 1055F Pillow Blocks Sleeve Bearings - 1055F
Part #:10440485
Catalog #:1055F
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Lubrication Type: | NOT GREASED FROM FACTORY | Mounting Bolt Hole Slot Length (in): | 1 1/4 in |
| Mounting Pad Height (in): | 1 3/8 in | Mounting Bolt Size (in): | 3/4 in |
| Bolt Hole Spacing Width (in): | 2 3/4 in | Bearing Type: | BABBITT SLEEVE BRG |
| Housing Coating: | POWDER COATED | Distance Between Bolt Holes (in): | 10 in |
| Expansion Type: | Non-Expansion Bearing (Fixed) | Mounting Pad Length (in): | 12 1/2 in |
| Bore Size (in): | 3.4375 in | Grease Fitting Size: | 1/2 NPT |
| Base to Centerline Height (in): | 3 in | Housing Material: | Cast Iron |
| Maximum Temperature (F): | 130 °F | Bore Length (in): | 7 in |
| Bearing Brand: | LINK-BELT RIGID SLEEVE | Maximum Temperature (C): | 54 °C |
| Housing Type: | Pillow Block, Two Bolt | Sleeve Material: | Babbitt |
| Series: | Pillow Blocks | Mounting Pad Width (in): | 5 in |
| Housing Style: | Pillow Block | Product: | 1000 |
| Pipe Tap Size (in): | 1/2 in |
General Specifications
| UPC: | 662327159702 | Weight: | 43.00 LB |
| Packaged Length: | 12.38 IN | Packaged Width: | 7.13 IN |
| Packaged Height: | 6.13 IN | HTC: | 84833080 |
