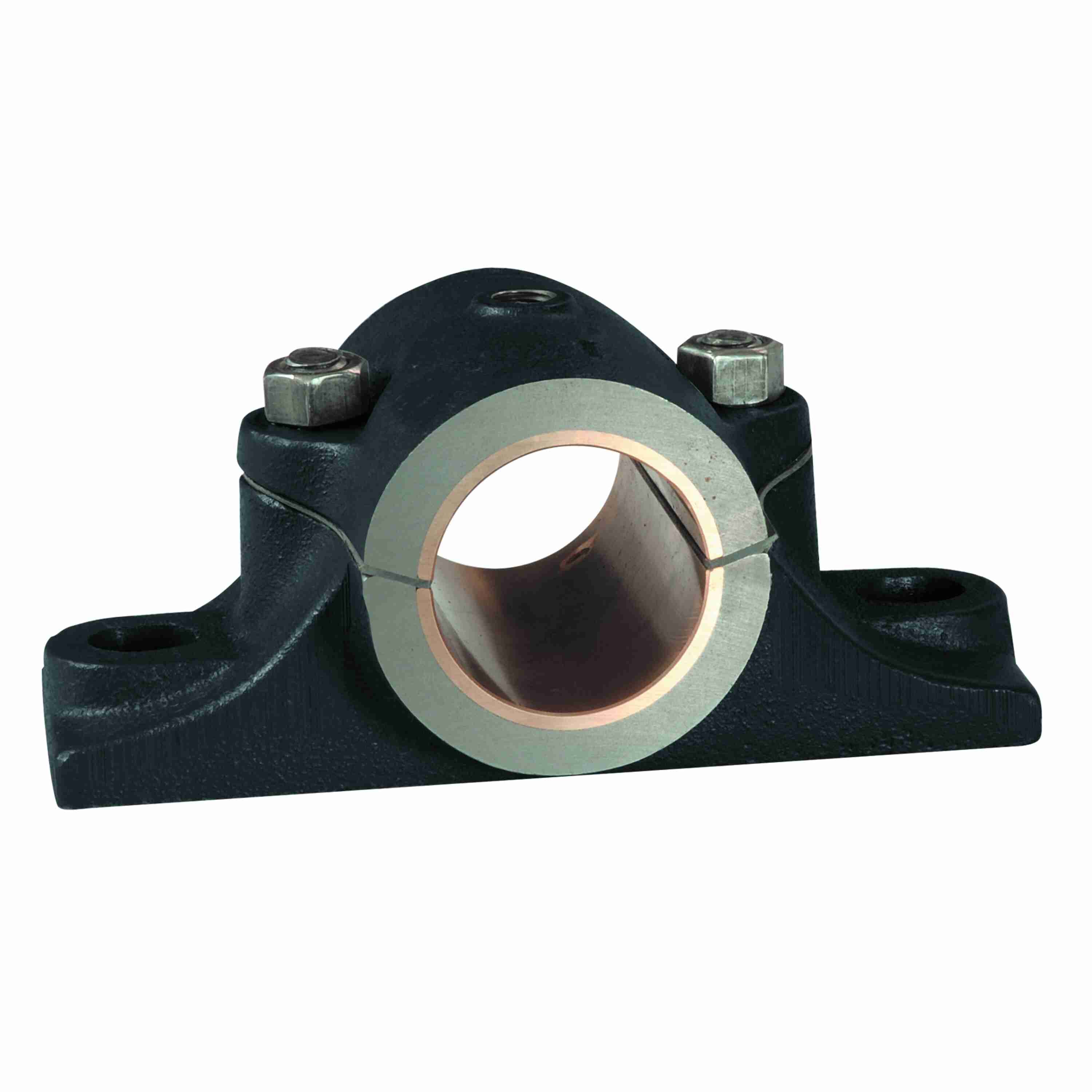

Link-Belt 21223Z Pillow Blocks Sleeve Bearings - 21223Z
Part #:10423684
Catalog #:21223Z
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Lubrication Type: | NOT GREASED FROM FACTORY | Maximum Temperature (C): | 150 °C |
| Mounting Pad Height (in): | 3/4 in | Shims: | 131Y95423 QTY 4 |
| Maximum Temperature (F): | 300 °F | Grease Fitting Size: | 1/4 NPT |
| Insert: | 285BY211 | Base to Centerline Height (in): | 1 3/8 in |
| Housing Coating: | POWDER COATED | Mounting Bolt Size (in): | 1/2 in |
| Mounting Pad Width (in): | 2 in | Distance Between Bolt Holes (in): | 4 7/8 in |
| Bearing Brand: | LINK-BELT RIGID SLEEVE | Mounting Pad Length (in): | 6 1/4 in |
| Bearing Type: | BRONZE SLEEVE BRG | Bore Size (in): | 1.4375 in |
| Series: | Pillow Blocks | Housing Type: | Pillow Block, Two Bolt, Split Angle |
| Bushing: | 285BY211 | Pipe Tap Size (in): | 1/4 in |
| Mounting Bolt Hole Slot Length (in): | 11/16 in | Housing Style: | Pillow Block |
| Housing Material: | Cast Iron | Bore Length (in): | 3 in |
| Required Distance for Cap Removal (in): | 3 7/8 in | Sleeve Material: | Bronze |
| Product: | 21200Z |
General Specifications
| UPC: | 662327192228 | Weight: | 4.11 LB |
| Packaged Length: | 5.75 IN | Packaged Width: | 5.75 IN |
| Packaged Height: | 2.25 IN | HTC: | 8483308055 |
| Country of Origin: | Mexico |
