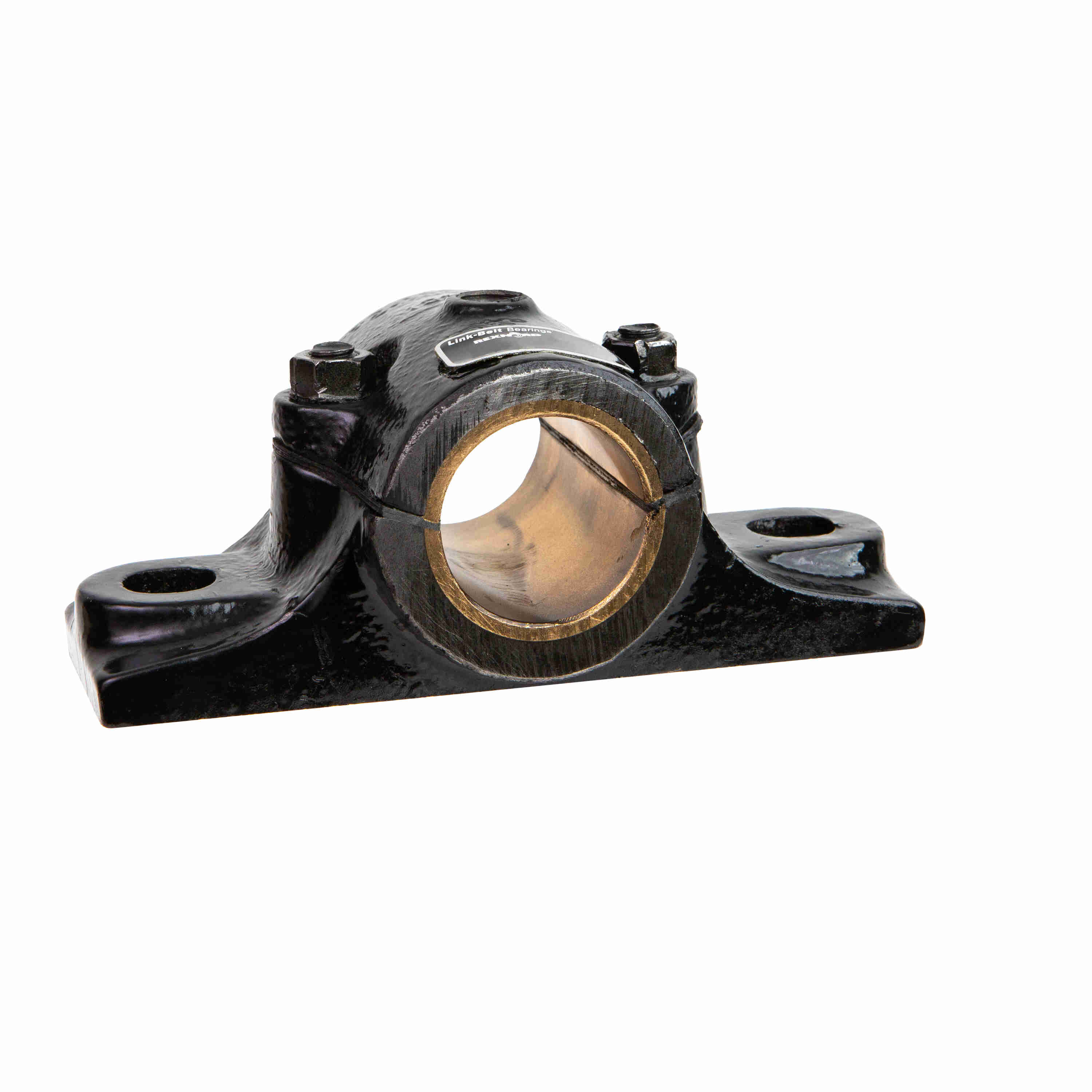

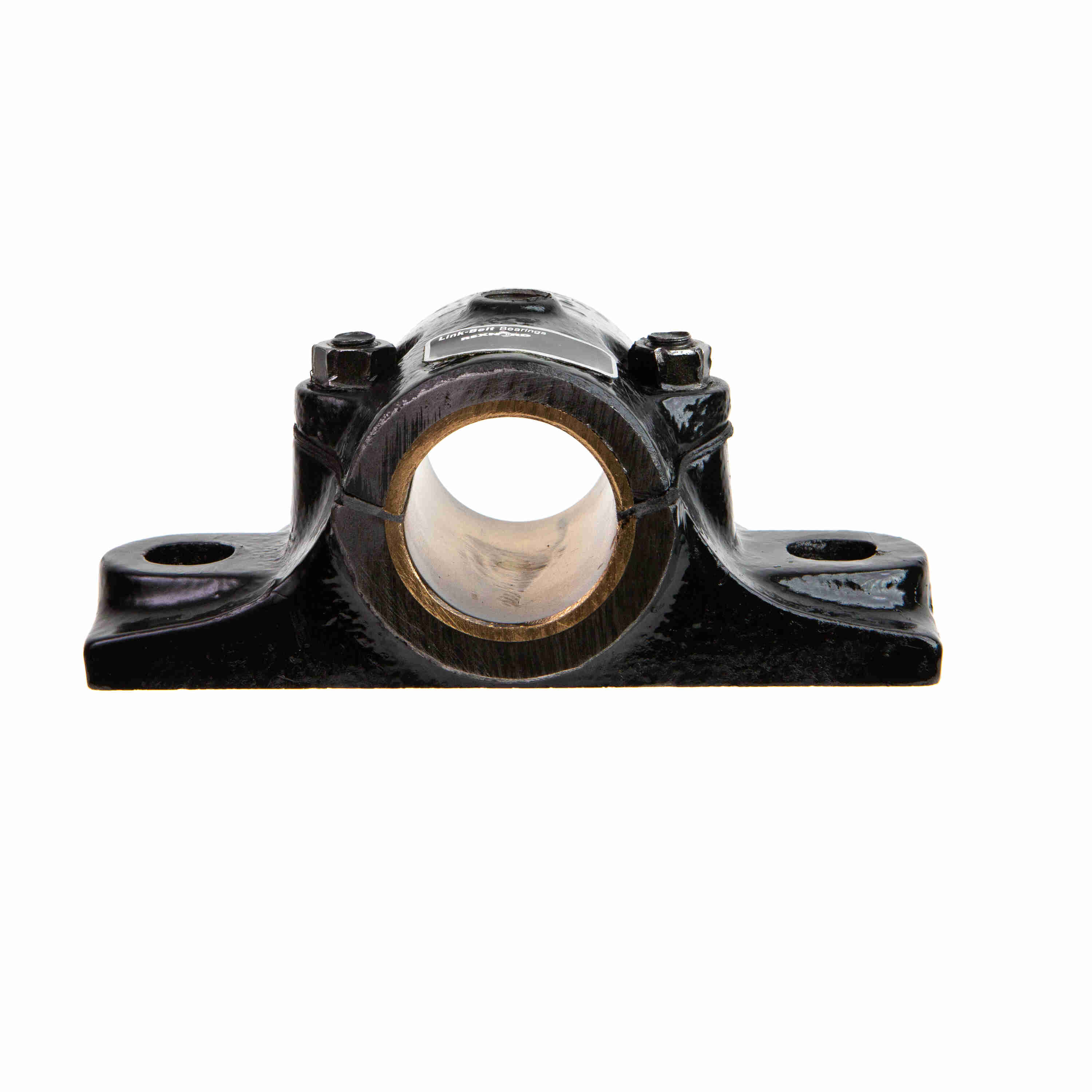

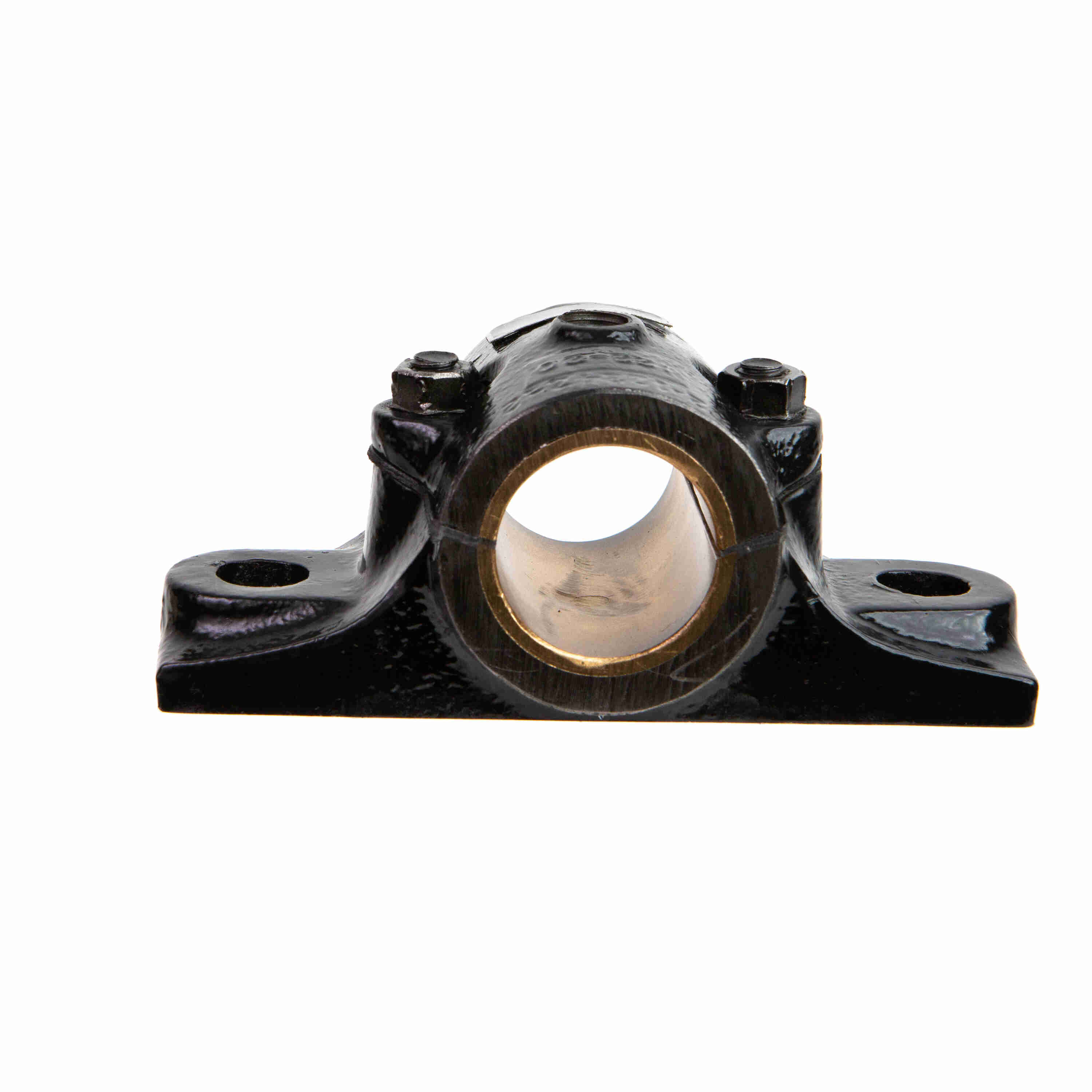

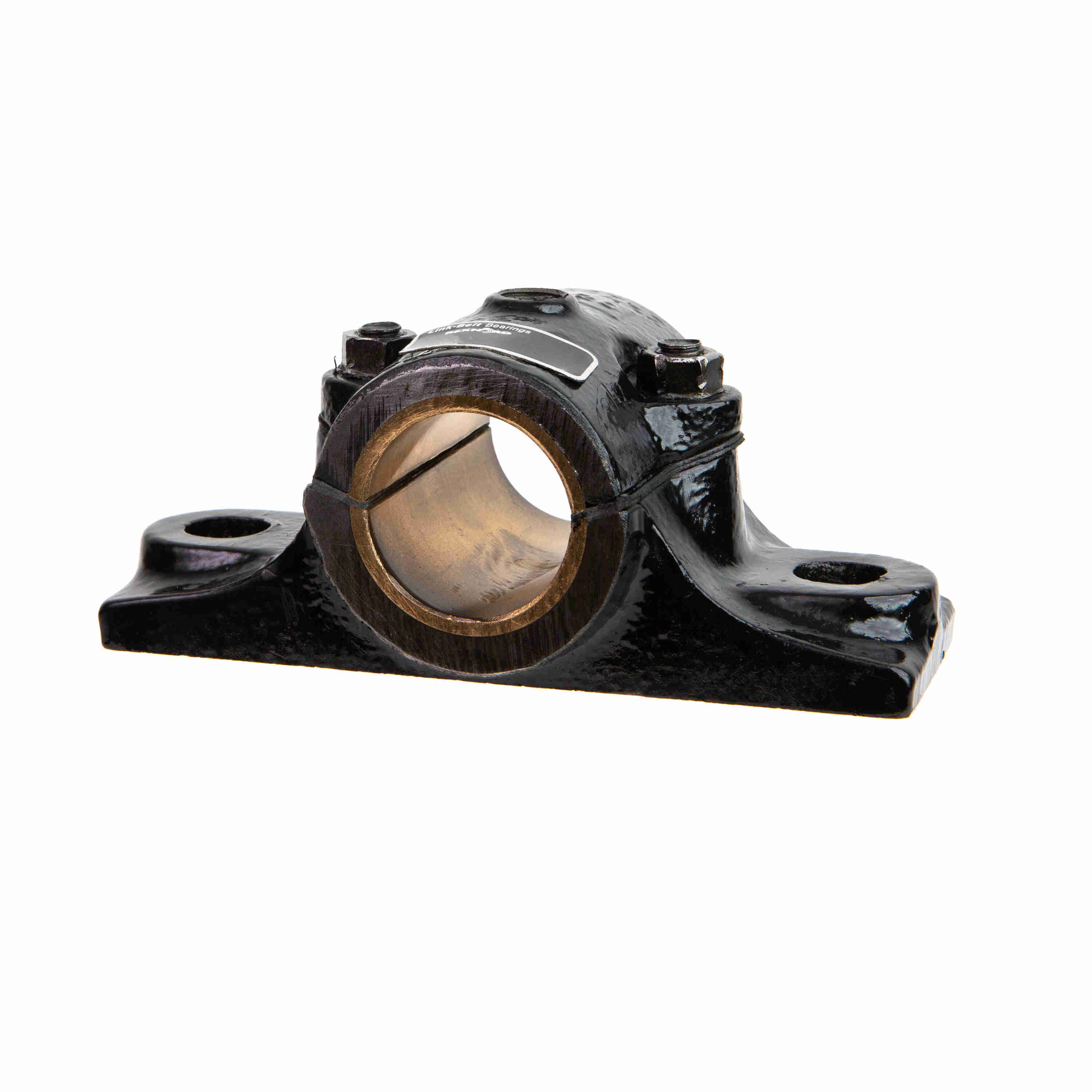

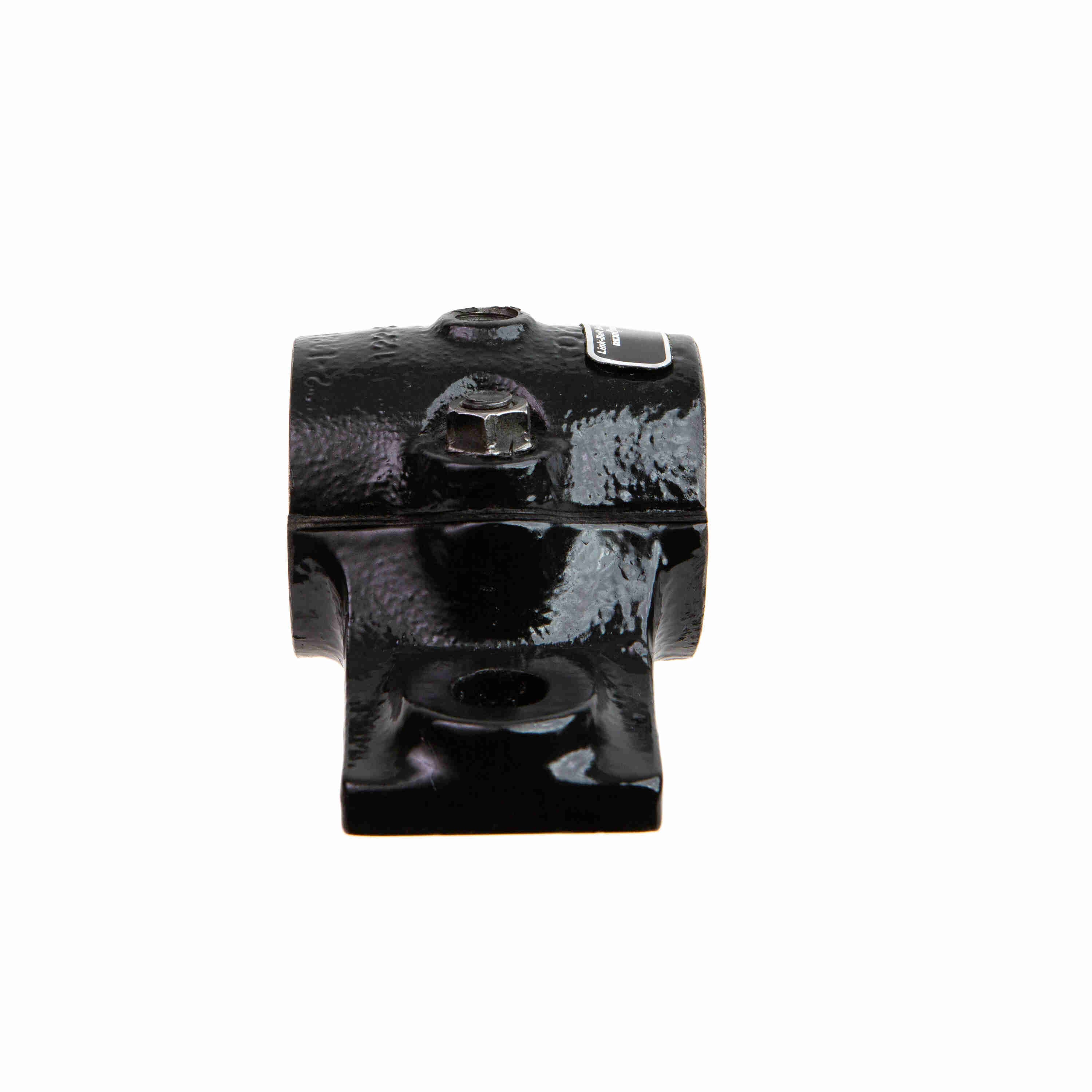

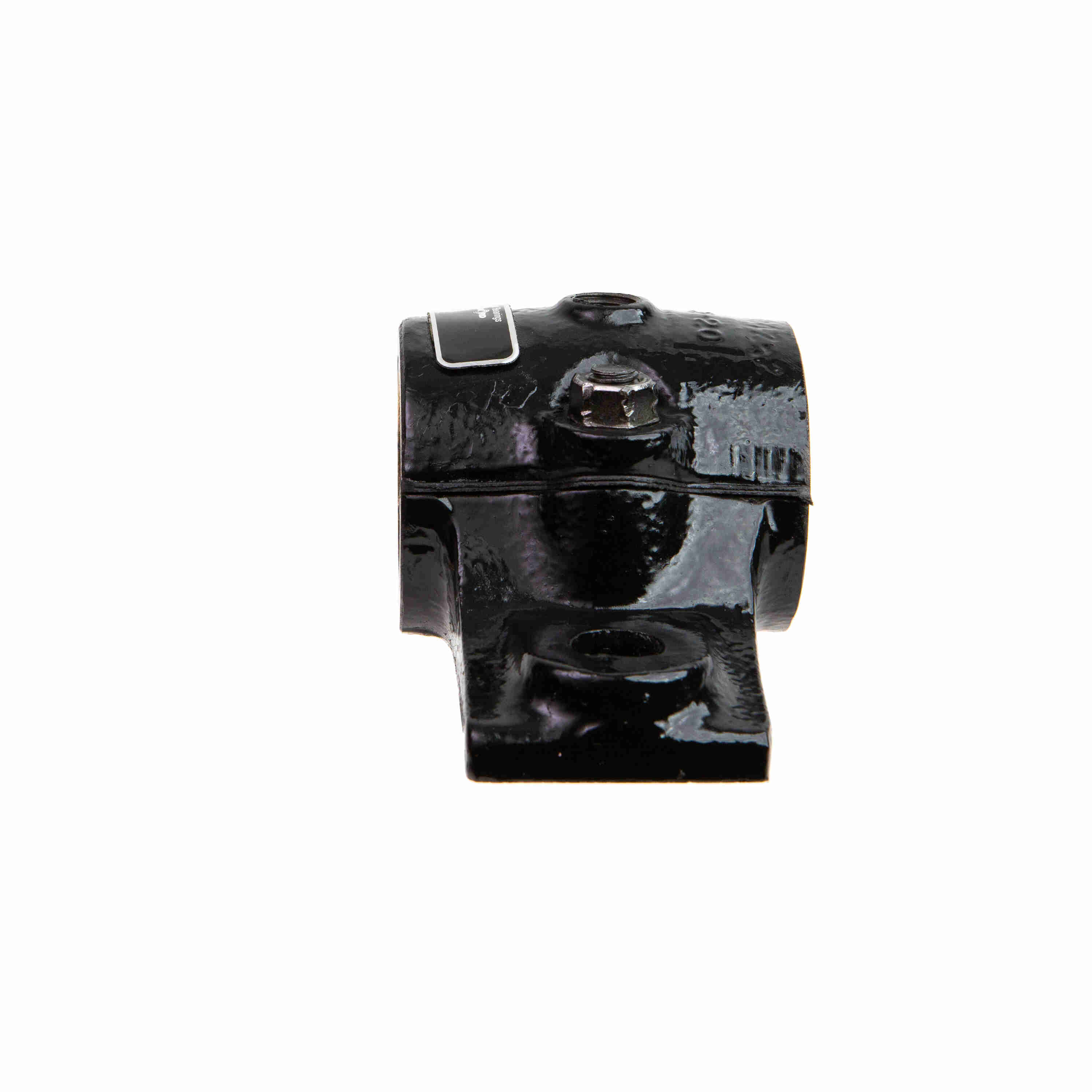

Link-Belt 21224Z Pillow Blocks Sleeve Bearings - 21224Z
Part #:10434406
Catalog #:21224Z
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Housing Style: | Pillow Block | Product: | 21200Z |
| Housing Type: | Pillow Block, Two Bolt, Split Angle | Grease Fitting Size: | 1/4 NPT |
| Bearing Type: | BRONZE SLEEVE BRG | Insert: | 285BY212 |
| Housing Material: | Cast Iron | Shims: | 131Y95423 QTY 4 |
| Series: | Pillow Blocks | Bearing Brand: | LINK-BELT RIGID SLEEVE |
| Bore Size (in): | 1.5 in | Housing Coating: | POWDER COATED |
| Lubrication Type: | NOT GREASED FROM FACTORY |
General Specifications
| UPC: | 662327192242 | Weight: | 4.49 LB |
| Packaged Length: | 5.75 IN | Packaged Width: | 5.75 IN |
| Packaged Height: | 2.25 IN | HTC: | 8483308055 |
| Country of Origin: | Mexico |
