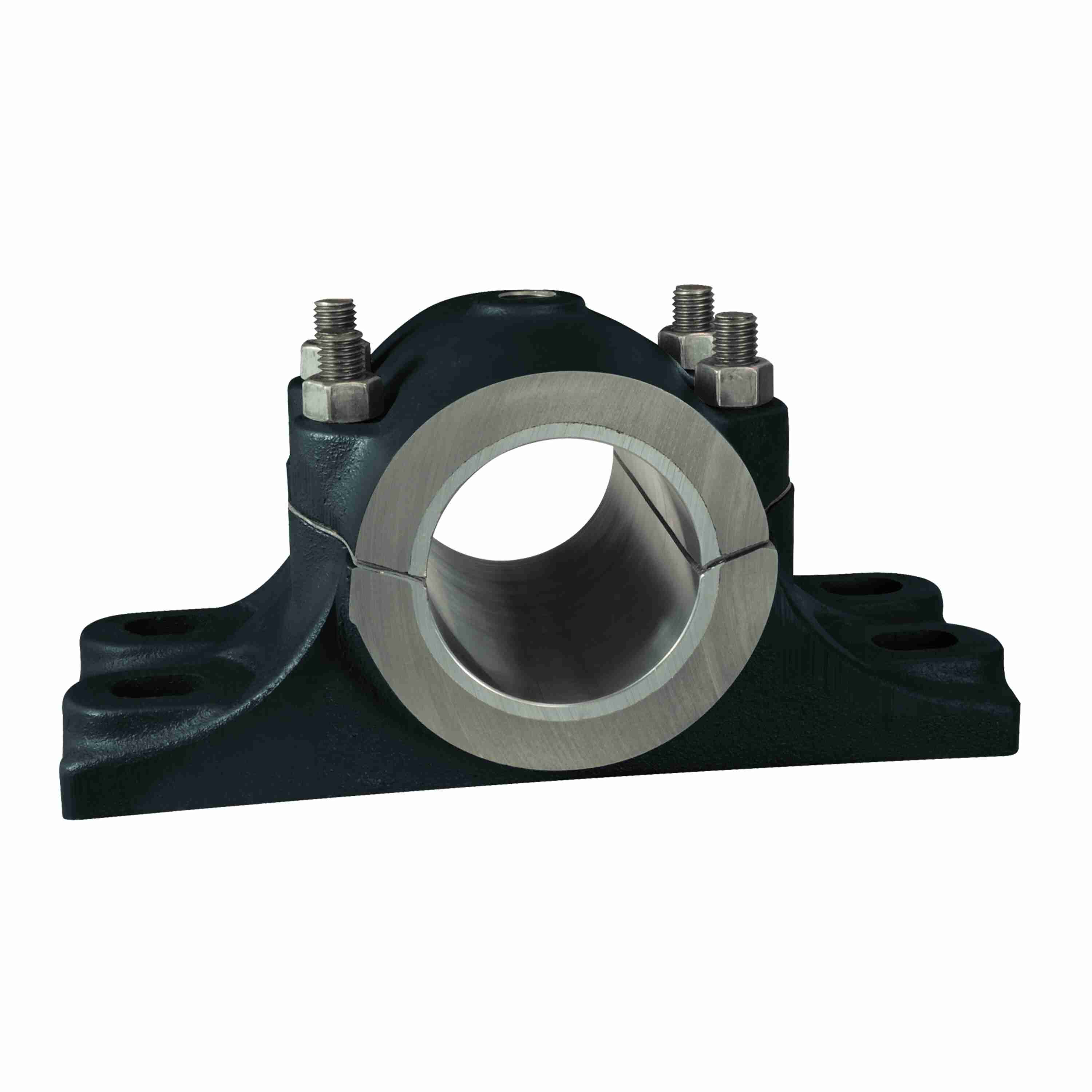

Link-Belt 21363 Pillow Blocks Sleeve Bearings - 21363
Part #:10407200
Catalog #:21363
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Bore Length (in): | 8 in | Base to Centerline Height (in): | 3 1/2 in |
| Mounting Pad Height (in): | 1 1/2 in | Housing Type: | Pillow Block, Four Bolt, Split Angle |
| Mounting Bolt Hole Slot Length (in): | 1 3/8 in | Product: | 21300 |
| Housing Material: | Cast Iron | Mounting Pad Width (in): | 5 1/2 in |
| Mounting Pad Length (in): | 14 3/4 in | Bearing Brand: | LINK-BELT RIGID SLEEVE |
| Maximum Temperature (F): | 130 °F | Series: | Pillow Blocks |
| Bore Size (in): | 3.9375 in | Bearing Type: | BABBITT SLEEVE BRG |
| Lubrication Type: | NOT GREASED FROM FACTORY | Housing Coating: | POWDER COATED |
| Housing Style: | Pillow Block | Pipe Tap Size (in): | 1/2 in |
| Grease Fitting Size: | 1/2 NPT | Required Distance for Cap Removal (in): | 9 3/8 in |
| Mounting Bolt Size (in): | 3/4 in | Bolt Hole Spacing Width (in): | 3 in |
| Distance Between Bolt Holes (in): | 12 in | Maximum Temperature (C): | 54 °C |
| Sleeve Material: | Babbitt |
General Specifications
| UPC: | 662327193379 | Weight: | 63.75 LB |
| Packaged Length: | 9.13 IN | Packaged Width: | 6.75 IN |
| Packaged Height: | 15.63 IN | HTC: | 8483308055 |
| Country of Origin: | Mexico |
