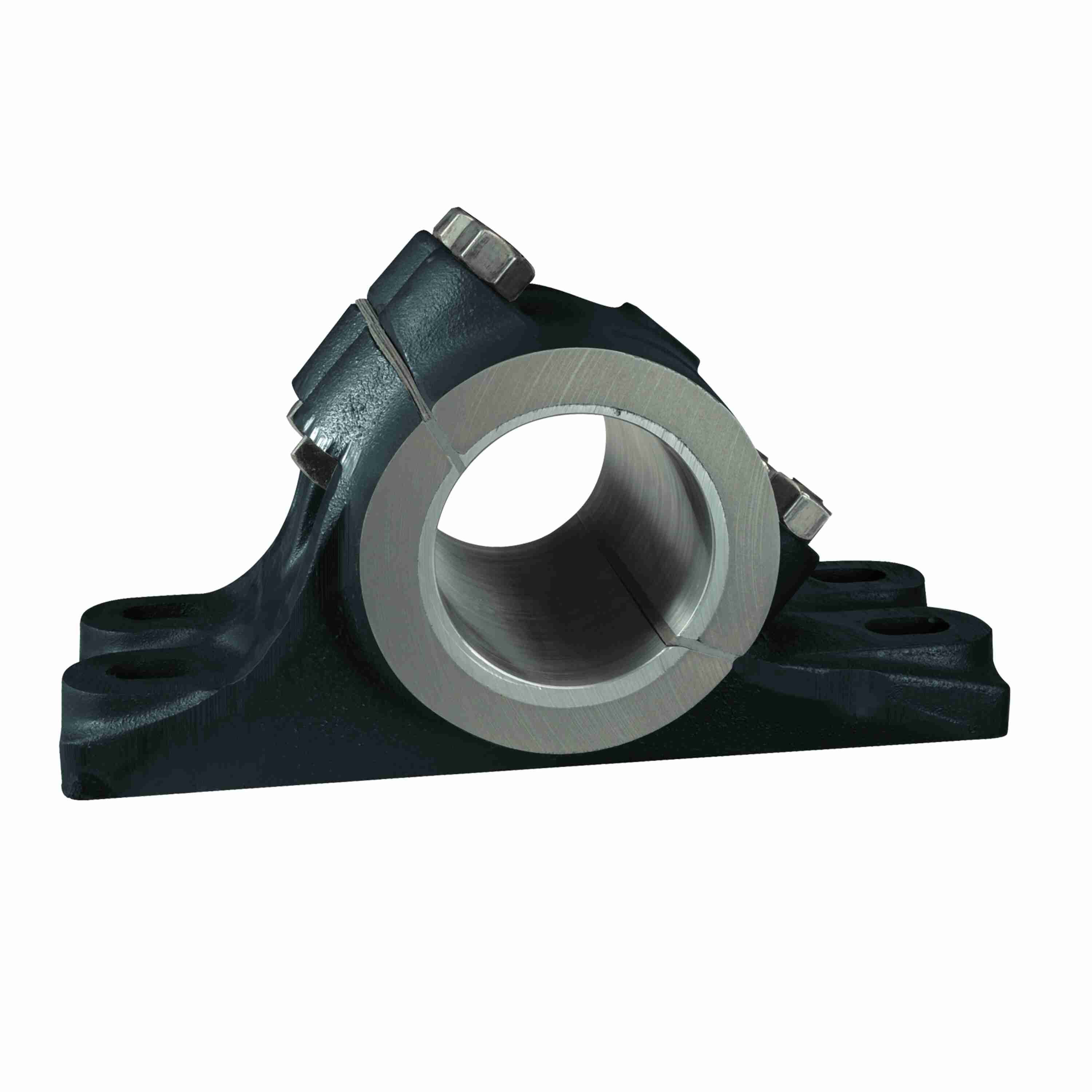

Link-Belt 21563 Pillow Blocks Sleeve Bearings - 21563
Part #:10423690
Catalog #:21563
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Expansion Type: | Non-Expansion Bearing (Fixed) | Bore Length (in): | 8 in |
| Base to Centerline Height (in): | 3 3/4 in | Product: | 21500 |
| Sleeve Material: | Babbitt | Maximum Temperature (C): | 54 °C |
| Mounting Pad Length (in): | 14 3/4 in | Mounting Bolt Hole Slot Length (in): | 1 3/8 in |
| Housing Material: | Cast Iron | Grease Fitting Size: | 1/2 NPT |
| Bore Size (in): | 3.9375 in | Bolt Hole Spacing Width (in): | 3 in |
| Housing Style: | Pillow Block | Housing Type: | Pillow Block, Four Bolt, Split 40 degree |
| Series: | Pillow Blocks | Required Distance for Cap Removal (in): | 10 1/4 in |
| Housing Coating: | POWDER COATED | Mounting Bolt Size (in): | 3/4 in |
| Bearing Brand: | LINK-BELT RIGID SLEEVE | Distance Between Bolt Holes (in): | 12 in |
| Bearing Type: | BABBITT SLEEVE BRG | Mounting Pad Height (in): | 1 5/8 in |
| Pipe Tap Size (in): | 1/2 in | Lubrication Type: | NOT GREASED FROM FACTORY |
| Mounting Pad Width (in): | 5 1/2 in | Maximum Temperature (F): | 130 °F |
General Specifications
| UPC: | 662327194031 | Weight: | 64.90 LB |
| Packaged Length: | 15.88 IN | Packaged Width: | 9.50 IN |
| Packaged Height: | 8.25 IN | HTC: | 8483308055 |
| Country of Origin: | Mexico |
