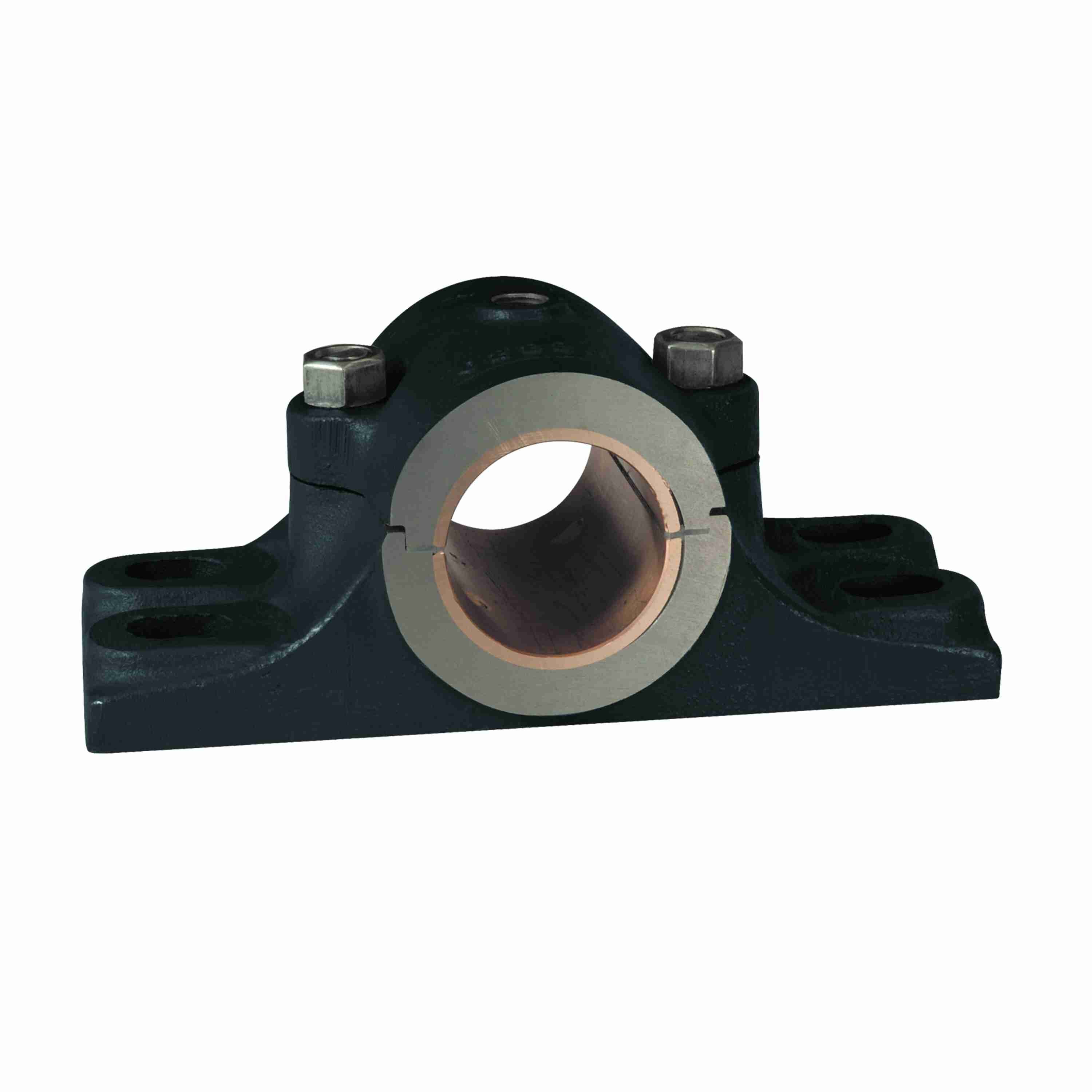

Link-Belt 2K1495Z Pillow Blocks Sleeve Bearings - 2K1495Z
Part #:10438869
Catalog #:2K1495Z
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Series: | Pillow Blocks | Distance Between Bolt Holes (in): | 16.5 in |
| Grease Fitting Size: | 1/2 NPT | Housing Style: | Pillow Block |
| Housing Material: | Cast Steel | Bearing Type: | BRONZE SLEEVE BRG |
| Bearing Brand: | LINK-BELT RIGID SLEEVE | Bore Size (in): | 5.9375 in |
| Housing Coating: | POWDER COATED | Shims: | 131Y36621 QTY 12 |
| Housing Type: | Pillow Block, Four Bolt, Gibbed Joint | Lubrication Type: | NOT GREASED FROM FACTORY |
| Insert: | 285BY331 | Product: | 2K1400Z |
| Base to Centerline Height (in): | 5.5 in |
General Specifications
| UPC: | 662327188030 | Weight: | 215.00 LB |
| Packaged Length: | 20.25 IN | Packaged Width: | 8.50 IN |
| Packaged Height: | 9.75 IN | Country of Origin: | United States of America |
