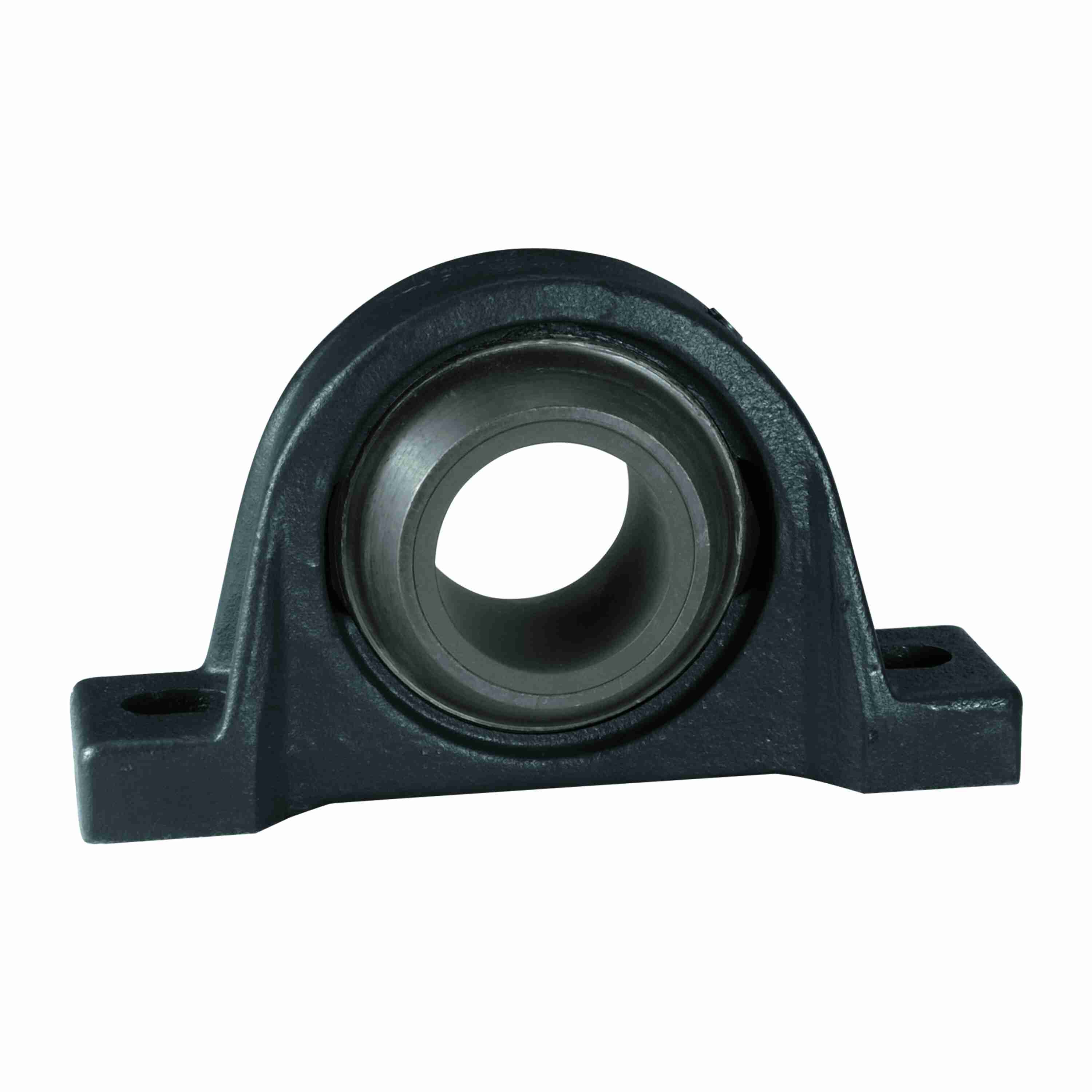

Link-Belt 3216PT3 Pillow Blocks Sleeve Bearings - 3216PT3
Part #:10423793
Catalog #:3216PT3
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Bearing Brand: | LINK-BELT FLEX BLOCK SLEEVE | Distance from Bearing Centerline to Inner Ring Short Hub Face (in): | 9/16 in |
| Mounting Pad Width (in): | 1 5/8 in | Bore Size (in): | 1 in |
| Housing Material: | Cast Iron | Expansion Type: | Non-Expansion Bearing (Fixed) |
| Sleeve Material: | Carbon Graphite Self-Lubricating | Mounting Pad Length (in): | 5 3/8 in |
| Lubrication Type: | SELF LUBRICATING SLEEVE | Maximum Temperature (C): | 371 °C |
| Housing Style: | Pillow Block | Bore Length (in): | 1 1/8 in |
| Mounting Pad Height (in): | 9/16 in | Distance from Bearing Centerline to Cap Face (in): | 1 9/32 in |
| Mounting Bolt Hole Slot Length (in): | 11/16 in | Bearing Type: | CARBON GRAPHITE SLEEVE BRG |
| Insert Component Hub Diameter (in): | 1 9/16 in | Series: | Pillow Blocks |
| Product: | 3200P | Housing Type: | Pillow Block, Two Bolt |
| Base to Centerline Height (in): | 1 7/16 in | Insert: | 3216T3 |
| Distance Between Bolt Holes (in): | 4 in | Mounting Bolt Size (in): | 3/8 in |
| Maximum Temperature (F): | 700 °F | Housing Coating: | POWDER COATED |
General Specifications
| UPC: | 662327199340 | Weight: | 1.93 LB |
| Packaged Length: | 5.63 IN | Packaged Width: | 3.19 IN |
| Packaged Height: | 1.81 IN |
