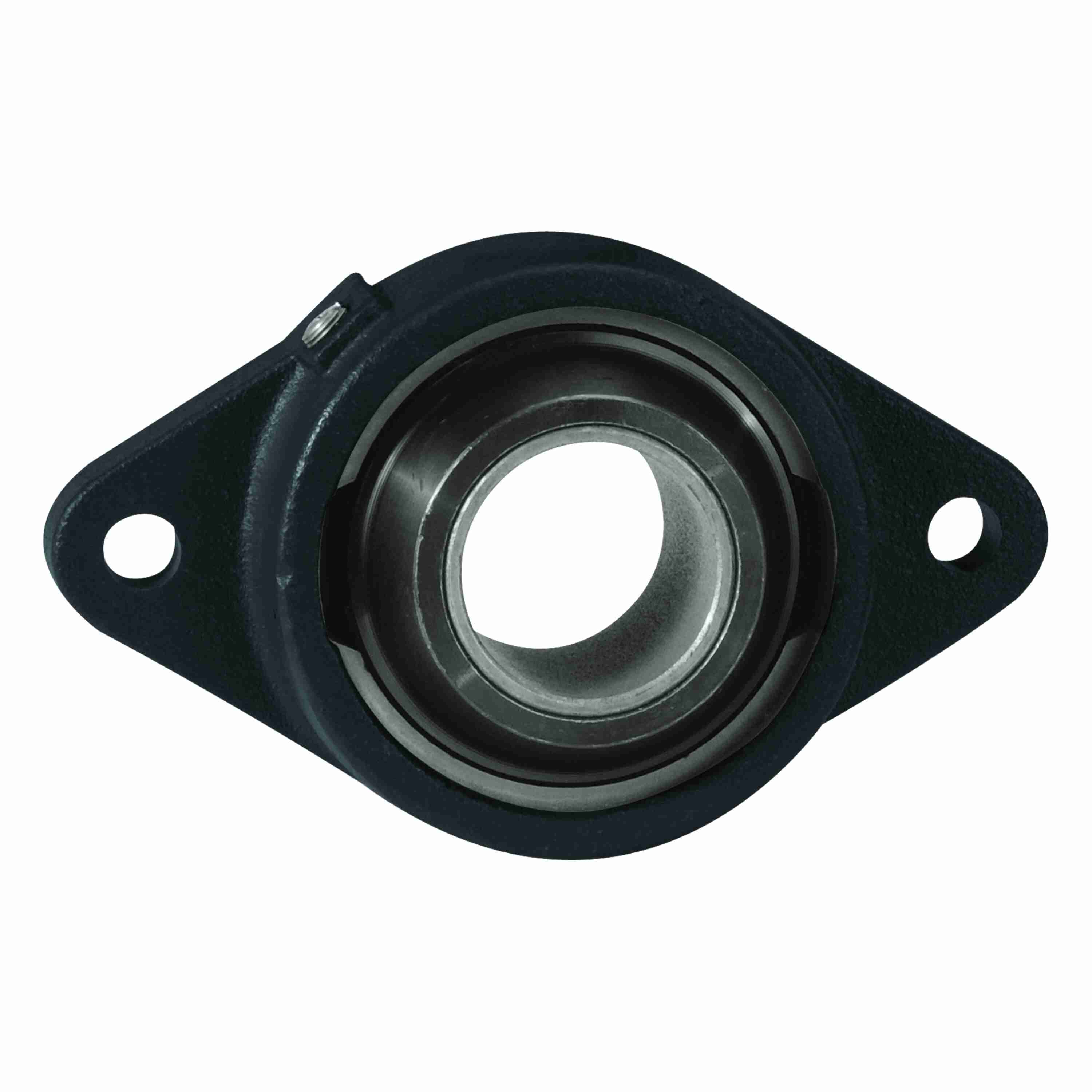

Link-Belt 3224FXT1 Flange Blocks Sleeve Bearings - 3224FXT1
Part #:10434537
Catalog #:3224FXT1
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Housing Length (in): | 6 25/32 in | Housing Coating: | POWDER COATED |
| Mounting Bolt Size (in): | 1/2 in | Maximum Temperature (C): | 93 °C |
| Bearing Brand: | LINK-BELT FLEX BLOCK SLEEVE | Housing Style: | Flange Block |
| Bearing Type: | SINTERED BRONZE SLEEVE BRG | Product: | 3200FX |
| Distance from Mounting Surface to Inner Ring Short Hub Face (in): | 5/32 in | Mounting Housing Width (in): | 5/8 in |
| Housing Material: | Cast Iron | Insert Component Hub Diameter (in): | 2 1/8 in |
| Distance from Mounting Surface to Outer Most Bearing Face (in): | 1 31/32 in | Distance Between Bolt Holes (in): | 5 21/32 in |
| Insert: | 3224T1 | Series: | Flange Blocks |
| Sleeve Material: | Porous Sintered Bronze Oil Impregnated | Distance from Housing Cast Face to Inner Ring Long Hub Face (in): | 25/64 in |
| Distance from Mounting Surface to Cap Face (in): | 2 35/64 in | Lubrication Type: | SELF LUBRICATING SLEEVE |
| Housing Type: | Flange Block, Two Bolt | Maximum Temperature (F): | 200 °F |
| Bore Size (in): | 1.5 in | Bore Length (in): | 2 1/8 in |
| Standoff Distance (in): | 5/32 in |
General Specifications
| UPC: | 662327199692 | Weight: | 4.80 LB |
| Packaged Length: | 6.88 IN | Packaged Width: | 4.06 IN |
| Packaged Height: | 2.13 IN |
