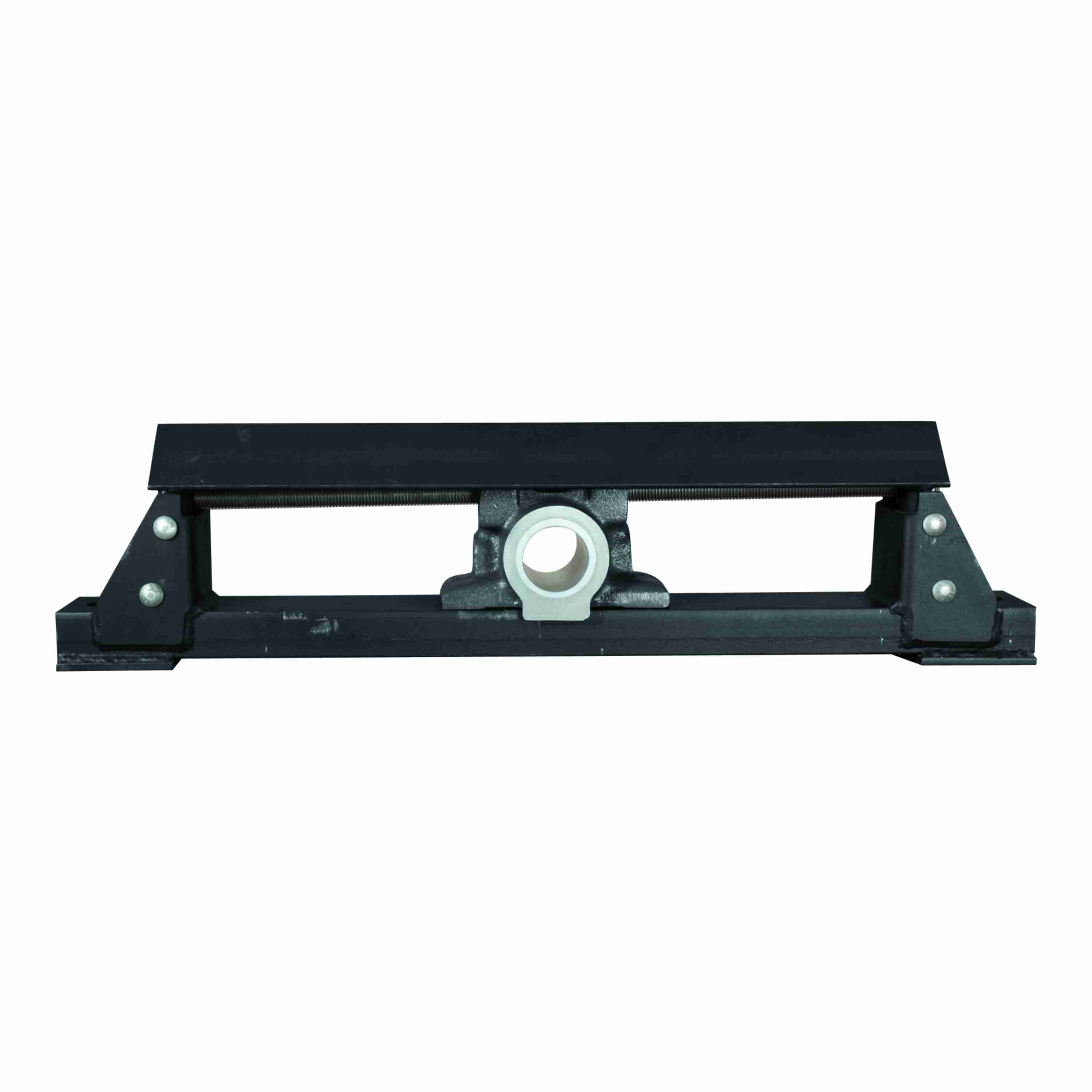

Link-Belt DSB283524 Take-up Assemblies Sleeve Bearings - DSB283524
Part #:10423928
Catalog #:DSB283524
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Frame Length (in): | 41 1/2 in | Product: | DSB2800X |
| Frame Width (in): | 3 in | Frame Height (in): | 7 1/4 in |
| Housing Coating: | POWDER COATED | Grease Fitting Size: | 3/8 NPT |
| Base to Centerline Height (in): | 3 3/8 in | Housing Type: | Take-Up Assembly |
| Mounting Bolt Size (in): | 5/8 in | Travel Length (in): | 24 in |
| Bore Size (in): | 2.1875 in | Maximum Temperature (F): | 130 °F |
| Bore Length (in): | 4 in | Take-Up Frame Assembly Type: | Conveyor Take-Up Heavy Hinged Top |
| Bearing Type: | BABBITT SLEEVE BRG | Series: | Take-up Assemblies |
| Lubrication Type: | NOT GREASED FROM FACTORY | Frame Material: | Welded Steel |
| Pipe Tap Size (in): | 3/8 in | Take-Up Block: | DSB2835 |
| Maximum Temperature (C): | 54 °C | Housing Style: | Take-Up Assembly |
| Mounting Pad Height (in): | 1 3/4 in | Bearing Brand: | LINK-BELT RIGID SLEEVE |
| Frame Bolt Hole Spacing (in): | 38 1/2 in | Radial Factor: | 1 |
| Housing Material: | Cast Iron |
General Specifications
| UPC: | 662327022242 | Weight: | 49.87 LB |
| HTC: | 8483204040 | Country of Origin: | Mexico |
