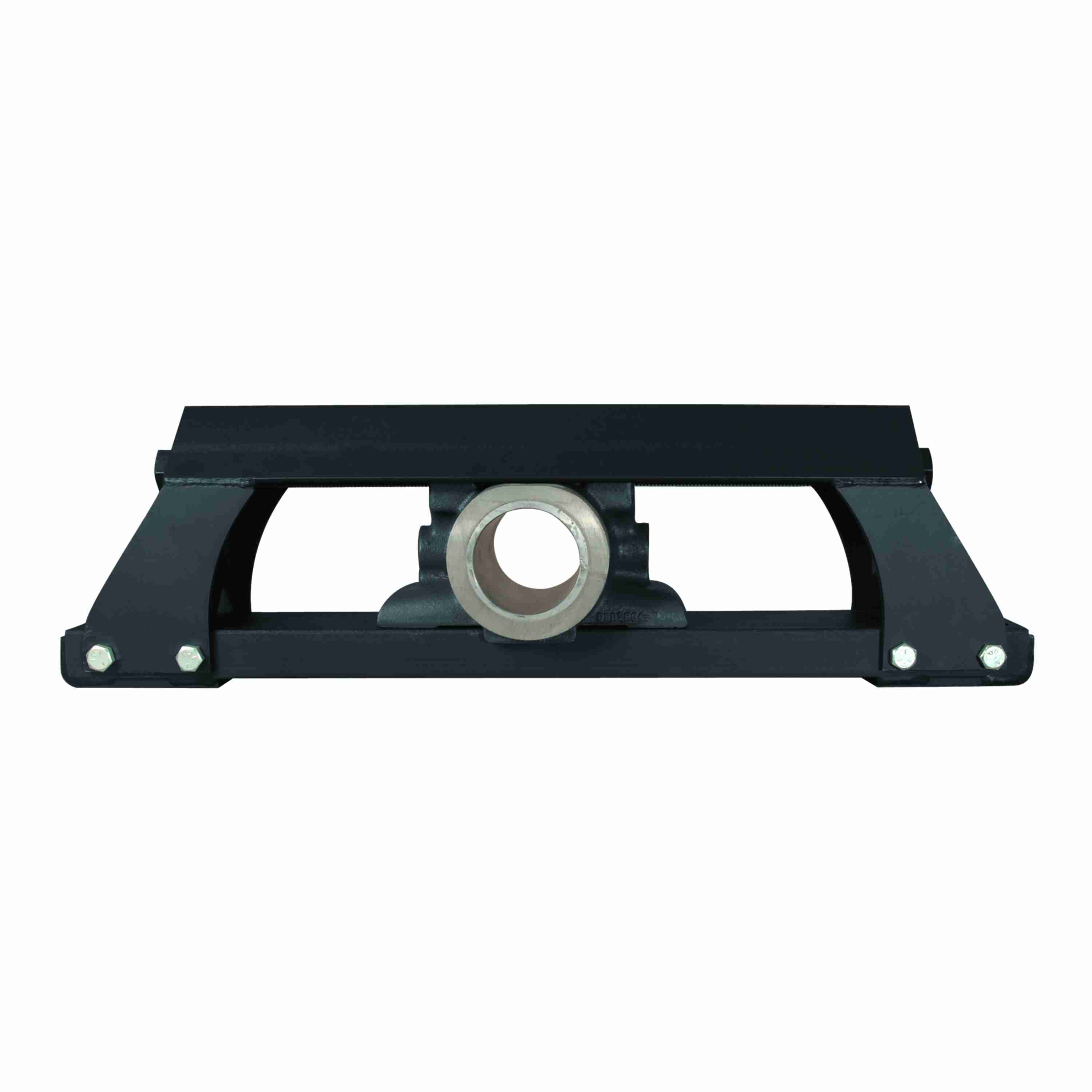

Link-Belt DSB286312 Take-up Assemblies Sleeve Bearings - DSB286312
Part #:10418035
Catalog #:DSB286312
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Frame Width (in): | 5 in | Bearing Brand: | LINK-BELT RIGID SLEEVE |
| Take-Up Block: | DSB2863 | Radial Factor: | 1 |
| Housing Material: | Cast Iron | Housing Style: | Take-Up Assembly |
| Take-Up Frame Assembly Type: | Conveyor Take-Up Heavy Hinged Top | Housing Type: | Take-Up Assembly |
| Bore Length (in): | 8 in | Frame Bolt Hole Spacing (in): | 36 in |
| Lubrication Type: | NOT GREASED FROM FACTORY | Maximum Temperature (F): | 130 °F |
| Grease Fitting Size: | 1/2 NPT | Mounting Pad Height (in): | 2 1/4 in |
| Product: | DSB2800X | Base to Centerline Height (in): | 5 in |
| Mounting Bolt Size (in): | 3/4 in | Bearing Type: | BABBITT SLEEVE BRG |
| Bore Size (in): | 3.9375 in | Travel Length (in): | 12 in |
| Maximum Temperature (C): | 54 °C | Frame Length (in): | 38 1/2 in |
| Housing Coating: | POWDER COATED | Series: | Take-up Assemblies |
| Frame Bolt Hole Spacing in Width Direction (in): | 2 1/2 in | Pipe Tap Size (in): | 1/2 in |
| Frame Material: | Welded Steel | Frame Height (in): | 10 15/16 in |
General Specifications
| UPC: | 662327022419 | Weight: | 144.00 LB |
| HTC: | 8483308055 | Country of Origin: | Mexico |
