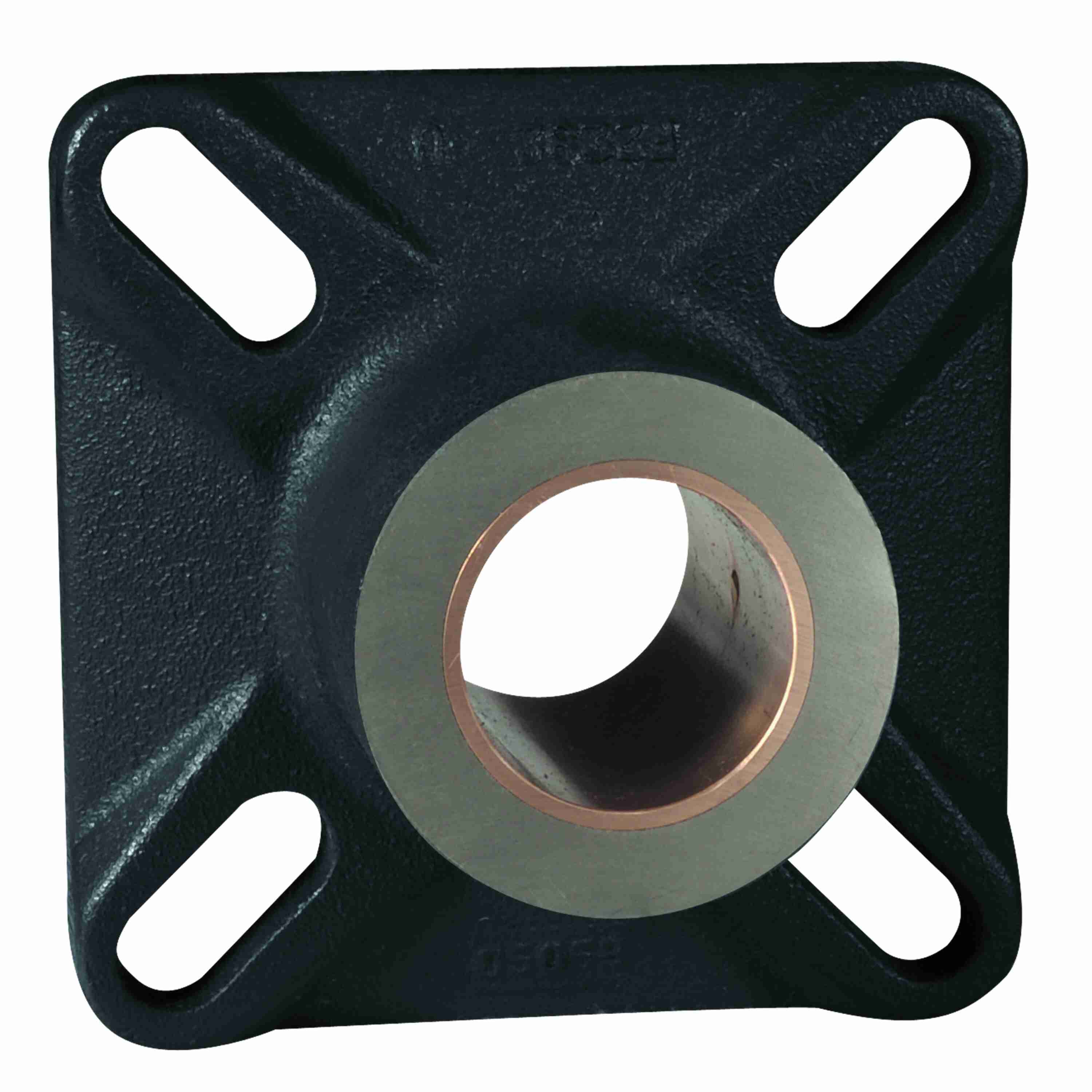

Link-Belt F2224Z Flange Blocks Sleeve Bearings - F2224Z
Part #:10421084
Catalog #:F2224Z
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Distance Between Bolt Holes [Max] (in): | 4 in | Mounting Housing Width (in): | 3/4 in |
| Series: | Flange Blocks | Bore Size (in): | 1.5 in |
| Product: | F2200Z | Lubrication Type: | NOT GREASED FROM FACTORY |
| Bearing Brand: | LINK-BELT RIGID SLEEVE | Housing Material: | Cast Iron |
| Housing Type: | Flange Block, Four Bolt | Insert: | 285Y22210 |
| Maximum Temperature (F): | 300 °F | Maximum Temperature (C): | 150 °C |
| Housing Style: | Flange Block | Bolt Hole Circle Diameter (in): | 4 1/8 in |
| Bore Length (in): | 3 in | Sleeve Material: | Bronze |
| Distance Between Bolt Holes [Min] (in): | 2 29/32 in | Grease Fitting Size: | 1/4 NPT |
| Bearing Type: | BRONZE SLEEVE BRG | Pipe Tap Size (in): | 1/4 in |
| Mounting Bolt Size (in): | 1/2 in | Housing Coating: | POWDER COATED |
| Mounting Pad Width (in): | 5 1/8 in |
General Specifications
| UPC: | 662327035983 | Weight: | 5.00 LB |
| Packaged Length: | 5.50 IN | Packaged Width: | 5.50 IN |
| Packaged Height: | 3.25 IN | HTC: | 8483308055 |
| Country of Origin: | Mexico |
