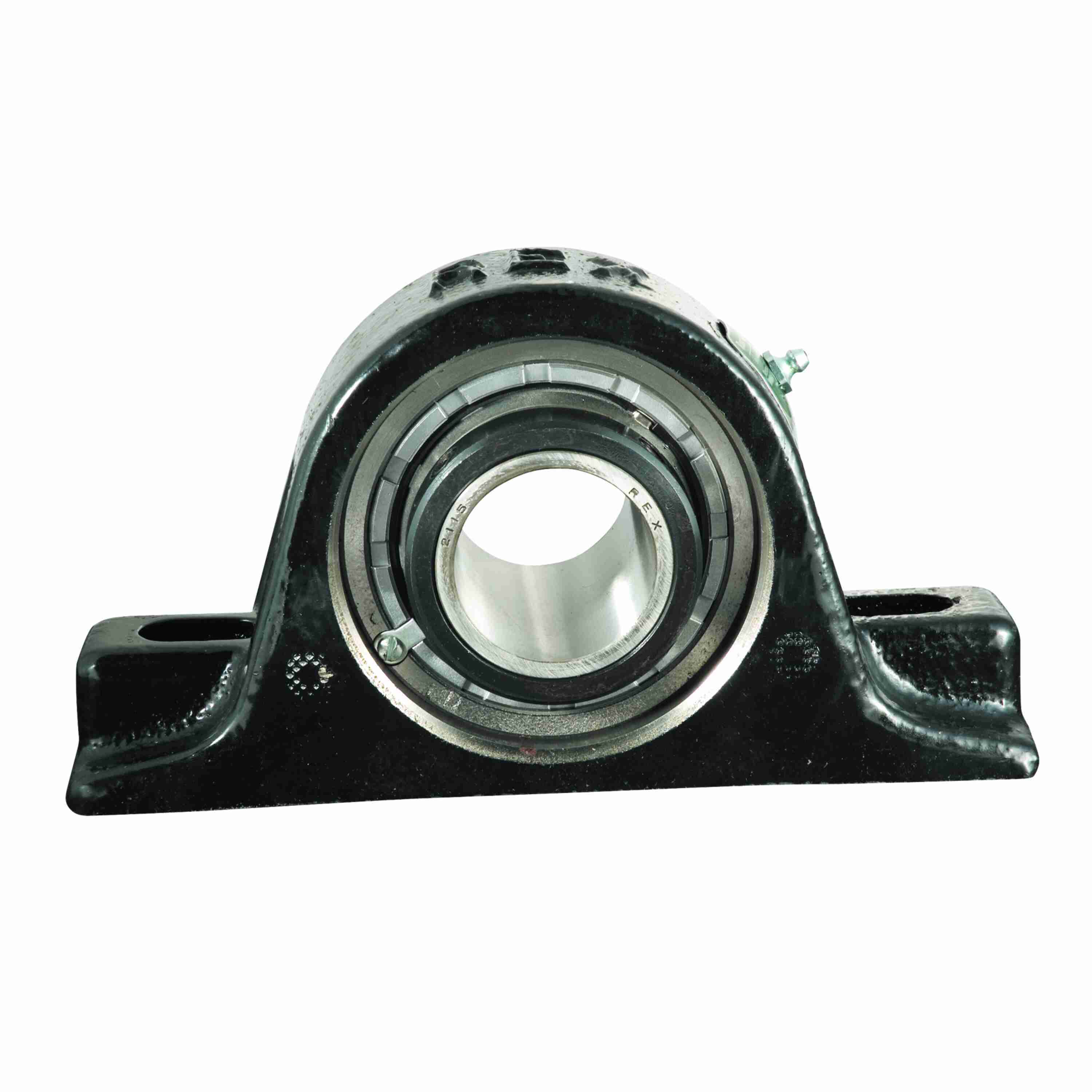

Rexnord 10415436 Solid-housed Pillow Blocks Rex Spherical Roller Bearings - MPS2207
Part #:10415436
Catalog #:MPS2207
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Locking Collar Outside Diameter (in): | 3.56 in | Base to Center Height (in): | 3 in |
| Bore Diameter (in): | 2.4375 in | Overall Width (in): | 3.5 in |
| Base Width (in): | 3.38 in | Bolt Size (in): | 3/4 in |
| Overall Height (in): | 6.19 in | Foot Height (in): | 1.75 in |
| Overall Length (in): | 11.25 in | Inner Ring Outside Diameter (in): | 2.901 in |
| Expansion Capability (in): | 0.38 in | Housing Cast Face to Outermost Bearing Face (in): | 0.88 in |
| Base Length (in): | 11.25 in | Bolt Spacing (in): | 8.25 in |
| Length Through Bore (in): | 3.5 in |
Technical Specifications
| Ability to Relubricate: | Yes | Fixed/Expansion: | Expansion |
| Series: | Solid-housed Pillow Blocks | Shaft Locking Type: | Single Set Collar |
| Misalignment Type: | Dynamic | Product: | ZPS2000 |
| Static Load Rating (lb): | 53,500 lb | Seal Type: | Heavy Contact Seal |
| Seal Kit: | MS8 | Rolling Element: | Spherical Roller |
| Maximum Speed (RPM): | 2000 rpm | Cage Material: | Engineered Polymer |
| Housing Construction: | Solid | Radial Dynamic Load Capacity (lb): | 43,240 lb |
| Housing Style: | Pillow Block | Housing Type: | Pillow Block, Two Bolt |
| Microlock Kit: | ML3 | Housing Material: | Cast Iron |
| Radial Clearance: | C3 STANDARD | Housing Color: | Black |
| Setscrew Torque (in-lbs): | 680 in/lbs | Vibration Frequency Fundamental Train: | 0.0072 cps |
| Locking Device Kit: | SC8 | Primary Seal: | BUNA SPRING LOADED LIP SEAL |
| Expansion Lock Plug: | 105-95008-25 | Lubricant: | Lithium Complex NLGI 2 Grease |
| Size Code: | 8 | Housing Coating: | Powder Coated |
| Max Operating Temperature (C): | 107 °C | Vibration Frequency Outer Ring Defect: | 0.1376 cps |
| Insert: | 5207U | Grease Fitting Thread Size: | 1/8 NPT |
| Max Operating Temperature (F): | 225 °F | Vibration Frequency Inner Ring Defect: | 0.1791 cps |
| Misalignment Capability: | ±2.0° Misalignment - Dynamic | Vibration Frequency Roller Spin: | 0.0607 cps |
General Specifications
| UPC: | 698210012236 | Weight: | 24.90 LB |
| HTC: | 8483208080 | Country of Origin: | Mexico |
