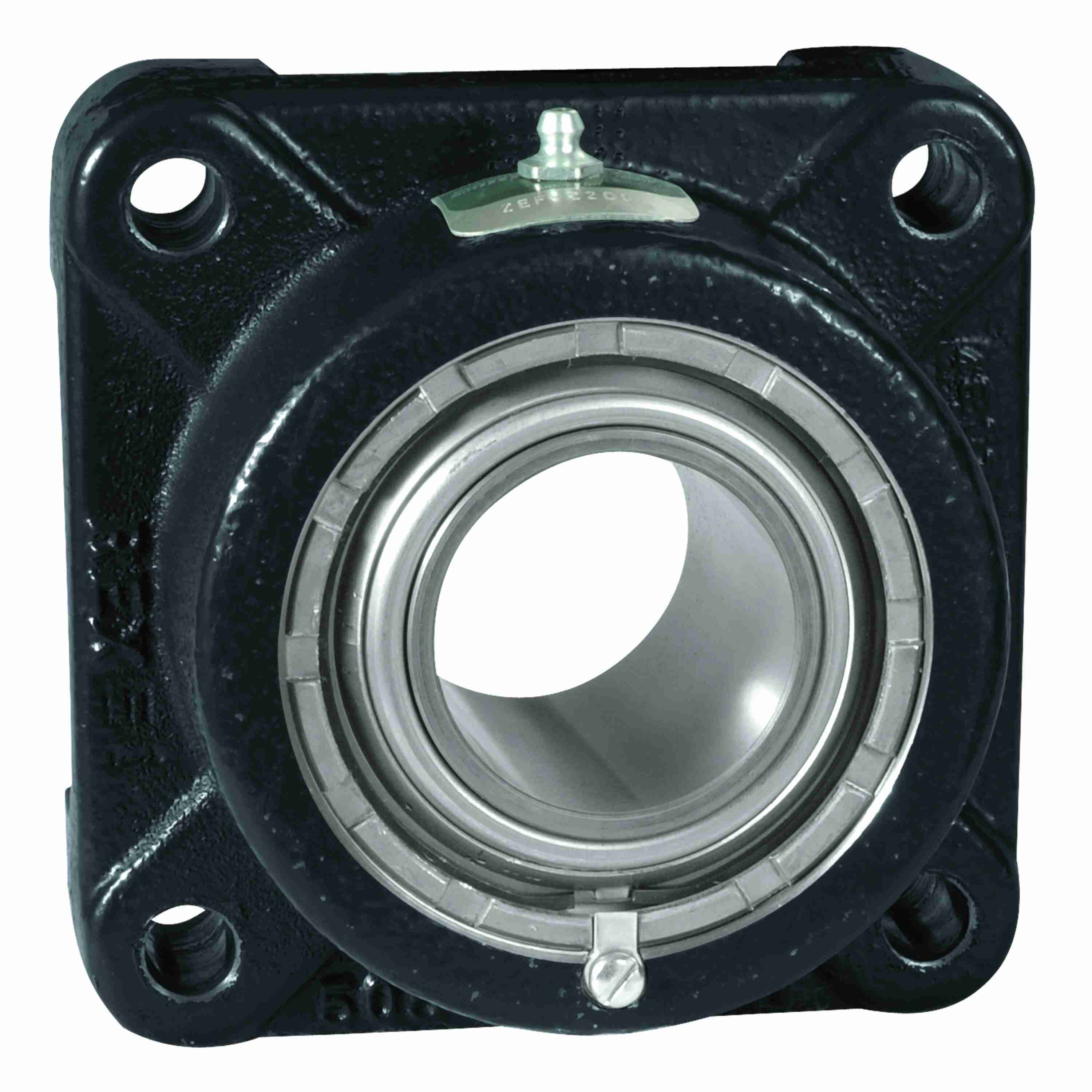

Link-Belt 10416486 Flange Blocks Link-Belt Spherical Roller Bearings - EFRB22422H
Part #:10416486
Catalog #:EFRB22422H
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Foot Height (in): | 1.38 in | Housing Height (in): | 2.97 in |
| Bolt Size (in): | 1/2 in | Bore Diameter (in): | 1.3750 in |
| Overall Height (in): | 2.97 in | Overall Length (in): | 4.63 in |
| Overall Width (in): | 4.63 in | Housing Width (in): | 4.63 in |
| Locking Collar Outside Diameter (in): | 2.31 in | Inner Ring Outside Diameter (in): | 1.745 in |
| Bolt Spacing (in): | 3.5 in | Bolt Circle (in): | 4.96 in |
| Length Through Bore (in): | 2.88 in |
Technical Specifications
| Ability to Relubricate: | Yes | Housing Type: | Flange, Four Bolt |
| Rolling Element: | Spherical Roller | Product: | EFRB22400 |
| Misalignment Type: | Dynamic | Housing Material: | Cast Iron |
| Radial Dynamic Load Capacity (lb): | 17,800 lb | Housing Color: | Black |
| Maximum Speed (RPM): | 3600 rpm | Radial Clearance: | C0 STANDARD |
| Static Load Rating (lb): | 20,900 lb | Fixed/Expansion: | Fixed |
| Housing Construction: | Solid | Seal Kit: | B424HS |
| Housing Style: | Flange Block | Cage Material: | Steel |
| Shaft Locking Type: | Single Set Collar | Setscrew Torque (in-lbs): | 325 in/lbs |
| Microlock Kit: | B436MLK | Series: | Flange Blocks |
| Seal Type: | Clearance Seal | Vibration Frequency Roller Spin: | 0.0499 cps |
| Size Code: | B424 | Max Operating Temperature (F): | 225 °F |
| Vibration Frequency Inner Ring Defect: | 0.1445 cps | Housing Coating: | POWDER COATED |
| Primary Seal: | STEEL CLEARANCE SEAL | Vibration Frequency Fundamental Train: | 0.007 cps |
| Grease Fitting Thread Size: | 1/8 NPT | Lubricant: | Lithium Complex NLGI 2 Grease |
| Locking Device Kit: | B424SC | Insert: | B422L |
| Vibration Frequency Outer Ring Defect: | 0.1055 cps | Misalignment Capability: | ±2.0° Misalignment - Dynamic |
| Max Operating Temperature (C): | 107 °C |
General Specifications
| UPC: | 793699003369 | Weight: | 7.88 LB |
| HTC: | 8483204080 | Country of Origin: | United States of America |
