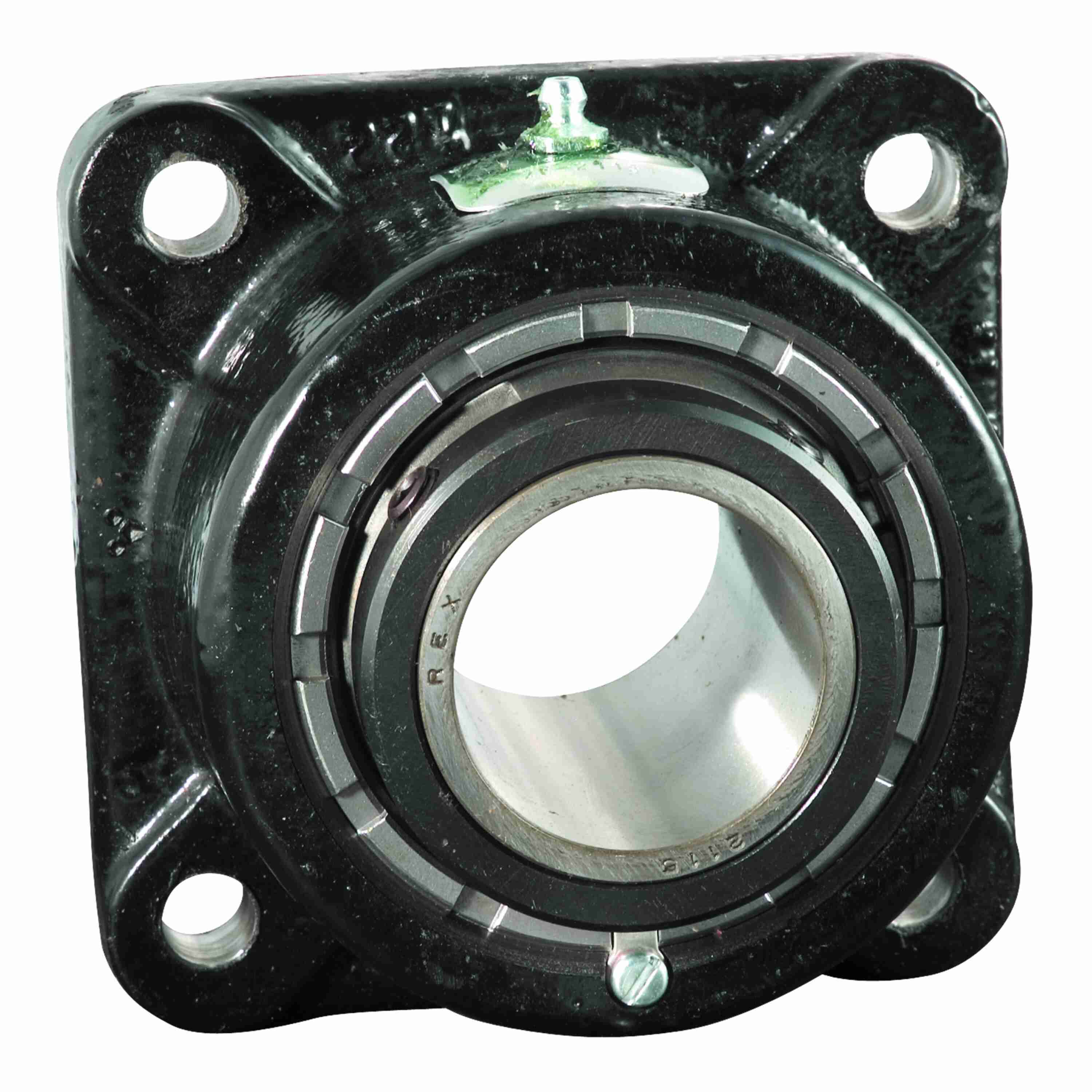

Rexnord 10441874 Flange Blocks Rex Spherical Roller Bearings - ZBS2315S044078
Part #:10441874
Catalog #:ZBS2315S044078
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Length (in): | 9.75 in | Foot Height (in): | 1.13 in |
| Standoff Distance (in): | 0.25 in | Overall Height (in): | 5.22 in |
| Overall Width (in): | 9.75 in | Housing Width (in): | 9.75 in |
| Bore Diameter (in): | 3.9375 in | Locking Collar Outside Diameter (in): | 5.63 in |
| Bolt Size (in): | 7/8 in | Bolt Circle (in): | 10.75 in |
| Bolt Spacing (in): | 7.59 in | Inner Ring Outside Diameter (in): | 4.561 in |
| Housing Cast Face to Outermost Bearing Face (in): | 1.03 in | Length Through Bore (in): | 5.06 in |
Technical Specifications
| Seal Type: | Clearance Seal | Setscrew Torque (in-lbs): | 1350 in/lbs |
| Radial Dynamic Load Capacity (lb): | 130,970 lb | Rolling Element: | Spherical Roller |
| Cage Material: | Steel | Maximum Speed (RPM): | 2050 rpm |
| Shaft Locking Type: | Single Set Collar | Static Load Rating (lb): | 137,000 lb |
| Product: | ZBS2000 | Radial Clearance: | C5 INCREASED |
| Fixed/Expansion: | Expansion | Housing Construction: | Solid |
| Housing Material: | Cast Iron | Series: | Flange Blocks |
| Seal Kit: | ZS11 | Housing Type: | Flange, Four Bolt, Pilot |
| Ability to Relubricate: | Yes | Housing Color: | Black |
| Housing Style: | Flange Block | Misalignment Type: | Dynamic |
| Locking Device Kit: | SC11 | Max Operating Temperature (C): | 204 (with suitable lubricant) °C |
| Vibration Frequency Roller Spin: | 0.0548 cps | Grease Fitting Thread Size: | 1/8 NPT |
| Insert: | 2315U78 | Size Code: | 11 |
| Lubricant: | PRESERVATIVE ONLY - NO GREASE | Misalignment Capability: | ±2.0° Misalignment - Dynamic |
| Housing Coating: | POWDER COATED | Max Operating Temperature (F): | 400 (with suitable lubricant) °F |
| Vibration Frequency Outer Ring Defect: | 0.1283 cps | Vibration Frequency Inner Ring Defect: | 0.1717 cps |
| Primary Seal: | STEEL CLEARANCE SEAL | Vibration Frequency Fundamental Train: | 0.0071 cps |
General Specifications
| UPC: | 662864909082 | Weight: | 56.00 LB |
| Country of Origin: | Mexico |
