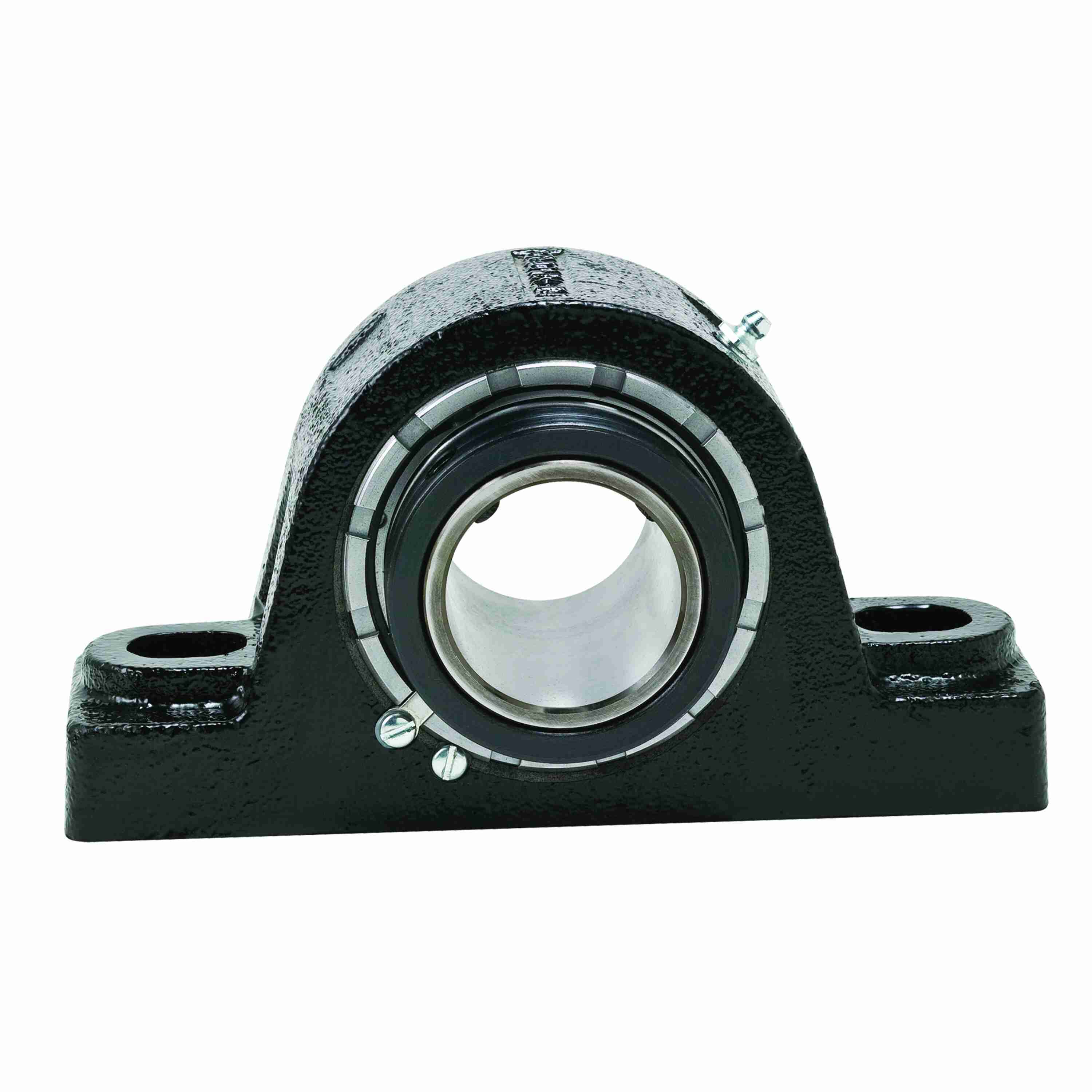

Rexnord 10446352 Solid-housed Pillow Blocks Rex Spherical Roller Bearings - ZA21151078
Part #:10446352
Catalog #:ZA21151078
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Locking Collar Outside Diameter (in): | 2.88 in | Slot Length (in): | 0.94 in |
| Bolt Size (in): | 5/8 in | Base to Center Height (in): | 2.25 in |
| Foot Height (in): | 1.38 in | Overall Height (in): | 4.56 in |
| Overall Length (in): | 8.13 in | Overall Width (in): | 3.13 in |
| Bore Diameter (in): | 1.9375 in | Base Width (in): | 2.5 in |
| Length Through Bore (in): | 3.13 in | Housing Cast Face to Outermost Bearing Face (in): | 0.69 in |
| Bolt Spacing (in): | 6.25 in | Base Length (in): | 8.13 in |
Technical Specifications
| Misalignment Type: | Dynamic | Cage Material: | Steel |
| Housing Style: | Pillow Block | Setscrew Torque (in-lbs): | 325 in/lbs |
| Static Load Rating (lb): | 33,200 lb | Fixed/Expansion: | Fixed |
| Seal Type: | Clearance Seal | Radial Dynamic Load Capacity (lb): | 28,890 lb |
| Rolling Element: | Spherical Roller | Seal Kit: | ZS6 |
| Maximum Speed (RPM): | 4050 rpm | Housing Construction: | Solid |
| Microlock Kit: | ML2 | Shaft Locking Type: | Single Set Collar |
| Housing Color: | Black | Product: | ZA2000 |
| Ability to Relubricate: | Yes | Housing Material: | Cast Iron |
| Radial Clearance: | C3 STANDARD | Housing Type: | Pillow Block, Two Bolt |
| Series: | Solid-housed Pillow Blocks | Lubricant: | Lithium Complex NLGI 2 Grease |
| Misalignment Capability: | ±2.0° Misalignment - Dynamic | Max Operating Temperature (F): | 225 °F |
| Max Operating Temperature (C): | 107 °C | Vibration Frequency Fundamental Train: | 0.0072 cps |
| Grease Fitting Thread Size: | 1/8 NPT | Insert: | 2115UR78 |
| Vibration Frequency Roller Spin: | 0.0559 cps | Vibration Frequency Inner Ring Defect: | 0.1617 cps |
| Locking Device Kit: | SC6 | Size Code: | 6 |
| Primary Seal: | STEEL CLEARANCE SEAL | Housing Coating: | Powder Coated |
| Vibration Frequency Outer Ring Defect: | 0.1217 cps |
General Specifications
| UPC: | 782934874840 | Weight: | 9.80 LB |
| Country of Origin: | Mexico |
