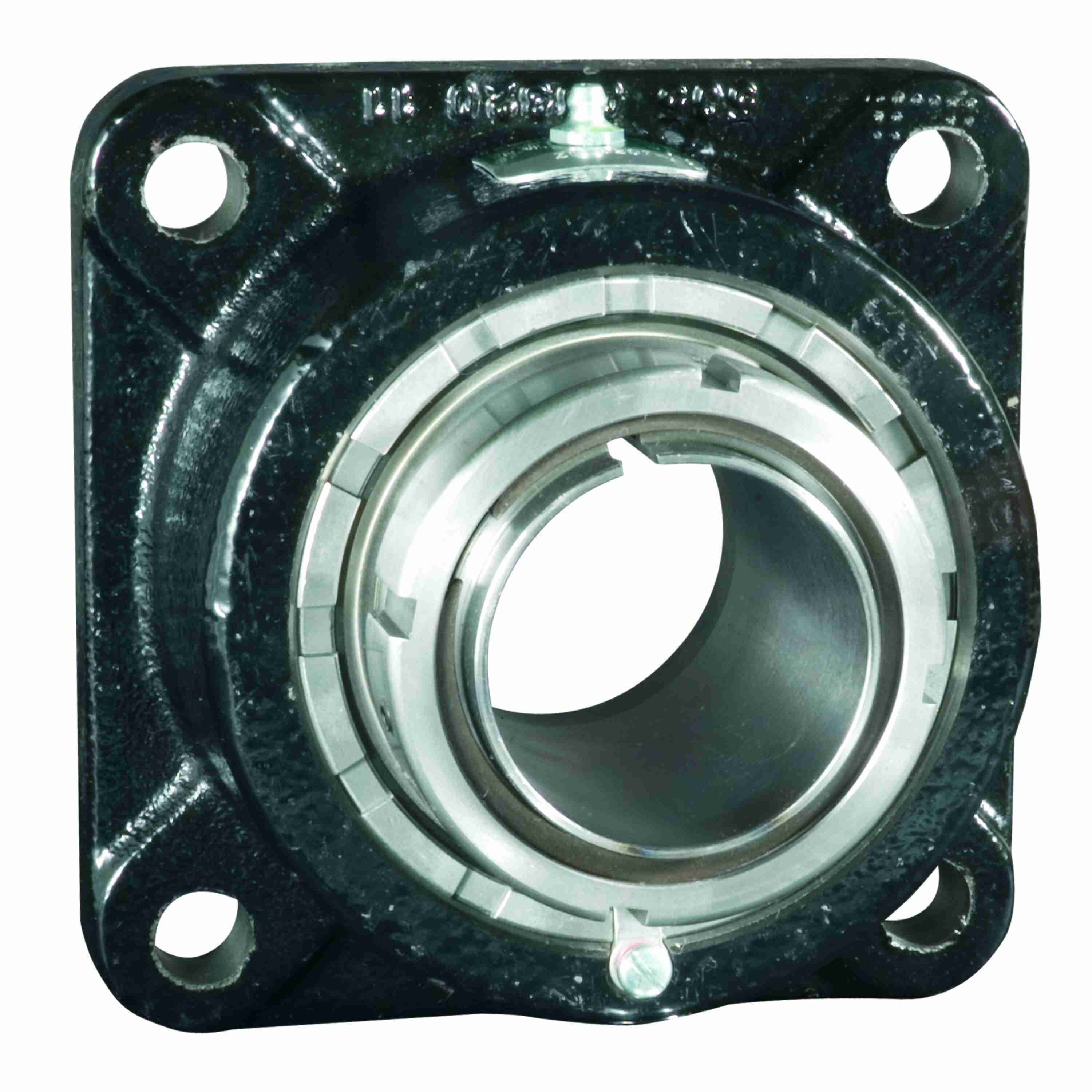

Rexnord 10760384 Flange Blocks Rex Spherical Roller Bearings - ZFS6307S78
Part #:10760384
Catalog #:ZFS6307S78
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bore Diameter (in): | 3.4375 in | Standoff Distance (in): | 0.25 in |
| Housing Width (in): | 8.44 in | Overall Height (in): | 5.28 in |
| Foot Height (in): | 1 in | Overall Length (in): | 8.44 in |
| Locking Collar Outside Diameter (in): | 4.95 in | Overall Width (in): | 8.44 in |
| Bolt Size (in): | 3/4 in | Bolt Spacing (in): | 6.72 in |
| Housing Cast Face to Outermost Bearing Face (in): | 1.47 in | Length Through Bore (in): | 5.03 in |
| Inner Ring Outside Diameter (in): | 3.975 in | Expansion Capability (in): | 0.5 in |
| Bolt Circle (in): | 9.5 in |
Technical Specifications
| Shaft Locking Type: | Adapter Mount | Ability to Relubricate: | Yes |
| Housing Style: | Flange Block | Housing Material: | Cast Iron |
| Fixed/Expansion: | Expansion | Misalignment Type: | Dynamic |
| Static Load Rating (lb): | 90,700 lb | Setscrew Torque (in-lbs): | 165-185 in/lbs |
| Housing Type: | Flange, Four Bolt, Pilot | Maximum Speed (RPM): | 2400 rpm |
| Rolling Element: | Spherical Roller | Microlock Kit: | ML3 |
| Wrench Style Shurlok Install Tool: | 105-90420-51 | Housing Color: | Black |
| Product: | ZFS6000 | Series: | Flange Blocks |
| Radial Clearance: | C3 STANDARD | Cage Material: | Steel |
| Seal Kit: | ZS10 | Seal Type: | Clearance Seal |
| Housing Construction: | Solid | Radial Dynamic Load Capacity (lb): | 84,330 lb |
| Grease Fitting Thread Size: | 1/8 NPT | Vibration Frequency Fundamental Train: | 0.0073 cps |
| Max Operating Temperature (C): | 107 °C | Vibration Frequency Outer Ring Defect: | 0.1383 cps |
| Expansion Lock Plug: | 105-95008-23 | Primary Seal: | STEEL CLEARANCE SEAL |
| Size Code: | 10 | Insert: | 6307U78 |
| Misalignment Capability: | ±2.0° Misalignment - Dynamic | Lubricant: | Lithium Complex NLGI 2 Grease |
| Vibration Frequency Inner Ring Defect: | 0.1784 cps | Vibration Frequency Roller Spin: | 0.0628 cps |
| Housing Coating: | POWDER COATED | Max Operating Temperature (F): | 225 °F |
| Locking Device Kit: | AK106307 |
General Specifications
| UPC: | 782935303042 | Weight: | 45.50 LB |
| Country of Origin: | Mexico |
