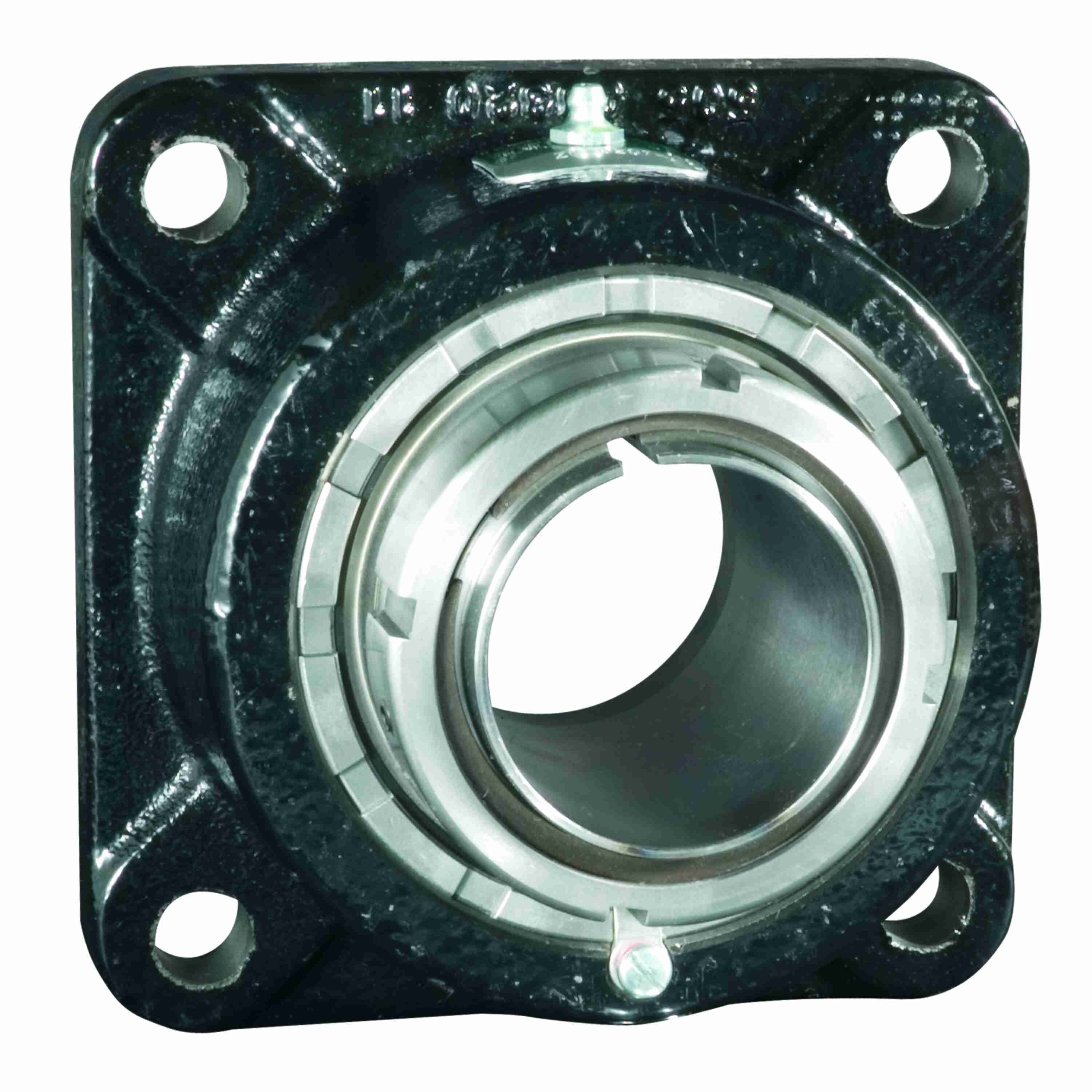

Rexnord 10778723 Flange Blocks Rex Spherical Roller Bearings - ZFS630778
Part #:10778723
Catalog #:ZFS630778
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Foot Height (in): | 1 in | Bore Diameter (in): | 3.4375 in |
| Standoff Distance (in): | 0.25 in | Overall Height (in): | 5.28 in |
| Bolt Size (in): | 3/4 in | Housing Width (in): | 8.44 in |
| Overall Width (in): | 8.44 in | Overall Length (in): | 8.44 in |
| Locking Collar Outside Diameter (in): | 4.95 in | Housing Cast Face to Outermost Bearing Face (in): | 1.47 in |
| Bolt Spacing (in): | 6.72 in | Length Through Bore (in): | 5.03 in |
| Bolt Circle (in): | 9.5 in | Expansion Capability (in): | 0.5 in |
| Inner Ring Outside Diameter (in): | 3.975 in |
Technical Specifications
| Housing Color: | Black | Ability to Relubricate: | Yes |
| Microlock Kit: | ML3 | Radial Dynamic Load Capacity (lb): | 84,330 lb |
| Cage Material: | Steel | Misalignment Type: | Dynamic |
| Seal Type: | Clearance Seal | Setscrew Torque (in-lbs): | 165-185 in/lbs |
| Housing Material: | Cast Iron | Radial Clearance: | C3 STANDARD |
| Wrench Style Shurlok Install Tool: | 105-90420-51 | Seal Kit: | ZS10 |
| Housing Type: | Flange, Four Bolt | Series: | Flange Blocks |
| Fixed/Expansion: | Expansion | Housing Style: | Flange Block |
| Housing Construction: | Solid | Product: | ZFS6000 |
| Rolling Element: | Spherical Roller | Maximum Speed (RPM): | 2400 rpm |
| Shaft Locking Type: | Adapter Mount | Static Load Rating (lb): | 90,700 lb |
| Housing Coating: | POWDER COATED | Misalignment Capability: | ±2.0° Misalignment - Dynamic |
| Grease Fitting Thread Size: | 1/8 NPT | Expansion Lock Plug: | 105-95008-23 |
| Vibration Frequency Outer Ring Defect: | 0.1383 cps | Vibration Frequency Inner Ring Defect: | 0.1784 cps |
| Vibration Frequency Roller Spin: | 0.0628 cps | Primary Seal: | STEEL CLEARANCE SEAL |
| Max Operating Temperature (F): | 225 °F | Insert: | 6307U78 |
| Locking Device Kit: | AK106307 | Max Operating Temperature (C): | 107 °C |
| Vibration Frequency Fundamental Train: | 0.0073 cps | Lubricant: | Lithium Complex NLGI 2 Grease |
| Size Code: | 10 |
General Specifications
| UPC: | 782935304438 | Weight: | 45.50 LB |
| Country of Origin: | Mexico |
