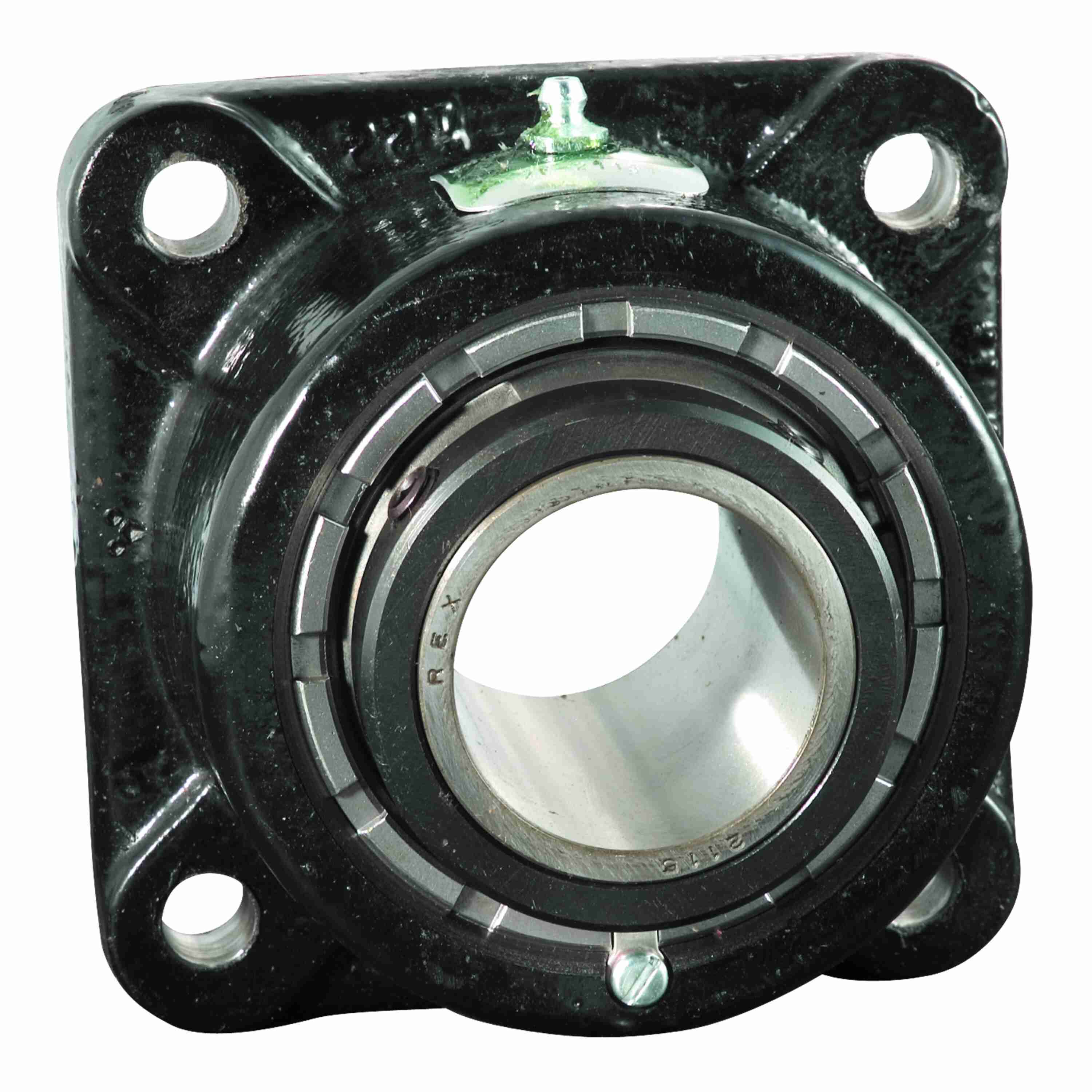

Rexnord 10841262 Flange Blocks Rex Spherical Roller Bearings - MF5200V056178
Part #:10841262
Catalog #:MF5200V056178
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Locking Collar Outside Diameter (in): | 3.25 in | Bore Diameter (in): | 2 in |
| Overall Width (in): | 5.88 in | Housing Width (in): | 5.88 in |
| Overall Length (in): | 5.88 in | Overall Height (in): | 4.13 in |
| Foot Height (in): | 0.69 in | Bolt Size (in): | 5/8 in |
| Bolt Spacing (in): | 4.5 in | Inner Ring Outside Diameter (in): | 2.62 in |
| Length Through Bore (in): | 4.13 in | Housing Cast Face to Outermost Bearing Face (in): | 0.78 in |
| Bolt Circle (in): | 6.375 in |
Technical Specifications
| Static Load Rating (lb): | 44,400 lb | Rolling Element: | Spherical Roller |
| Series: | Flange Blocks | Setscrew Torque (in-lbs): | 460 in/lbs |
| Seal Kit: | MS7V | Housing Color: | Black |
| Seal Type: | Heavy Contact Seal, Viton | Housing Construction: | Solid |
| Housing Style: | Flange Block | Shaft Locking Type: | Double Set Collar |
| Radial Clearance: | C4 INCREASED | Fixed/Expansion: | Fixed |
| Housing Type: | Flange, Four Bolt | Maximum Speed (RPM): | 2200 rpm |
| Cage Material: | Steel | Housing Material: | Cast Iron |
| Ability to Relubricate: | Yes | Misalignment Type: | Dynamic |
| Product: | ZF5000 | Radial Dynamic Load Capacity (lb): | 36,370 lb |
| Primary Seal: | BUNA SPRING LOADED LIP SEAL | Grease Fitting Thread Size: | 1/8 NPT |
| Vibration Frequency Inner Ring Defect: | 0.179 cps | Lubricant: | DOW CORNING DC44 HT |
| Vibration Frequency Roller Spin: | 0.0606 cps | Vibration Frequency Outer Ring Defect: | 0.1377 cps |
| Misalignment Capability: | ±2.0° Misalignment - Dynamic | Vibration Frequency Fundamental Train: | 0.0072 cps |
| Locking Device Kit: | SC7 QTY 2 | Max Operating Temperature (C): | 204 °C |
| Housing Coating: | POWDER COATED | Max Operating Temperature (F): | 400 °F |
| Insert: | 5200U78 | Size Code: | 7 |
General Specifications
| UPC: | 782935369741 | Weight: | 14.40 LB |
| Packaged Length: | 6.50 IN | Packaged Width: | 6.00 IN |
| Packaged Height: | 6.38 IN | HTC: | 8483304040 |
| Country of Origin: | Mexico |
