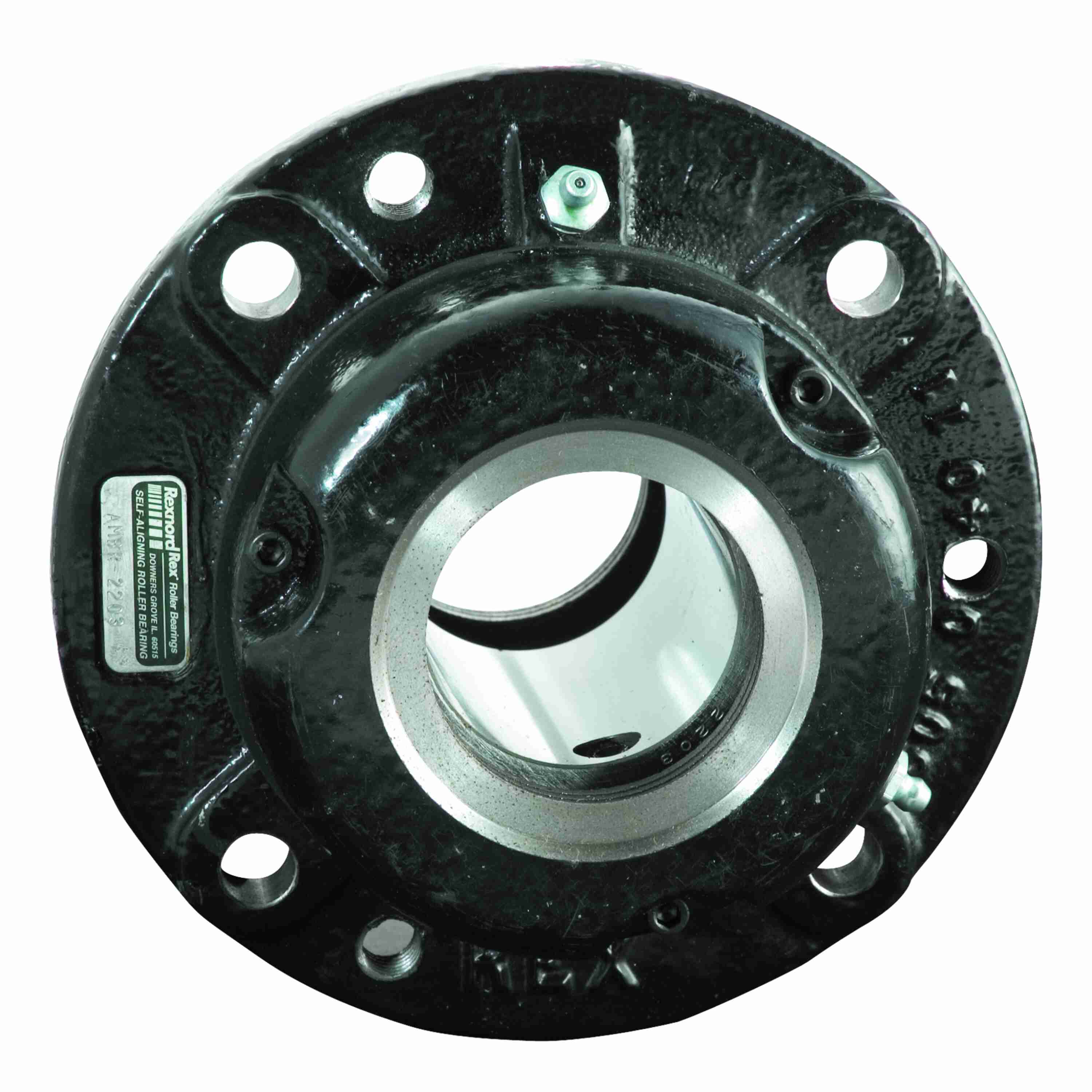

Rexnord AKBR5215 Flanged Cartridge Blocks Rex Spherical Roller Bearings - AKBR5215
Part #:10408772
Catalog #:AKBR5215
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bolt Size (in): | 5/8 in | Overall Width (in): | 8.75 in |
| Overall Height (in): | 4 in | Bore Diameter (in): | 2.9375 in |
| Pilot Diameter (in): | 6.375 in | Housing Height (in): | 3.13 in |
| Overall Length (in): | 8.75 in | Foot Height (in): | 0.75 in |
| Pilot Depth (in): | 1.25 in | Housing Outside Diameter (in): | 8.75 in |
| Locking Collar Outside Diameter (in): | 4.06 in | Mounting Plate to Collar Face (in): | 2 in |
| Inner Ring Outside Diameter (in): | 3.37 in | Bolt Spacing (in): | 5.297 in |
| Length Through Bore (in): | 4.88 in | Mounting Surface to End of Housing (in): | 2 in |
| Housing Cast Face to Outermost Bearing Face (in): | 0.88 in | Bolt Circle (in): | 7.5 in |
Technical Specifications
| Housing Material: | Cast Iron | Misalignment Type: | Dynamic |
| Housing Type: | Flange, Cartridge | Cage Material: | Engineered Polymer |
| Housing Color: | Black | Housing Style: | Flange Block |
| Housing Construction: | Solid | Radial Clearance: | C3 STANDARD |
| Seal Type: | Light Contact Seal | Shaft Locking Type: | Double Set Collar |
| Rolling Element: | Spherical Roller | Series: | Flanged Cartridge Blocks |
| Fixed/Expansion: | Fixed | Product: | ZBR5000 |
| Static Load Rating (lb): | 71,500 lb | Radial Dynamic Load Capacity (lb): | 57,750 lb |
| Ability to Relubricate: | Yes | Auxiliary Cap Kit: | A9215 (qty 2) |
| Bolt Hole Shape: | Round Hole | Microlock Kit: | ML3 |
| Available Seal Type: | K Light Contact Lip Seal; M Spring Loaded Heavy Contact Lip Seal (Buna and Viton); Z Clearance Seal; G Triple Lip | Setscrew Torque (in-lbs): | 680 in/lbs |
| Seal Kit: | KS9 | Maximum Speed (RPM): | 1900 rpm |
| Lubricant: | Lithium Complex NLGI 2 Grease | Locking Device Kit: | SC9 QTY 2 |
| Max Operating Temperature (F): | 225 °F | Vibration Frequency Roller Spin: | 0.0591 cps |
| Primary Seal: | BUNA SGL LIP LIGHT CONTACT | Housing Coating: | POWDER COATED |
| Grease Fitting Thread Size: | 1/8 NPT | Auxiliary Seals: | 2 OPEN CAPS CAST IRON |
| Misalignment Capability: | ±2.0° Misalignment - Dynamic | Size Code: | 9 |
| Vibration Frequency Fundamental Train: | 0.0072 cps | Vibration Frequency Inner Ring Defect: | 0.1701 cps |
| Max Operating Temperature (C): | 107 °C | Insert: | 5215U |
| Vibration Frequency Outer Ring Defect: | 0.1299 cps |
General Specifications
| UPC: | 793699400144 | Weight: | 34.80 LB |
| Packaged Length: | 9.69 IN | Packaged Width: | 9.69 IN |
| Packaged Height: | 6.25 IN | HTC: | 8483204080 |
| Country of Origin: | Mexico |
