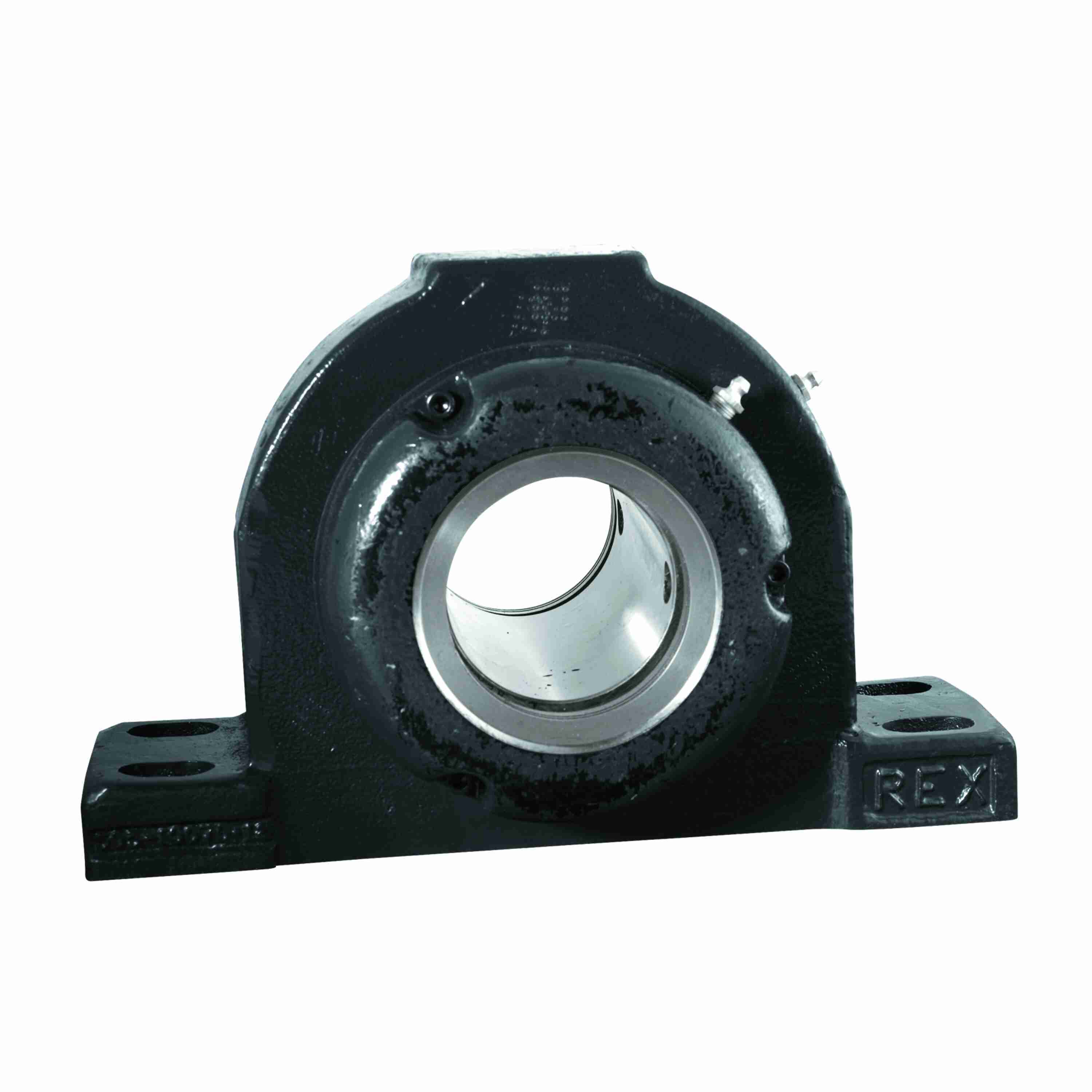

Rexnord AMAFS6211 Solid-housed Pillow Blocks Rex Spherical Roller Bearings - AMAFS6211
Part #:10405713
Catalog #:AMAFS6211
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bolt Size (in): | 3/4 in | Base to Center Height (in): | 3.5 in |
| Base Width (in): | 3.5 in | Slot Length (in): | 1.38 in |
| Overall Length (in): | 12.59 in | Overall Height (in): | 7.5 in |
| Foot Height (in): | 1 in | Bore Diameter (in): | 2.6875 in |
| Overall Width (in): | 7.75 in | Locking Collar Outside Diameter (in): | 4.09 in |
| Inner Ring Outside Diameter (in): | 3.37 in | Housing Cast Face to Outermost Bearing Face (in): | 2.19 in |
| Base Length (in): | 12.59 in | Bolt Spacing Min (in): | 9.88 in |
| Expansion Capability (in): | 0.5 in | Length Through Bore (in): | 7.75 in |
| Bolt Spacing Max (in): | 11 in |
Technical Specifications
| Housing Material: | Cast Iron | Fixed/Expansion: | Expansion |
| Rolling Element: | Spherical Roller | Misalignment Type: | Dynamic |
| Radial Clearance: | C3 STANDARD | Product: | ZAFS6000 |
| Cage Material: | Engineered Polymer | Housing Color: | Black |
| Seal Type: | Heavy Contact Seal | Housing Type: | Pillow Block, Two Bolt, SAF Style |
| Housing Style: | Pillow Block | Series: | Solid-housed Pillow Blocks |
| Housing Construction: | Solid | Shaft Locking Type: | Adapter Mount |
| Radial Dynamic Load Capacity (lb): | 57,750 lb | Static Load Rating (lb): | 71,500 lb |
| Auxiliary Cap Kit: | AS96211 (qty 2) | Seal Kit: | MS9 |
| Microlock Kit: | ML3 | Setscrew Torque (in-lbs): | 165-185 in/lbs |
| Maximum Speed (RPM): | 1700 rpm | Ability to Relubricate: | Yes |
| Size Code: | 9 | Shaft Locking Collar Kit/Adapter Assembly: | AK96211 |
| Lubricant: | Lithium Complex NLGI 2 Grease | Misalignment Capability: | ±2.0° Misalignment - Dynamic |
| Insert: | 6211U | Vibration Frequency Inner Ring Defect: | 0.1701 cps |
| Max Operating Temperature (F): | 225 °F | Locking Device Kit: | AK96211 |
| Expansion Lock Plug: | 105-95008-24 | Grease Fitting Thread Size: | 1/8 NPT |
| Vibration Frequency Outer Ring Defect: | 0.1299 cps | Vibration Frequency Fundamental Train: | 0.0072 cps |
| Auxiliary Seals: | 2 OPEN CAPS CAST IRON | Impact Style Shurlok Install Tool: | 105-90425-41 |
| Vibration Frequency Roller Spin: | 0.0591 cps | Primary Seal: | BUNA SPRING LOADED LIP SEAL |
| Housing Coating: | POWDER COATED | Max Operating Temperature (C): | 107 °C |
General Specifications
| UPC: | 698210617325 | Weight: | 58.00 LB |
| HTC: | 8483208080 | Country of Origin: | Mexico |
