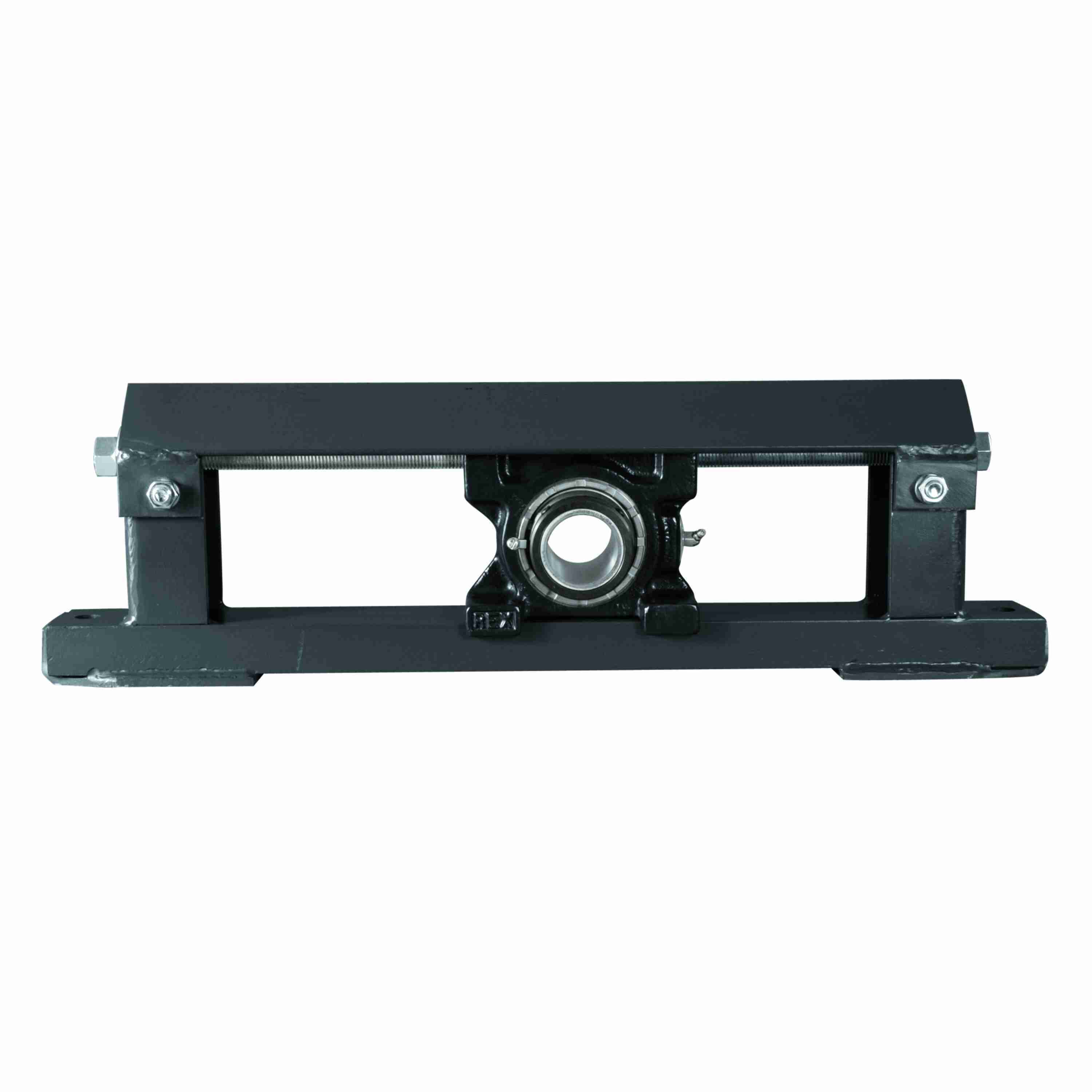

Rexnord AZNT8220724 Take-up Assemblies Rex Spherical Roller Bearings - AZNT8220724
Part #:10417872
Catalog #:AZNT8220724
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Width (in): | 6.06 in | Overall Height (in): | 9.13 in |
| Housing Width (in): | 4.13 in | Bolt Size (in): | 3/4 in |
| Base to Center Height (in): | 4.375 in | Bore Diameter (in): | 2.4375 in |
| Foot Height (in): | 1.75 in | Overall Length (in): | 42.5 in |
| Overall Rod Length (in): | 39.75 in | Travel Length (in): | 24 in |
| Distance from Bearing Centerline to Housing Face (in): | 1.38 in | Channel Width (in): | 3 in |
| Frame Height (in): | 9.13 in | Frame Width (in): | 3.5 in |
| Frame Length (in): | 42.5 in | Frame Bolt Hole Center to Bearing Centerline (in): | 8.25 in |
| Length Through Bore (in): | 3.51 in | Bolt Spacing (in): | 40.5 in |
Technical Specifications
| Fixed/Expansion: | Fixed | Frame Type: | Protected Screw Take-up Assembly |
| Frame Material: | Welded Steel | Housing Material: | Cast Iron |
| Static Load Rating (lb): | 53,500 lb | Housing Style: | Take-Up Assembly |
| Housing Color: | Black | Radial Clearance: | C3 STANDARD |
| Cage Material: | Engineered Polymer | Rolling Element: | Spherical Roller |
| Housing Type: | Take-Up Assembly | Radial Dynamic Load Capacity (lb): | 43,240 lb |
| Series: | Take-up Assemblies | Shaft Locking Type: | Single Set Collar |
| Seal Type: | Clearance Seal | Product: | ZNT2000 |
| Housing Construction: | Solid | Misalignment Type: | Dynamic |
| Ability to Relubricate: | Yes | Adjusting Screw Thread Size: | 7/8-9 NC |
| Maximum Speed (RPM): | 3300 rpm | Frame: | ZNT824 |
| Setscrew Torque (in-lbs): | 680 in/lbs | Seal Kit: | ZS8 |
| Microlock Kit: | ML3 | Auxiliary Cap Kit: | A8207 (qty 2) |
| Allowable Working Load [2/3 Yield Strength] (lb): | 4,400 lb | Vibration Frequency Outer Ring Defect: | 0.1376 cps |
| Vibration Frequency Inner Ring Defect: | 0.1791 cps | Size Code: | 8 |
| Max Operating Temperature (C): | 107 °C | Primary Seal: | STEEL CLEARANCE SEAL |
| Misalignment Capability: | ±2.0° Misalignment - Dynamic | Vibration Frequency Roller Spin: | 0.0607 cps |
| Grease Fitting Thread Size: | 1/8 NPT | Lubricant: | Lithium Complex NLGI 2 Grease |
| Housing Coating: | POWDER COATED | Vibration Frequency Fundamental Train: | 0.0072 cps |
| Replacement Take-up Block: | AZN82207 | Insert: | 2207U |
| Auxiliary Seals: | 2 OPEN CAPS CAST IRON | Locking Device Kit: | SC8 |
| Max Operating Temperature (F): | 225 °F |
General Specifications
| UPC: | 662864907507 | Weight: | 81.00 LB |
| Country of Origin: | Mexico |
