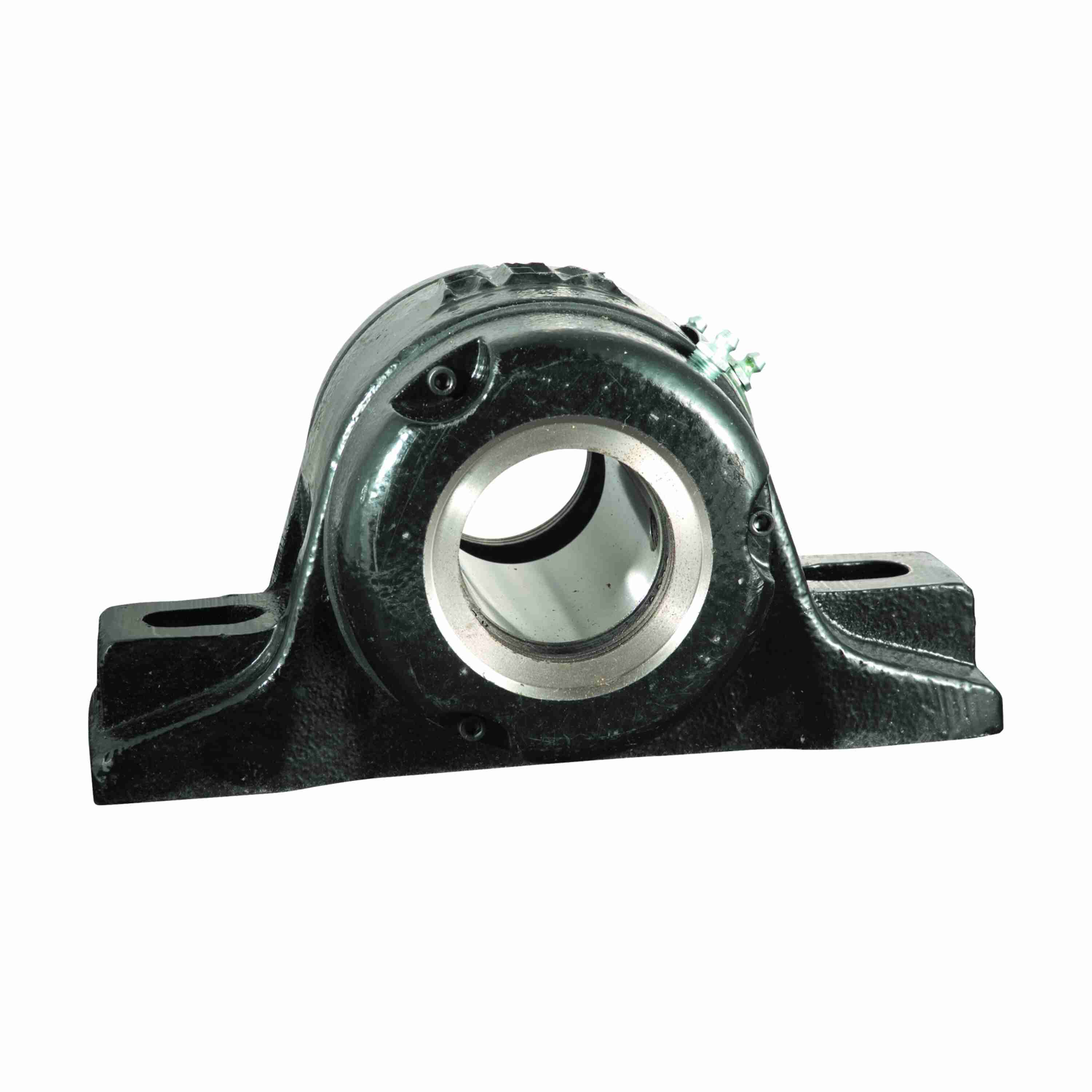

Rexnord BMPS5115 Solid-housed Pillow Blocks Rex Spherical Roller Bearings - BMPS5115
Part #:10417900
Catalog #:BMPS5115
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Length (in): | 9.75 in | Base Width (in): | 2.88 in |
| Bolt Size (in): | 5/8 in | Slot Length (in): | 1.25 in |
| Overall Width (in): | 5.75 in | Overall Height (in): | 4.93 in |
| Foot Height (in): | 1.44 in | Bore Diameter (in): | 1.9375 in |
| Base to Center Height (in): | 2.5 in | Locking Collar Outside Diameter (in): | 2.88 in |
| Housing Cast Face to Outermost Bearing Face (in): | 0.56 in | Expansion Capability (in): | 0.38 in |
| Inner Ring Outside Diameter (in): | 2.307 in | Centerline to Cap Face (in): | 2.88 in |
| Bolt Spacing (in): | 7 in | Length Through Bore (in): | 5.75 in |
| Base Length (in): | 9.75 in |
Technical Specifications
| Housing Color: | Black | Series: | Solid-housed Pillow Blocks |
| Housing Construction: | Solid | Cage Material: | Engineered Polymer |
| Radial Clearance: | C3 STANDARD | Housing Material: | Cast Iron |
| Shaft Locking Type: | Double Set Collar | Misalignment Type: | Dynamic |
| Housing Type: | Pillow Block, Two Bolt | Radial Dynamic Load Capacity (lb): | 28,890 lb |
| Housing Style: | Pillow Block | Product: | ZPS5000 |
| Seal Type: | Heavy Contact Seal | Static Load Rating (lb): | 33,200 lb |
| Fixed/Expansion: | Expansion | Rolling Element: | Spherical Roller |
| Microlock Kit: | ML2 | Setscrew Torque (in-lbs): | 325 in/lbs |
| Ability to Relubricate: | Yes | Maximum Speed (RPM): | 2500 rpm |
| Auxiliary Cap Kit: | AS6115 (qty 1)-BS6 (qty 1) | Seal Kit: | MS6 |
| Housing Coating: | POWDER COATED | Max Operating Temperature (F): | 225 °F |
| Primary Seal: | BUNA SPRING LOADED LIP SEAL | Vibration Frequency Fundamental Train: | 0.0072 cps |
| Grease Fitting Thread Size: | 1/8 NPT | Max Operating Temperature (C): | 107 °C |
| Size Code: | 6 | Vibration Frequency Outer Ring Defect: | 0.1217 cps |
| Misalignment Capability: | ±2.0° Misalignment - Dynamic | Locking Device Kit: | SC6 QTY 2 |
| Expansion Lock Plug: | 105-95008-27 | Vibration Frequency Inner Ring Defect: | 0.1617 cps |
| Lubricant: | Lithium Complex NLGI 2 Grease | Vibration Frequency Roller Spin: | 0.0559 cps |
| Auxiliary Seals: | 1 OPEN 1 CLOSED CAP CAST IRON | Insert: | 5115U |
General Specifications
| UPC: | 698210005160 | Weight: | 20.00 LB |
| Country of Origin: | Mexico |
